319-183
EMI/RFI Environmental Piggyback Boot Adapter,
Composite
with Integrated Shield Sock
Piggyback
Shrink Boot
Connector Adapters
Fast and Easy Final Installation of Environmental Boots to Shield Sock Assemblies
How To Order
Angular Function
S =
Straight
T =
45° Elbow
W =
90° Elbow
Finish
Sym
(Table II)
Optional Braid Material
A, B, T & L
(Insert Dash for Standard)
(Table V)
Product
Series

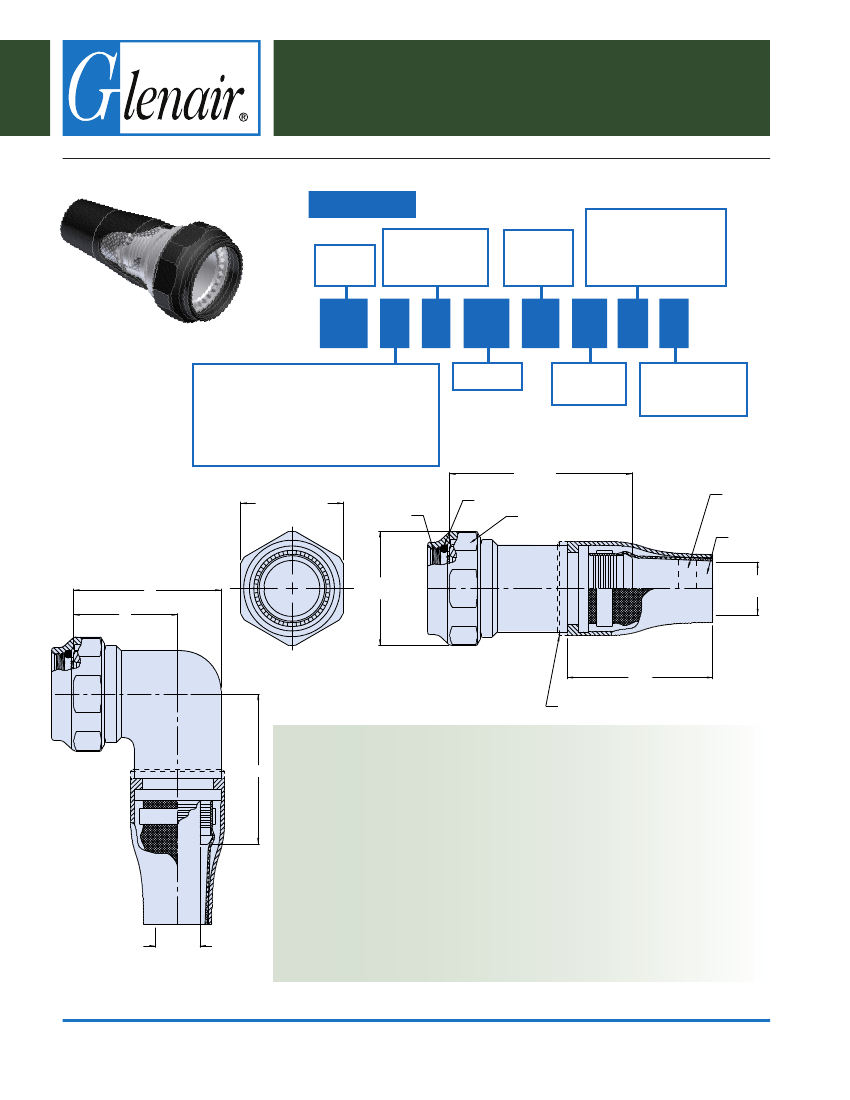

Cutaway View
319
H
S
183 XM 19
Basic No.
Shell Size
(Table III)
B
-
2
Boot Material
Type
(Table IV)
Connector Designator
(Table III)
A
= MIL-DTL-83723, Series III; MIL-DTL-5015;
MIL-DTL-26482
F
= MIL-DTL-38999, Series I & II
G
= MIL-DTL-28840
H
= MIL-DTL-38999, Series III & IV
U
= MIL-DTL-29600
1.25
(31.8)
Max
O-Ring
Typ
Anti-Decoupling
Device
D Hex - Typ
A Thread
Conductive
Hot Melt
Adhesive
Hot Melt
Adhesive
M
As Supplied
F
E
C
Typ
Sym S - Straight
Material and Finish/Notes
G
L
Max
Typ
Raised Configuration (Mfr's Option) - Typ
Elbow, Adapter: - High Grade Engineering Thermoplastic/See Table III
Coupling Nut, Anti-Decoupling Device: High Grade Engineering Thermoplastic/N.A.
O-Ring: Silicone/N.A.
Braid: See Table IV
Boot: See Table V
Band: Cres
Assembly Notes
Sym W
90°
Cable
Entry
(Typ)
See Table I on page 3 for front-end dimensional details.
Assembly identified with manufacturer’s name and part number, space permitting.
Glenair 600-091 or 600-157 Series Backshell Assembly Tools are recommended for assembly
and installation.
O-Ring supplied with Connector Designator F & H only.
O-Ring not supplied with Connector Designator A.
© 2012 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
8
E-Mail: sales@glenair.com
with Integrated Shield Sock
Table III: Shell Size
Shell Size
A
-
-
08
-
03
-
10
-
-
-
12
-
-
-
14
-
-
-
16
-
18
-
-
-
20
-
-
-
22
-
-
24
-
61
-
-
28
F/L
08
-
-
-
10
-
-
-
12
-
-
-
14
-
-
-
16
-
-
-
18
-
-
-
20
-
-
-
22
-
-
24
-
-
-
-
-
G
-
-
-
-
-
-
-
-
-
-
11
-
-
_
13
-
-
-
15
-
-
-
17
-
-
-
19
-
-
-
-
23
-
-
-
25
-
H
-
-
09
-
-
11
-
-
-
13
-
-
-
15
-
-
-
17
-
-
-
19
-
-
-
21
-
-
-
23
-
-
25
-
-
-
-
U
-
-
08
-
-
-
10
-
-
-
12
-
-
-
14
-
-
-
16
-
-
-
18
-
-
-
20
-
-
22
-
-
-
24
-
-
A
Thread
7/16-28 UNEF
M12 X 1-6H
1/2-20 UNEF
1/2-28 UNEF
9/16-24 UNEF
M15 X 1-6H
5/8-24 UNEF
5/8-28 UN
11/16-24 UNEF
M18 X 1-6H
3/4-20 UNEF
3/4-28 UNS
13/16-20 UNEF
M22 X 1-6H
7/8-20 UNEF
7/8-28 UNEF
15/16-20 UNEF
M25 X 1-6H
1-20 UNEF
1-28 UN
1 1/16-18 UNEF
M28 X 1-6H
1 1/8-18 UNEF
1 1/8-28 UNEF
1 3/16-18 UNEF
M31 X 1 6H
1 1/4-18 UNEF
1 1/4-28 UNEF
1 5/16-18 UNEF
M34 X 1-6H
1 3/8-28 UN
1 7/16-18 UNEF
M37 X 1-6H
1 1/2-18 UNEF
1 1/2-28 UN
1 9/16-18 UNEF
1/34-18 UNS
ØC
Max
D
Flats
E
F
G
H
J
.060 (1.5) .090 (2.3) .090 (2.3) .060 (1.5) .090 (2.3)
Cable
Entry
± .03 (0.8)
L
Max
M
Min
N
Max
.860 (21.8) .750 (19.1) .690 (17.5) .880 (22.4) 1.19 (30.2) .720 (18.3) 1.00 (25.4) .250 (6.40) 2.36 (59.9) 0.26 (6.60) .138 (3.51)
.980 (24.9) .880 (22.4) .750 (19.1) 1.00 (25.4) 1.25 (31.8) .750 (19.1) 1.06 (26.9) .380 (9.70) 2.36 (59.9) 0.38 (9.70) .197 (5.00)
1.16 (29.5) 1.00 (25.4) .810 (20.6) 1.13 (28.7) 1.31 (33.3) .750 (19.1) 1.13 (28.7) .500 (12.7) 2.83 (71.9) 0.51 (13.0) .197 (5.00)
1.28 (32.5) 1.13 (28.7) .880 (22.4) 1.31 (33.3) 1.38 (35.1) .760 (19.3) 1.16 (29.5) .630 (16.0) 2.83 (71.9) 0.63 (16.0) .236 (5.60)
1.41 (35.8) 1.25 (31.8) .940 (23.9) 1.38 (35.1) 1.44 (36.6) .780 (19.8) 1.18 (30.0) .750 (19.1) 3.74 (95.0) 0.76 (19.3) .236 (5.60)
1.52 (38.6) 1.38 (35.1) .970 (24.6) 1.44 (36.6) 1.47 (37.3) .790 (20.1) 1.19 (30.2) .810 (20.6) 3.74 (95.0) 0.82 (20.8) .276 (7.01)
1.64 (41.7) 1.50 (38.1) 1.06 (26.9) 1.63 (41.4) 1.56 (39.6) .820 (20.8) 1.22 (31.0) .940 (23.9) 3.74 (95.0) 0.94 (23.9) .335 (8.51)
1.77 (45.0) 1.63 (41.4) 1.13 (28.7) 1.75 (44.5) 1.63 (41.4) .860 (21.8) 1.26 (32.0) 1.06 (26.9) 4.92 (125) 1.07 (27.2) .394 (10.0)
1.89 (48.0) 1.75 (44.5) 1.19 (30.2) 1.88 (47.8) 1.69 (42.9) .890 (22.6) 1.29 (32.8) 1.19 (30.2) 4.92 (125) 1.19 (30.2) .394 (10.0)
2.02 (51.3) 1.88 (47.8)
2.15 (54.6) 2.00 (50.8)
1.34 (34.0) 2.13 (54.1) 1.78 (45.2) .920 (23.4) 1.32 (33.5) 1.38 (35.1) 4.92 (125) 1.38 (35.1) .591 (15.0)
H
Table II: Backshell Finish Options
Sym
Finish Description
2000 Hour Corrosion Resistant
XM
Electroless Nickel
2000 Hour Corrosion Resistant NI-PTFE,
XMT
Nickel-Fluorocarbon Polymer
2000 Hour Corrosion Resistant Cadmium
XW
Olive Drab Over Electroless Nickel
Table V: Braided Shielding Options
Symbol
A
B
–
T
L
Braid Type
100% AmberStrand®
75%/25% AmberStrand® Blend
Nickel/Copper 34 AWG
Tin/Copper 34 AWG
Armorlite™
J
Sym T

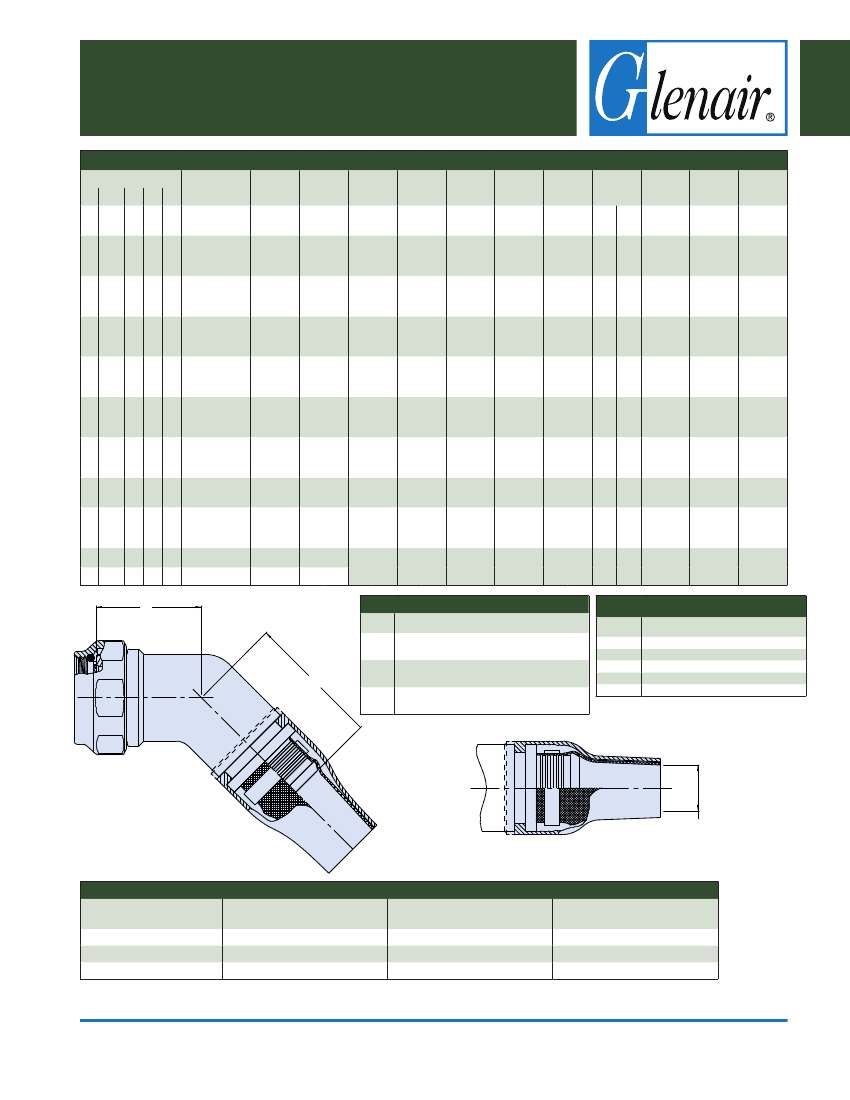

45°
Dimensions in Inches (millimeters) are
subject to change without notice.
N
After Unrestricted
Shrinkage
Table IV: Boot Material Selection Guide
Attribute
Continuous Operating Temp.
Resistence To Fuels, Oils
Low Toxicity, Zero Halogen
© 2012 Glenair, Inc.
Type 1 High-Performance
Semi-Rigid Elastomer
-75° To +150° c-
Excellent
No
Type 2 Zero-Halogen
Semi-Rigid Polyolefin
30° To +135° c-
Very Good
Yes
U.S. CAGE Code 06324
Type 3 General Purpose
Flexible Polyolefin
55° To 135° c
Good
No
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
9
E-Mail: sales@glenair.com
Piggyback
Shrink Boot
Connector Adapters
319-183
EMI/RFI Environmental Piggyback Boot Adapter,
Composite
