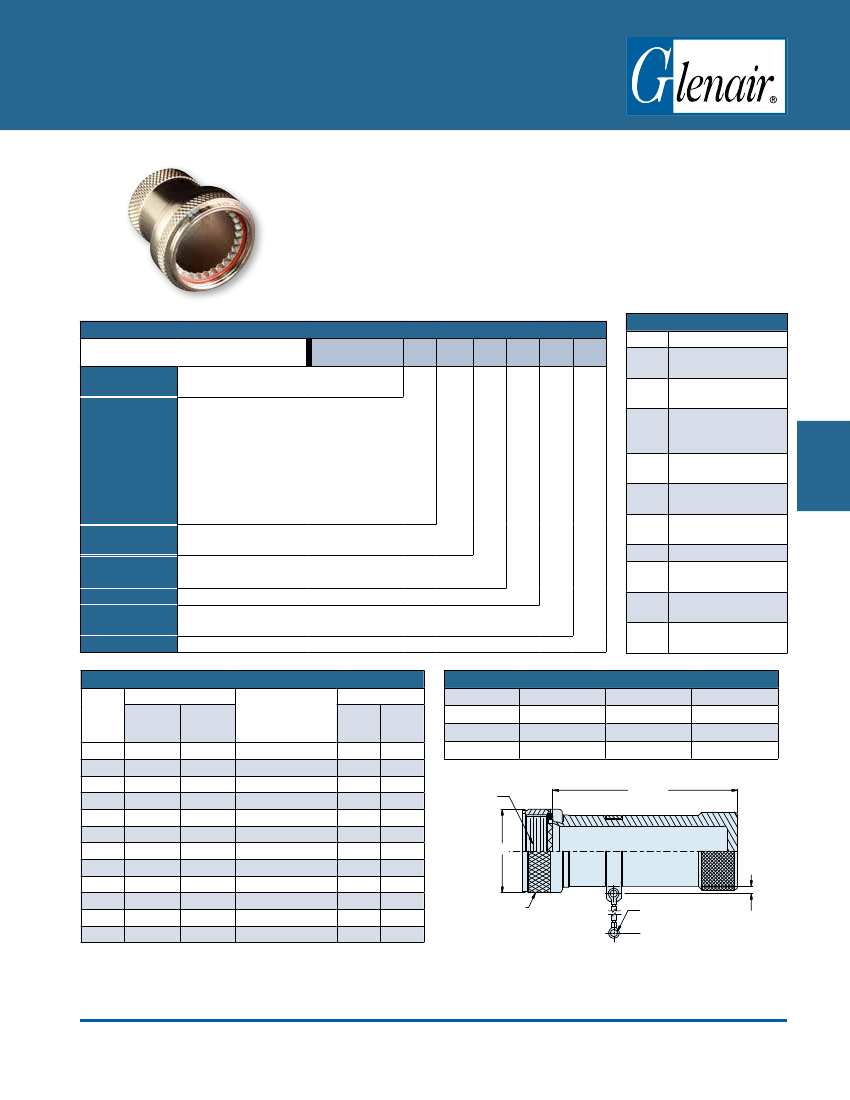

340MS001 Ordering Information
Shorting Applications
—
These caps
are used to cover up exposed wires
on the back of a shorting connector.
Shorting connectors are used to protect
critical circuits from static discharge.
These extended plugs can also re-route
circuits in
Switching
applications like
our smaller plugs, but accommodate
the need for additional resistors and
active electronics when needed.
How To Order
Sample Part Number
Series
Table I: Attachment Sym
M
12
-5
E
A
Sym
C
D
E
F
G
H
N
R
S
U
Description
No Attachment, Body
Strap Only
Bead Chain, Cres/
Passivate, with Terminal
Link Chain, Cres/
Passivate, with Reverse
Link
Wire Rope, Nylon Jacket
with Terminal
Nylon Rope, with
Terminal
SST Wire Rope, Teflon®
Jacket
Attachment Omitted
Wire Rope, Teflon
Jacket, with Terminal
#8 Sash Chain, Cres/
Passivate
SST Wire Rope,
Polyurethane Jacket
340MS001
340MS001
Straight Backshell and Shorting Cap
C
= Aluminum / Black Anodize (Non-Conductive)
RoHS Compliant
Shell Material
and Finish
M
= Aluminum / Electroless Nickel
NF
= Aluminum / Cadmium with Olive Drab
ZN
= Aluminum / Zinc-Nickel with Olive Drab
Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated
Size Code
(See Table II)
Length
Attachment Sym
Attachment
Length
Att. Ring Dia.
05, 06, 07, 08, 09, 10, 12, 13, 14, 16, 17
Length in .5 inch increments. Example: 6 = 3.0 inches
Standard minimum length is 1.00 inch (dash code -2)
See Table I
Length in .5 inch increments. Example: 6 = 3.0 inches
See Table III
Table II
Size
Code
05
06
11
07
08
09
10
12
13
14
16
17
Shell Size Reference
800/801
803/804
5
6
N/A
7
8
9
10
11/12/13
N/A
14/15/16/17
19
21
805
N/A
N/A
8
9
10
11
12
13
15
18/19
21
23
A Thread Class -2B
1/4-32 UNEF
5/16-32 UNEF
3/8-32 UNEF
7/16-28 UNEF
1/2-28 UNEF
9/16-24 UNEF
5/8-24 UNEF
11/16-24 UNEF
3/4-20 UNEF
15/16-20 UNEF
1 1/16-18 UNEF
1 3/16-18 UNEF
Ø B Max
In.
0.470
0.530
0.570
0.637
0.700
0.758
0.819
0.896
0.930
1.137
1.230
1.387
mm.
11.94
13.46
14.48
16.18
17.78
19.25
20.80
22.76
23.62
28.88
31.24
35.23
Table III: Attachment Ring Diameter
Symbol
E Dia.
Symbol
E Dia.
A
.140
D
.191
B
.167
E
.125
C
.182
F
.218
A THREAD
TYP
LENGTH
B
KNURL STYLE MFR
OPTION - TYP
ATTACHMENT
LENGTH ±.25
E DIA
.50 MAX
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-21
E-Mail: sales@glenair.com
Accessories
Series 80 Mighty Mouse
Shorting Cap with Rotatable Coupling and Attachment
