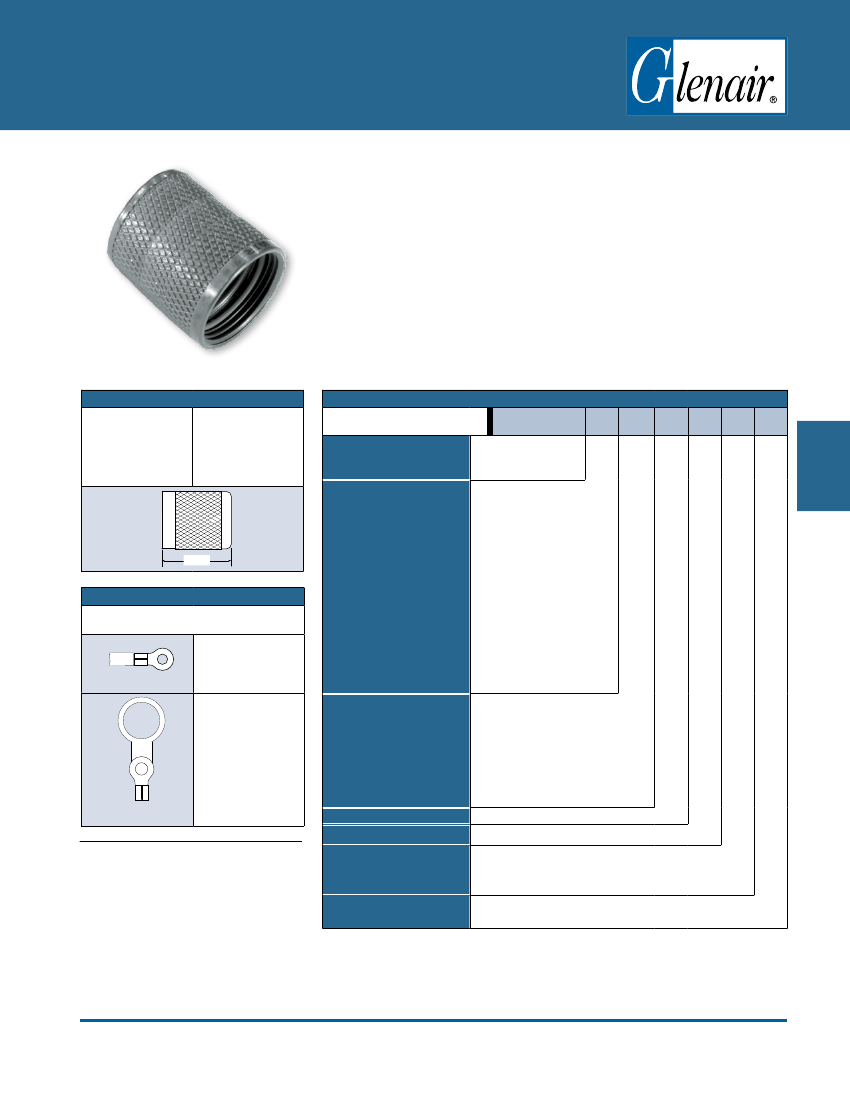

340MS026 Ordering Information
Shorting Applications
—
These caps
are used to cover up exposed wires
on the back of a shorting connector.
Shorting connectors are used to protect
critical circuits from static discharge.
Plugs can also re-route circuits in
Switching applications. Or, resistors
and active electronics can be installed.
Whatever the application, a shorting
cap is a simple way to cover up the back
end of the connector.
Table I: Overall Length
-4
– .50 (12.7)
-5
– .75 (19.1)
-6
– 1.00 (25.4)
-7
– 1.25 (31.8)
-8
– 1.50 (38.1)
-9
– 1.75 (44.5)
-10
– 2.00 (50.8)
-11
– 2.25 (57.2)
-12
– 2.50 (63.5)
-13
– 2.75 (69.9)
-14
– 3.00 (76.2)
How To Order
Sample Part Number
Series
340MS026
340MS026
=
Straight Shorting
Cap Backshell
M
G
07
-4
02
-6
C
= Aluminum / Black Anodize
(Non-Conductive) RoHS
Compliant
M
= Aluminum / Electroless
Nickel
LENGTH
Table II: Attachment Code
Omit for attachment types
N
(No Attachment)
and
SK
(Slip Knot)
01
– .126 (3.20) I.D.
02
– .145 (3.68) I.D.
04
– .188 (4.78) I.D.
06
– .197 (5.00) I.D.
14
– .385 (9.78) I.D.
15
– .445 (11.30) I.D.
16
– .570 (14.48) I.D.
17
– .635 (16.13) I.D.
18
– .695 (17.65) I.D.
19
– .885 (22.48) I.D.
20
– 1.070 (27.17) I.D.
21
– 1.135 (28.83) I.D.
22
– 1.210 (30.73) I.D.
Shell Material and Finish
NF
= Aluminum / Cadmium
with Olive Drab
ZN
= Aluminum / Zinc-Nickel
with Olive Drab Chromate
ZNU
= Aluminum / Zinc-
Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE
Z1
= Stainless Steel /
Passivated
G
= Nylon Rope
H
= SST Wire Rope, Teflon® Jacket
N
= No Attachment
Small Ring
Attachment Type
S
= SST Sash Chain
SK
= Nylon Rope With Slip Knot
U
= SST Wire Rope, Polyurethane
Jacket
05, 06, 11, 07, 08, 09, 10, 12, 13, 14, 16, 17
-4, -5,
-7,
-8, -9, -10, -11, -12, -13, -14
Omit for attachment Type N (No Attachment)
Small Ring
Large Solid Ring
01, 02, 04, 06
14, 15, 16, 17, 18,19, 20, 21, 22
Omit
for attachment Type N (No Attachment)
Example: “-6” equals six inch length
Large Solid Ring
Size Code
Overall Length (See Table I)
Attachment Code
(See Table II)
Attachment Length in
Inches
Materials
• Cap: Aluminum Alloy 6061-T6 or 300
Series Stainless Steel
• O-Ring: Silicone Rubber
•
Hardware: 300 Series Stainless Steel
NOTES
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-19
E-Mail: sales@glenair.com
Accessories

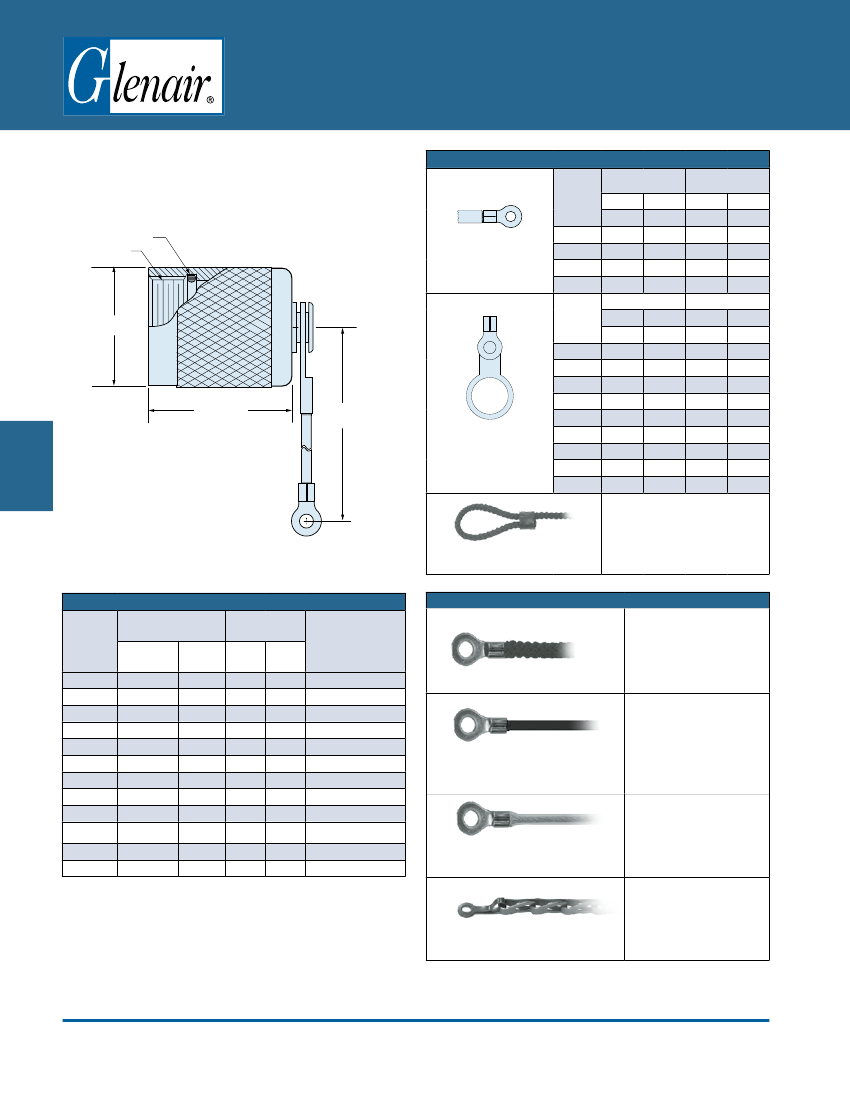

Series 80 Mighty Mouse
Straight Shorting Cap with Attachment
X
Series 80 Mighty Mouse
Shorting Cap Dimensions
340MS026
Attachment Options
Dia.
Code
Ring I.D.
In.
±.005
.126
.145
.188
mm.
±0.13
3.20
3.68
4.78
Ring O.D.
In.
Max.
.31
.31
.31
mm.
Max.
7.9
7.9
7.9
X
Accessories
O-RING
B THREAD
A
LENGTH
LENGTH
± .25 (6.4)
Small Ring for Attaching
to a Panel with a Screw
01
02
04
06
Dia.
Code
14
15
16
17
18
19
20
21
22
.197
5.00
Ring I.D.
In.
mm.
± .010 ±0.25
.385
.445
.570
.635
.695
.885
1.070
1.135
1.210
9.78
11.30
14.48
16.13
17.65
22.48
27.17
28.83
30.73
.31
7.9
Ring O.D.
In.
mm.
± .015 ± 0.38
.510
.565
.685
.760
.820
1.010
1.195
1.250
1.312
12.95
14.35
17.40
19.30
20.82
25.65
30.35
31.75
33.32
Large Solid Ring for
Attaching to a Jam Nut
Receptacle
Nylon Rope With Slip Knot (SK) for
Attaching Covers to Cable
-65° to +100°C., black, very flexible,
very good abrasion resistance,
good resistance to fuels, .120"
(3mm) diameter. Length includes
.5" (13mm) diameter loop.
Dimensions
Shell Size Reference
Size Code
05
06
11
07
08
09
10
12
13
14
16
17
800/801
803/804
5
6
N/A
7
8
9
10
11/12/13
N/A
14/15/16/17
19
21
805
N/A
N/A
8
9
10
11
12
13
15
18/19
21
23
Ø A Max.
B Threads
In.
.350
.415
.465
.530
.595
.650
.715
.785
.830
1.020
1.155
1.270
mm.
8.89
10.54
11.81
13.46
14.35
16.51
18.16
19.94
21.08
25.91
29.34
32.26
.250-32 UNEF-2B
.3125-32 UNEF-2B
.3750-32 UNEF-2B
.4375-28 UNEF-2B
.5000-28 UNEF-2B
.5625-24 UNEF-2B
.6250-24 UNEF-2B
.6875-24 UNEF-2B
.7500-20 UNEF-2B
.9375-20 UNEF-2B
1.0625-18 UNEF-2B
1.1875-18 UNEF-2B
Lanyard Options
-65° to +100°C., black, very
flexible, very good abrasion
resistance, good resistance to
fuels, .120" (3mm) diameter
Black polyurethane over
stainless steel rope, -65°
to +125°C., very flexible,
excellent abrasion resistance,
excellent resistance to fuels,
.080" (2mm) diameter
Translucent FEP jacket
over stainless steel, -65° to
+200°C., fair flexibility, good
abrasion resistance, .100"
diameter
Nylon Rope (G)
Polyurethane Coated Wire Rope (U)
Teflon Jacketed Wire Rope (H)
Stainless steel, #8 chain, .240"
(6mm)
Sash Chain (S)
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-20
E-Mail: sales@glenair.com
