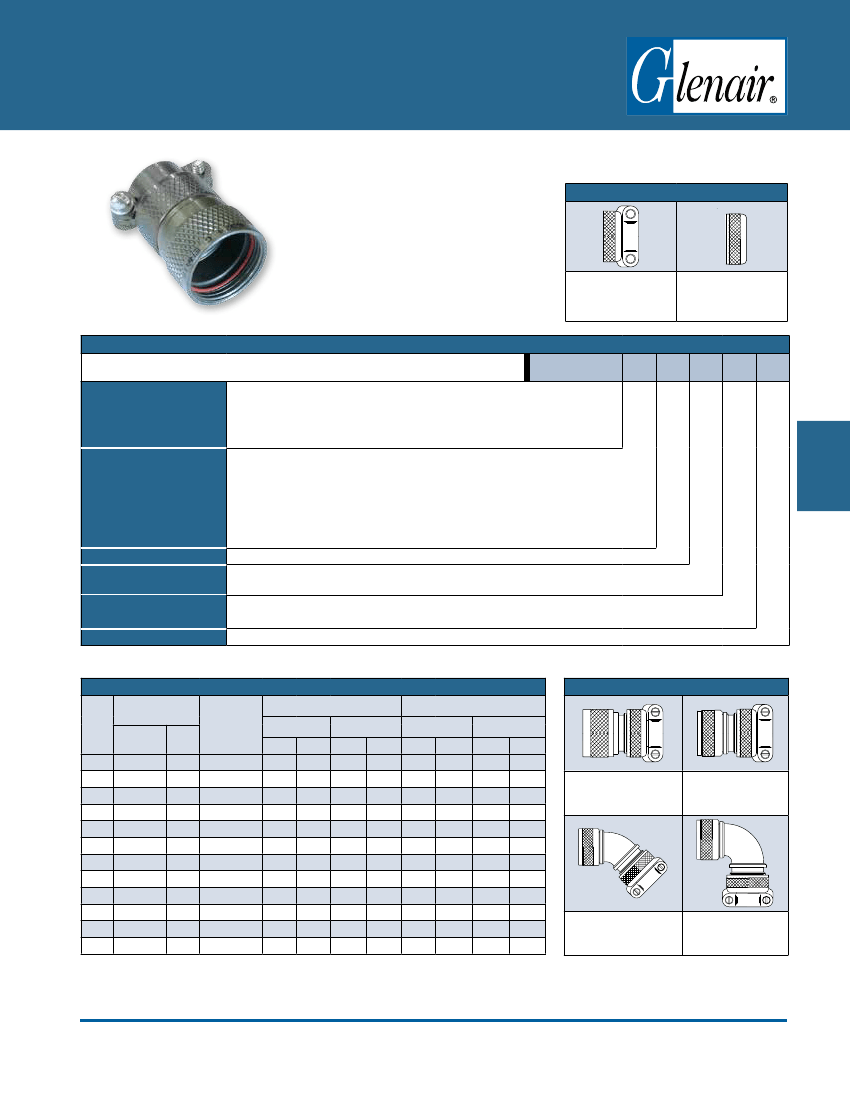

370MS037 and 370M*038 Straight, 45° and 90° Ordering Information
Environmental backshells feature
silicone o-rings for a watertight seal.
Straight Entry backshells are available
with direct coupling or rotatable
coupling.
45° and 90° adapters feature rotatable
coupling nuts.
How To Order
Sample Part Number
370MS037
= Straight Entry
370MS038
= Straight Entry
370MB038
= 45° Entry
370MA038
= 90° Entry
M
= Aluminum / Electroless Nickel
NF
= Aluminum / Cadmium with Olive Drab
ZN
= Aluminum / Zinc-Nickel with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE
Z1
= Stainless Steel / Passivated
05, 06, 11, 07, 08, 09, 10, 12, 13, 14, 16, 17
01-, 02-, 03-, 04-, 05-, 06-, 07-, 08-, 09-, 10-, 11-, 12-,13-
Straight length only.
Specify length in 1/8 inch increments (e.g. 6 = .75 inches). See Table II for standard lengths.
Omit
= screw clamp with saddle bars
N
= Compression Nut, Low Profile
Omit
Screw Clamp with
Saddle Bars
N
Compression Nut
Table II: Cover Style
370MS037
C
10
05-
6
N
Series (See Table III)
Shell Material and Finish
Size Code (See Table I)
Cable Entry Code
(See Table II)
Length (See Table III)
Clamp Style (Table II)
Table I: Straight Coupling Dimensions
Size Code
Shell Size Ref
800/801
803/804
5
6
N/A
7
8
9
10
11 thru 13
N/A
14 thru 17
19
21
805
N/A
N/A
8
9
10
11
12
13
15
18/19
21
23
A Thread
UNEF
Class -2B
1/4 - 32
5/16 - 32
3/8 - 32
7/16 - 28
1/2 - 28
9/16 - 24
5/8 - 24
11/16 - 24
3/4 - 20
15/16 - 20
1 1/16 - 18
1 3/16 - 18
370MS038
B Max.
In.
.470
.530
.570
.637
.700
.758
.819
.896
.930
1.137
1.230
1.280
mm.
11.94
13.46
14.48
16.18
17.78
19.25
20.80
22.76
23.62
28.88
31.24
32.51
Std Length
In.
.75
.75
.75
.75
.75
.75
.75
.88
.88
1.00
1.00
1.13
mm.
19.05
19.05
19.05
19.05
19.05
19.05
19.05
22.35
22.35
25.40
25.40
28.70
In.
.350
.415
.465
.530
.595
.650
.715
.785
.830
1.020
1.155
1.287
370MS037
C Max.
mm.
8.89
10.54
11.68
13.46
15.11
16.51
18.16
19.94
21.08
25.91
29.34
35.23
Std Length
In.
.63
.63
.63
.75
.75
.75
.75
.88
.88
1.00
1.00
1.13
mm.
16.00
16.00
16.00
19.05
19.05
19.05
19.05
22.35
22.35
25.40
25.40
28.70
Table III: Backshell Profile
05
06
11
07
08
09
10
12
13
14
16
17
370MS037
Straight Entry,
Direct Coupling
370MS038
Straight Entry,
Rotatable Coupling
370MB038
45° Entry
Rotatable Coupling
370MA038
90° Entry
Rotatable Coupling
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-29
E-Mail: sales@glenair.com
Accessories
Series 80 Mighty Mouse
Direct or Rotatable Coupling Environmental Backshell
