377-014 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 377-014

Preview

377-014: DescriptionComposite Backshell; File Size1MB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

377-014 Overview

Composite Backshell

Preview

Download Datasheet

View All

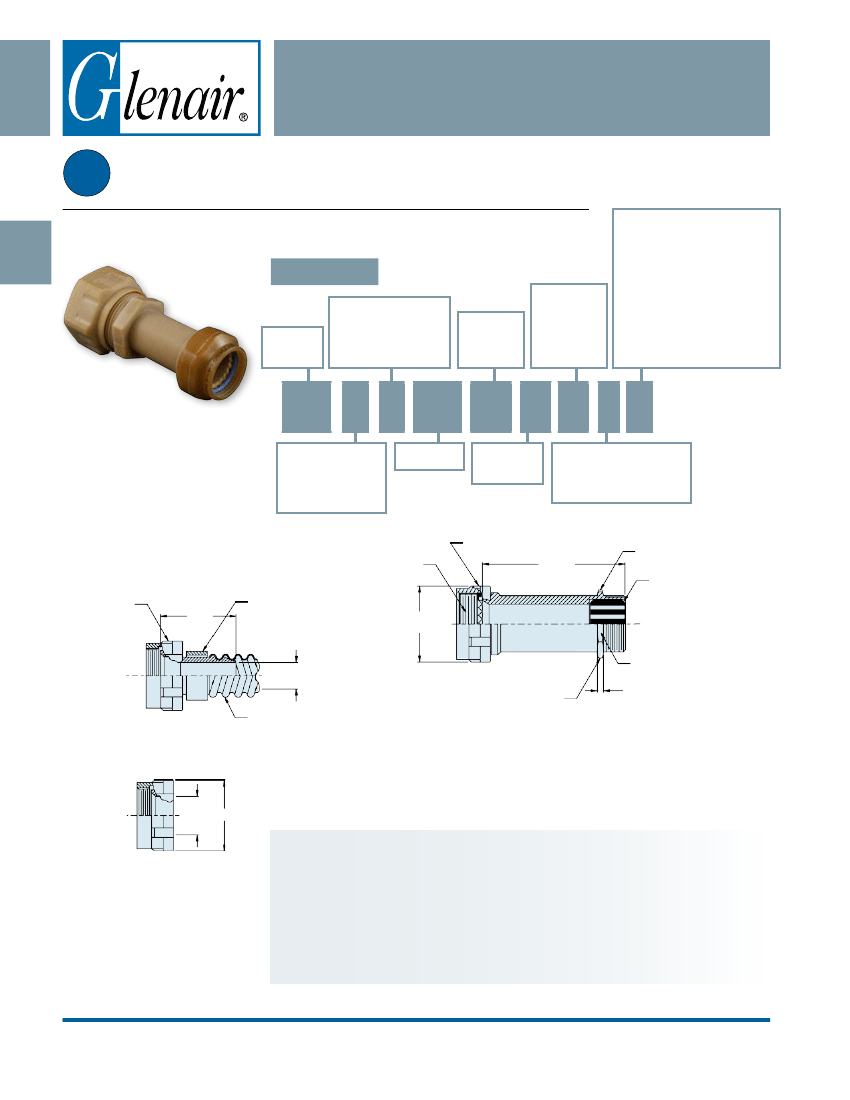

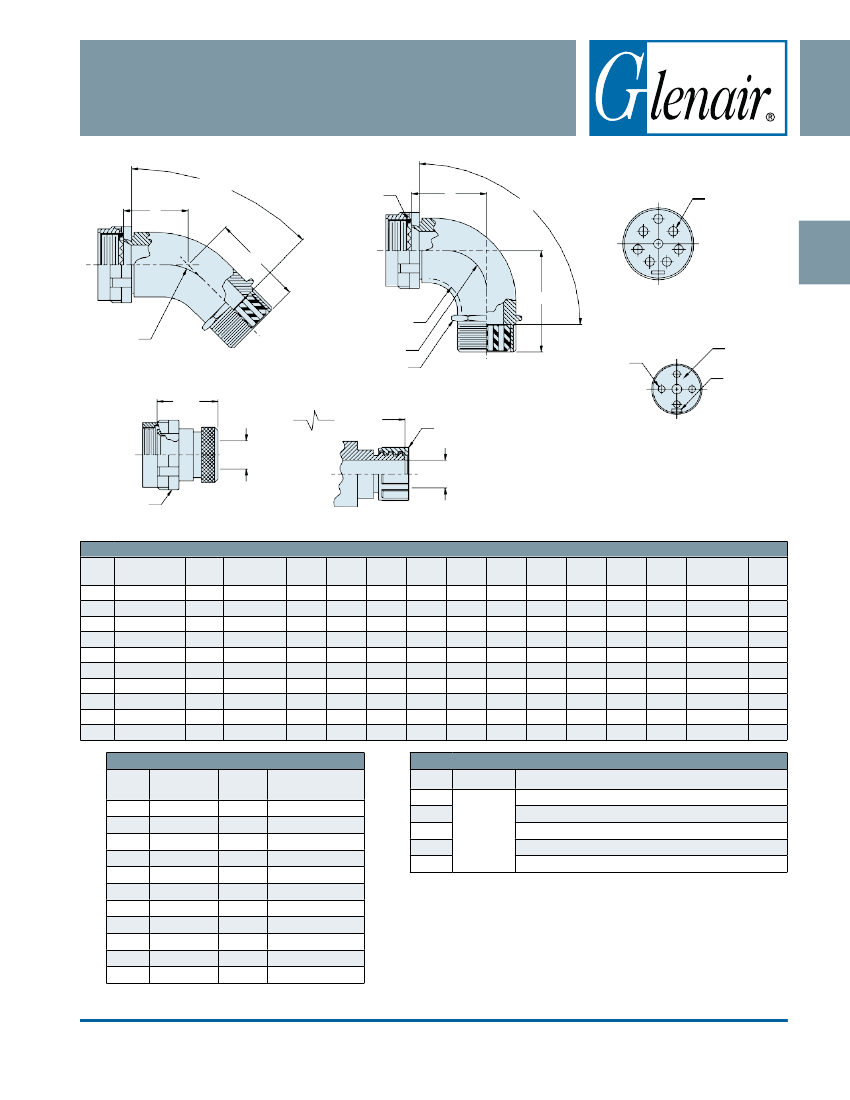

for Fiber Optic MIL-DTL-38999 Series III & IV Connectors

D38999

Series III

377-014

Composite Backshell

MIL-DTL-38999

Series III Type

MIL-DTL-38999 series III & IV backshell

How To Order

Angular Function

= Straight

= 90° Solid Elbow

= 45° Solid Elbow

Optional

Entry Size

(Table II)

Omit for

Std. Table I

Code G -

Gland Nut;

Code T -

Tubing Adapter,

Glenair Types

E, F, P,

Code K -

Tubing Adapter

with Nut, Glenair Peek

Code TB -

Tubing Adapter

Supplied with Band, Glenair Types

E, F, P,

Code TN -

Tubing Adapter with

Nut, Glenair Types

E, F, P,

(Omit for Std.Shrink Boot Adapter)

Product

Series

Material/

Finish

(Table III)

377

H S 014 XM 11 06 4 G

Basic No.

Shell Size

(Table I)

Length In 1/2 Inch

Increments

(Example: 4 = 2 Inches)

Connector

Designator,

MIL-DTL-38999,

Series III&IV

Anti-rotation

Device

A Thread

Anti-Rotation

Device

Band Termination

See P/N Development

Length

Grommet Key Indicator

(Color White)

Grommet Key (8 at 45°)

1.75

Max

ØB

ØC

Ref

Spilt Helical Convoluted

Tubing (Not Supplied)

CODE S - STRAIGHT

Positive Stop

L Hex Flats

.190 (4.8)

CODE T - TUBING

ADAPTER

ØM

Ref

ØN

Material and Finish

CODE G

GLAND NUT

Adapters, Elbows, Coupling Nut, Nut: Hi-grade engineering thermoplastic/see table III

Grommet, O-Ring: Fluorosilicone

Anti-Rotation Device: Corrosion resistant material

Notes

Glenair 600 Series Backshell assembly tools are recommended for assembly and installation.

Standard minimum length: 1.5 inches, for shorter length consult factory.

For Sealing Plugs, see Glenair drawing 687-142.

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com
