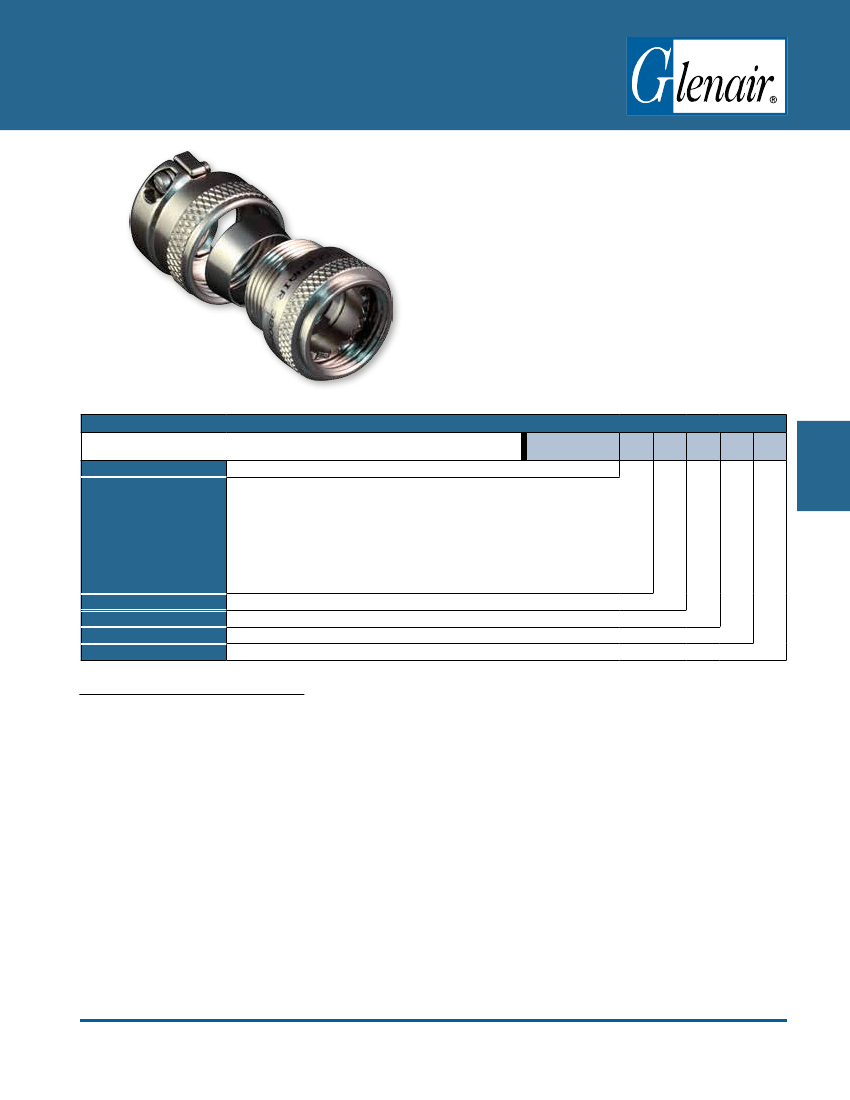

380MS141 Ordering Information
The Series 80 Mighty Mouse, non-environmental backshell utilizes
an EMI ring for easy shield termination. A protective backshell
provides robust cable strain-relief.
How To Order
Sample Part Number
Series
380MS141
= Straight Entry
UCR
= Aluminum / Zinc-Cobalt Black
M
= Aluminum / Electroless Nickel
NF
= Aluminum / Cadmium with Olive Drab
ZN
= Aluminum / Zinc-Nickel with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
MT
= Aluminum / Nickel-PTFE
Z1
= Stainless Steel / Passivated
Size Code (See Table I)
Cable Entry Code (Table II)
Length
Band Option
05, 06, 11, 07, 08, 09, 10, 12, 13, 14, 16, 17
02, 25, 03, 35, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16
Specify length in 1/8 inch increments (e.g. 6 = .75 inches). Minimum length .50 inches
B
= .125 inch wide straigt band
K
= .125 inch wide precoiled band
Omit
for no band supplied
380MS141
M
08
06
-4
Shell Material and Finish
Material/Finish
• Adapter, coupling nut, rear nut:
aluminum alloy/per part number
development
• Saddle: stainless steel/per part number
development
• Hardware: stainless steel/passivated
NOTES
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-33
E-Mail: sales@glenair.com
Accessories
Series 80 Mighty Mouse EMI/RFI Backshell
Non-Environmental
X
Series 80 Mighty Mouse EMI/RFI Backshell
Non-Environmental

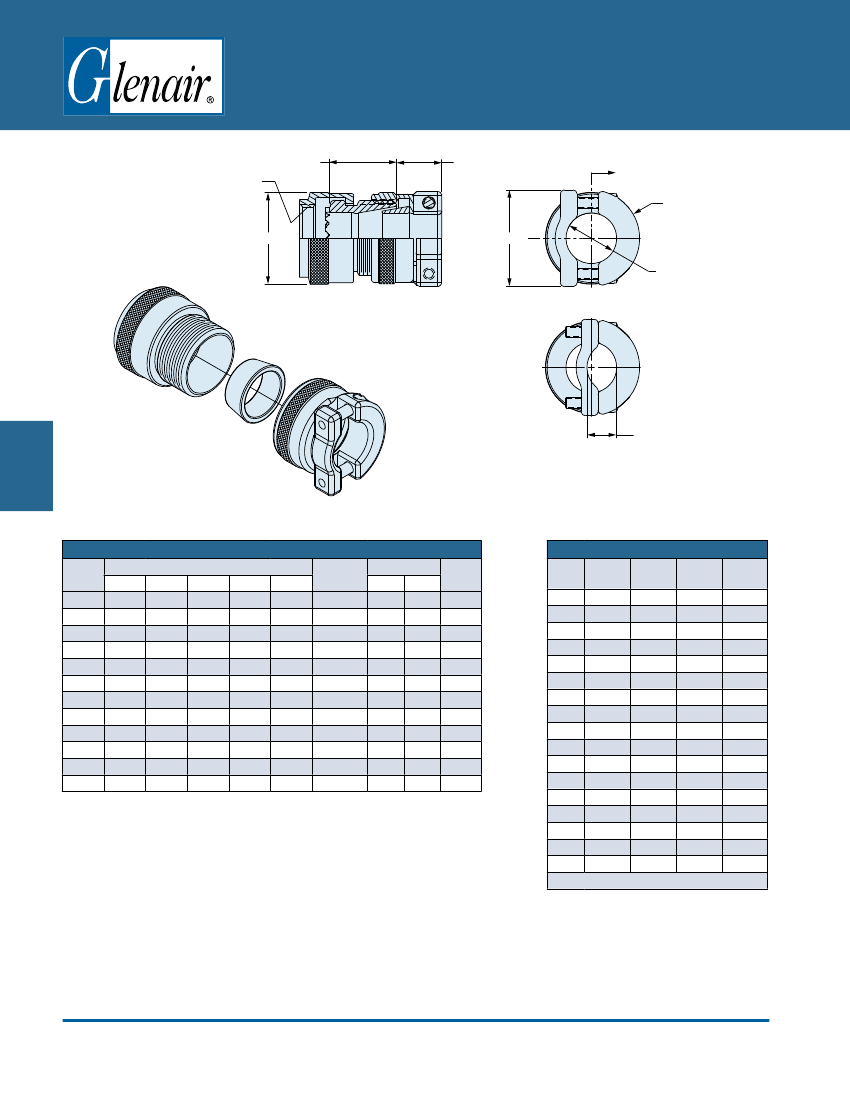

380MS141 Ordering Information
.375 (9.52) MAX
A
øL
øB
K
øH
SECTION A-A
X
Table I: Size Code
Size
Code
05
06
11
07
08
09
10
12
13
14
16
17
Shell Size, Mighty Mouse Series
800
801
803
804
805
5
6
-
7
8
9
10
12
-
-
-
-
5
6
-
7
8
9
10
13
-
16,17
19
21
5
6
-
7
8
9
10
12
-
14,15
-
-
5
6
-
7
8
9
10
12
-
14,15
-
-
-
-
8
9
10
11
12
-
15
18,19
21
23
A Thread
UNEF-2B
.2500-32
.3125-32
.3750-32
.4375-28
.5000-28
.5625-24
.6250-24
.6875-24
.7500-20
.9375-20
1.0625-18
1.1875-18
Ø B Max
In.
mm.
0.470
0.530
0.570
0.637
0.700
0.758
0.819
0.896
0.930
1.137
1.250
1.397
11.94
13.46
14.48
16.18
17.78
19.25
20.80
22.76
23.62
28.88
31.75
35.48
Max
Entry
25
35
4
5
6
7
8
9
10
13
14
16
Entry
Code
02
25
03
35
04
05
06
07
08
09
10
11
12
13
14
Accessories
A THREAD
© 2014 Glenair, Inc.
LENGTH
J CLOSED
Table II: Cable Entry Code
ØH
0.125
0.156
0.188
0.219
0.250
0.313
0.375
0.438
0.500
0.563
0.625
0.688
0.750
0.813
0.875
J
Closed
0.075
0.094
0.113
0.131
0.150
0.188
0.225
0.263
0.300
TBD*
TBD*
TBD*
TBD*
TBD*
TBD*
K
0.470
0.470
0.530
0.530
0.590
0.655
0.715
0.780
0.840
TBD*
TBD*
TBD*
TBD*
TBD*
TBD*
TBD*
TBD*
Ø L Max
0.470
0.470
0.530
0.530
0.590
0.655
0.715
0.780
0.840
TBD*
TBD*
TBD*
TBD*
TBD*
TBD*
TBD*
TBD*
15
0.938
TBD*
16
1.000
TBD*
* Contact Factory
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
X-34
E-Mail: sales@glenair.com
