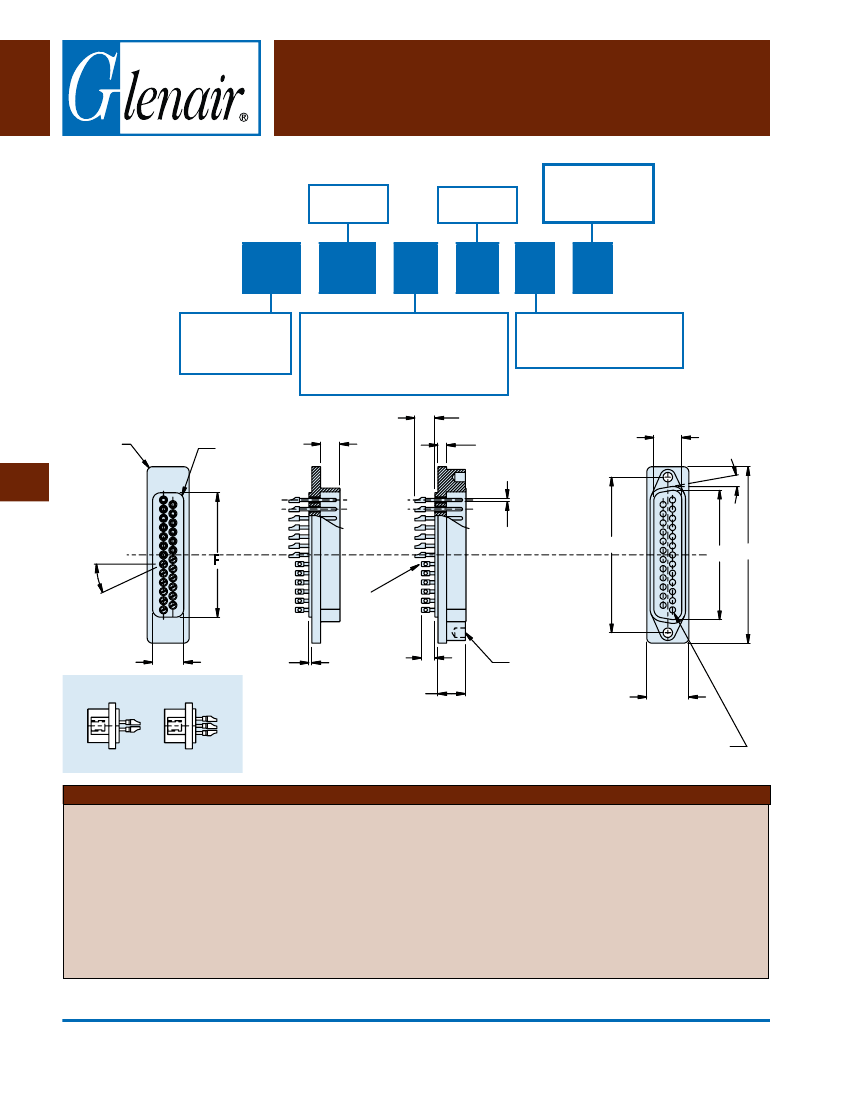

Glass-Sealed D-Subminiature Receptacle
280-006
MIL-DTL-24308/9 Hermetic
MIL-DTL-24308
Connector
Style
Shell Size
Contact Style
P
= Solder Cup
X
= Eyelet
280
-
006
MIL-DTL-24308/9
D-Subminiature
Hermetic
K
1
A
P
Class
FTR
= Standard Hermetic (RoHs)
H
= Standard Hermetic
K
= Space Grade Hermetic
Flange Type
A
= Solid
B
= Two #4-40 Lockposts
R.062
Typ
TERMINATION
VIEW
.238 Max
R.093
Typ
K
H
ENGAGEMENT
VIEW
D
10°
Typ
J
F
25° Typ
Eyelets
G
Ø.040±.001
C
B
A
See Note 2
.046
.032
.161 Max
.335
.316
SOLDER CUP ORIENTATION
#4-40 Unc-2b
X .125 Min
Full Thread
FLANGE
TYPE
B
SIZES 1-4
1.
2.
3.
SIZE 5
FLANGE
TYPE
A
E
Insert Arrangement Shown
Are For Reference Only
APPLICATION NOTES
To be identified with manufacturer’s name, part number and
date code, space permitting.
Contact Style: Eyelet or Solder Cup (See Part Number
Development).
Material/Finish:
Shell: H = FT - Carbon steel/tin plate.
K = Z16 = Stainless steel/nickel plated, dull finish.
FTR = Carbon steel/tin fused (RoHs compliant)
Insulators: Glass bead/N.A.
Contacts: Pins, Alloy 52/gold plated
5.
6.
7.
4.
Performance:
DWV - 750 VAC Pin-to-Shell
I.R. - 5,000 MegOhms Min @ 500 VDC
Hermeticity <1 x 10
-7
cc He/sec @ 1
atmosphere differential
Glenair 280-006 will mate with any QPL MIL-DTL-24308/1, /2
and /23 receptacle of the same size and arrangement.
All dimensions are typical for flange types “A” and “B”. “C” dim
is not applicable to flange type “A”.
Metric dimensions (mm) are indicated in parentheses.
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
J-10
E-Mail: sales@glenair.com
Glass-Sealed D-Subminiature Receptacle
1
1 2 3 4 5
6 7 8 9
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15
2
1 2 3 4 5 6 7 8 9 10 11 12 13
14 15 16 17 18 19 20 21 22 23 24 25
3
9 CONTACTS
15 CONTACTS
25 CONTACTS
HERMETIC LEAK RATE MOD CODES
Designator
–585A
33
Required Leak Rate
1 x 10
-10
cc Helium per second
1 x 10
-9
cc Helium per second
1 x 10
-8
cc Helium per second
4
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37
5
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18
–585B
–585C
34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50
37 CONTACTS
50 CONTACTS

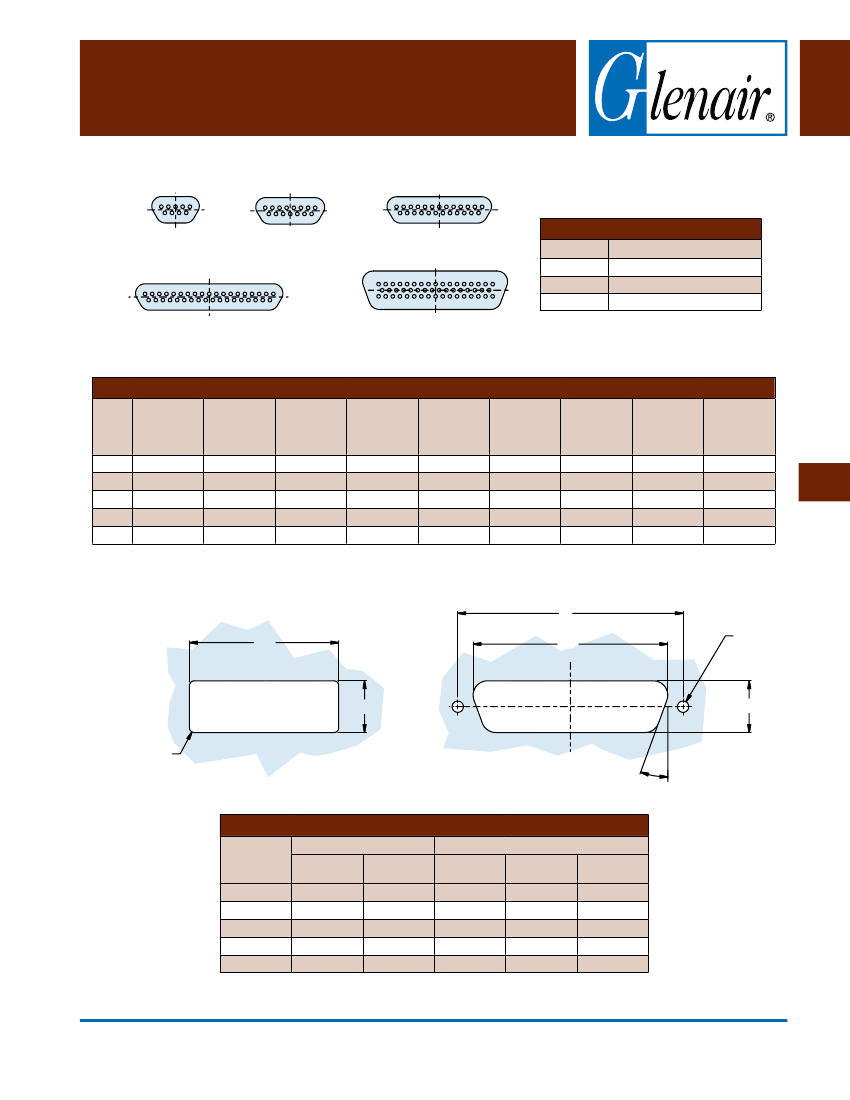

TABLE I: CONNECTOR DIMENSIONS
Shell
Size
1
2
3
4
5
Dim
A
± .015
(± 0.4)
1.213 (30.8)
1.541 (39.1)
2.088 (53.1)
2.729 (69.3)
2.635 (66.0)
Dim
B
± .004
(± 0.1)
.667 (16.9)
.993 (25.2)
1.535 (39.0)
2.183 (55.4)
2.079 (52.8)
Dim
C
± .005
(± 0.1)
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
Dim
D
± .004
(± 0.1)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.330 (8.4)
.441 (11.2)
Dim
E
± .010
(± 0.3)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.498 (12.6)
.610 (15.5)
Dim
F
± .010
(± 0.3)
.725 (18.4)
.932 (23.7)
1.479 (37.6)
2.125 (54.0)
2.000 (50.8)
Dim
G
± .010
(± 0.3)
.369 (9.4)
.369 (9.4)
.369 (9.4)
.369 (9.4)
.500 (12.7)
Dim
H
± .006
(± 0.2)
.094 (2.4)
.094 (2.4)
.103 (2.6)
.103 (2.6)
.103 (2.6)
Dim
K
± .010
(± 0.3)
.235 (6.0)
.235 (6.0)
.230 (5.8)
.230 (5.8)
.230 (5.8)
RECOMMENDED PANEL CUTOUT
SEE TABLE 2
C
Ø.120
XA
Xa
XB
Xb
Ya
YA
R.062 Max
Typ
Yb
YB
REAR MOUNT
FRONT MOUNT
(STYLE B ONLY)
10°
Typ
TABLE II: PANEL CUT-OUT
Shell
Sizes
1
2
3
4
5
Style A
Dim
XA
.745 (18.9)
.950 (24.1)
1.495 (38.0)
2.145 (54.5)
2.015 (51.2)
Dim
YA
.385 (9.8)
.385 (9.8)
.385 (9.8)
.385 (9.8)
.520 (13.2)
Dim
XB
.799 (20.0)
1.125 (31.8)
1.690 (42.9)
2.335 (59.3)
2.231 (56.7)
Style B
Dim
YB
.462 (11.7)
.462 (11.7)
.482 (12.2)
.482 (12.2)
.588 (14.9)
Dim
C
.984 (25.0)
1.312 (33.3)
1.852 (47.0)
2.500 (63.5)
2.406 (61.1)
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
J-11
E-Mail: sales@glenair.com
MIL-DTL-24308
280-006
MIL-DTL-24308/9 Hermetic
