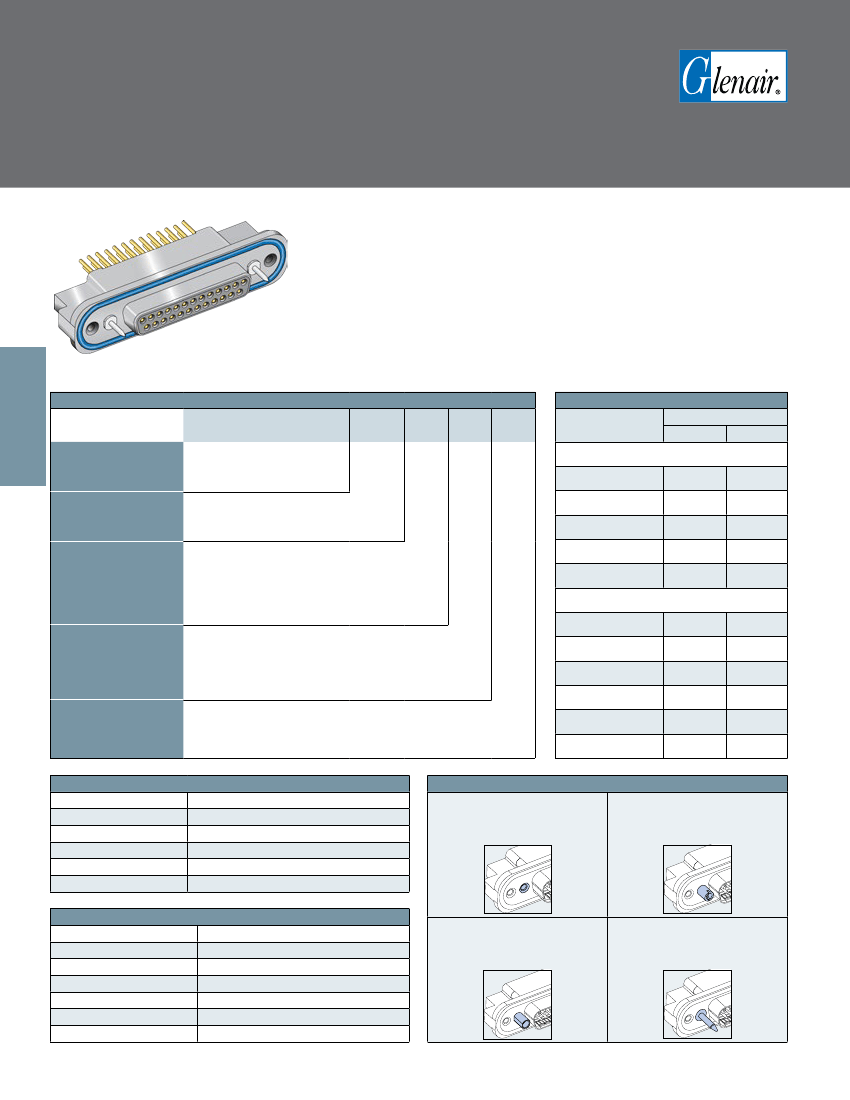

series 28
HiPer-D Standard and High-Density Connectors
280-023S straight PC tail socket connectors with O-ring flange for
rear panel mounting
Rear panel mount HiPer-D socket connectors feature non-removable size #20 or #22
straight PC tail contacts and a flange O-ring for a watertight panel seal. Intermateable
with standard M24308-type D-Subminiature connectors, the HiPer-D features a
rugged machined shell, waterproof sealing and optional ground springs for improved
resistance to electromagnetic interference. #4-40 threaded mounting holes simplify
panel attachment. Threaded holes on the rear of the connector allow attachment
to circuit board. Contacts are potted with epoxy. Aluminum shell. Glass-reinforced
thermoset epoxy insulators. 1000 VAC, 5 Amps (#22) or 7.5 Amps (#20).
B
how To Order
Sample Part Number
280-023S
Shell Size - Contact Arrangements
6H104
MT
B
B
Shell Size-
Contact Arr.
Contact Size and Qty
#20
#22
280-023S
Basic Part Number
Standard Density
1S9
2S15
3S25
4S37
5S50
9
15
25
37
50
High Density
1H15
2H26
3H44
4H62
5H78
6H104
15
26
44
62
78
104
Shell Size-
Contact Arrangement
Contact Arrangements are shown in the
adjacent table
ME
= Electroless Nickel (RoHS)
MT
= Nickel-PTFE (RoHS)
JF
= Cadmium with Yellow Chromate
Z2
= Gold (RoHS)
Z1
= Passivated Stainless Steel (RoHS)
N
= No Hardware (supplied with #8-32 tapped holes)
P
= #4-40 Female Jackposts
G
= Male Guide Pins
B
= Female Guide Bushings
A
= .125 (3.18) Tail Length
B
= .250 (6.35) Tail Length
Shell Finish
Mating hardware
PC Tail Length
Materials and Finishes
Shell
Aluminum alloy
Contacts
Copper alloy, 50 microin. gold plated
Insulator
Thermoset epoxy
Potting Compound
Epoxy
O-ring
Fluorosilicone rubber
Hardware
300 series stainless steel
Specifications
Current Rating
#22 5 AMPS, #20 7.5 AMPS
Test Voltage
1000 VAC RMS
Insulation Resistance
5000 megohms minimum
Operating Temperature -65° C. to +200° C.
Ingress Protection
IP 67
Shock
300 g.
Vibration, Random
43.92 g.
B-14
Mating hardware
No Hardware
#8-32 tapped hole
N
#4-40 Female Jackposts
P
Female Guide Bushings
B
Male Guide Pins
G
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
series 28
HiPer-D Standard and High-Density Connectors
280-023S straight PC tail socket connectors with O-ring flange for
rear panel mounting

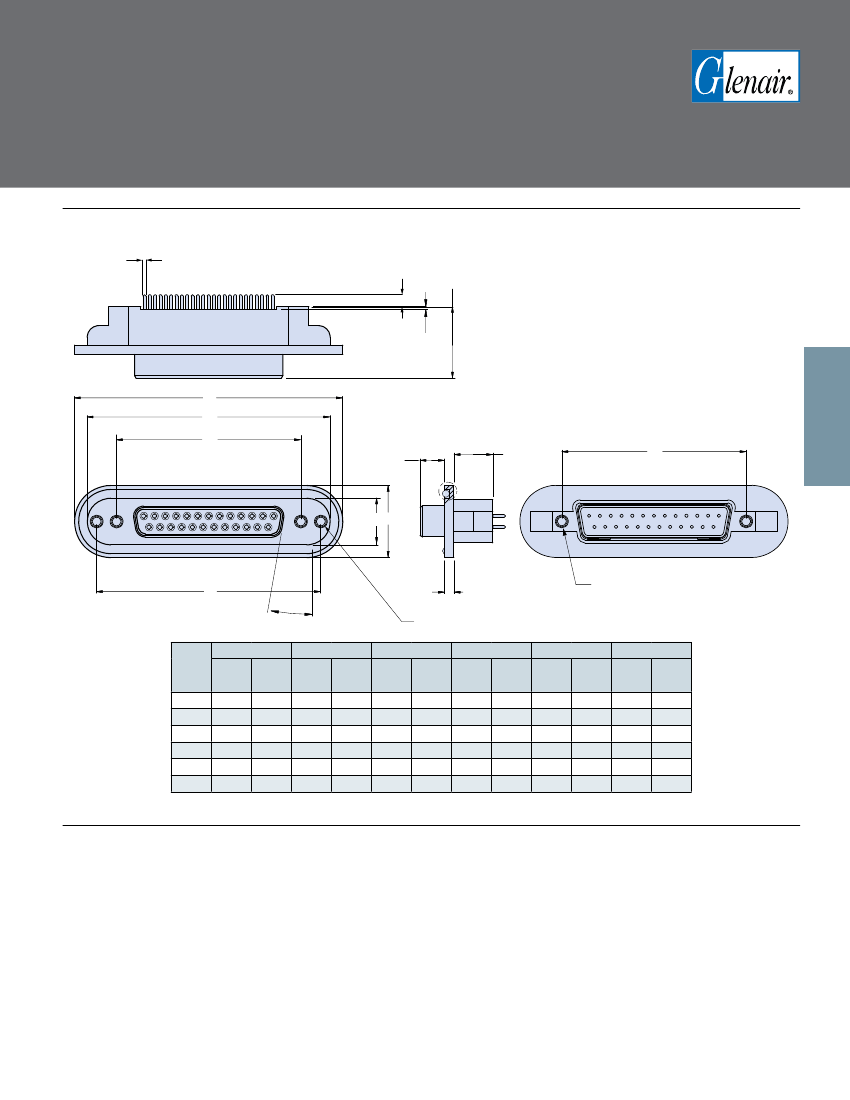

280-023S DIMENSIONS
STD DENSITY SIZE #20HD CONTACTS
.030±.002(0.76±0.05)
TAIL LENGTH ±.015
HI DENSITY SIZE #22D CONTACTS
(±0.38)
.020±.002(0.51±0.05)
REF .727 (18.47)
.025 (0.64)
A
F
C
.243±.003
(6.17±.0.08)
.390±.005
(9.91±0.13)
C
B
EB
D
10°
TYP 2 PL
.094±.002
(2.39±0.05)
4-40 UNC 2B TH'D
.150 (3.81) MIN. DEEP TYP 2 PLCS
4-40 UNC 2B TH'D
.150 (3.81) MIN. DEEP TYP 2 PLCS
Shell
Size
1
2
3
4
5
6
± .015
in
A
± 0.38
mm
± .015
in
B
± 0.38
mm
C Basic
in.
mm
D Basic
in
mm
± .005
.469
.469
.469
.469
in
E
± 0.13
11.91
11.91
11.91
11.91
mm
± .015
in
F
± 0.38
mm
1.865 47.37
2.200 55.88
2.736 69.49
3.385 85.98
3.289 83.54
3.383 85.93
.725 18.42
.725 18.42
.725 18.42
.725 18.42
.837 21.26
.899 22.83
.984 24.99
1.312 33.32
1.852 47.04
2.500 63.50
2.406 61.11
2.500 63.50
1.424 36.17
1.752 44.50
2.292 58.22
2.940 74.68
2.846 72.29
2.940 74.68
1.609 40.87
1.944 49.38
2.480 62.99
3.129 79.48
3.033 77.04
3.127 79.43
.581 14.76
.643 16.33
NOTES
1.
2.
Contacts are factory-installed, non-removable and are potted with epoxy.
HiPer-D connectors are available with a wide variety of materials and finishes. See
About Series 28 HiPer-D Shell Plating Options
for
additional choices . Glenair offers the industry’s widest selection of plating and material choices with no setup charge, no minimum
order quantity and no schedule impact.
For panel cutout dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
For printed circuit board mounting dimensions, refer to
Panel Cutouts and Printed Circuit Board Footprints.
HiPer-D connectors meet the requirements of MIL-DTL-24308 and are intermateable with standard M24308-type D-Subminiature
connectors with corresponding contact arrangements and type.
Additional electrical, mechanical and environmental specifications are listed in
HiPer-D Product Specification.
3.
4.
5.
6.
B-15
© 2013 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
