237-051
MIL-DTL-26482 Series II, MS3440 Type Hermetic
Special Narrow Square Flange Mount Receptacle
with Bayonet Coupling and Solder Cup Termination
Alternate Key
Position
W, X, Y or Z
(Omit for Normal)
See Note 5
MIL-DTL-26482
Type
Connector Style
051H
= Square Flange Mount
Hermetic Receptacle
Insert
Arrangement
Per MIL-STD-1669
(See Note 5)
D
237
-
051H
Series 237
MIL-DTL-26482
Type
12
-
8
Shell
Size
P
X
Contact Style
P
= Solder Cup
.060 (1.52) Width
Polarizing
Stripe
Master
Polarizing
Keyway
Min Edge Distance
Relative To Mounting Holes
Shell Sizes 8 - 18 = .035 (0.89)
Shell Sizes 20 - 24 = .050 (1.27)
Peripheral
Gasket
L Max
Ref
F
G
Vitreous
Insert
Contact
Style "P"
A
B
C
B
Typ
F
E
D
ØD
ØC
Ø H Typ
4 Pl
A Max
(Typ)
Part Identification
(See Note 2)
.140 (3.56) Min
(See Note 2)
37-051H
J
P Max
APPLICATION NOTES
1.
Material/Finish:
Shell - C1215 CRS/Tin plated.
Titanium and Inconel
®
available. Consult factory.
Contacts - 52 nickel alloy/Tin plated.
Bayonets - Stainless Steel/passivated.
Seals - Silicone elastomer/N.A.
Insulator - Glass, NOIBN/N.A.
To be identified with manufacturer’s name, part number and
date code, space permitting.
3.
Hermeticity - <1 x 10
-7
cc/sec @ 1 atm differential.
Dielectric withstanding voltage - Consult factory or
MIL-STD-1669.
Insulation resistance - 5000 megohms min @500VDC.
Glenair 237-051 will mate with any QPL MIL-DTL-26482 Series
II bayonet coupling plug of same size and insert polarization.
Consult factory and/or MIL-STD-1669 for arrangement and
insert position options.
Metric Dimensions (mm) are indicated in parentheses.
4.
5.
6.
2.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
D-30
E-Mail: sales@glenair.com
Special Narrow Square Flange Mount Receptacle
with Bayonet Coupling and Solder Cup Termination

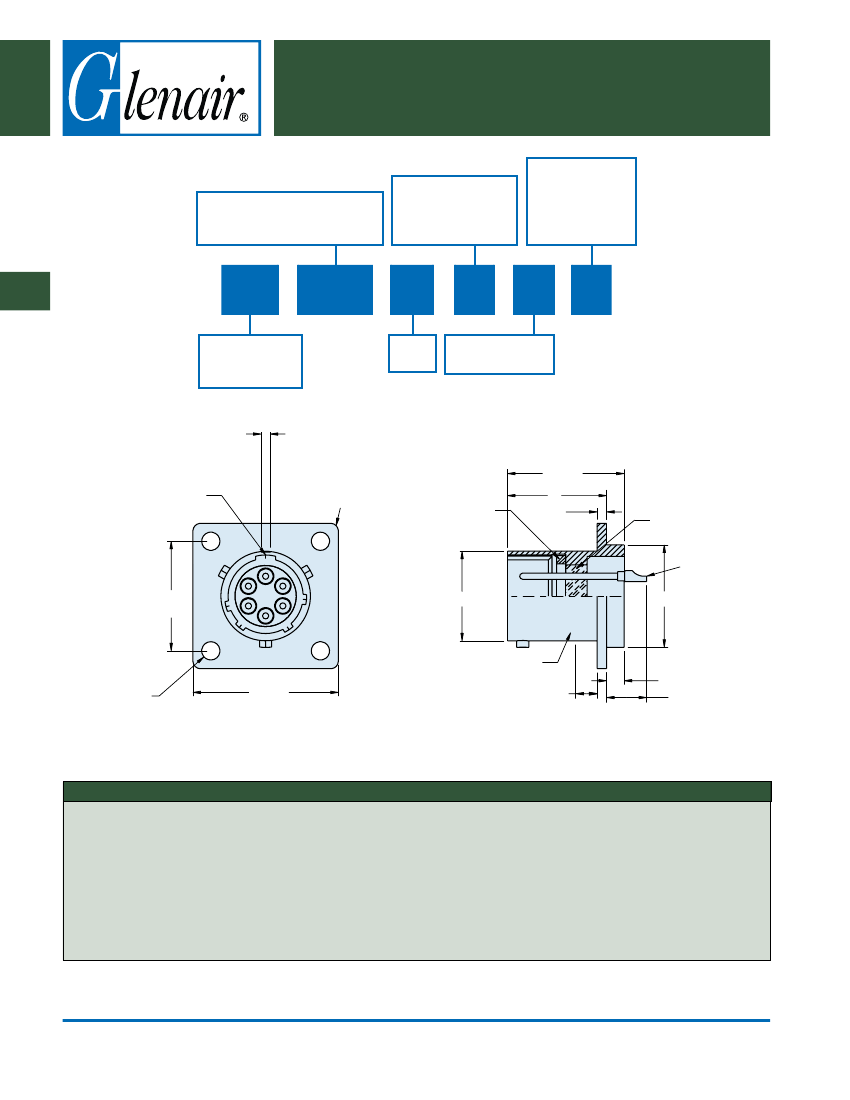

TABLE I: CONNECTOR AND CUT-OUT DIMENSIONS
