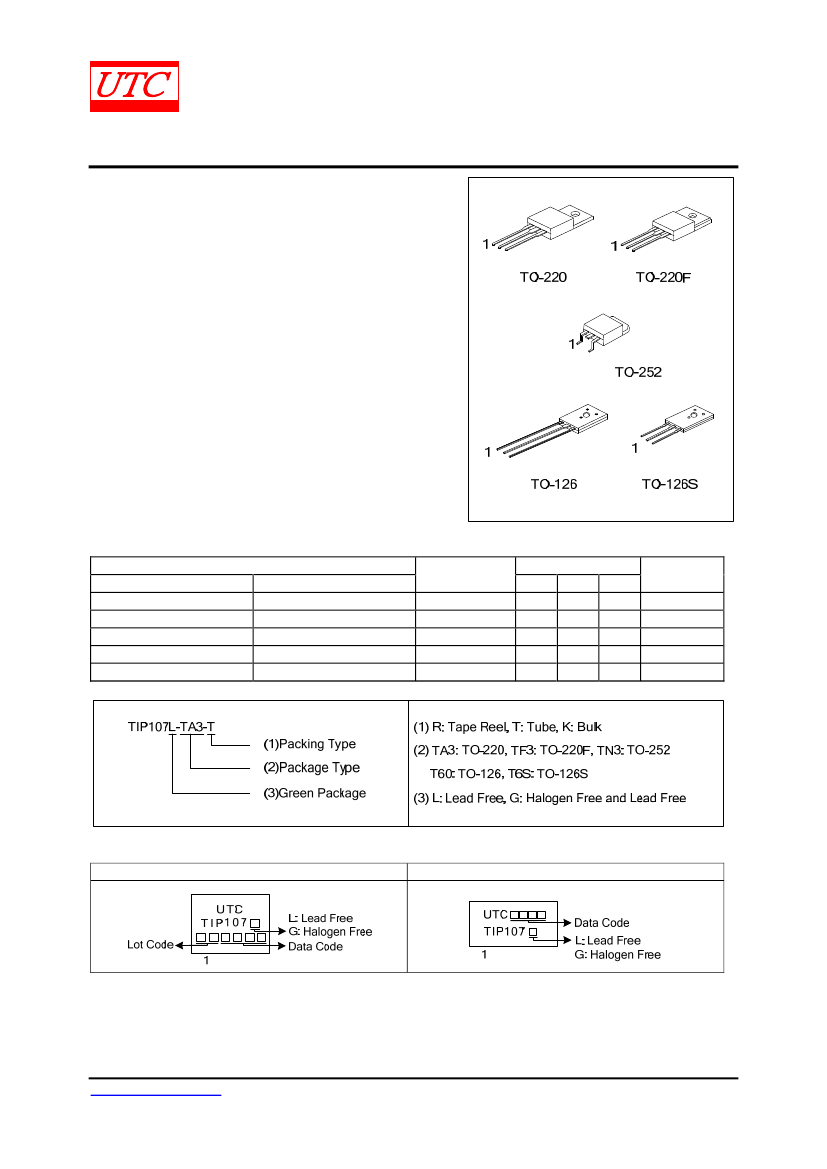

UNISONIC TECHNOLOGIES CO., LTD
TIP107
PNP EPITAXIAL TRANSISTOR
DESCRIPTION
PNP SILICON TRANSISTOR
The UTC
TIP107
is designed for using in general purpose
amplifier and switching applications.
FEATURES
* Low V
CE(SAT)
* High Current Gain
* Complementary to TIP102
ORDERING INFORMATION
Package
TO-220
TO-220F
TO-252
TO-126
TO-126S
Pin Assignment
1
2
3
B
C
E
B
C
E
B
C
E
E
C
B
E
C
B
Packing
Tube
Tube
Tape Reel
Bulk
Bulk
Ordering Number
Lead Free
Halogen Free
TIP107L-TA3-T
TIP107G-TA3-T
TIP107L-TF3-T
TIP107G-TF3-T
TIP107L-TN3-R
TIP107G-TN3-R
TIP107L-T60-K
TIP107G-T60-K
TIP107L-T6S-K
TIP107G-T6S-K
Note: Pin Assignment: C: Collector
B: Base E: Emitter
MARKING
TO-220 / TO-220F / TO-252
TO-126 / TO-126S
www.unisonic.com.tw
Copyright © 2015 Unisonic Technologies Co., Ltd
1 of 4
QW-R203-023.D
TIP107
PARAMETER
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
DC
Collector Current
Pulse
Base Current
Collector Power Dissipation
DC
TO-220/TO-220F
TO-252
TO-126/TO-126S
SYMBOL
V
CBO
V
CES
V
EBO
I
C
I
CP
I
B
P
C
PNP SILICON TRANSISTOR
ABSOLUTE MAXIMUM RATING
(T
C
=25°C, unless otherwise specified)
RATINGS
-100
-100
-5
-8
-15
-1
80
41
10
UNIT
V
V
V
A
A
A
W
W
W
Junction Temperature
T
J
150
°C
Storage Temperature
T
STG
-65~+150
°C
Note Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRICAL CHARACTERISTICS
(T
C
=25°C, unless otherwise specified)
SYMBOL
V
CEO(SUS)
I
CBO
I
CEO
I
EBO
h
FE1
h
FE2
V
CE(SAT)
V
BE(ON)
C
ob
TEST CONDITIONS
I
C
=-30mA, I
B
=0A
V
CB
=-100V, I
E
=0A
V
CE
=-50V, I
B
=0A
V
EB
=-5V, I
C
=0A
V
CE
=-4V, I
C
=-3A
V
CE
=-4V, I
C
=-8A
I
C
=-3A, I
B
=-6mA
I
C
=-8A, I
B
=-80mA
V
CE
=-4V, I
C
=-8A
V
CB
=-10V, I
E
=0A, f=0.1MHZ
MIN
-100
TYP
MAX UNIT
V
µA
-50
µA
50
mA
-2
20000
-2
-2.5
-2.8
300
V
V
V
pF
PARAMETER
Collector-Emitter Sustaining Voltage
Collector-Base Cut-Off Current
Collector-Emitter Cut-Off Current
Emitter-Base Cut-Off Current
ON CHARACTERISTICS
DC Current Gain
Collector-Emitter Saturation Voltage
Base-Emitter ON Voltage
SMALL-SIGNAL CHARACTERISTICS
Output Capacitance
1000
200
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 4
QW-R203-023.D
TIP107

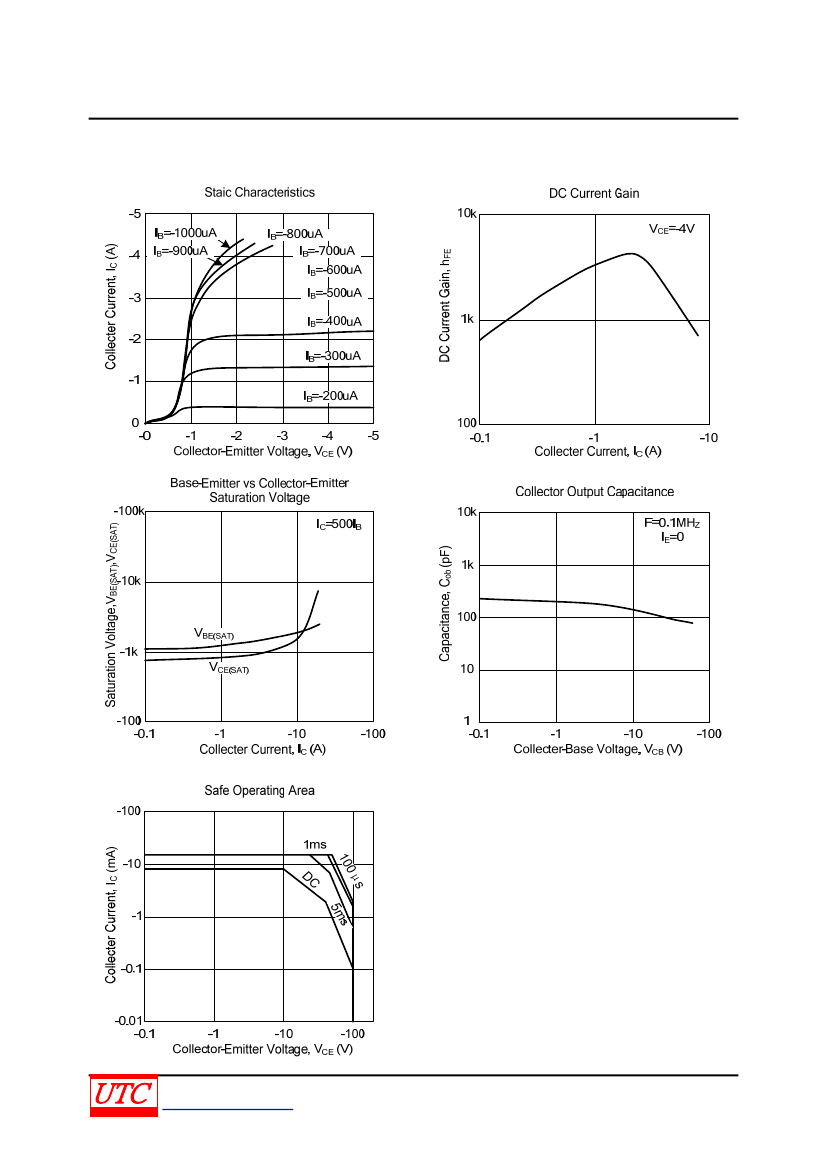

TYPICAL CHARACTERISTICS
PNP SILICON TRANSISTOR
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 4
QW-R203-023.D
TIP107
PNP SILICON TRANSISTOR
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
4 of 4
QW-R203-023.D
