Data Sheet
MA12_MTAF_MTAM_A230y_XX.X_BB
Description
Features:
- High fiber count guarantees low space consumption in ducts and racks
- Floating ferrule design optimizing physical contact
- Elliptical guide pin tip to enhance mating abilities
- Removable housing for quick gender change and easy re-polishing
- High precision guide pins for better alignment and performance
- Push pull
Technical data
General data
Description
General type
Operating temperature
Polarity
UL Rating
RoHS guidelines 2001/65/EU
REACH compliant
Values
Base-12 MTP-MTP jumper cables 3.0mm, SM A2
-25 °C up to 70 °C
A
UL94 V-0
Yes
Yes
Cable
Description
Cable type
Fiber count
Fiber type
Outer diameter
Outer jacket type
Values
OptiPack Cable with 12 Fibers
12
Optical fiber
3 mm
Outer jacket / PE flame retardant (LSFH)
Connector left
Description
Amount of fiber
Gender
Ferrule type
Connector interface standards
Insertion loss max (dB)
Insertion loss typical (dB)
Return loss (dB)
(Min. mating cycles)
Tensile load
Values
12
female
PC
IEC 617547-7, TIA 604-5 - Type MPO
0.35
0.10
>60
100
50 N
Document: DOC-0000756685 H / PDO A / date of publication: 08.11.2019 17:19:29 / uncontrolled copy
Page 1/2
Data Sheet
MA12_MTAF_MTAM_A230y_XX.X_BB
Connector right
Description
Amount of fiber
Gender
Ferrule type
Connector interface standards
Insertion loss max (dB)
Insertion loss typical (dB)
Return loss (dB)
(Min. mating cycles)
Tensile load
Values
12
male
PC
IEC 617547-7, TIA 604-5 - Type MPO
0.35
0.10
>60
100
50 N

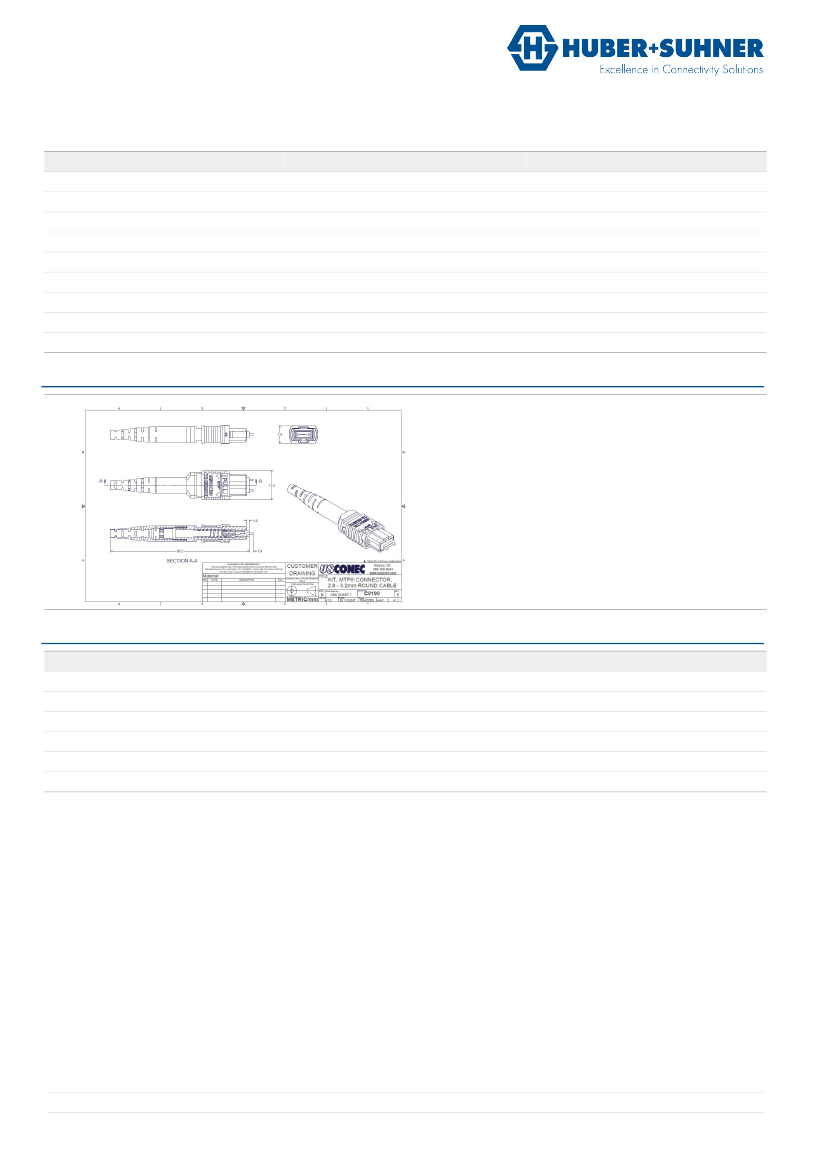

Technical drawing connector
Ordering information
Cable length (m)
1
2
3
5
7
10
Item number
85018915
85018916
85018917
85018918
85018919
85018920
Description
MA12_MTAF_MTAM_A230y_01.0_BB
MA12_MTAF_MTAM_A230y_02.0_BB
MA12_MTAF_MTAM_A230y_03.0_BB
MA12_MTAF_MTAM_A230y_05.0_BB
MA12_MTAF_MTAM_A230y_07.0_BB
MA12_MTAF_MTAM_A230y_10.0_BB
Other lengths and cable diameters are aviable upon request
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000756685 H / PDO A / date of publication: 08.11.2019 17:19:29 / uncontrolled copy
Page 2/2
