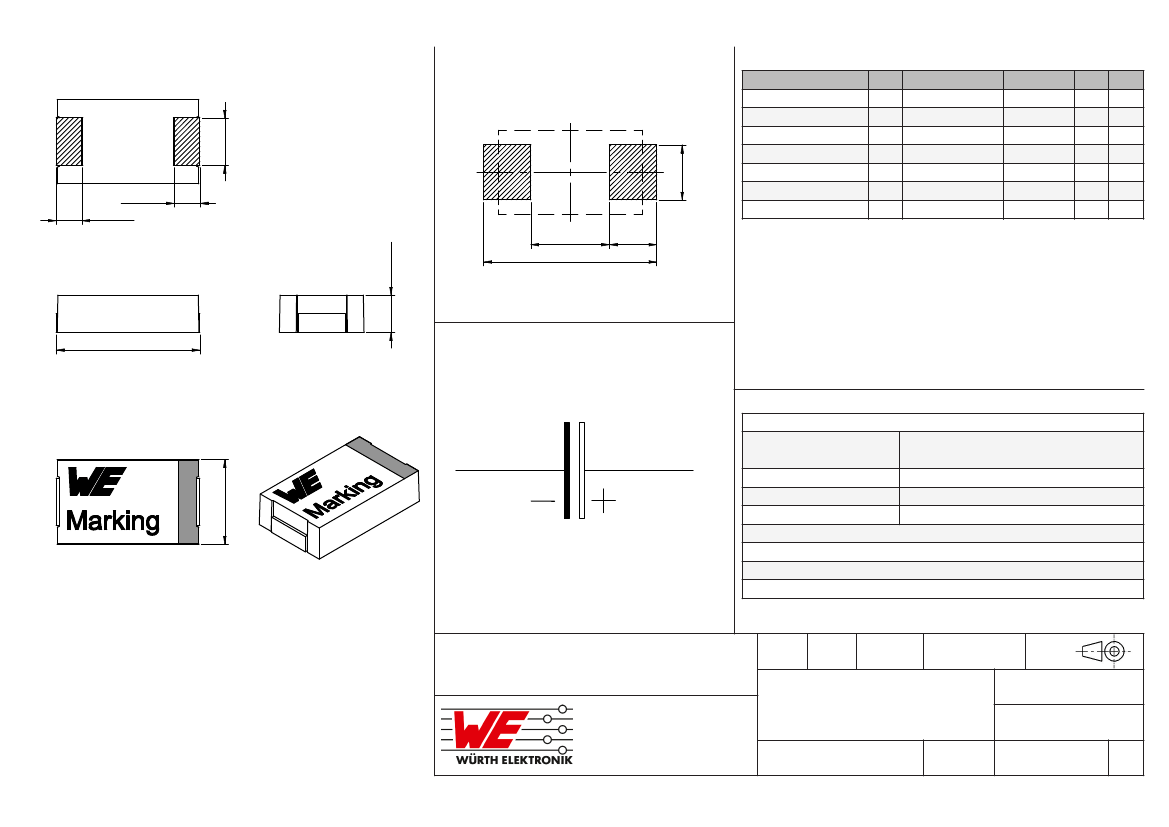

Dimensions: [mm]
Recommended Land Pattern: [mm]
Electrical Properties:
Properties
Capacitance
C
U
R
U
S
I
Leak
DF
R
ESR
1000 cycles @ 20 °C
2 min./ +20 °C
0.5 V/ 120 Hz/ +20 °C
100 kHz @ 20°C
Rated Voltage
Surge Voltage
Leakage Current
Test conditions
0.5 V/ 120 Hz/ +20 °C
Value
330
2.5
3.1
82.5
6
8500
4.5
Unit
µF
V (DC)
V (DC)
µA
%
mA
mΩ
Tol.
±20%
max.
max.
max.
max.
max.
max.
-
+
2,4 ±0,1
2,8
Dissipation Factor
Ripple Current
ESR
1,3 ±0,3
1,3 ±0,3
4,0
2,4
I
RIPPLE
100 kHz @ 45 °C
1,9 ±0,1
8,8
Scale - 5:1
7,3 ±0,2
Schematic:
General Information:
Aluminum Polymer Capacitors
Storage Conditions
(in original packaging)
4,3 ±0,2
5 °C - 30 °C; 10 % up to 70 % RH
-55 up to +105 °C
2000 h
3
Operating Temperature
Endurance
Moisture Sensitivity Level (MSL)
-
+
Test conditions of Electrical Properties: +20 °C, 35 % RH if not specified differently
FIT according to separate documentation
Scale - 5:1
Surge Voltage: Charging time 30s, discharging time 330s for a cycle
Component conform to REACh and RoHS requirements and standards
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
PSL
DESCRIPTION
001.000
2018-11-13
DIN ISO 2768-1m
TECHNICAL REFERENCE
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WCAP-PHLE Aluminum Polymer
Capacitors
SIZE/TYPE
BUSINESS UNIT
PSE2917331M2R5DH1T1HT19
ORDER CODE
875036319012
STATUS
PAGE
7.3 x 4.3 x 1.9
eiCap
Valid
1/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Product Marking:
1
st
Line left
1
st
Line right
2
nd
Line left
2
nd
Line right
WE Marking
Capacitance Value 330 µF (Coding 330 )
Lot Number
Rated Voltage: 2.5 V (DC) (Coding e )
Multiplier for Ripple Current vs. Frequency
Frequency
10 kHz ≤ freq. < 20 kHz
20 kHz ≤ freq. < 50 kHz
50 kHz ≤ freq. < 100 kHz
100 kHz ≤ freq. < 200 kHz
200 kHz ≤ freq. < 500 kHz
500 kHz ≤ freq. < 1 MHz
1 MHz ≤ freq. < 10 MHz
Multiplier
0.6
0.7
0.8
1.0
0.8
0.7
0.4
Multiplier for Ripple Current vs. Temperature
Temperature
T ≤ 45°C
45°C < T ≤ 85 °C
85°C < T ≤ 105 °C
105°C < T ≤ 125 °C
Multiplier for 2 V
(DC)
up to 6.3 V
(DC)
1.0
0.7
0.25
Multiplier for 10 V
(DC)
up to 35 V
(DC)
1.0
0.8
0.5
0.25 (WCAP-PHET)
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
PSL
DESCRIPTION
001.000
2018-11-13
DIN ISO 2768-1m
TECHNICAL REFERENCE
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WCAP-PHLE Aluminum Polymer
Capacitors
SIZE/TYPE
BUSINESS UNIT
PSE2917331M2R5DH1T1HT19
ORDER CODE
875036319012
STATUS
PAGE
7.3 x 4.3 x 1.9
eiCap
Valid
2/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

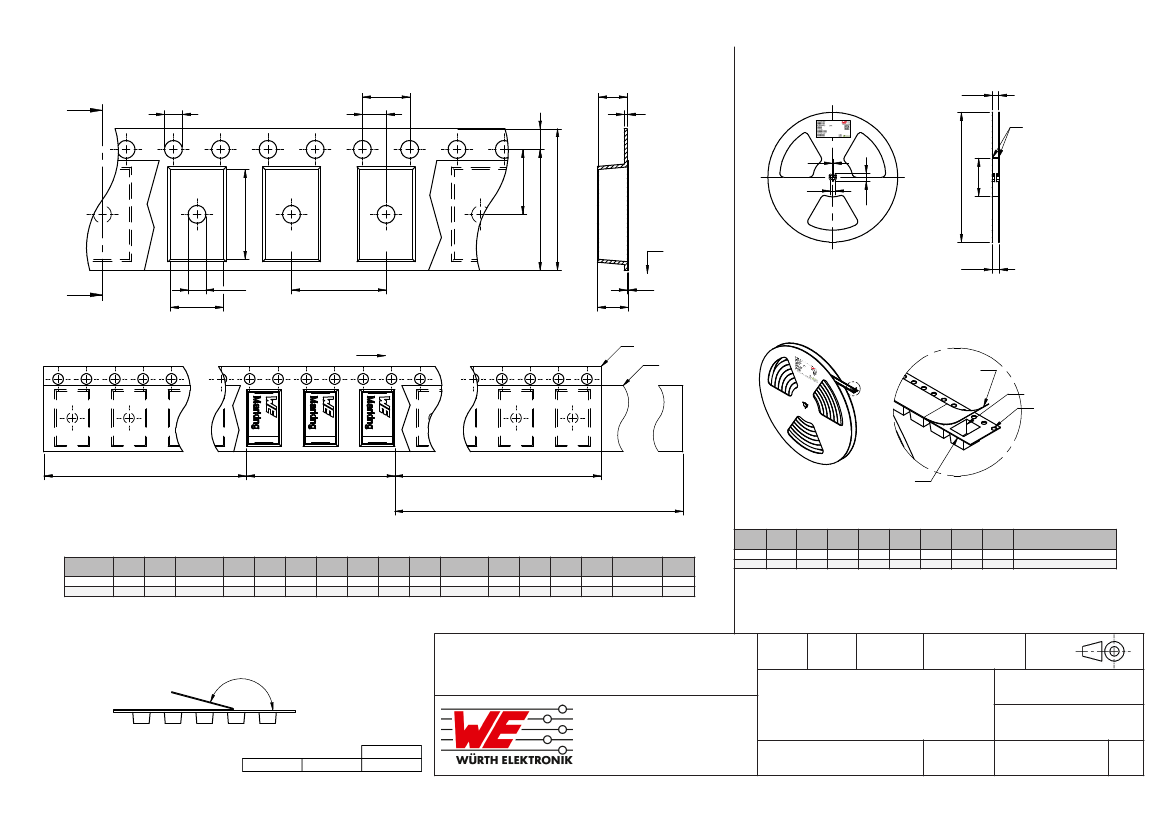

Packaging Specification - Tape and Reel: [mm]
P0
K0
T
E1
W1
close to center
B
N
W2
W3
A
D0
P2
F
C
B0
E2
W
Top Cover
Tape
A
D1
A0
P1
T2
T1
D
detail B
End
Feeding direction
Start
Carrier Tape
Cover Tape
B
Cover Tape
Chip Cavity
Sprocket Hole
No Component
min.160mm
Components
No Component
min.100mm
Cover Tape
min. 400mm
Embossment
packaging is refered to the international standard IEC 60286-2
Tape Type
2a
A0
(mm)
typ.
4,50
B0
(mm)
typ.
7,60
W
(mm)
+0,3/ -0,1
12,00
T
(mm)
ref.
T1
(mm)
max.
0,10
T2
(mm)
typ.
K0
(mm)
typ.
2,40
P0
(mm)
±0,1
4,00
P1
(mm)
±0,1
8,00
P2
(mm)
±0,05
2,00
D0
(mm)
+0,1/ -0,0
1,50
D1
(mm)
min.
1,50
E1
(mm)
±0,1
1,75
E2
(mm)
min.
10,25
F
(mm)
±0,05
5,50
Material
Polystyrene
Qty.
(pcs.)
3500
A
(mm)
± 2,0
330,00
B
(mm)
min.
1,50
C
(mm)
min.
12,80
D
(mm)
min.
20,20
N
(mm)
min.
60,00
W1
(mm)
+ 2,0
12,40
W2
(mm)
max.
18,40
A
W3
(mm)
min.
11,90
W3
(mm)
max.
15,40
Material
Polystyrene/ Polyurethane
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
PSL
001.000
2018-11-13
DIN ISO 2768-1m
TECHNICAL REFERENCE
165° - 180°
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
DESCRIPTION
WCAP-PHLE Aluminum Polymer
Capacitors
SIZE/TYPE
BUSINESS UNIT
PSE2917331M2R5DH1T1HT19
ORDER CODE
875036319012
STATUS
PAGE
Pull-of force
Tape width
12 mm
0,1 N - 1,3 N
7.3 x 4.3 x 1.9
eiCap
Valid
3/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Classification Reflow Profile for SMT components:
Classification Reflow Soldering Profile:
Profile Feature
Preheat Temperature Min
Preheat Temperature Max
Value
T
s min
150 °C
T
s max
200 °C
t
s
T
L
t
L
T
p
t
p
60 - 120 seconds
3 °C/ second max.
217 °C
60 - 150 seconds
see table
20 - 30 seconds
6 °C/ second max.
8 minutes max.
T
p
Max. Ramp Up Rate
Max. Ramp Down Rate
T
L
T
s max
t
L
t
p
T
C
–5°C
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate (T
L
to T
P
)
Liquidous Temperature
Time t
L
maintained above T
L
Peak package body temperature
Time within 5°C of actual peak temperaure
Ramp-down Rate (T
L
to T
P
)
Time 25°C to peak temperature
refer to IPC/ JEDEC J-STD-020E
Temperature
Preheat Area
T
s min
t
S
Package Classification Reflow Temperature:
Properties
Volume mm³
<350
260 °C
250 °C
Volume mm³
350-2000
260 °C
250 °C
245 °C
Volume mm³
>2000
260 °C
245 °C
245 °C
25
Time 25°C to Peak
PB-Free Assembly | Package Thickness < 1.6 mm
PB-Free Assembly | Package Thickness ≥ 2.5 mm
refer to IPC/ JEDEC J-STD-020E
PB-Free Assembly | Package Thickness 1.6 mm - 2.5 mm
260 °C
Time
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
PSL
DESCRIPTION
001.000
2018-11-13
DIN ISO 2768-1m
TECHNICAL REFERENCE
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WCAP-PHLE Aluminum Polymer
Capacitors
SIZE/TYPE
BUSINESS UNIT
PSE2917331M2R5DH1T1HT19
ORDER CODE
875036319012
STATUS
PAGE
7.3 x 4.3 x 1.9
eiCap
Valid
4/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Cautions and Warnings:
The following conditions apply to all goods within the product series of Aluminium
Polymer SMT H-Chip Capactiors of Würth Elektronik eiSos GmbH & Co. KG:
General:
• This electronic component is designed and manufactured for use in general electronic equipment.
• Würth Elektronik must be asked for a written approval (following the certain PPAP level procedure) before incorporating the components
into any equipment in the field such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train
control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and
reliability are especially required and/or if there is the possibility of direct damage or human injury.
• Electronic components that will be used in safety-critical or high-reliability applications, should be pre-evaluated by the customer.
• Direct mechanical impact to the product shall be prevented as material of the body, pins or termination could flake or in the worst case
it could break.
• Avoid any water or heavy dust on capacitors surface, which may cause electrical leakage, damage, overheating or corrosion.
• Würth Elektronik products are qualified according to international standards, which are listed in each product reliability report. Würth
Elektronik does not warrant any customer qualified product characteristic, beyond Würth Elektronik specifications, for its validity and
sustainability over time.
• The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the
authority of the customer. All technical specifications for standard products also apply to customer specific products.
• The component is designed and manufactured to be used within the datasheet specified values. If the usage and operation conditions
specified in the datasheet are not met, the body, pins or termination may be damaged or dissolved.
• Do not apply any kind of flexural or compressive force onto soldered or unsoldered component.
• The capacitance tolerance as specified within the datasheet is only valid on the date of delivery and according specified measurement
criteria.
• Do not expose the capacitor to environments with hazardous gas, ozone, ultraviolet rays or any kind of radiation. Avoid any contact of the
capacitor with direct sunshine, saltwater, spray of water or types of oil during storage.
• If a capacitor is stored for a long time without applying voltage or storage conditions of 30 °C or above and more than 70 % relative
humidity, the leakage current may increase.
• The leakage current will return to normal level when applying the rated voltage to the capacitor before use. If the capacitor was stored
for more than 24 months, it is recommended to apply DC working voltage to the capacitor for 30 minutes through a 1 kΩ protective
series resistor.
Polarity:
An aluminum polymer capacitor has a polarity. In operation, this polarity needs to be considered and adhered. Reverse voltage can damage
or destroy an aluminum polymer capacitor. This can finally lead to a malfunction. If the polarity in a circuit will be switched or possibly can
be reversed, the usage of a non-polar capacitor shall be applied. The polarity of an H-Chip Polymer Capacitor is marked as follows:on the
top of the component, the positive terminal is marked with a black bar.
Overvoltage:
Avoid any overvoltage and do not apply a continuous overvoltage. If an overvoltage is applied to the capacitor, the leakage current can
increase drastically. The applied working voltage is not allowed to exceed the rated working voltage of the specific capacitor.
Operating temperature:
The capacitor shall not be operated above the operating temperature, which is stated in the datasheet of the specific capacitor. The
achievable lifetime of the capacitor is correlating to the applied temperature. In order to achieve the maximum lifetime, the capacitor should
be operated at the lowest possible temperature conditions within the application.
Ripple current:
• The applied ripple current shall not exceed the specified maximum ripple current of the capacitor.If a higher ripple current as permitted
is applied, it can cause excessive heat generation and higher temperature inside the capacitor. This happens due to pole change effects.
This can result in damage or lifetime shortage of the capacitor and may cause deterioration.Please see electrical specification within this
datasheet for maximum allowed ripple current.
Product specific:
Storage conditions:
• A storage of Würth Elektronik products for longer than 24 months is not recommended. Within other effects, the terminals may suffer
degradation, resulting in bad solderability. Therefore, all products shall be used within the period of 12 months based on the day of
shipment.
• Do not expose the components into direct sunlight.
• The storage conditions for this capacitor is recommended to be 5 °C up to 30 °C and less than 70 % rel. humidity.
• The maximum storage time after opening the package are 7 days.
• The environment in which the capacitors are operated and stored has to have atmospheric characteristics and must be free of dew
condensation and toxic gases (e.g. chlorine, ammonia, sulfur, hydrogen sulphide and hydrogen sulfate).
Charge and discharge:
Frequent and quick charge / discharge cycles may generate heat inside the capacitor. In worst case, this can cause a decrease of
capacitance, an increase of leakage current or breakdown.Applications with rapid charge and discharge cycles should be avoided. For
assistance with your application, please consult our technical support.
CHECKED
REVISION
DATE (YYYY-MM-DD)
GENERAL TOLERANCE
PROJECTION
METHOD
PSL
DESCRIPTION
001.000
2018-11-13
DIN ISO 2768-1m
TECHNICAL REFERENCE
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WCAP-PHLE Aluminum Polymer
Capacitors
SIZE/TYPE
BUSINESS UNIT
PSE2917331M2R5DH1T1HT19
ORDER CODE
875036319012
STATUS
PAGE
7.3 x 4.3 x 1.9
eiCap
Valid
5/8
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
京公网安备 11010802033920号
EEWORLD
