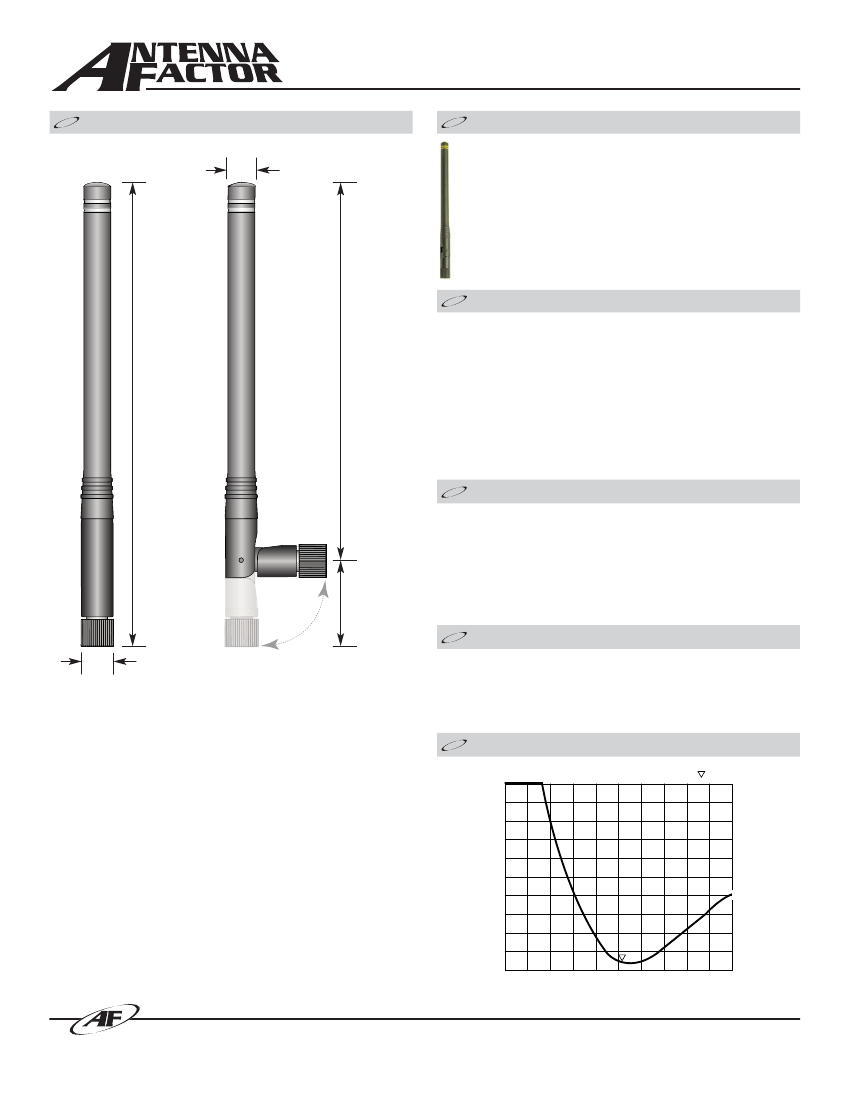

ANT-418-CW-HWR-xxx DATA SHEET
Product Dimensions
0.32”
(8.2)
Description
HWR Series antennas deliver outstanding performance in
a rugged and cosmetically attractive package. The
articulating base allows the antenna to tilt 90 degrees and
rotate 360 degrees. The antennas attach via a standard
SMA or Part 15 compliant RP-SMA connector. Custom
colors and connectors are available for volume OEM
customers.
Features
•
•
•
•
•
•
•
•
•
Low cost
Tilts and rotates
Omni-directional pattern
Outstanding VSWR
Rugged & damage-resistant
Standard SMA or Part 15 compliant RP-SMA connector
Custom colors and terminations for volume OEMs
Use with plastic* or metal enclosures
Internal O-ring seal on connector
* Requires proximity ground plane
5.59”
(142.0)
4.57”
(116.0)
Electrical Specifications
•
•
•
•
•
•
Center Freq.
Recmd. Freq. Range
Wavelength
VSWR
Impedance
Connector
418MHz
398-438MHz
1/4-wave
<2.0 typ. at center
50 ohms
RP-SMA or SMA
1.02”
(26.0)
0.39”
(10.0)
Electrical specifications and plots measured on 4.00” x 4.00” reference ground plane
Ordering Information
•
ANT-418-CW-HWR-RPS (with RP-SMA connector)
•
ANT-418-CW-HWR-SMA (with SMA connector)
Polar Plot & Gain Information
S11 SWR
1.386
CENTER 418.000MHz
SPAN 200.000MHz
Typical VSWR
Antenna Factor
