MJ04-00ABK datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MJ04-00ABK

MJ04-00ABK: DescriptionTelecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size202KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

MJ04-00ABK Overview

Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

MJ04-00ABK Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	PEG
body width	0.515 inch
subject depth	0.807 inch
body length	0.59 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJ04
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	6u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.157 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

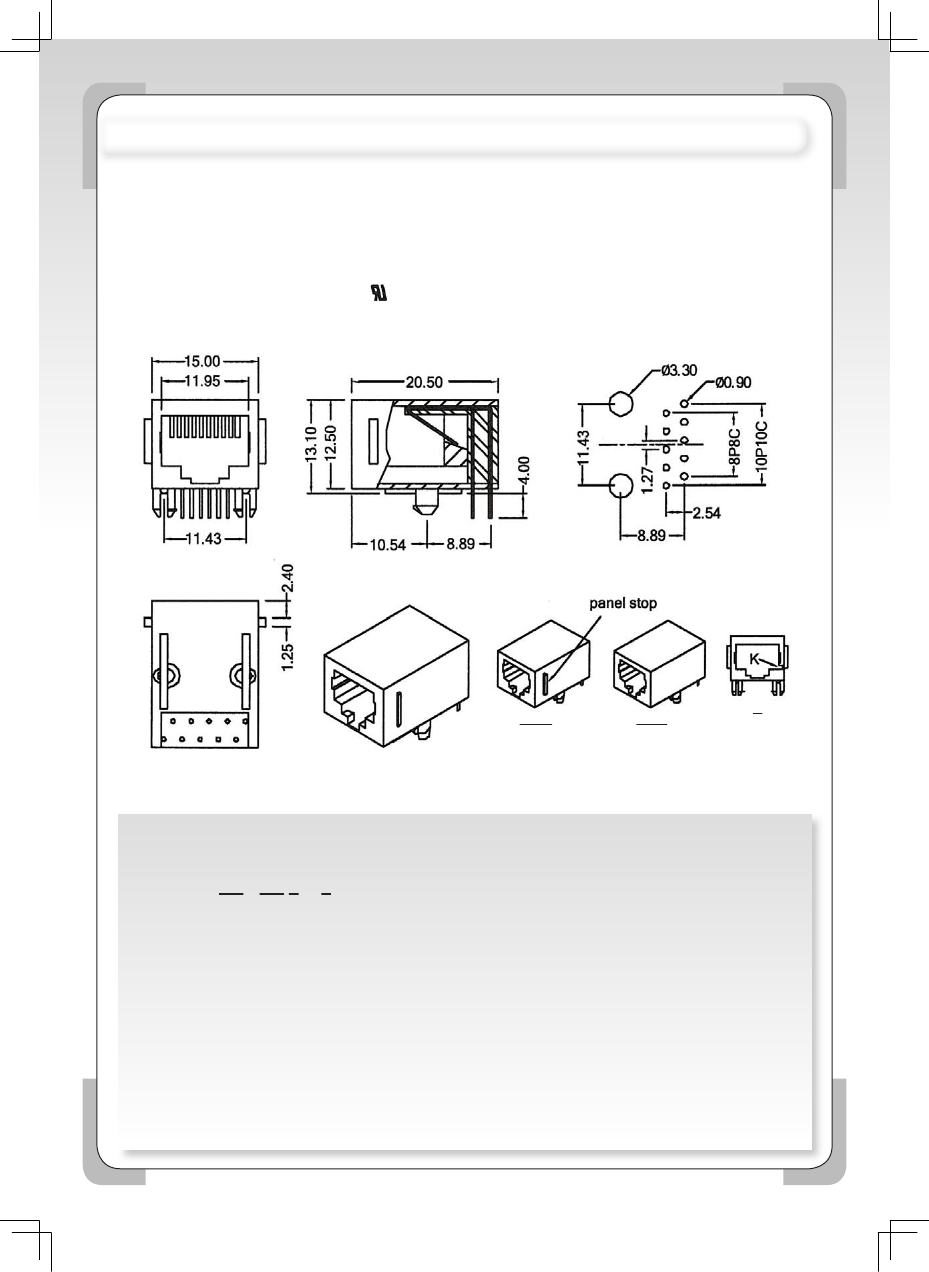

SIDE ENTRY MODULAR PCB JACK 8P+10P PROFILE=13.10MM (UNSHIELDED)

SPECIFICATIONS

MATERIALS

Insulation Resistance:

500MΩ

Min.

Contact Resistance:

20mΩ

Max.

Rating Current:

1.5A Max.

Rating Voltage:

120V AC.

Dielectric Voltage:

1000 Vrms 60 Sec. Min.

Temperature Range:

-40ºc / +85ºc

Durability:

500 Mating cycles Min.

Housing:

PBT Glass Filled (UL 94V-0)

Soldering Temperature:

235ºc

Color:

Black

Spring Wire:

Phosphor Bronze

Gold plating Over Nickel

All materials must be RoHS compliant.

Recommended P.C.Board Layout

(TOP VIEW)

MJ4T

MJ04

ORDERING INFORMATION:

P/N M J x x - x x x B x

2 3 4

1. PANEL STOP OPTION:

"4T" WITH PANEL STOP

"04" W/O PANEL STOP

2. NO. OF POSITIONS & CONTACTS:

"88" 8P8C

"00" 10P10C

3. CONTACT FINISH:

"A" 6 MICROINCH GOLD

"B" 15 MICROINCH GOLD

"C" 30 MICROINCH GOLD

"D" 50 MICROINCH GOLD

4. KEYWAY OPTION:

" " W/O KEYWAY

"K" WITH KEYWAY

J205
