BNC3100-03C2V

Description
RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Guide Slot, Plug
CategoryThe connector    The connector
File Size264KB,2 Pages
ManufacturerJYEBAO Co., Ltd.
Download Datasheet Parametric View All

BNC3100-03C2V Overview

RF BNC Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Guide Slot, Plug

BNC3100-03C2V Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresCABLE TYPE 3C-2V
subject depth0.984 inch
Body diameter0.571 inch
Body/casing typePLUG
Characteristic impedance75 Ω
Connector typeRF BNC CONNECTOR
Contact point genderMALE
Contact resistance1.5 mΩ
Contact styleCOAX
Coupling typeBAYONET
Dielectric withstand voltage2100VAC V
Durability500 Cycles
Insulation resistance5000000000 Ω
insulator materialTEFLON
Installation option 1GUIDE SLOT
Installation methodSTRAIGHT
Installation typeCABLE
Number of ports1
Maximum operating frequency1 GHz
Maximum operating temperature165 °C
Minimum operating temperature-65 °C
reliabilityCOMMERCIAL
Shell materialBRASS
Termination typeCRIMP
Total number of contacts1

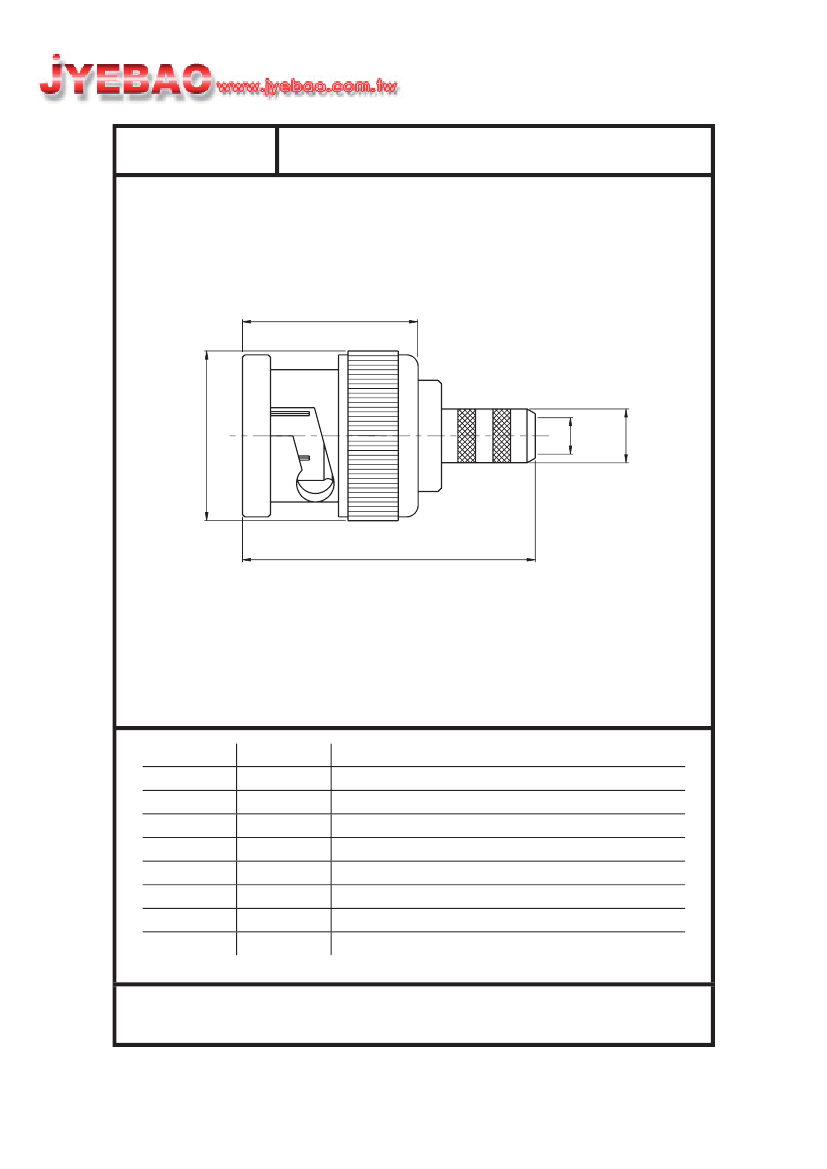

BNC3100-03C2V
BNC Plug Crimp
75Ω
15
(.591)
ø14.5
(ø.571)
ø3.3
(ø.130)
25
(.984)
Parts
Ferrule
Contact Pin
Gasket
Washer
Spring
Insulator
Body
Coupling Nut
Material
Brass
Brass
Silicone
Brass
SK5
Teflon
Brass
Brass
Plating (Micro-inch)
Tin-Zinc-Copper-Alloy 100 Over Copper 50
Gold 3 Over Nickel 50 Over Copper 50
Tin-Zinc-Copper-Alloy 100 Over Copper 50
Tin-Zinc-Copper-Alloy 100 Over Copper 50
Tin-Zinc-Copper-Alloy 100 Over Copper 50
Tin-Zinc-Copper-Alloy 100 Over Copper 50
Weight: 9.70 g
Suitable Cables: 3C-2V
Notice: JYEBAO reserves the right to make modifications deemed appropriate.
ø5.6
(ø.220)
