MM-2C2-009-261-28WC datasheet, PDF

Datasheet> All Categories > The connector> The connector> MM-2C2-009-261-28WC

MM-2C2-009-261-28WC: DescriptionD Type Connector, 9 Contact(s), Female, 0.05 inch Pitch, Crimp Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size234KB，6 Pages; ManufacturerAirBorn

Download Datasheet Parametric View All

MM-2C2-009-261-28WC Overview

D Type Connector, 9 Contact(s), Female, 0.05 inch Pitch, Crimp Terminal, Locking, Receptacle

MM-2C2-009-261-28WC Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.48 inch
subject depth	0.346 inch
body length	0.957 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact style	RND PIN-SKT
Insulation resistance	5000000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
Manufacturer's serial number	MM
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation option 2	LOCKNUT
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Plating thickness	50u inch
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell surface	ELECTROLESS NICKEL
Termination type	CRIMP
Total number of contacts	9

Preview

Download Datasheet

View All

10mm (0.4INCH) DUAL DIGIT NUMERIC DIS-

PLAY

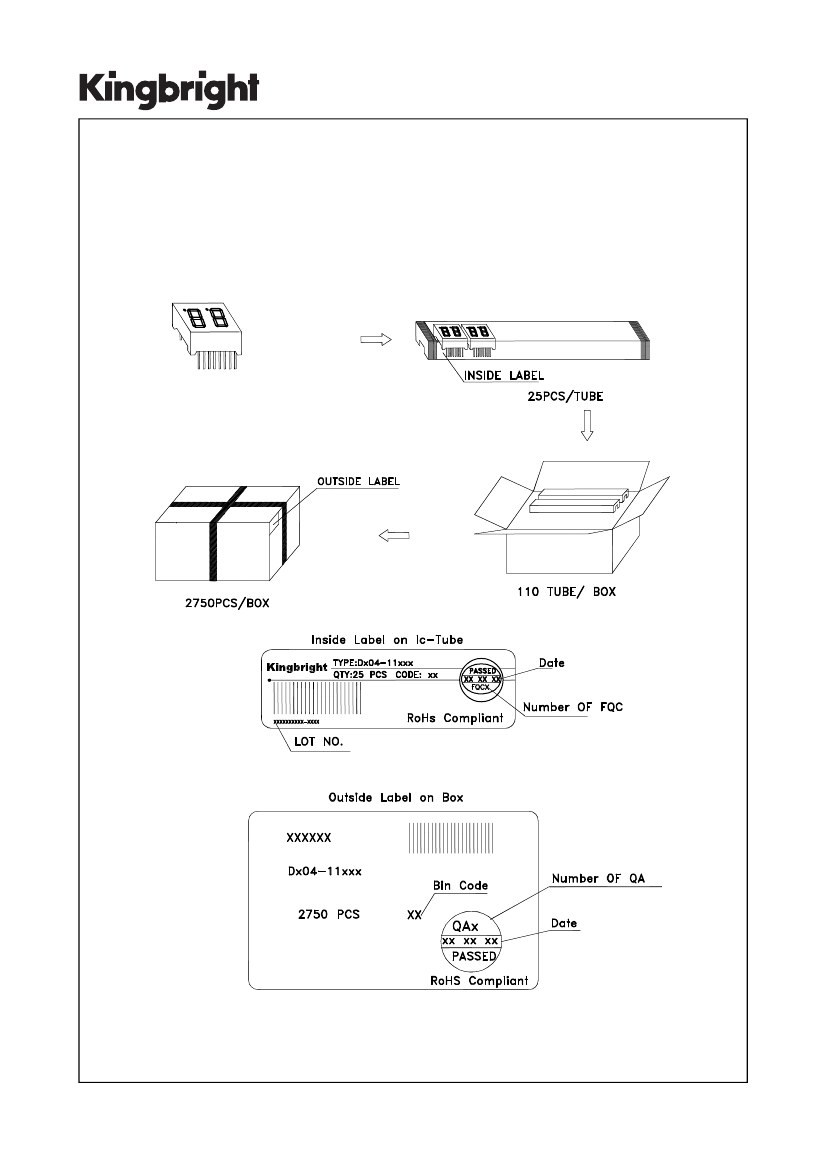

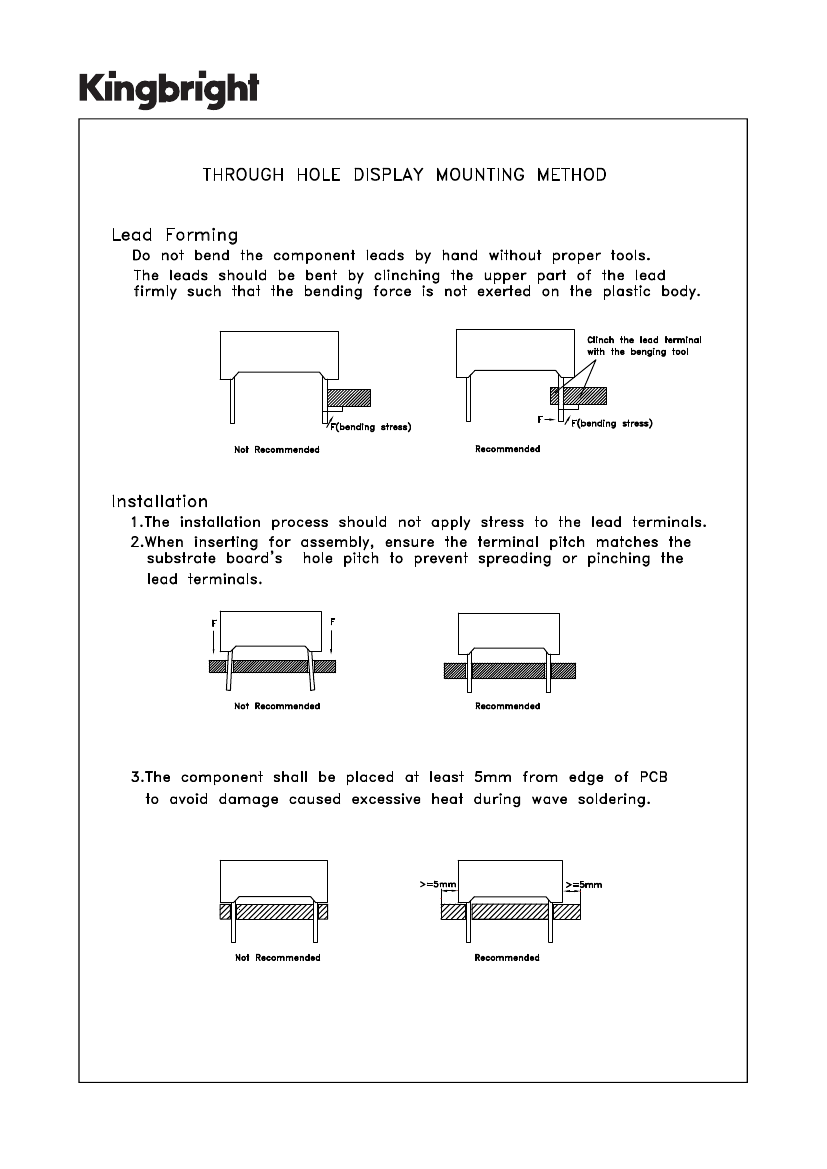

Part Number: DA04-11CGKWA

Green

Features

0.4 inch digit height.

Low current operation.

Excellent character appearance.

Easy mounting on P.C. boards or sockets.

Two digit package simplifies alignments & assembly.

Mechanically rugged.

Standard : gray face, white segment.

RoHS compliant.

Description

The Green source color devices are made with AlGaInP on

GaAs substrate Light Emitting Diode.

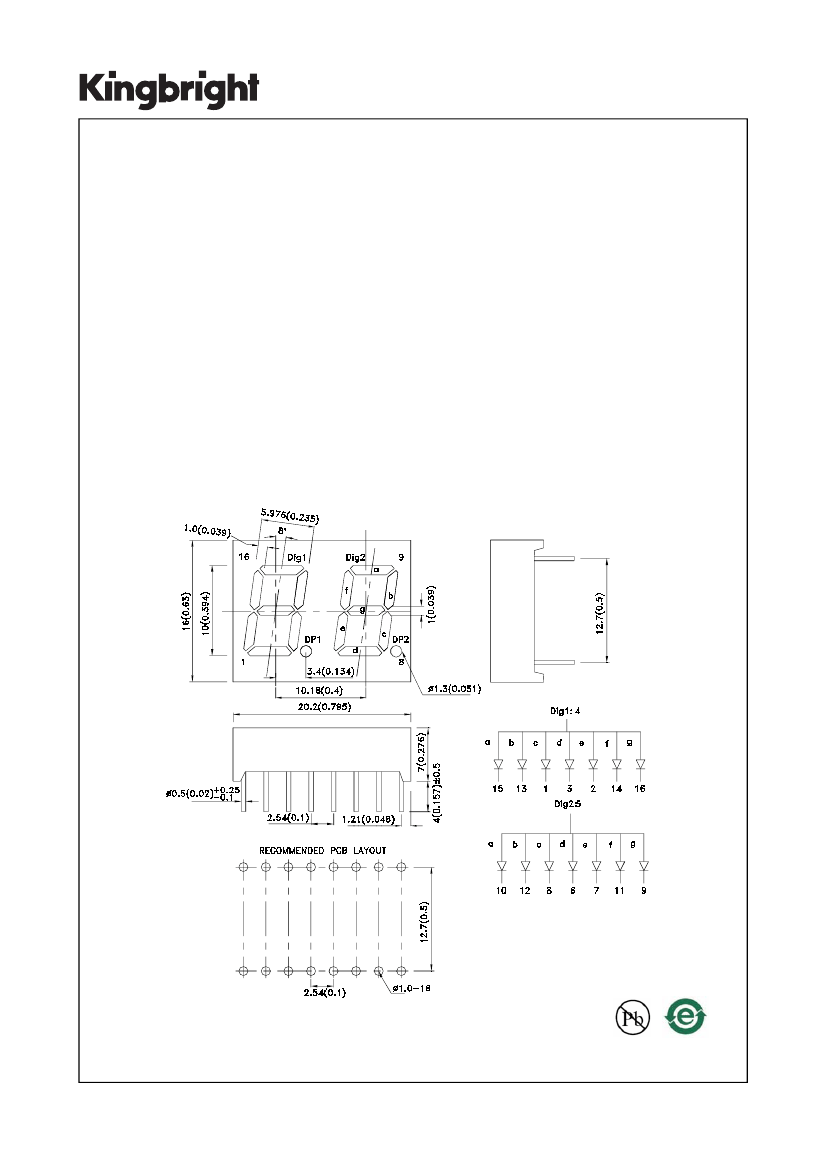

Package Dimensions& Internal Circuit Diagram

Notes:

1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.

2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.

SPEC NO: DSAK2768

APPROVED: WYNEC

REV NO: V.5A

CHECKED: Joe Lee

DATE: MAR/06/2013

DRAWN: F.Cui

PAGE: 1 OF 6
