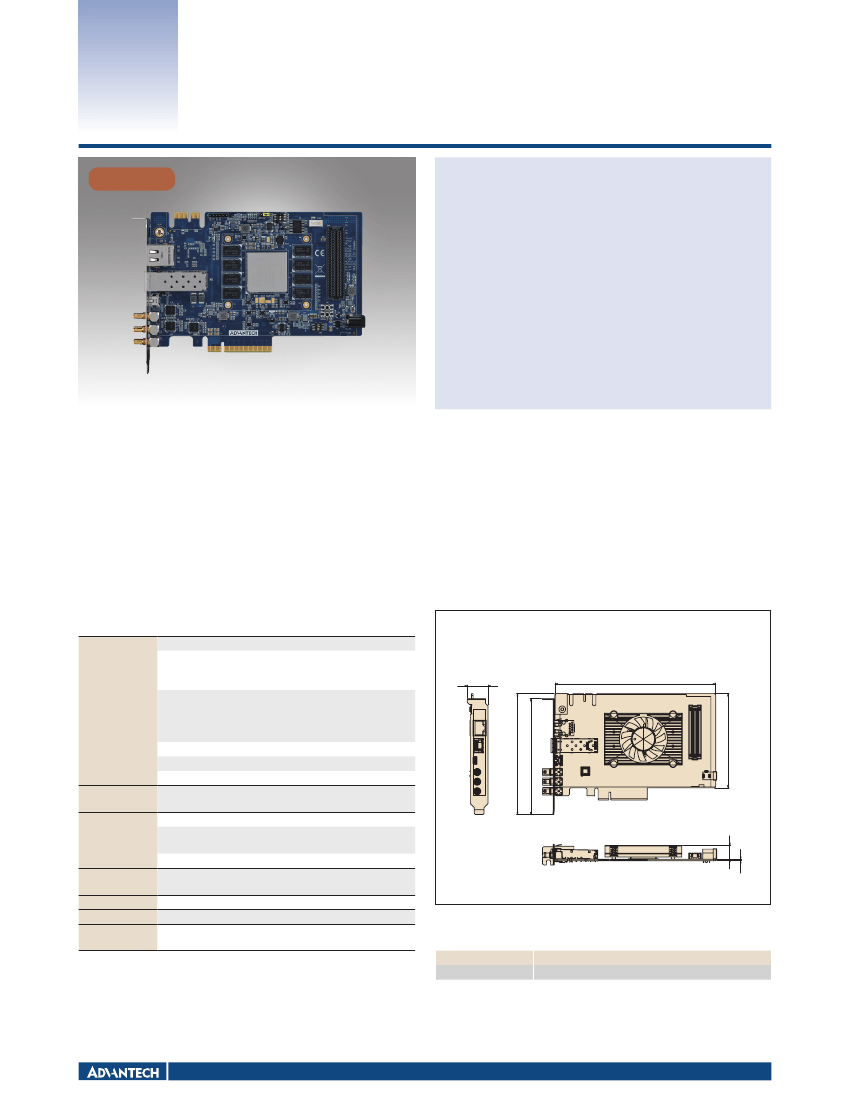

HVC-8800

Preliminary

SMPTE 2022-5,6 Video-over-IP PCIe Card

Features

SMPTE 2022-6 Video over IP bridge that converts 3G-SDI x3 to 10G Ethernet

Forward Error Correction (FEC) supported according to SMPTE 2022-5

Send or receive raw video through PCIe interface to host computer

Single configurable module allows operating as a transmitter or receiver

Single slot, half length PCIe x8 card (only x4 used in logical)

Low operating power consumption ( <15 Watt)

Introduction

HVC-8800 is a single slot, Half-Length PCIe add-on card in terms of performing encapsulation/decapsulation multiple High-Definition 1080p60 video streams over a 10 gigabit Ethernet

network in uncompressed format. HVC-8800 supports the approved SMPTE 2022-6 (High Bit Rate Media Transport over IP Networks) standard for transmitting and receiving video

raw data through IP networks via RTP protocol. The SMPTE 2022-5 (Forward Error Correction for High Bit Rate Real-Time Video/Audio Transport over IP) feature is also supported by

HVC-8800 to improve resilience of bit errors and packet loss during video data transmission. HVC-8800 can be operated either as a transmitter or receiver function, by configuring

the selection jumper onboard. The transmitter mode will take the video raw data from multiple SDI inputs or PCI Express interface and converts the video content into the packet format

defined by SMPTE 2022 before transmitting out through 10 gigabit Ethernet port. The receiver mode will perform very similar process like transmitter mode but in reversed way of

datapath. It is also doable in using HVC-8800 as the standalone board without the need for plugging into a host system for operation. With the easy-to-use software development

kit (SDK), HVC-8800 is an ideal solution for broadcasters or system integrators who need to carry the uncompromised video data through the existing IP infrastructure. The wide

range of target applications that HVC-8800 can serve includes cloud video acquisition, video over IP bridge, real-time video transfer and networked broadcast studio installations.

Specification

Channels

SDI Interfaces

Video Input

(Tx Mode)

Video Output

(Rx Mode)

SD-SDI SMPTE 259-C

HD-SDI SMPTE 292

3G-SDI Level A SMPTE 425-A

PAL/NTSC/SMPTE 274/SMPTE 296/

SMPTE 260/SMPTE 2048-2/

SMPTE 428-9/SMPTE 428-19/

SMPTE 372

Up to 1920 x 1080p (Full HD 1080p)

Up to 60 fps per channel

SMA

Dimension

21.59

167.65

Unit: mm

Video Standards

File-based I/O

10G Ethernet

Interfaces

Giga Ethernet

Interfaces

Latency

Internet Protocol

Power

Consumption

Resolution

Max. Frame Rate

Connectors

PCIe Gen2 x4

(Physical link is PCIe Gen2 x8, reserved for future upgrade)

Function Standards

SMPTE 2022-5/6

Forward Error

Level A and Level B FEC

Correction

(steam basis)

Connectors

SFP+ Module

10/100/1000 Mbps LAN port; RJ-45 connector

(This interface is reserved for future upgrade)

60 ms (3G-SDI, 1080/60p)

Support IPV4 static IP setting

Under 15 Watt

126.31

121.02

Ordering Information

Part Number

HVC-8800-TXE

Description

SMPTE-2022 Encapsulation PCIe Card

All product specifications are subject to change without notice

Last updated : 5-Aug-2015

14.30

1.60

98.40
