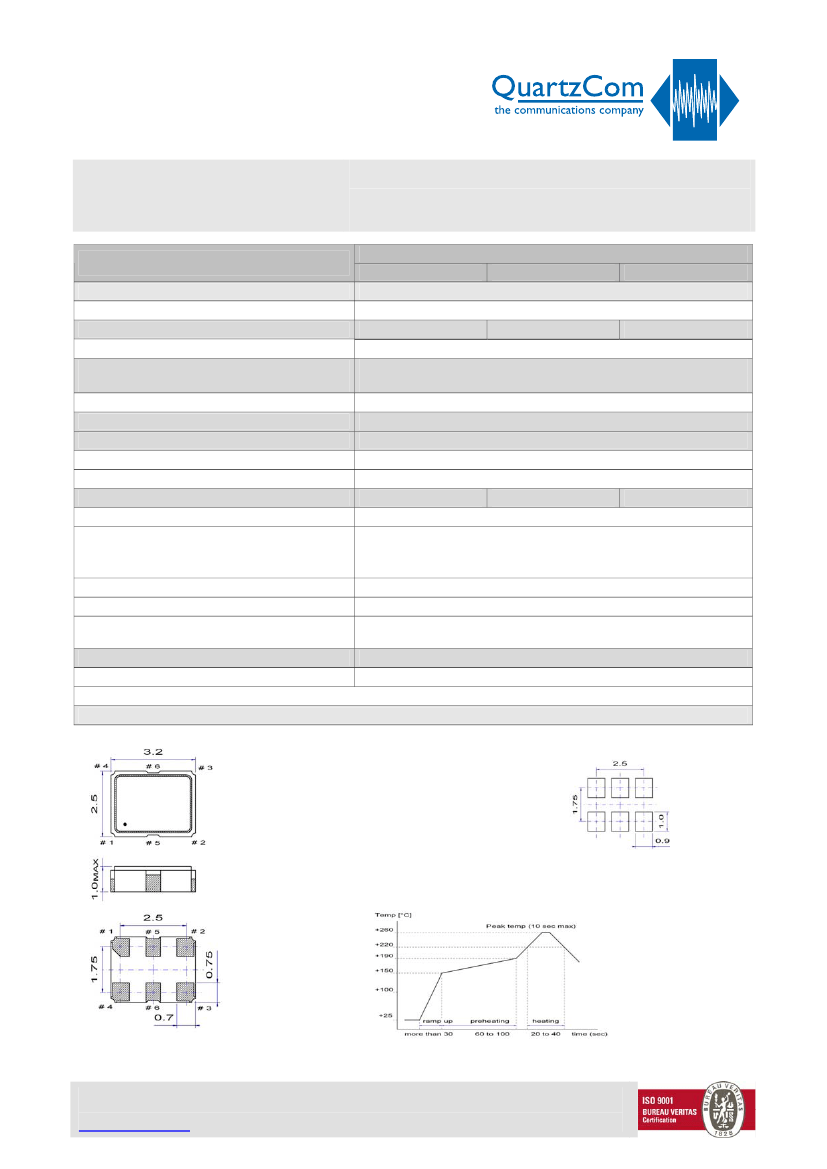

VXO-5S-6p
Miniature packaged SMD VCXO
CMOS
Features
Applications: telecommunications, instrumentation, microwave
Miniature package size: 3.2 x 2.5 x 1.0 mm
Output frequency range 2 MHz to 54 MHz
Low phase noise
Highly shock and vibration resistant
Specification
VXO-5S18-6p
VXO-5S28-6p
VXO-5S3-6p
Frequency range
2 ~ 54 MHz
Standard frequencies
27.0 MHz and 27.160 MHz
Supply voltage
+1.8 V
5
%
+2.8 V
5
%
+3.3 V
5
%
Supply current
3 ~ 8 mA
Frequency stability
<
30
ppm
(all inclusive) (*)
<
50
ppm
Output signal
CMOS
Output voltage
V
OH
0.9 x Vdc V
OL
0.1 x Vdc
Output load
15 pF
Symmetry
40 ~ 60 %
@ ½ Vdc
Rise / Fall time
6 ~ 10 ns
Voltage control (Vc)
+0.9 V
0.9
V
+1.4 V
1.4
V
+1.65 V
1.654
V
Impedance (Vc to GND)
> 100 k
>80 ppm
1.8 Vdc
Frequency pulling range
>90 ppm
2.8 Vdc
>90 ppm
3.3 Vdc
Modulation bandwidth
> 10 kHz
@ -3 dB
Phase noise
-125 dBc/Hz
@ 1 kHz
Enable / Disable function
Pin #2 = high or open Pin #4
(E) signal
Pin #2 = low
Pin #4
(D) no signal
Operating temperature range
-20 ~ +70 °C
Packaging units
tape & reel
500 or 1’000 pieces
(*) All inclusive
frequency stability vs. temperature, tolerance, aging, supply & load variation
Customer specifications on request
Parameter
Pin function
#1
#2
#3
#4
#5
#6
Vc Voltage control
E/D or not connected
GND
Output
not connected
Vdc
Example for solder pattern
Do not design any conductive path between the pattern
Example for IR reflow soldering temperature
2002/95/EC RoHS compliant
