Thermoelectric Cooling Solutions
Performance Parameters
Type
3MC06-046-03
3MC06-046-05
3MC06-046-08
3MC06-046-10
3MC06-046-12
3MC06-046-15
3MC06-046-XX
I
max
A
3.8
2.4
1.6
1.3
1.1
0.9
ΔT
max
K
111
113
115
115
115
116
Q
max
W
1.83
1.17
0.76
0.62
0.52
0.42
U
max
V
AC R
Ohm
0.81
1.29
2.03
2.52
3.01
3.75
H
mm
3.2
3.8
4.7
5.3
5.9
6.8
3MC06-046-xx (N=46)
3.7
Performance data are given for 300K, vacuum

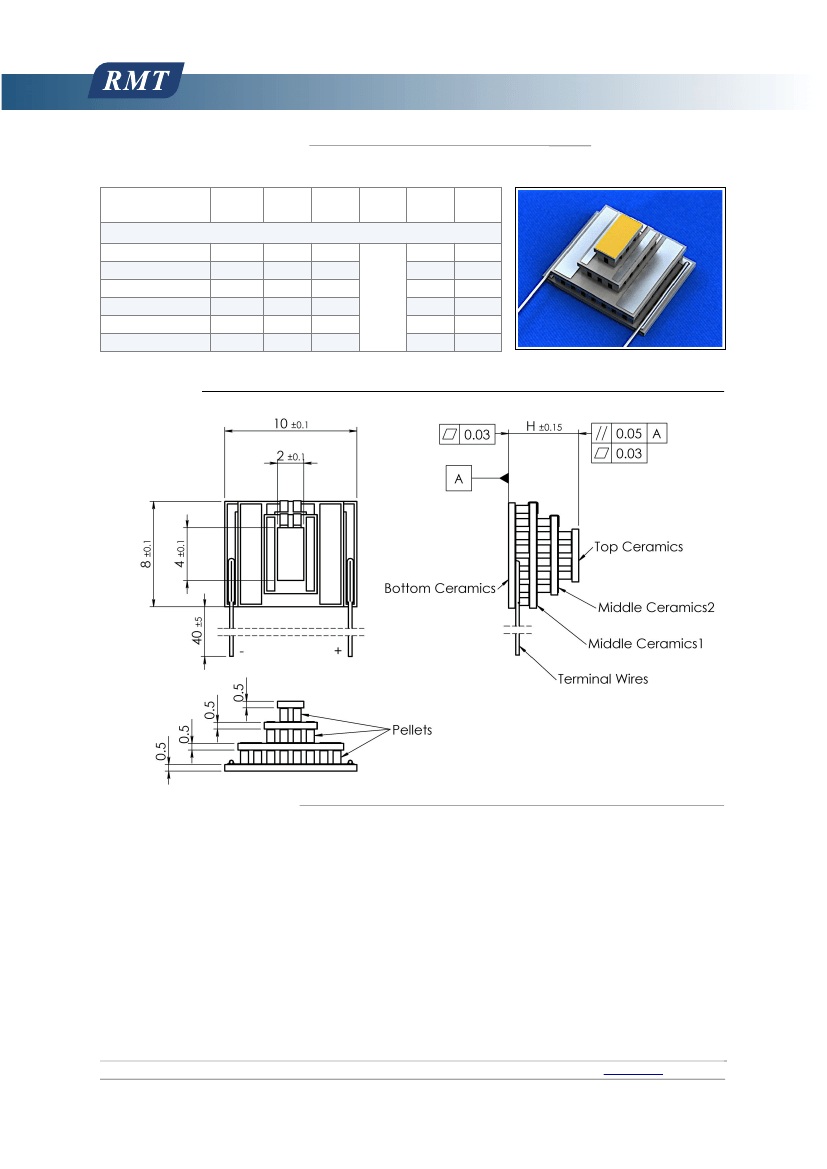

Dimensions
Manufacturing options
A. TEC Assembly:
* 1. Solder SnSb (T
melt
=230°C)
2. Solder AuSn (T
melt
=280°C)
B. Ceramics:
C. Ceramics Surface Options:
1. Blank ceramics (not metallized)
2. Metallized (Au plating)
3. Metallized and pre-tinned with:
3.1 Solder 117 (In-Sn, T
melt
=117°C)
3.2 Solder 138 (Sn-Bi, T
melt
= 138°C)
3.3 Solder 143 (In-Ag, T
melt
= 143°C)
3.4 Solder 157 (In, T
melt
= 157°C)
3.5 Solder 183 (Pb-Sn, T
melt
=183°C)
3.6 Optional (specified by Customer)
46 Warshavskoe shosse. Moscow 115230
Russia,
ph: +7-499-678-2082, fax: +7-499-678-2083, web:
www.rmtltd.ru
Copyright 2012. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
D. Thermistor (optional)
Can be mounted to cold side
ceramics edge. Calibration is
available by request.
E. Terminal contacts
1. Blank, tinned Copper
2. Insulated Wires
3. Insulated, color coded
*
1.Pure Al
2
O
3
(100%)
2.Alumina (Al
2
O
3
- 96%)
3.Aluminum Nitride (AlN)
* - used by default
Page 1 of 8

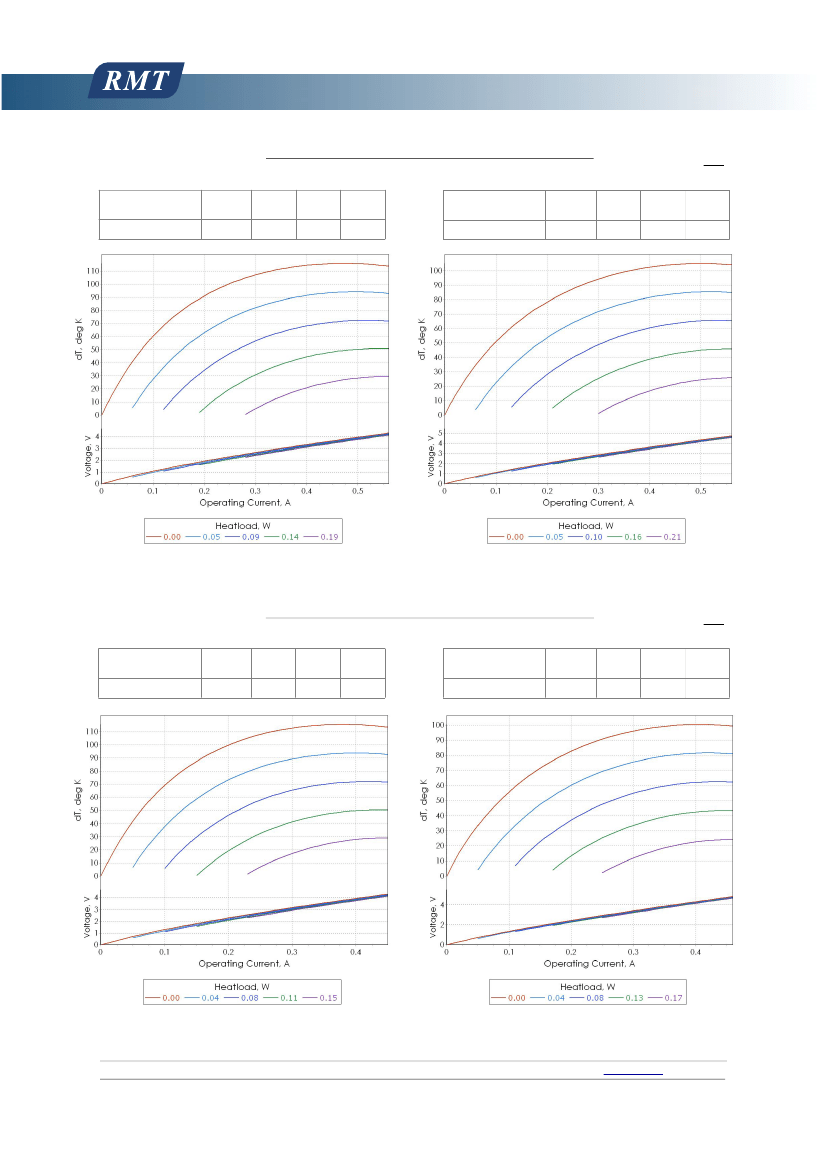

Thermoelectric Cooling Solutions
Performance
Data
@ 27ºC, Vacuum
3MC06-046-03
ΔTmax
K
111
Qmax
W
1.83
Imax
A
3.8
Umax
V
3.7
@50ºC, N2
3MC06-046-03
ΔTmax
K
119
3MC06-046-03
Qmax
W
2.01
Imax
A
3.8
Umax
V
4.2
Note:
Performance data is specified for optimal optimal conditions (TEC hot side is stabilized at ambient temperature).
Heatsink thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
Performance
Data
@ 27ºC, Vacuum
3MC06-046-05
ΔTmax
K
113
Qmax
W
1.17
Imax
A
2.4
Umax
V
3.7
@50ºC, N2
3MC06-046-05
ΔTmax
K
120
3MC06-046-05
Qmax
W
1.29
Imax
A
2.4
Umax
V
4.2
Note:
Performance data is specified at optimal optimal conditions (TEC hot side is stabilized at ambient temperature). Any
heatsink thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
46 Warshavskoe shosse. Moscow 115230
Russia,
ph: +7-499-678-2082, fax: +7-499-678-2083, web:
www.rmtltd.ru
Copyright 2012. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 2 of 8
Thermoelectric Cooling Solutions
Performance
Data
@ 27ºC, Vacuum
3MC06-046-08
ΔTmax
K
115
Qmax
W
0.76
Imax
A
1.6
Umax
V
3.7
@50ºC, N2
3MC06-046-08
ΔTmax
K
118
3MC06-046-08
Qmax
W
0.84
Imax
A
1.6
Umax
V
4.2
Note:
Performance data is specified for optimal optimal conditions (TEC hot side is stabilized at ambient temperature).
Heatsink thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
Performance
Data
@ 27ºC, Vacuum
3MC06-046-10
ΔTmax
K
115
Qmax
W
0.62
Imax
A
1.3
Umax
V
3.7
@50ºC, N2
3MC06-046-10
ΔTmax
K
117
3MC06-046-10
Qmax
W
0.68
Imax
A
1.3
Umax
V
4.2
Note:
Performance data is specified for optimal optimal conditions (TEC hot side is stabilized at ambient temperature).
Heatsink thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
46 Warshavskoe shosse. Moscow 115230
Russia,
ph: +7-499-678-2082, fax: +7-499-678-2083, web:
www.rmtltd.ru
Copyright 2012. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 3 of 8
Thermoelectric Cooling Solutions
Performance
Data
@ 27ºC, Vacuum
3MC06-046-12
ΔTmax
K
115
Qmax
W
0.52
Imax
A
1.1
Umax
V
3.7
@50ºC, N2
3MC06-046-12
ΔTmax
K
115
3MC06-046-12
Qmax
W
0.57
Imax
A
1.1
Umax
V
4.2
Note:
Performance data is specified for optimal optimal conditions (TEC hot side is stabilized at ambient temperature).
Heatsink thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
Performance
Data
@ 27ºC, Vacuum
3MC06-046-15
ΔTmax
K
116
Qmax
W
0.42
Imax
A
0.9
Umax
V
3.7
@50ºC, N2
3MC06-046-15
ΔTmax
K
112
3MC06-046-15
Qmax
W
0.46
Imax
A
0.9
Umax
V
4.2
Note:
Performance data is specified for optimal optimal conditions (TEC hot side is stabilized at ambient temperature).
Heatsink thermal resistance is not included into estimations. Use TECCad Software for estimations under different conditions.
46 Warshavskoe shosse. Moscow 115230
Russia,
ph: +7-499-678-2082, fax: +7-499-678-2083, web:
www.rmtltd.ru
Copyright 2012. RMT Ltd. The design and specifications of products can be changed by RMT Ltd without notice.
Page 4 of 8

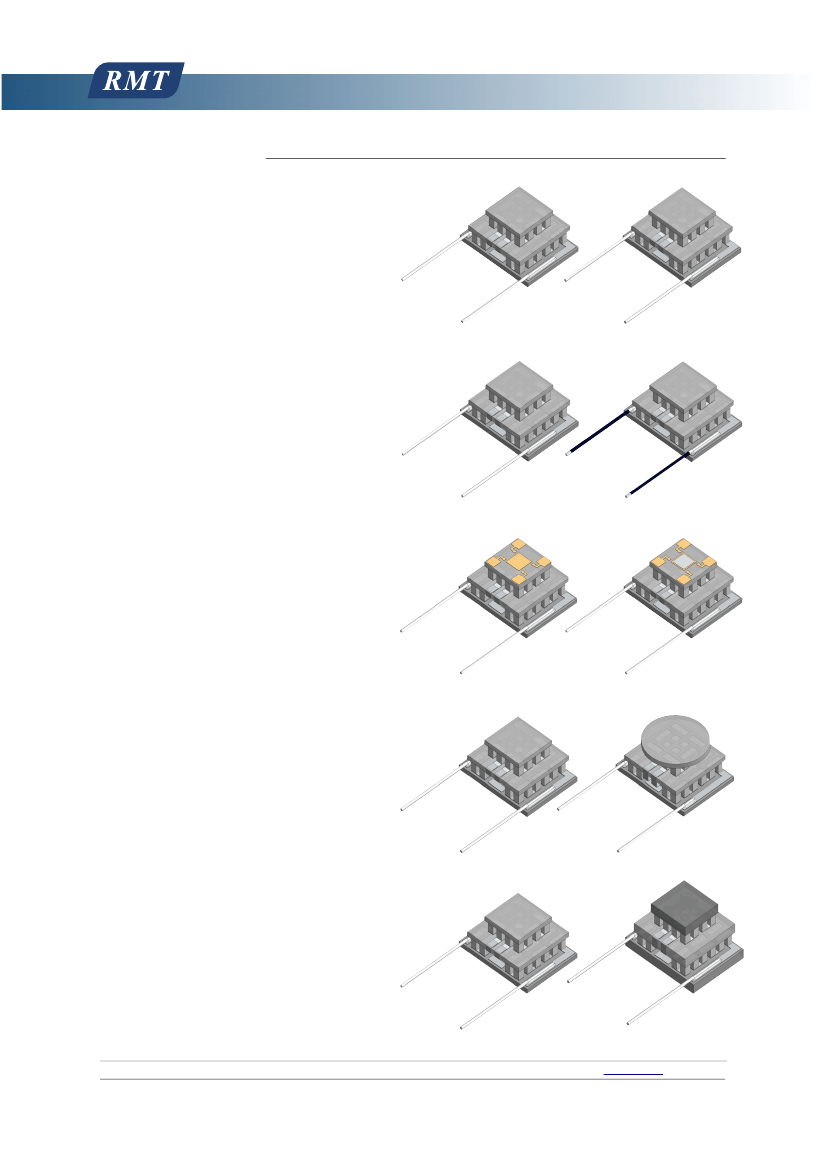

Thermoelectric Cooling Solutions
Additional Options
TEC Polarity
TEC Polarity can be modified by request. The
specified polarity in this datasheet is typical.
It can be reversed in accordance to Customer
application requirements.
-
+
+
Standard polarity
-
Reversed polarity
Terminal Wires Options
The wires are of tinned Copper, blank (not isolated)
by default. Various options for isolated wires are
available by request. The available solutions
include isolated wires, isolated color-coded wires,
flexible multicore wires and more.
S t a n d a rd w i re s ,
tinned Copper
Isolated wires
Customized Au Patterns
Customized Au patterns on thermoelectric cooler
cold side are available by request. Selective Pre-
tinning over pattern is also available. Please,
contact RMT Ltd for additional information about
customized Au patterns requirements.
Customized Au pattern
on cold side
Selective pre-tinning
over pattern
Cold Side modification
TEC Cold Side can be modified by request. The
dimensions and shape of 2-stage thermoelectric
cooler can be revised to Customer application.
RMT Ltd has full-featured flexibility in TEC design
and modification.
Standard shape
Round-shaped
cold side
TEC Height modification
Standard 2-stage TEC height can be modified
without performance changes by using ceramics
of different thickness. Standard 2-stage
thermoelectric cooler height (specified in this
datasheet) may be modified in a range
-0.75..+1.5mm by request.
Standard height
Modified height,
another ceramics
thickness
