Ceramic DUPLEXER IDD08871
881.5 MHz / 836.5 MHz
Features
Ceramic Duplexer
Usable bandwidth 25 MHz each Rx And Tx. band
No matching / Antenna & Transmitter & Receiver Impedance 50Ω
Surface Mounted Module Package ( 40mm
×
22mm
×
9.5mm )

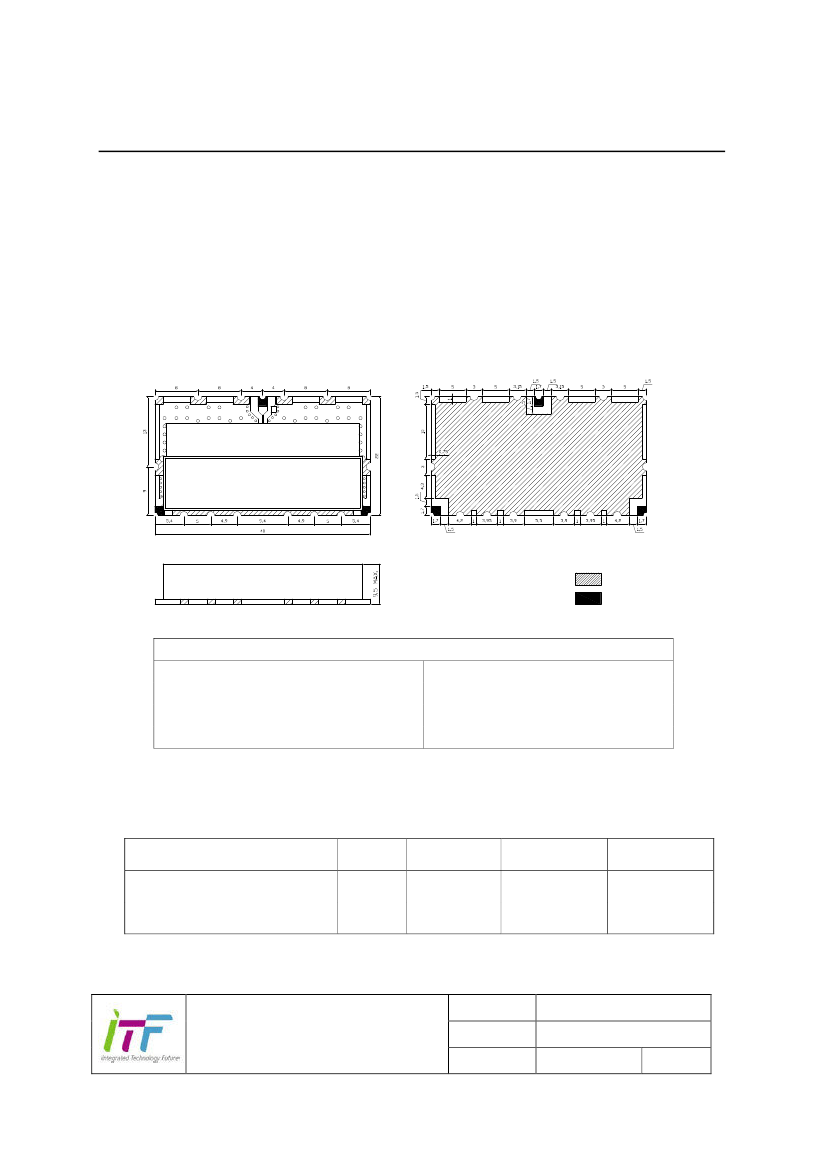

Package Dimension
TOP VIEW
BOTTOM VIEW
RFDevices
ANT
PART NUMBER
TX(RX)
RX(TX)
SIDE VIEW
TOLERANCE UNLESS
OTHERWISE SPECIFIED : ±0.3
DIMENSIONS : mm
GROUND
I/O PORT
Pin Configuration
Description
RX (824 ~ 849MHz)
ANT
TX (869 ~ 894MHz)
Function
RECEIVER
ANTENNA
TRANSMITTER
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Electrostatics Sensitive Device (ESD)
Unit
°C
°C
Minimum
-40
-40
Typical
25
-
Maximum
+85
+85
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IDD08871
2014-9-16
AS01
1/3
Ceramic DUPLEXER IDD08871
881.5 MHz / 836.5 MHz
Specification
Fo = 881.5 MHz / 836.5 MHz
ANT to Rx
Insertion loss (836.5 MHz +/-12.5 MHz)
Amplitude Ripple (836.5 MHz +/-12.5 MHz)
Return Loss (836.5 MHz +/-12.5 MHz)
Input power (836.5 MHz +/-12.5 MHz)
dB
dB
dB
Watt
Minimum
-
-
18
Typical
1.8
0.5
20
Maximum
2.0
0.7
-
3W > 50000 Hours, CW tone (Ta=+50°C)
Relative Attenuation
869 ~ 894 MHz
dB
52
55
-
Tx to ANT
Insertion loss (881.5 MHz +/-12.5 MHz)
Amplitude Ripple (881.5 MHz +/-12.5 MHz)
Return Loss (881.5 MHz +/-12.5 MHz)
Input power (881.5 MHz +/-12.5 MHz)
dB
dB
dB
Watt
Minimum
-
-
18
Typical
1.8
0.5
20
Maximum
2.0
0.7
-
3W > 50000 Hours, CW tone (Ta=+50°C)
Relative Attenuation
824 ~ 849 MHz
dB
52
55
-
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 3 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
3) All attenuation measurements are measured absolute to insertion loss
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IDD08871
2014-9-16
AS01
2/3
Ceramic DUPLEXER IDD08871
881.5 MHz / 836.5 MHz

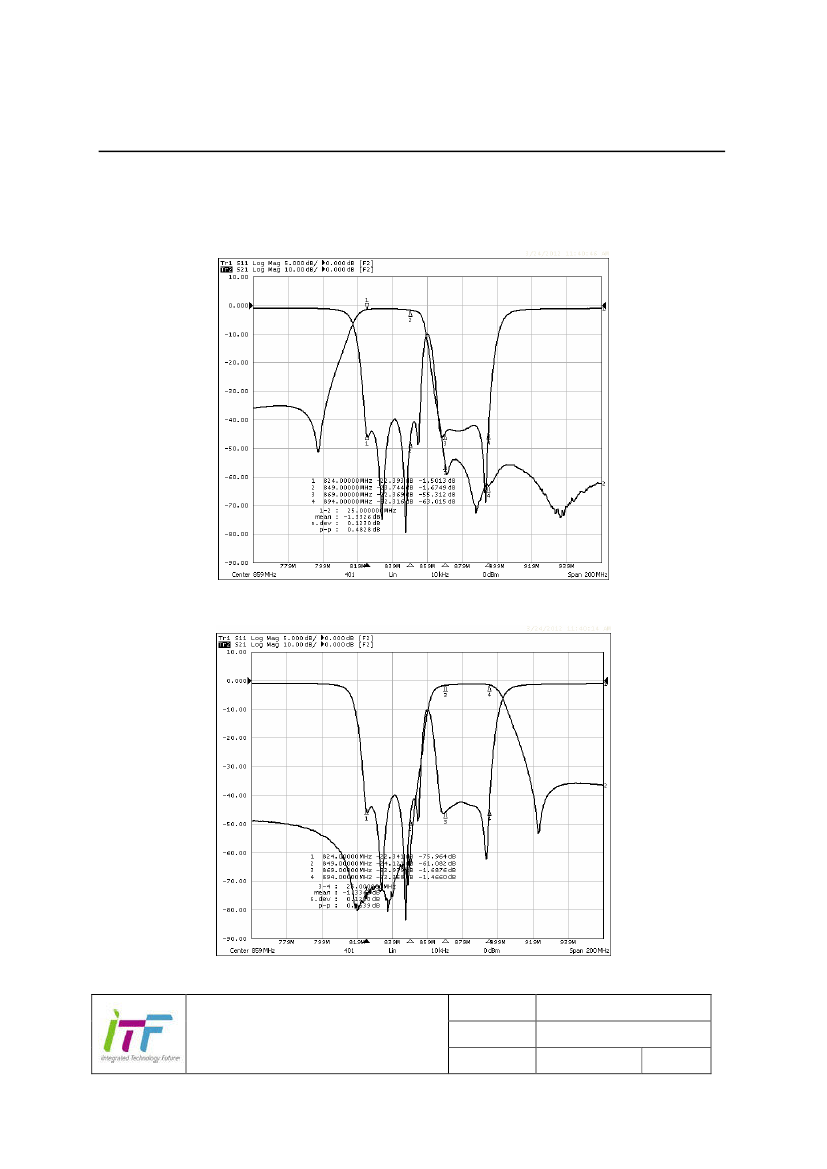

Frequency Response
Ant to Rx
Tx to Ant
