Ceramic DUPLEXER IDD19466
1945 MHz / 2135 MHz
Features
Ceramic Duplexer
Usable bandwidth 30 MHz each Rx. And Tx. band
No matching / Antenna & Transmitter & Receiver Impedance 50Ω
Surface Mounted Module Package ( 30mm
×
8.8mm
×
5mm )

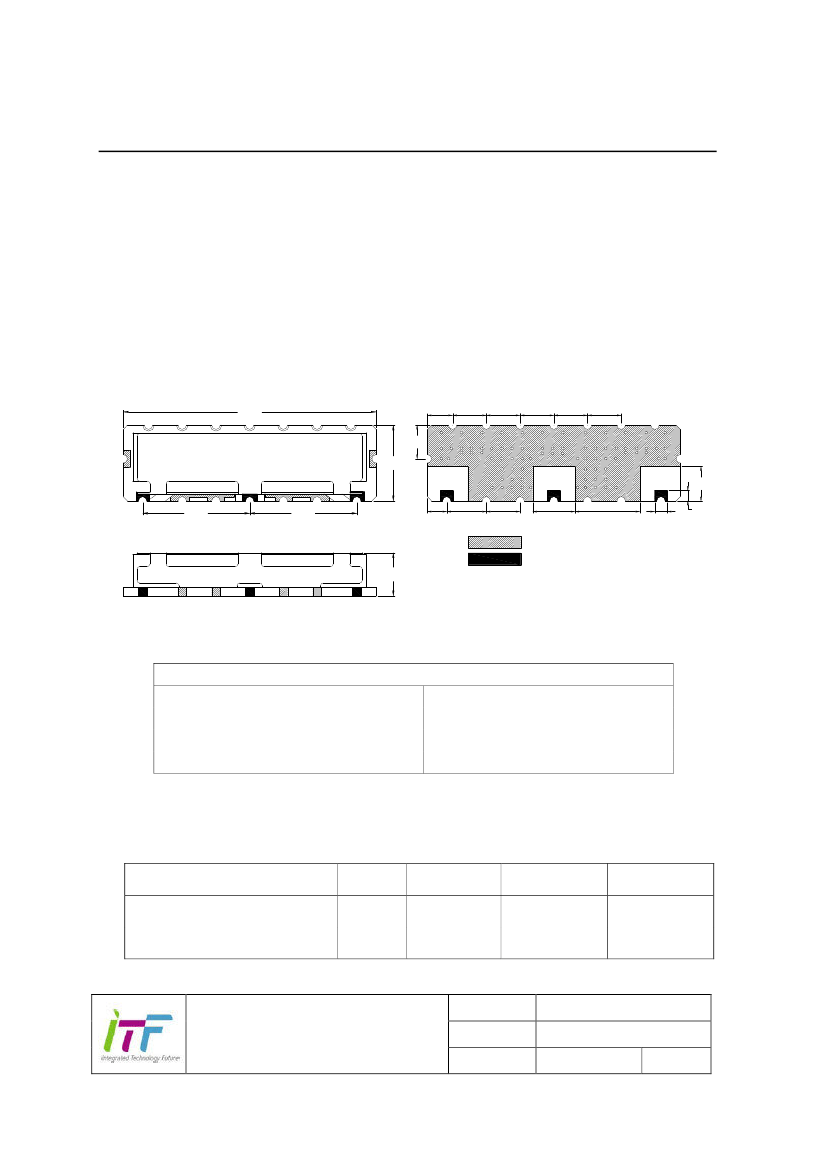

Package Dimension
TOP VIEW
30.0
RF Devices,Inc.
3.9
3.0
4.0
BOTTOM VIEW
4.0
4.0
4.0
4.0
PART NO
RDM4J1945B2135B30PB
ANT
2135
1945
8.80
4.0
1.2
2.3
4.7
4.0
5.0
7.7
1.5
12.7
12.7
FRONT VIEW
5.00
GROUND
I/O PORT
TOLERANCE : ±0.20
UNIT : mm
Pin Configuration
Description
RX (1930 ~ 1960MHz)
ANT
TX (2120 ~ 2150MHz)
Function
RECEIVER
ANTENNA
TRANSMITTER
Maximum Ratings
Parameter
Operating Temperature Range
Storage Temperature Range
Electrostatics Sensitive Device (ESD)
Unit
°C
°C
Minimum
-40
-40
Typical
25
-
Maximum
+85
+85
I T F Co., Ltd.
102-901, Bucheon Technopark 364,
Samjeong-Dong, Ojeong-Gu, Bucheon-City,
Gyounggi-Do, Korea 421-809
Part No.
Rev. Date
Rev.
IDD19466
2014-9-16
AS01
1/2
Ceramic DUPLEXER IDD19466
1945 MHz / 2135 MHz
Specification
Fo = 1945 MHz / 2135 MHz
ANT to Rx
Insertion loss (1945 MHz +/-15 MHz)
Amplitude Ripple (1945 MHz +/-15 MHz)
Return Loss (1945 MHz +/-15 MHz)
Input power (1945 MHz +/-15 MHz)
dB
dB
dB
Watt
Minimum
-
-
18
Typical
1.8
0.3
20
Maximum
2.0
0.5
-
3W > 50000 Hours, CW tone (Ta=+50°C)
Relative Attenuation
2120 ~ 2150 MHz
dB
60
63
-
Tx to ANT
Insertion loss (2135 MHz +/-15 MHz)
Amplitude Ripple (2135 MHz +/-15 MHz)
Return Loss (2135 MHz +/-15 MHz)
Input power (2135 MHz +/-15 MHz)
dB
dB
dB
Watt
Minimum
-
-
18
Typical
1.8
0.3
20
Maximum
2.0
0.5
-
3W > 50000 Hours, CW tone (Ta=+50°C)
Relative Attenuation
1930 ~ 1960 MHz
dB
60
63
-
Notes :
1) All specifications are based on the matching schematic shown below, measured by Agilent Network analyzer and
full 3 port calibration.
2) Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing
tolerances
3) All attenuation measurements are measured absolute to insertion loss
Part No.
Rev. Date
Rev.
IDD19466
2014-9-16
AS01
2/2
