Maximum TX Input Power into 50Ω Load for 11a/n/ac (No Damage)
Moisture Sensitivity
Rating
-0.5 to +5.4
-0.5 to 5
500
-40 to +85
-40 to +150
+12
MSL1
Unit
V
DC
V
DC
mA
ºC
ºC
dBm
Caution!
ESD sensitive device.
RFMD Green: RoHS status based on EU
Directive 2011/65/EU (at time of this
document revision), halogen free per IEC
61249-2-21, < 1000ppm each of
antimony trioxide in polymeric materials
and red phosphorus as a flame retardant,
and <2% antimony in solder.
Exceeding any one or a combination of the Absolute
Maximum Rating conditions may cause permanent
damage to the device. Extended application of Absolute
Maximum Rating conditions to the device may reduce
device reliability. Specified typical performance or
functional operation of the device under Absolute
Maximum Rating conditions is not implied.
Nominal Operating Parameters
Specification
Parameter
Min
Compliance
Operating Frequency
Extended Frequency
Operating Temperature
Power Supply V
CC
Switch Control Voltage - SW_CTL High
Switch Control Voltage - SW_CTL Low
PA Enable – High
PA Enable - Low
5.15
4.9
-30
3
2.75
2.75
5.85
5.15
+85
4.2
4.2
0.4
4.2
0.4
GHz
GHz
ºC
V
V
V
V
V
Unit
Typ
Max
Condition
802.11a, 802.11n, 802.11ac
Functional with reduced performance
3.6
2.9
0.1
2.9
0.1
TX switch On at high control voltage
RX switch On with low control voltage
PA in “On” state
PA in “Off” state, Do not leave floating
Transmit (TX-ANT) Mode
Gain (5.15 to 5.85GHz)
20MHz Output Power*
11ac 20MHz Dynamic EVM
40MHz Output Power*
11ac 40MHz Dynamic EVM
80MHz Output Power*
11ac 80MHz Dynamic EVM
80MHz Output Power*
11ac 80MHz Dynamic EVM
Spectral Mask 20MHz Output Power*
Spectral Mask 40MHz Output Power*
Spectral Mask 80MHz Output Power*
Operating Current - Nominal
Second Harmonic
Third Harmonic
25.5
18.5
29
19
-33
2.2
18
-36
1.5
17
-36
1.5
13.5
-40
1.0
22
21
20
270
dB
dBm
dB
%
dBm
dB
%
dBm
dB
%
dBm
dB
%
dBm
dBm
dBm
mA
dBm/MHz
dBm/MHz
T= +25C°; V
CC
=3.6V; SW_CTL = High; PA_EN = High;
LNA_EN = Low; Unless otherwise noted
802.11ac HT20 MCS7
-30
3.2
-35
1.8
-35
1.8
17.5
802.11ac VHT40 MCS9
16.5
802.11ac VHT80 MCS9
802.11ac VHT80 MCS9
330
-40
-38
802.11ac HT20 with 3dB margin
802.11ac VHT40 with 3dB margin
802.11ac VHT80 with 3dB margin
P
OUT
= 19dBm
Fundamental frequency is between 4900 and 5850MHz; RF
P
OUT
= 19dBm; Measured in 1MHz resolution bandwidth (FCC
limit max = -30dBm)
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS130923
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
2 of 9
RFFM8506
Specification
Parameter
Min
Transmit (TX-ANT) Mode
(continued)
PA Selectivity/Out of Band Gain
30 to 2900MHz
3600 to 4400MHz
7250 to 7750MHz
TX Port Return Loss
ANT Port Return Loss
Noise Figure
-6
20
16
12
15
6
dB
dB
dB
dB
dB
dB
Unit
Typ
Max
Condition
T= +25C°; V
CC
=3.6V; SW_CTL = High; PA_EN = High;
LNA_EN = Low; Unless otherwise noted
10
12
Receive (ANT-RX) LNA On
Gain
Noise Figure
Rx Port Return Loss
ANT Port Return Loss
Input IP2
Input IP3
Current Consumption
LNA_EN Control Current
LNA Turn On Time
10
8
8
5
12
2.5
10
10
50
6
12
75
dB
dB
dB
dB
dBm
dBm
mA
μA
nS
T= +25C°; V
CC
=3.6V; SW_CTL = Low; PA_EN = Low;
LNA_EN = High; Unless otherwise noted
120
300
Receive (ANT-RX) Bypass Mode
Insertion Loss
Noise Figure
RX Port Return Loss
ANT Port Return Loss
ANT-RX Isolation
Input IP3
LNA Bypass Current
3.5
3.5
10
10
20
15
dB
dB
dB
dB
dB
dBm
μA
μA
μA
μA
μA
nS
nS
nS
V
V
VSWR
T= +25C°; V
CC
=3.6V; SW_CTL = Low; PA_EN = Low;
LNA_EN = Low; Unless otherwise noted
8
8
26
18
PA_EN = High; Maximum power
General Specifications
Switch Control Current – High - Each
Line
Switch Control Current – Low - Each
Line
PA_EN Current
Leakage Current – Nominal
Switching Speed
PA Turn-On Time from PA_EN edge
PA Turn-Off Time from PA_EN edge
ESD – Human Body Model
1000
ESD – Charge Device Model
1000
Ruggedness
*For 4900MHz to 5150MHz, P
OUT
is reduced by 1dB
2
0.1
30
15
200
300
300
Do not leave floating
RF Off; PA_EN = Low; SW_CTL = Low
Output stable within 90% of final gain
Output stable within 90% of final gain
EIA/JESD22-114A all pins
EIA/JESD22-101C all pins
With nominal input power
10:1
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS130923
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
3 of 9
RFFM8506
Switch Control Logic Truth Table
Operating Mode
802.11a/n/ac TX
802.11a/n/ac RX Gain
802.11a/n/ac RX Bypass
Note: All Logic Low pins ≤ 0.4V
PA_EN
High
Low
Low
SW_CTL
High
Low
Low
LNA_EN
Low
High
Low

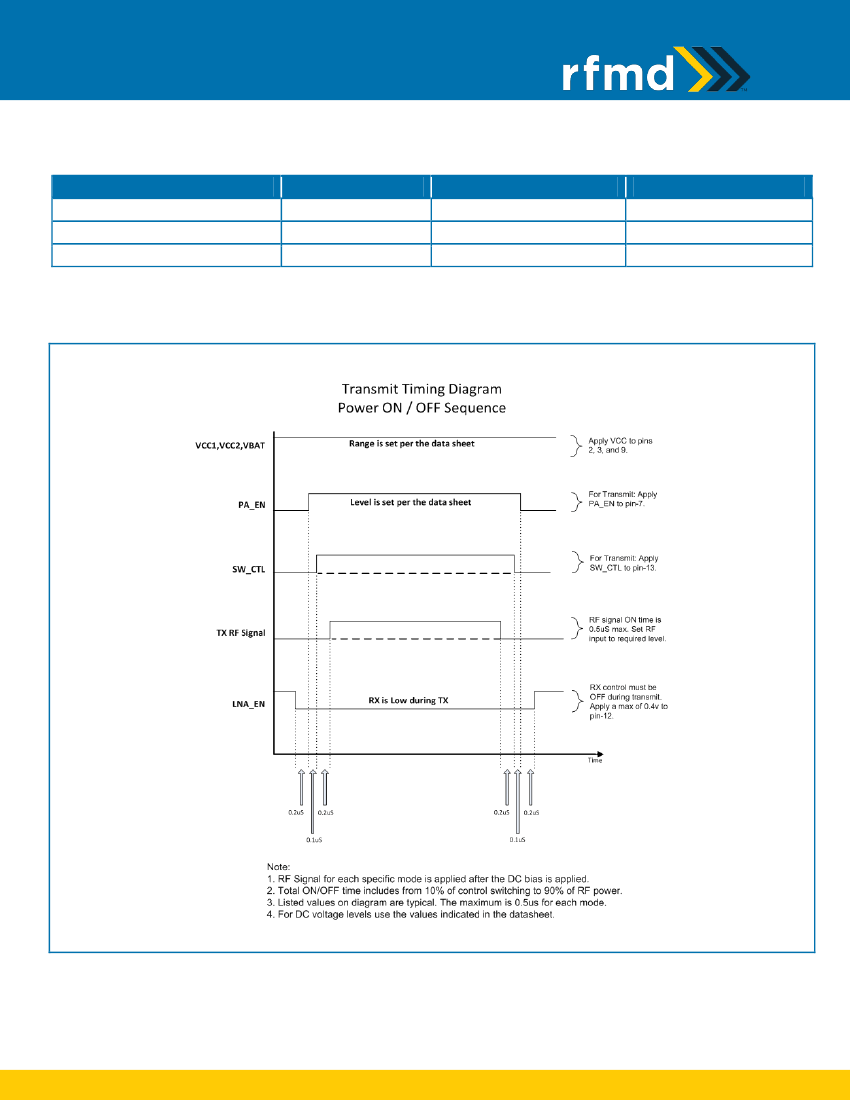

Timing Diagram
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS130923
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
4 of 9
RFFM8506
Timing Sequence Notes
802.11a/n/ac Transmit Biasing Instructions
1. Connect the FEM to a signal generator at the input and a spectrum analyzer at the output. Terminate
unused ports with 50 Ohms
2. Set the power supply voltage to 3.0-4.2V first with PA_EN < 0.4V. Leakage current will be <15uA typical.
3. Refer to switch operational truth table to set the control lines at the proper levels for WiFi TX. All OFF
voltages must be < 0.4V (do not leave floating.)
4. Turn on PA_EN with levels indicated in the datasheet. PA_EN controls the current drawn by the
802.11a/n/ac power amplifier and the current should quickly rise to ~200mA +/- 20mA for a typical part but
the actual operating current will be based on the output power desired. Be extremely careful not to exceed
5.0V on the PA_EN pin or the part may exceed device current limits.
802.11a/n/ac Transmit Turn ON Sequence (See Transmit Timing Diagram)
1. Turn ON power supply.
2. Turn ON PA_EN.
3. Turn ON SW_CTL.
4. Apply RF.
802.11a/n/ac Transmit Turn OFF Sequence
1. Turn OFF RF.
2. Turn OFF SW_CTL.
3. Turn OFF PA_EN.
4. Turn OFF power supply.
802.11a/n/ac Receive
1. To receive WiFi set the switch control lines per the truth table.
2. Antenna port is input and RX port is output for this test.
3. Follow Timing Diagram for biasing instructions.
RF Micro Devices Inc. 7628 Thorndike Road, Greensboro, NC 27409-9421
For sales or technical support, contact RFMD at +1.336.678.5570 or
customerservice@rfmd.com.
DS130923
The information in this publication is believed to be accurate. However, no responsibility is assumed by RF Micro Devices, Inc. ("RFMD") for its use, nor for any infringement of patents or other rights of
third parties resulting from its use. No license is granted by implication or otherwise under any patent or patent rights of RFMD. RFMD reserves the right to change component circuitry, recommended
application circuitry and specifications at any time without prior notice.
