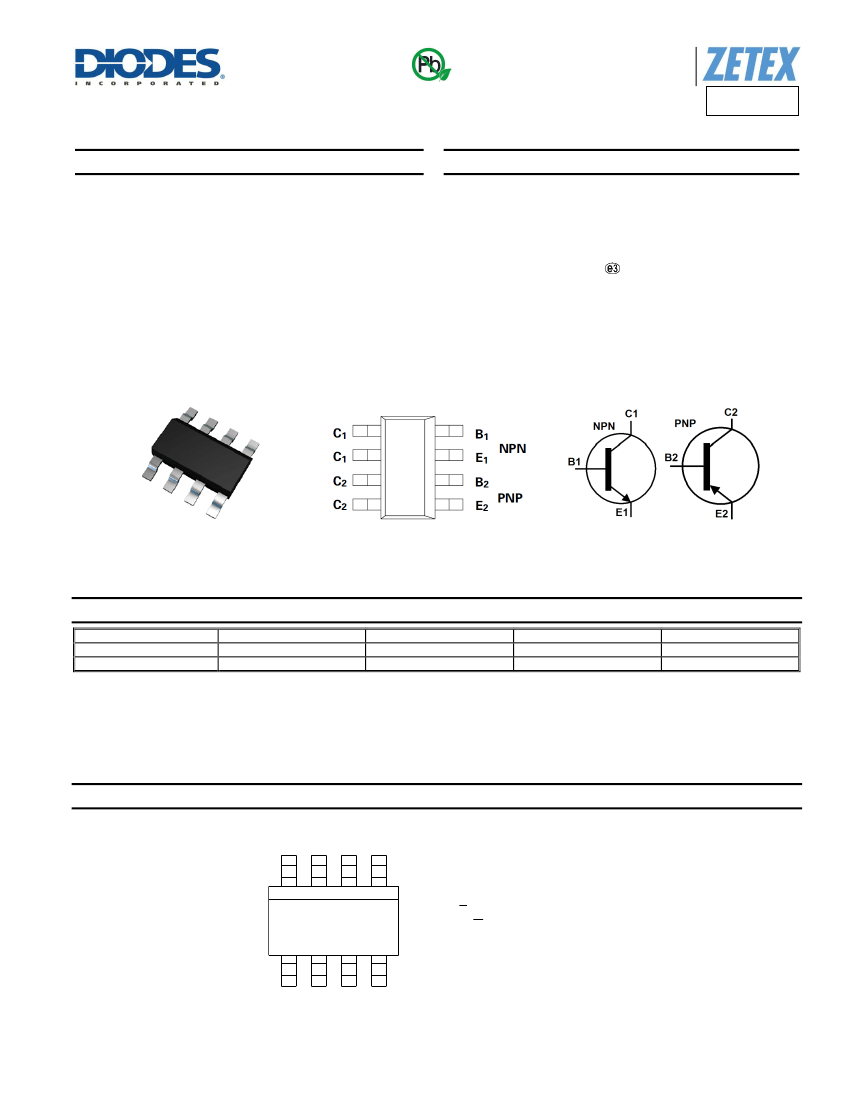

100V COMPLEMENTARY MEDIUM POWER TRANSISTOR IN SM-8
Features
NPN Transistor
BV
CEO
> 100
I
C
= 2A High Continuous Current
Low Saturation Voltage V
CE(sat)
< 300mV @ 1A
PNP Transistor
BV
CEO
> -100V
I
C
= -2A High Continuous Current
Low Saturation Voltage V
CE(sat)
< -300mV @ -1A
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case: SM-8 (8 LEAD SOT223)
Case Material: Molded Plastic, “Green” Molding Compound;
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads. Solderable per
MIL-STD-202, Method 208
Weight: 0.117 grams (Approximate)
SM-8
Top View
Top View
Pin Out
Equivalent Circuit
Ordering Information
(Note 4)
Part Number
ZDT6753TA
ZDT6753TC
Notes:
Marking
T6753
T6753
Reel size (inches)
7
13
Tape width (mm)
12
12
Quantity per reel
1,000
4,000
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
