METALLIZED POLYESTER FILM CAPACITORS

POLYOLEFIN ENCASED – STYLE “T2”

METALLIZED POLYESTER



GENERAL PURPOSE APPLICATIONS SUCH AS

BYPASSING, COUPLING OR DECOUPLING AND

INSTRUMENTATION

BOTH LOW AND HIGH IMPEDANCE CIRCUITS

SELF HEALING CHARACTERISTIC

USUALLY SMALLEST AND MOST ECONOMICAL OF THE

METALLIZED CAPACITORS

STYLE “T2”



POLYOLEFIN ENCASED, WITH EPOXY END SEALS

OVAL – RECTANGULAR, AXIAL LEADS

NOT SUSCEPTIBLE TO BURNS AND PUNCTURES

THESE CAPACITORS ARE INTENDED FOR UTILIZATION IN SEALED OR

ENCAPSULATED ASSEMBLIES

Metallized polyester capacitors are also available in several plastic case styles. Hermetically sealed types

are available. Please contact factory or representative.

SPECIFICATIONS

CONSTRUCTION:

Metallized polyester capacitors are available only in extended foil (non-inductive)

construction.

LEADS:

Copperweld (steel, coated with 30% copper by weight and tinplated with 60-40 sn-pb) is standard

and may be soldered or welded in circuit assembly.

TEMPERATURE RANGE:

May be operated at rated DC voltage from -55°C to +85°C or to + 125°C at

voltages indicated by derating curves.

ELECTRICAL (NON-DESTRUCTIVE) TEST:

1. Capacitance shall be measured at or referred to at 1000 ± 20 Hz at 25 ± 5°C for capacitance

values up to and including 1.0 mfd. Capacitance values greater than 1.0 mfd., shall be measured

at 60 ± 6 Hz.

Ref: MIL-STD-202E, Method 305.

2. Dissipation factor shall be measured as described for capacitance and shall not exceed 1.0%.

Typical values, throughout the temperature range, are given on curves.

3. Insulation resistance shall be measured as follows:

50-100V at 25°C 10,000 MEG/MFD, need not exceed 40,000 Megohms.

200V + at 25°C 25,000 MEG/MFD, need not exceed 60,000 Megohms.

Ref: MIL-STD-202E, Method 302.

4. Dielectric Strength: Capacitors shall withstand specified DC Potential for 1 minute through a

limiting resistance of 1 Ohm/Volt.

Terminal to terminal -- 150% of DC rating.

Terminal to Case -- 200% of DC rating.

Ref: MIL-STD-202E, Method 301.

5. Dielectric Absorption: Shall not exceed 0.6% when tested to MIL-C-19978D.

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com

ENVIRONMENTAL TESTS:

1. Vibration: Capacitors will meet or exceed the requirements of MIL-STD-202E, Method 204.

2. Moisture resistance: Capacitors will meet or exceed the requirements of MIL-STD-202E, Method

103B, condition B, with 500 VDC or rated voltage applied, whichever is less.

3. Life Test: Capacitors will withstand 140% of the rated DC voltage for 250 hours at 85°C. No more

than 1 failure in 12 units permitted when tested.

4. Lead Pull Test: The leads on the capacitors shall withstand a steadily applied axial pull of 5 lbs.

for one minute.

CUSTOM DESIGN

Available on short notice -- special shapes, values, characteristics, combination sections and networks.

Non-metallic cases or fabricated steel and brass with glass-to-metal seals. Engineering service is expert

and prompt.

APPLICATIONS

Metallized polyester capacitors, in Style "T2" polyolefin encased cases are comparable to wrap and fill

styles with one advantage. The polyolefin material is not susceptible to burns and punctures inflicted by

careless use of a hot soldering iron. These capacitors are intended for utilization in sealed or

encapsulated assemblies.

Metallized polyester capacitors combine the reliability of self-healing action with high dielectric strength

and insulation resistance of polyester film.

Metallized polyester capacitors are designed primarily for DC application -- blocking, coupling,

decoupling, bypass, DC line filtering where RF and audio components are small in comparison to DC

rating. However, they have been used very successfully in such AC power applications as power factor

correction and AC line filtering.

Metallized polyester operate at all temperatures from -55°C to + 85°C, derate to 50% at +125°C.

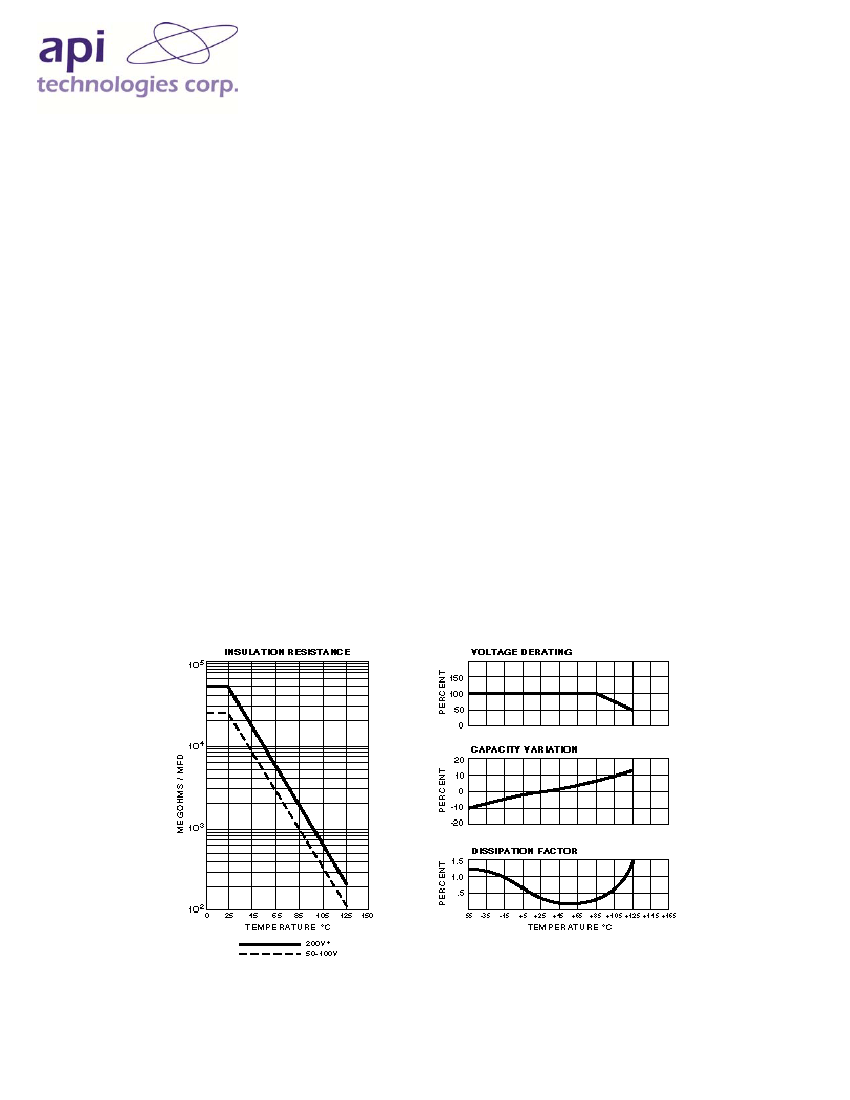

TYPICAL TEMPERATURE CHARACTERISTICS

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com

JT2, XT2, ZT2 SERIES – SPECIFICATIONS

PART NUMBER KEY

EXAMPLE

Z

Code

Metallized

Polyester

L

Case Style

Polyolefin

Encased

1

Shape

Rectangular

Oval

A

Voltage

A-50

B-100

C-200

E-400

G-600

104

Capacity

In Picofarads the first

2 digits indicate

significant figures, the

3

rd

indicates number

of zeroes to follow

K

Tolerance

± 20% = Bank

± 10% = K

± 5% = J

± 3% = H

± 2% = G

± 1% = F

DIMENSIONS:

*50 VDC

MFD

.0010

.0012

.0015

.0018

.0022

.0027

.0033

.0039

.0047

.0056

.0068

.0082

.010

.012

.015

.018

.022

.027

.033

.039

.047

.056

.068

.082

.10

.12

.15

.18

.22

.27

.33

.39

.47

.56

.68

.82

1.0

1.5

2.0

3.0

4.0

5.0

T

.09

.10

.11

.12

.19

.10

.12

.14

.15

.16

.19

.21

.24

.21

.23

.27

.31

.32

.27

W

.19

.20

.21

.22

.19

.20

.22

.24

.25

.27

.30

.31

.34

.31

.33

.37

.41

.42

L

.40

.53

.40

.53

.65

.78

.90

1.18

Part

No.

JT2A102

JT2A122

JT2A152

JT2A182

JT2A222

JT2A272

JT2A332

JT2A392

JT2A472

JT2A562

JT2A682

JT2A822

JT2A103

JT2A123

JT2A153

JT2A183

JT2A223

JT2A273

JT2A333

JT2A393

JT2A473

JT2A563

JT2A683

JT2A823

JT2A104

JT2A124

JT2A154

JT2A184

JT2A224

JT2A274

JT2A334

JT2A394

JT2A474

JT2A564

JT2A684

JT2A824

JT2A105

JT2A155

JT2A205

JT2A305

JT2A405

JT2A505

T

.10

.11

.12

.10

.12

.13

.15

.17

.19

.15

.17

.15

.17

.19

.22

.23

.29

.34

.35

.40

**50 – 100 VDC

Part

W

L

No.

.18

.20

.22

.25

.28

.20

.21

.22

.23

.25

.27

.24

.27

.31

.33

.34

.39

.45

.46

.55

.40

.53

.65

.78

.90

1.17

1.40

1.68

XT2B102

XT2B122

XT2B152

XT2B182

XT2B222

XT2B272

XT2B332

XT2B392

XT2B472

XT2B562

XT2B682

XT2B822

XT2B103

XT2B123

XT2B153

XT2B183

XT2B223

XT2B273

XT2B333

XT2B393

XT2B473

XT2B563

XT2B683

XT2B823

XT2B104

XT2B124

XT2B154

XT2B184

XT2B224

XT2B274

XT2B334

XT2B394

XT2B474

XT2B564

XT2B684

XT2B824

XT2B105

XT2B155

XT2B205

XT2B304

XT2B405

XT2B505

T

.12

.13

.15

.17

.19

.21

.24

.20

.22

.25

.22

.25

.28

.27

.30

.27

.29

.34

.36

.42

.48

.56

.64

**50 – 200 VDC

Part

W

L

No.

.18

.20

.22

.25

.28

.29

.31

.30

.32

.35

.34

.35

.39

.38

.41

.37

.39

.45

.47

.51

.59

.68

.74

.40

.53

.65

.78

.91

1.17

1.42

1.68

ZT2C102

ZT2C122

ZT2C152

ZT2C182

ZT2C222

ZT2C272

ZT2C332

ZT2C392

ZT2C472

ZT2C562

ZT2C682

ZT2C822

ZT2C103

ZT2C123

ZT2C153

ZT2C183

ZT2C223

ZT2C273

ZT2C333

ZT2C393

ZT2C473

ZT2C563

ZT2C683

ZT2C823

ZT2C104

ZT2C124

ZT2C154

ZT2C184

ZT2C224

ZT2C274

ZT2C334

ZT2C394

ZT2C474

ZT2C564

ZT2C684

ZT2C824

ZT2C105

ZT2C155

ZT2C205

ZT2C304

ZT2C405

ZT2C505

400 VDC

T

.12

.13

.14

.16

.18

.20

.22

.19

.20

.23

.26

.24

.27

.30

.35

.32

.35

.32

.35

.39

.44

.48

.53

.67

.79

.80

600 VDC

Part

No.

ZT2E102

ZT2E122

ZT2E152

ZT2E182

ZT2E222

ZT2E272

ZT2E332

ZT2E392

ZT2E472

ZT2E562

ZT2E682

ZT2E822

ZT2E103

ZT2E123

ZT2E153

ZT2E183

ZT2E223

ZT2E273

ZT2E333

ZT2E393

ZT2E473

ZT2E563

ZT2E683

ZT2E823

ZT2E104

ZT2E124

ZT2E154

ZT2E184

ZT2E224

ZT2E274

ZT2E334

ZT2E394

ZT2E474

ZT2E564

ZT2E684

ZT2E824

ZT2E105

ZT2E155

ZT2E205

ZT2E305

ZT2E405

ZT2E505

W

.18

.20

.22

.24

.26

.28

.30

.26

.28

.30

.35

.31

.35

.39

.44

.41

.44

.41

.44

.48

.52

.57

.63

.68

.81

.91

.92

L

.40

.53

.65

.78

.91

1.17

1.42

1.68

1.98

T

.12

.10

.12

.13

.15

.17

.19

.22

.18

.20

.23

.25

.23

.24

.27

.30

.29

.34

.29

.34

.37

.42

.47

.52

.41

.47

.53

.67

.79

.85

1.05

W

.18

.20

.18

.20

.22

.24

.25

.28

.32

.27

.29

.33

.35

.34

.26

.38

.41

.47

.41

.47

.51

.56

.61

.63

.59

.63

.68

.81

1.00

1.10

1.28

1.35

L

.40

.53

.65

.78

.91

1.17

1.68

1.98

2.25

Part No.

ZT2G102

ZT2G122

ZT2G152

ZT2G182

ZT2G222

ZT2G272

ZT2G332

ZT2G392

ZT2G472

ZT2G562

ZT2G682

ZT2G822

ZT2G103

ZT2G123

ZT2G153

ZT2G183

ZT2G223

ZT2G273

ZT2G333

ZT2G393

ZT2G473

ZT2G563

ZT2G683

ZT2G823

ZT2G104

ZT2G124

ZT2G154

ZT2G184

ZT2G224

ZT2G274

ZT2G334

ZT2G394

ZT2G474

ZT2G564

ZT2G684

ZT2G824

ZT2G105

ZT2G155

ZT2G205

ZT2G305

ZT2G405

ZT2G505

PART LENGTH

.40 THRU .65

.78 THRU .91

1.17 THRU 2.25

WIRE LEADS

A.W.G

#24

#22

#20

DIA.

.020

.025

.032

Electromagnetic Integrated Solutions

8061 Avonia Road

●

Fairview

●

Pennsylvania

●

16415

Phone: (814) 474-1571

●

Email: eisSales@apitech.com

●

Web: http://eis.apitech.com
