CMUT5401
SURFACE MOUNT
PNP SILICON TRANSISTOR
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR CMUT5401
type is a PNP silicon transistor manufactured by the
epitaxial planar process, epoxy molded in a surface
mount package, designed for high voltage amplifier
applications.
MARKING CODE: 54C

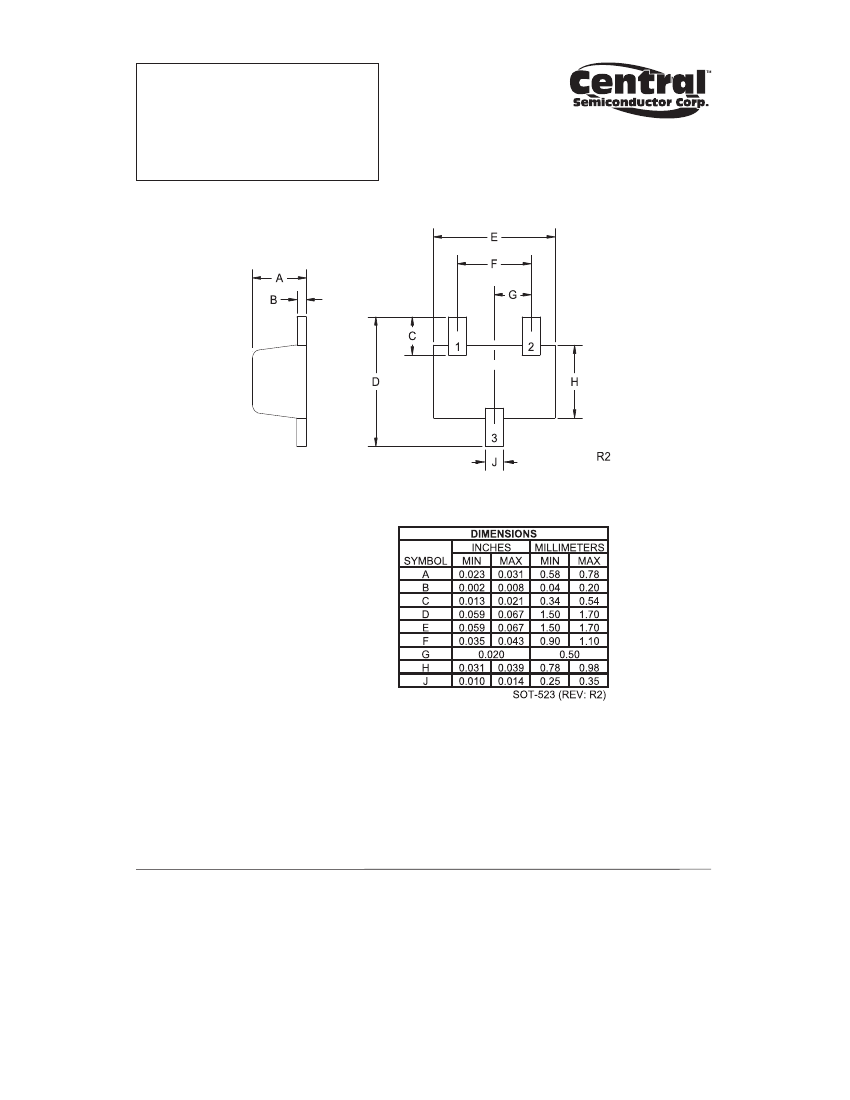

SOT-523 CASE
MAXIMUM RATINGS:
(TA=25°C)
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VCBO
VCEO
VEBO
IC
PD
TJ, Tstg
Θ
JA
160
150
5.0
600
250
-65 to +150
500
UNITS
V
V
V
mA
mW
°C
°C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MIN
ICBO
ICBO
IEBO
BVCBO
BVCEO
BVEBO
VCE(SAT)
VCE(SAT)
VBE(SAT)
VBE(SAT)
hFE
hFE
hFE
fT
Cob
hfe
NF
VCB=120V
VCB=120V, TA=100°C
VEB=3.0V
IC=100μA
IC=1.0mA
IE=10μA
IC=10mA, IB=1.0mA
IC=50mA, IB=5.0mA
IC=10mA, IB=1.0mA
IC=50mA, IB=5.0mA
VCE=5.0V, IC=1.0mA
VCE=5.0V, IC=10mA
VCE=5.0V, IC=50mA
VCE=10V, IC=10mA, f=100MHz
VCB=10V, IE=0, f=1.0MHz
VCE=10V, IC=1.0mA, f=1.0kHz
VCE=5.0V, IC=250μA, RS=1.0kΩ,
f=10Hz to 15.7kHz
50
60
50
100
40
160
150
5.0
MAX
50
50
50
UNITS
nA
μA
nA
V
V
V
0.2
0.5
1.0
1.0
240
300
6.0
200
8.0
V
V
V
V
MHz
pF
dB
R2 (9-February 2010)
