SBR15U100CTLQ
Green
15A SBR
®
SUPER BARRIER RECTIFIER
Product Summary
V
RRM
(V)
I
O
(A)
15
V
F MAX
(V)
@+25°C
0.8
I
R MAX
(mA)
@+25°C
0.1
Features and Benefits
•
•
100% Avalanche Tested
Patented SBR technology provides a superior avalanche
capability than schottky diodes ensuring more rugged and
•
reliable end applications
Reduced ultra-low forward voltage drop (V
F
); better efficiency
and cooler operation
•
•
•
•
•
Reduced high temperature reverse leakage; increased
reliability against thermal runaway failure at high temperature
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
NEW PRODUCT
100
Description and Applications
This Super Barrier Rectifier (SBR) diode has been designed to meet
the stringent requirements of Automotive Applications. It is ideally
suited to use as :
•
•
•
Polarity Protection Diode
Re-circulating Diode
Switching Diode
Mechanical Data
•
•
•
•
•
•
TO252
Case: TO252 (DPAK)
Case Material: Molded Plastic, “Green” Molding compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
e3
Polarity: See Below
Weight: 0.34 grams (approximate)
1
2
3
Top View
Polarity
Ordering Information
(Note 5)
Part Number
SBR15U100CTLQ-13
Notes:
Compliance
Automotive
Case
TO252
Packaging
2500 pieces/reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
SBR
15U100CT
YYWW AB
SBR15U100CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 14 = 2014)
WW = Week (01 - 53)
SBR is a registered trademark of Diodes Incorporated.
SBR15U100CTLQ
Document number: DS36130 Rev. 3 - 2
1 of 5
www.diodes.com
February 2014
© Diodes Incorporated
SBR15U100CTLQ
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Repetitive Peak Avalanche Power (1μs, +25°C)
Non-Repetitive Avalanche Energy
(T
J
= +25°C, I
AS
= 7.5A, L = 10mH)
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
P
ARM
E
AS
Value
100
15
100
2800
192
Unit
V
A
A
W
mJ
NEW PRODUCT
Thermal Characteristics
Characteristic
Typical Thermal Resistance (Per Leg)
Thermal Resistance Junction to Case (Note 6)
Operating and Storage Temperature Range
Symbol
R
Θ
JC
T
J
, T
STG
Value
2
-55 to +150
Unit
°C/W
°C
Electrical Characteristics
Characteristic
Forward Voltage Drop
Leakage Current (Note 7)
Notes:
(@T
A
= +25°C, unless otherwise specified.)
Symbol
V
F
I
R
Min
—
—
—
—
Typ
—
0.65
—
1.5
Max
0.80
—
0.10
3.0
Unit
V
mA
Test Condition
I
F
= 7.5A, T
J
= +25°C
I
F
= 7.5A, T
J
= +125°C
V
R
= 100V, T
J
= +25°C
V
R
= 100V, T
J
= +125°C
6. Polymide PCB 2 oz. Copper, minimum recommended pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found
on our website at http://www.diodes.com.
7. Short duration pulse test used to minimize self-heating effect.
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
100
10
100000
10000
1000
100
10
T
A
= 25
°C
T
A
= 175
°C
T
A
= 150
°C
T
A
= 125
°C
T
A
= 85
°C
1
T
A
= 125°C
0.1
T
A
= 85°C
T
A
= 25°C
0.01
1
0.1
0.01
0.001
0.0001
T
A
= -55
°C
0
0.2
0.4
0.6
0.8
1.0
1.2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

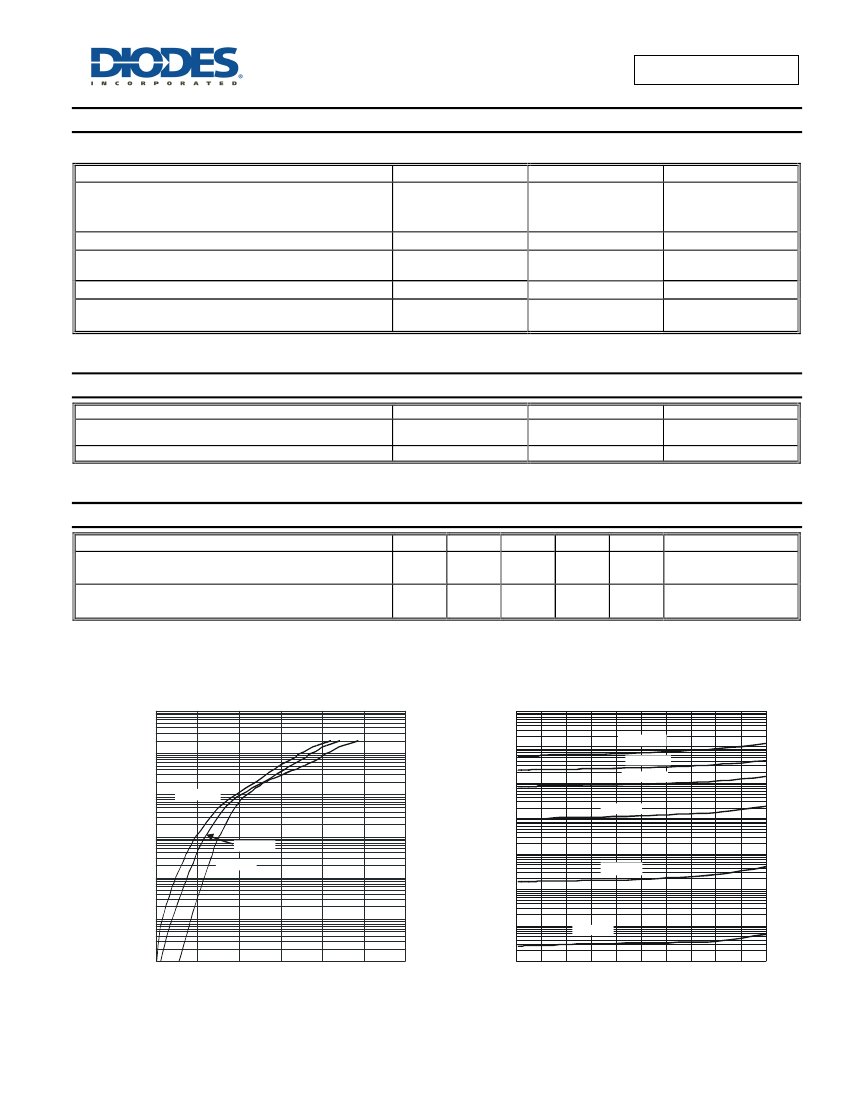

Figure 1 Typical Forward Characteristics
0 10 20 30 40 50 60 70 80 90 100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Figure 2 Typical Reverse Characteristics
SBR is a registered trademark of Diodes Incorporated.
SBR15U100CTLQ
Document number: DS36130 Rev. 3 - 2
2 of 5
www.diodes.com
February 2014
© Diodes Incorporated
SBR15U100CTLQ
10,000
20
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
f = 1MHz
Note 6
C
T
, TOTAL CAPACITANCE (pF)
15
Based on Case Temperature
Total Device
1,000
NEW PRODUCT
10
100
5
10
0.1
1
10
100
V
R
, DC REVERSE VOLTAGE (V)

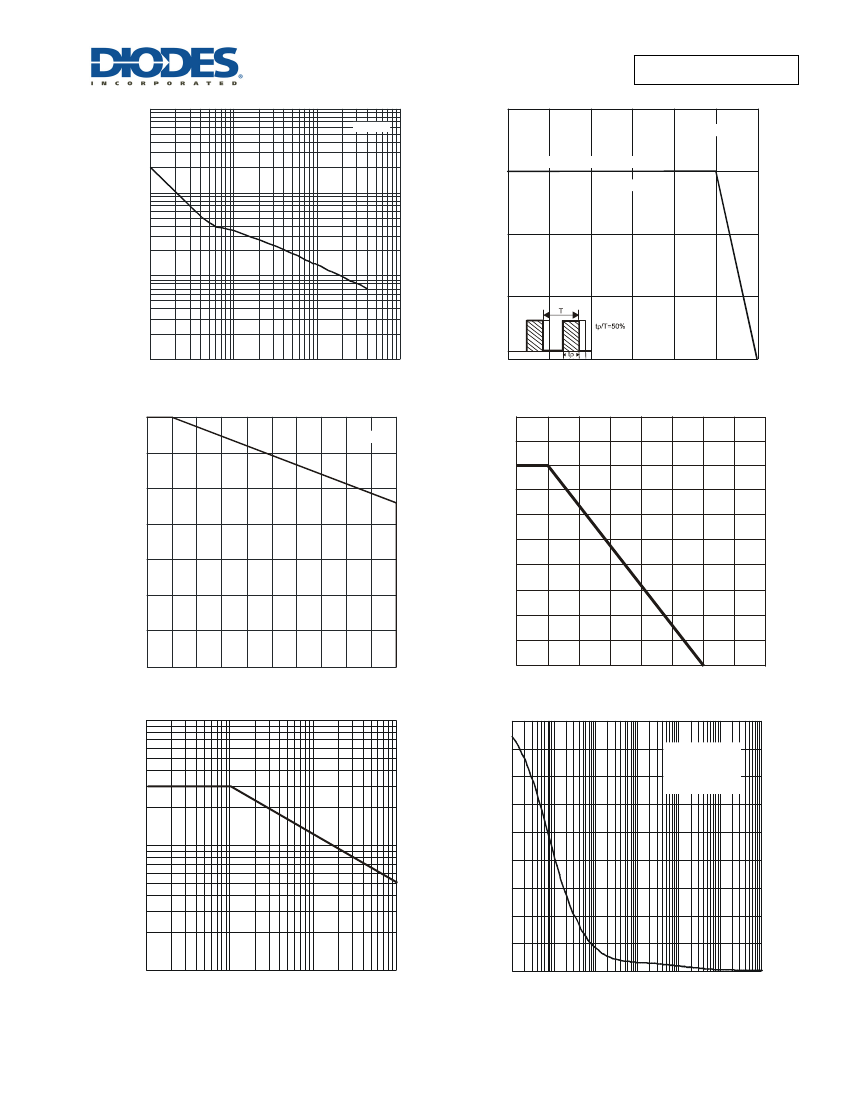

Figure 3 Total Capacitance vs. Reverse Voltage
0
25
50
75
100
125
150
175
T
A
, AMBIENT TEMPERATURE (°C)
Figure 4 Forward Current Derating Curve
175
T
A
, DERATED AMBIENT TEMPERATURE (°C)
150
125
100
75
50
25
0
P
ARM
, AVALANCHE PEAK PULSE POWER
DERATING PERCENTAGE (%)
Note 6
125
100
75
50
25
0
10
20 30 40 50 60 70 80 90 100
V
R
, DC REVERSE VOLTAGE (V)
Figure 5 Operating Temperature Derating
0
0
25
50
75 100 125 150 175 200
T
J
, JUNCTION TEMPERATURE (°C)
Figure 6 Pulse Derating Curve
10,000
P
ARM
, MAXIMUM AVALANCHE POWER (W)
900
P
(PK)
, PEAK TRANSIENT POIWER (W)
800
700
600
500
400
300
200
100
0
0.00001 0.0001 0.001
0.01
0.1
1
10
t1, PULSE DURATION TIME (sec)
Figure 8 Single Pulse Maximum Power Dissipation
Single Pulse
R
θ
JA
= 69
°
C/W
R
θ
JA(t)
= r
(t)
* R
θ
JA
T
J
- T
A
= P * R
θ
JA(t)
1,000
100
10
100
1,000
10,000
T
P
, PULSE DURATION (µS)
Figure 7 Maximum Avalanche Power Curve, Per Element
SBR is a registered trademark of Diodes Incorporated.
SBR15U100CTLQ
Document number: DS36130 Rev. 3 - 2
3 of 5
www.diodes.com
February 2014
© Diodes Incorporated
SBR15U100CTLQ
1
r(t), TRANSIENT THERMAL RESISTANCE
D = 0.7
D = 0.5
D = 0.3
0.1
D = 0.1
D = 0.05
D = 0.9
NEW PRODUCT
D = 0.02
0.01
D = 0.01
D = 0.005
Single Pulse
R
θ
JA
(t) = r(t) * R
θ
JA
R
θ
JA
= 69°C/W
Duty Cycle, D = t1/ t2
0.001
0.0001
0.001
0.01
0.1
1
10
t1, PULSE DURATION TIMES (sec)
Figure 9 Transient Thermal Resistance
100
1,000
10,000

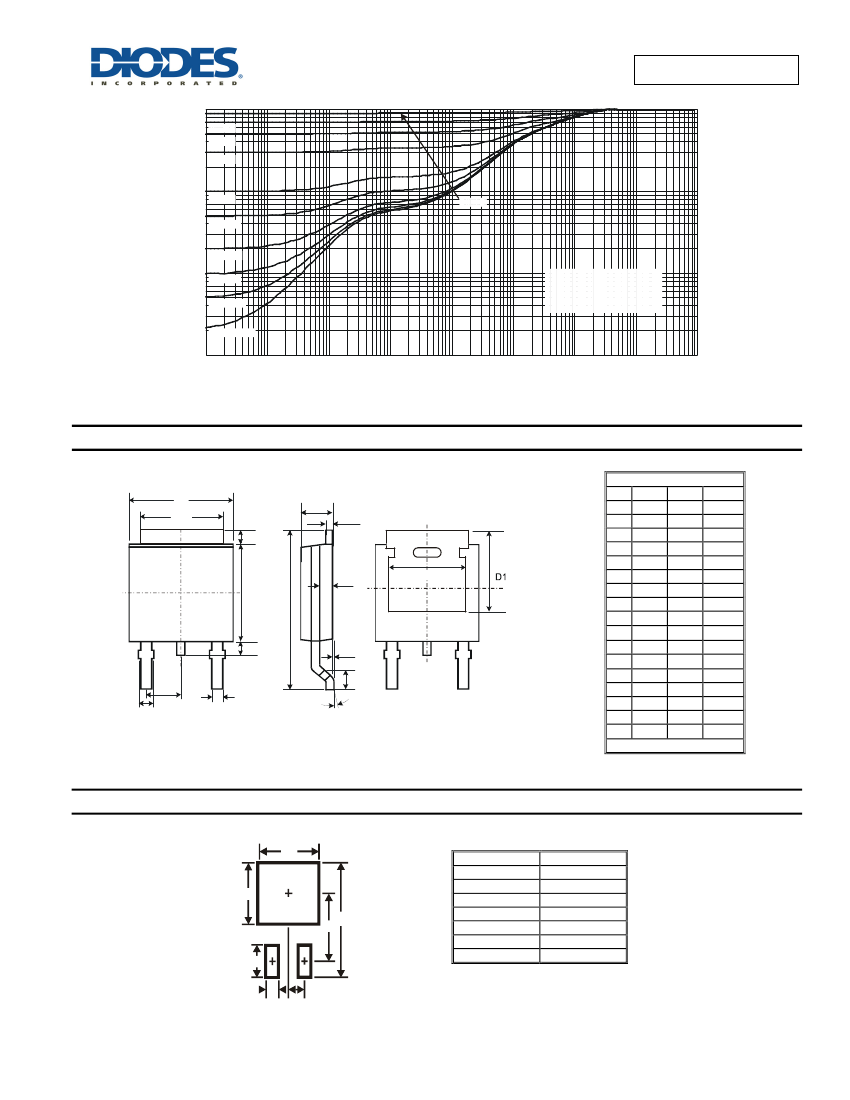

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version
E
b3
L3
A
c2
D
A2
H
E1
L4
A1
L
e
2X b2
3X b
a
TO252
Dim Min Max
Typ
A
2.19 2.39
2.29
A1
0.00 0.13
0.08
A2
0.97 1.17
1.07
b
0.64 0.88 0.783
b2
0.76 1.14
0.95
b3
5.21 5.46
5.33
c2
0.45 0.58 0.531
D
6.00 6.20
6.10
D1
5.21
−
−
e
2.286
−
−
E
6.45 6.70
6.58
E1
4.32
−
−
H
9.40 10.41 9.91
L
1.40 1.78
1.59
L3
0.88 1.27
1.08
L4
0.64 1.02
0.83
a
0°
10°
−
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
X2
Y2
C
Y1
Z
Dimensions
Z
X1
X2
Y1
Y2
C
E1
Value (in mm)
11.6
1.5
7.0
2.5
7.0
6.9
2.3
X1
E1
SBR is a registered trademark of Diodes Incorporated.
SBR15U100CTLQ
Document number: DS36130 Rev. 3 - 2
4 of 5
www.diodes.com
February 2014
© Diodes Incorporated
SBR15U100CTLQ
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2014, Diodes Incorporated
www.diodes.com
NEW PRODUCT
SBR is a registered trademark of Diodes Incorporated.
SBR15U100CTLQ
Document number: DS36130 Rev. 3 - 2
5 of 5
www.diodes.com
February 2014
© Diodes Incorporated
