87707-5: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,9 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

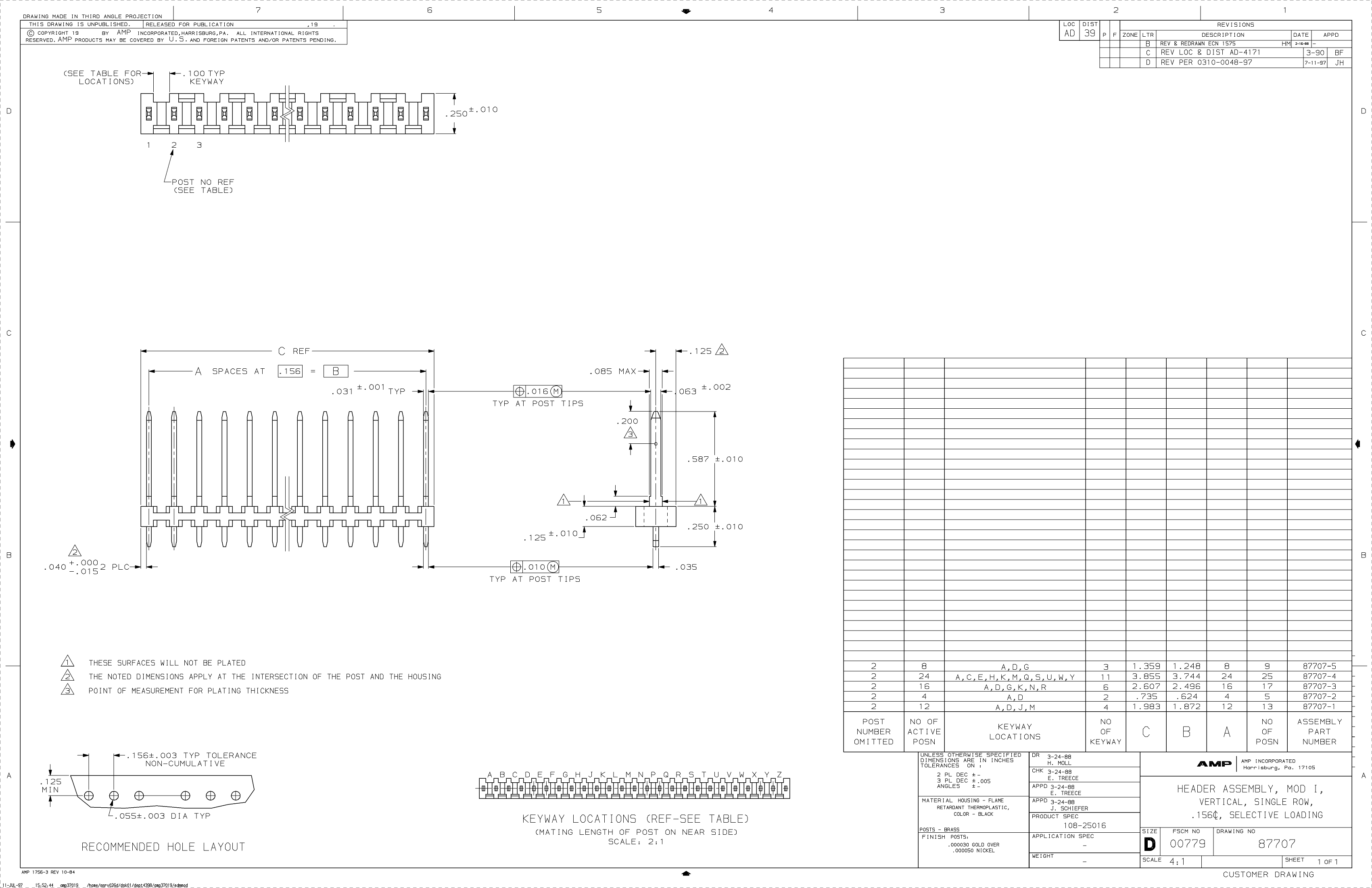

Download Datasheet Parametric Compare View All

87707-5 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,9 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.25 inch
subject depth	0.125 inch
body length	1.359 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1200VAC V
Durability	150 Cycles
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	87707
Plug contact pitch	0.156 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	9

	87707-5	87707-1
Description	HEADER CONNECTOR,PCB MNT,RECEPT,9 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,13 CONTACTS,PIN,0.156 PITCH,PC TAIL TERMINAL,BLACK
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
body width	0.25 inch	0.25 inch
subject depth	0.125 inch	0.125 inch
body length	1.359 inch	1.983 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1200VAC V	1200VAC V
Durability	150 Cycles	150 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	87707	87707
Plug contact pitch	0.156 inch	0.156 inch
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	1	1
Number of rows loaded	1	1
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
Plating thickness	30u inch	30u inch
Rated current (signal)	5 A	5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.125 inch	0.125 inch
Terminal pitch	3.9624 mm	3.9624 mm
Termination type	SOLDER	SOLDER
Total number of contacts	9	13
