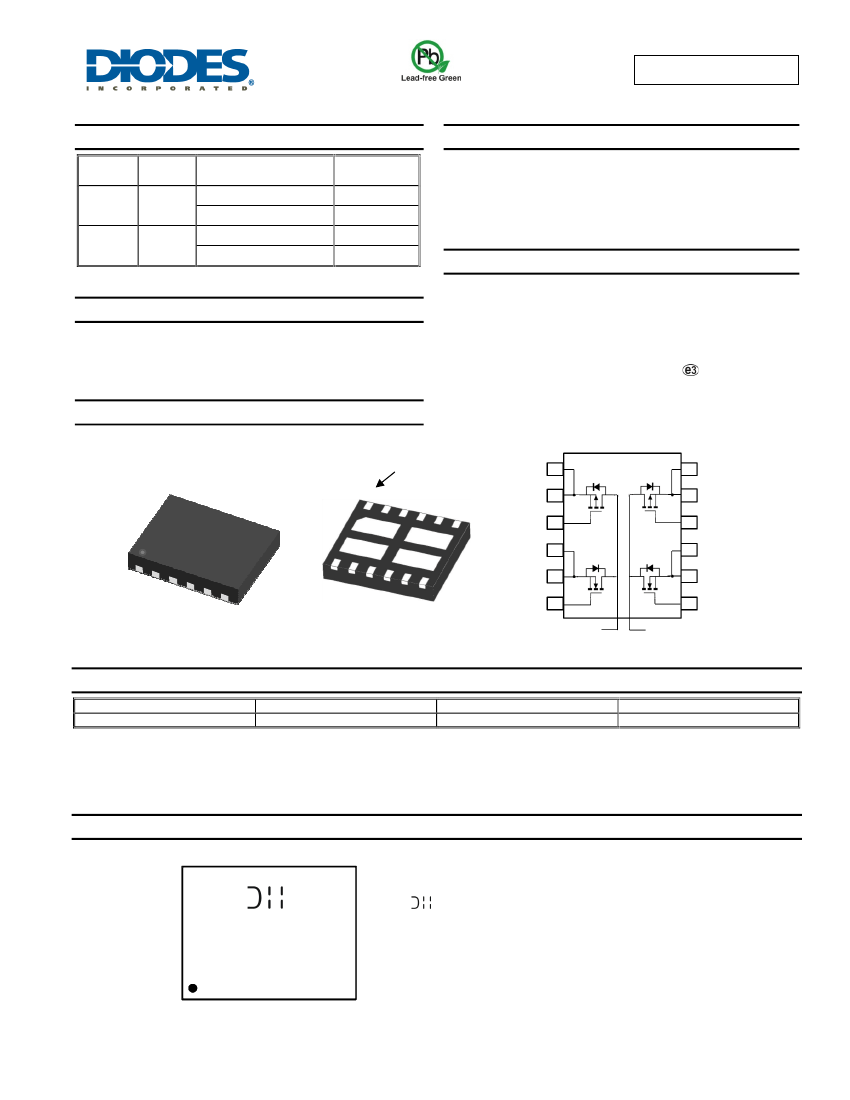

Halogen and Antimony Free. “Green” Device (Note 3)
Q2 & Q3
-100V
Mechanical Data
•
•
•
•
•
•
Case: V-DFN5045-12
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Matte Tin Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.097 grams (Approximate)
Description
This new generation MOSFET is designed to minimize the on-state
resistance (R
DS(ON)
) and yet maintain superior switching performance,
making it ideal for high-efficiency power management applications.
Applications
•
High-Efficiency Bridge Rectifiers
Pin 1
V-DFN5045-12
S1 S1
G2 S2
S2
D1/D2
D1/D2
D3/D4
D3/D4
G4 S4
S4 G3
S3 S3
G1
S3
Pin
S3
Pin
G3
Pin
S4
Pin
S4
Pin
G4
Pin
7
8
9
10
11
12
Q3 (Pch)
Q2 (Pch)
6
S2
Pin
5
S2
Pin
4
G2
Q4 (Nch)
Q1 (Nch)
Pin
3
S1
Pin
2
S1
Pin
1
G1
Pin
Top View
Bottom View
D3,D4 to backside
D1,D2 to backside
Internal Schematic
Ordering Information
(Note 4)
Part Number
DMHC10H170SFJ-13
Notes:
Case
V-DFN5045-12
Tape Width
12mm
Packaging
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
