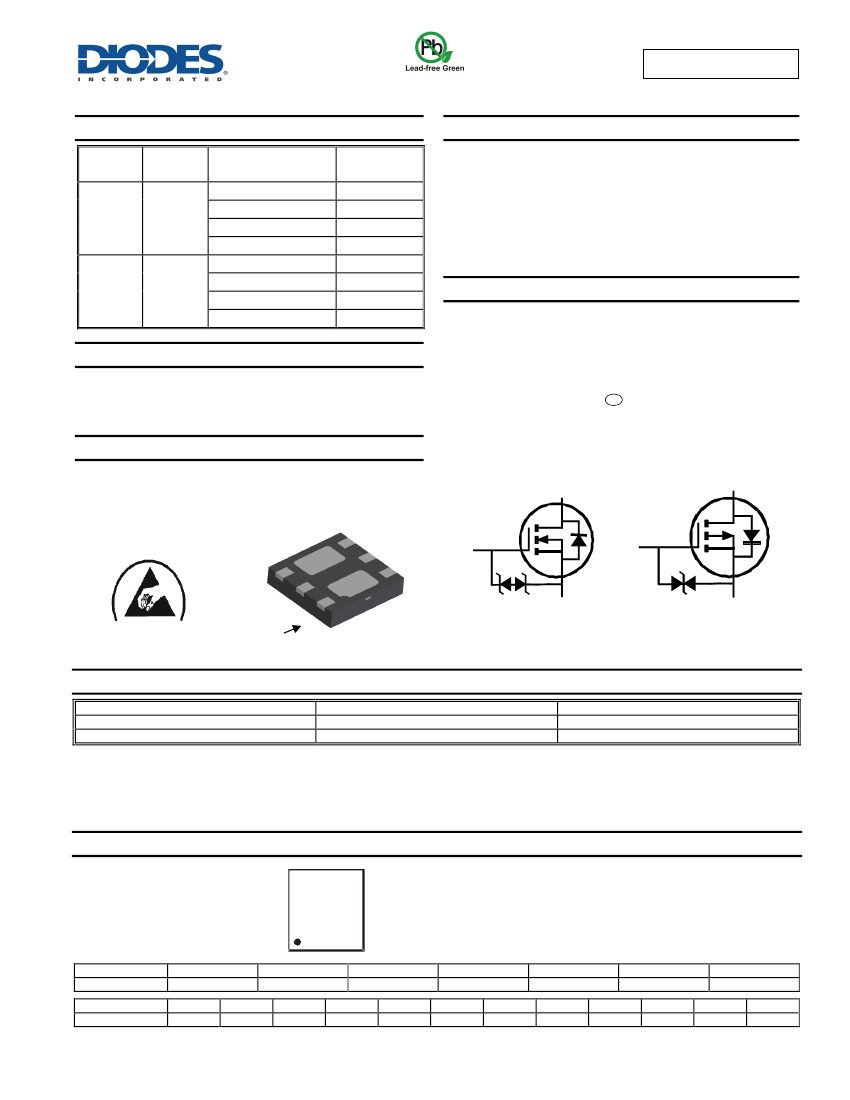

Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
•
•
Case: U-DFN2020-6 Type B
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
•
•
•
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish NiPdAu over Copper leadframe. Solderable per
MIL-STD-202, Method 208
e4
Terminals Connections: See Diagram Below
Weight: 0.0065 grams (approximate)
Description
This MOSFET has been designed to minimize the on-state resistance
(R
DS(ON)
) and yet maintain superior switching performance, making it
ideal for high efficiency power management applications.
Applications
•
•
•
Load Switch
Power Management Functions
Portable Power Adaptors
U-DFN2020-6
Type B
S2
D2
D2
G1
D1
G2
D1
D1
D2
G1
Gate Protection
Diode
G2
S1
Gate Protection
Diode
S2
ESD PROTECTED
Pin1
S1
Bottom View
N-CHANNEL MOSFET
P-CHANNEL MOSFET
Internal Schematic
Ordering Information
(Note 4)
Part Number
DMC1030UFDB
-7
DMC1030UFDB
-13
Notes:
Case
U-DFN2020-6 Type B
U-DFN2020-6 Type B
Packaging
3000/Tape & Reel
10000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
