ELJ-870-629
TECHNICAL DATA
High Power LED, Jumbo Package
AlGaAs
ELJ-870-629 is high power LED in an black anodised aluminium case, with thread socket for easy
handling and heat sink mounting.
It is designed for medical appliances, remote control and optical communications, light barriers,
measurement systems, etc.
Specifications
•
•
•
•
Technology: AlGaAs/GaAlAs, 1 power LED chip
Peak Wavelength: typ. 870 nm
Optical Ouput Power: typ. 90 mW
Package: Jumbo, metal case with plastic lens
Absolute Maximum Ratings (T
C
=25°C)
Item
Power Dissipation
Forward Current
Pulse Forward Current *
Operating Temperature
Storage Temperature
Junction Temperature
on heat sink (S
≥
200 cm²)
* pulse width
≤
10µs, f
≤
500 Hz
Symbol
P
D
I
F
I
FP
T
opr
T
stg
T
j
Value
4
1.5
2.0
-25 … +100
-25 … +100
100
Unit
W
A
A
°C
°C
°C

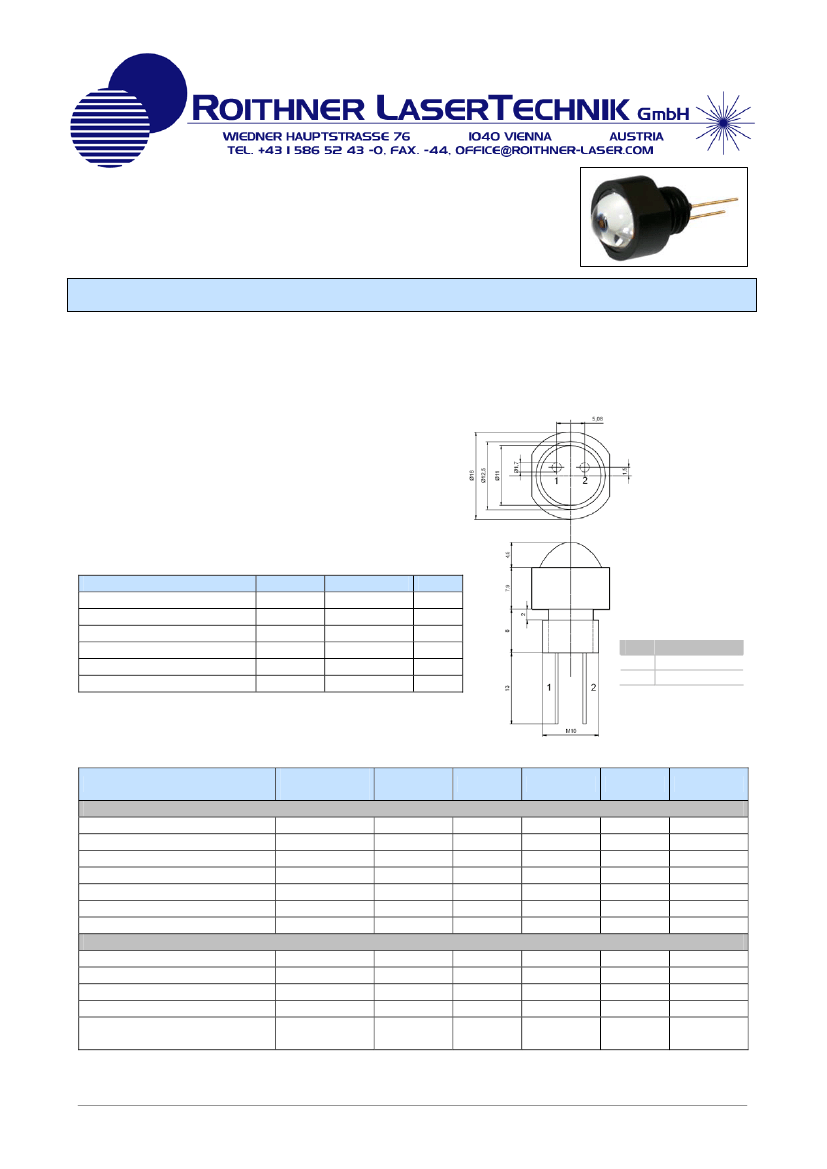

Outline:
H = 12.4 mm (± 0.5)
D = 16 mm (± 0.5)
Thread M10
PIN
1
2
Function
LED Cathode
LED Anode
(Unit: mm)
Specifications (T
C
=20°C)
Item
Optical Specifications
Radiant Power
Radiant Power *
Radiant Intensity
Radiant Intensity *
Peak Wavelength
Spectral Bandwidth at 50%
Viewing Angle
Electrical Specifications
Forward Voltage
Forward Voltage *
Switching Time
Reverse Voltage
Thermal Resistance
Junction-Case
Test
Condition
I
F
= 350 mA
I
F
= 1000 mA
I
F
= 350 mA
I
F
= 1000 mA
I
F
= 350 mA
I
F
= 350 mA
I
F
= 350 mA
I
F
= 350 mA
I
F
= 1000 mA
I
F
= 350 mA
I
R
= 100 µA
Symbol
Φ
e
Φ
e
I
e
I
e
λ
p
Δλ
0.5
φ
U
F
U
F
t
r
, t
f
U
R
R
thJC
Min.
70
-
350
-
860
-
-
-
-
-
5
-
Typ.
90
250
650
1900
870
42
17
1.5
1.8
10/20
-
10
Max.
-
-
-
-
880
-
-
1.8
2.3
-
-
-
Unit
mW
mW
mW/sr
mW/sr
nm
nm
deg
V
V
ns
K/W
* only recommended on optimal heat sink
07.04.2011
ELJ-870-629
1 of 4

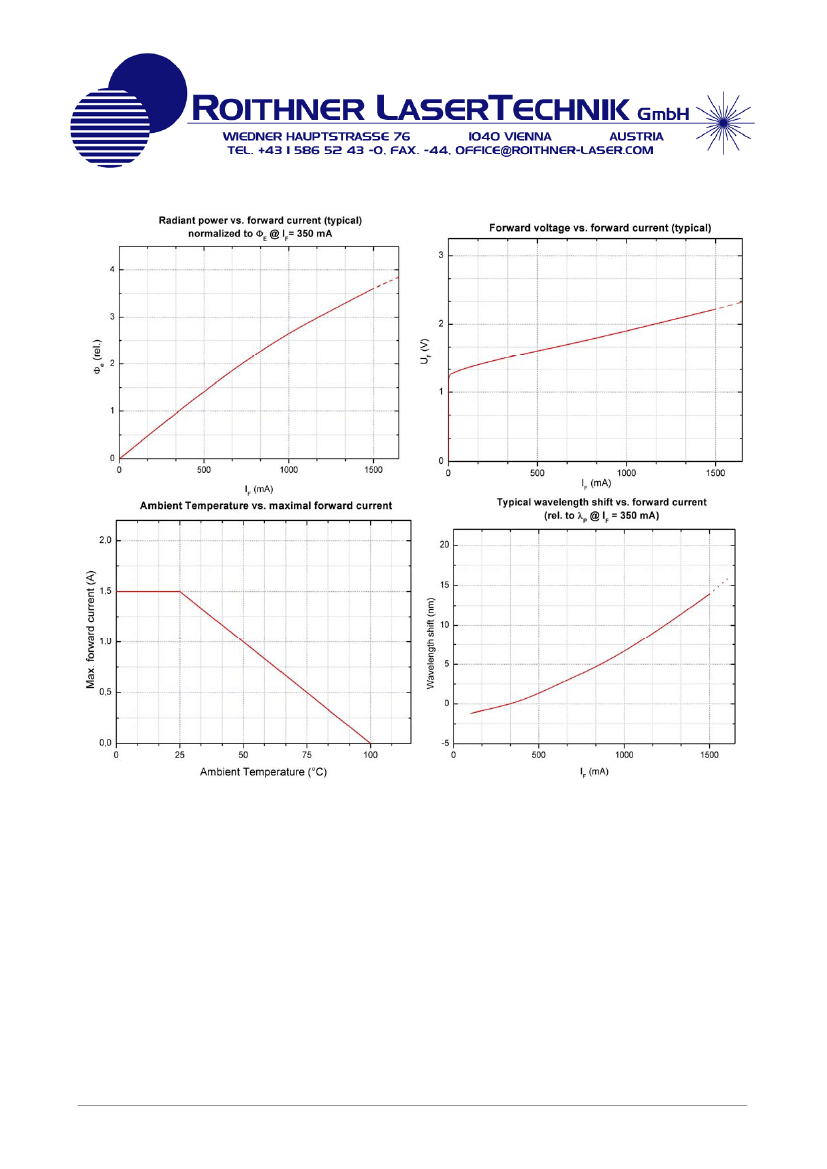

Remarks concerning optical radiation safety*
At low forward current (≤150 mA), and continuous operation, this LED may be classified as LED
product
Class 1,
according to standard IEC 60825-1:A2.
Class 1
products are safe to eyes and
skin under reasonably predictable conditions. This implicates a direct observation of the light beam
by means of optical instruments.
When driven with higher continuous forward current, (up to 1 A), this product should be classified
as LED product
Class 1M,
according to standard IEC 60825-1:A2.
Class 1M
products are safe to
eyes and skin under normal conditions, including when users view the light beam directly. Class
1M products produce either a highly divergent beam or a large diameter beam. Therefore only a
small part of the whole light beam can enter the eye. However, such optical products can be
harmful to the retina if the beam is viewed using magnifying optical instruments. Therefore, users
should not incorporate optics that could concentrate the output into the eyes.
If intended to operate at very high continuous current (>1 A), this product has to be (potentially)
classified as
Class 3B
LED.
Class 3B
LEDs may have sufficient power to cause an eye injury, both
from the direct beam and from reflections,so these products are therefore considered hazardous to
the eye. However, the extent and severity of any eye injury arising from an exposure to the light
beam of a Class 3B product will depend upon several factors including the radiant power entering
the eye and the duration of the exposure. Nontheless, adequate precautions should be taken to
avoid direct or indirect viewing into the beam.
*Note: Safety classification of an optical component mainly depends on the intended application
and the way the component is being used. Furthermore, all statements made to classification are
based on calculations and are only valid for this LED “as it is”, and at continuous operation. Using
pulsed current or altering the light beam with additional optics may lead to different safety
classifications. Therefore these remarks should be taken as recommendation and guideline only.
Notes
•
The mentioned specifications are for reference purpose only and subjected to change without
prior notice.
•
All measurements carried out on blank aluminium heat sink, S = 180 cm², passive cooling.
Measurement results and curve characteristics obtained with other heat sinks may differ.
•
Do not view directly into the emitting area of the LED during operation!
•
This high power LED must be cooled!
07.04.2011
ELJ-870-629
3 of 4

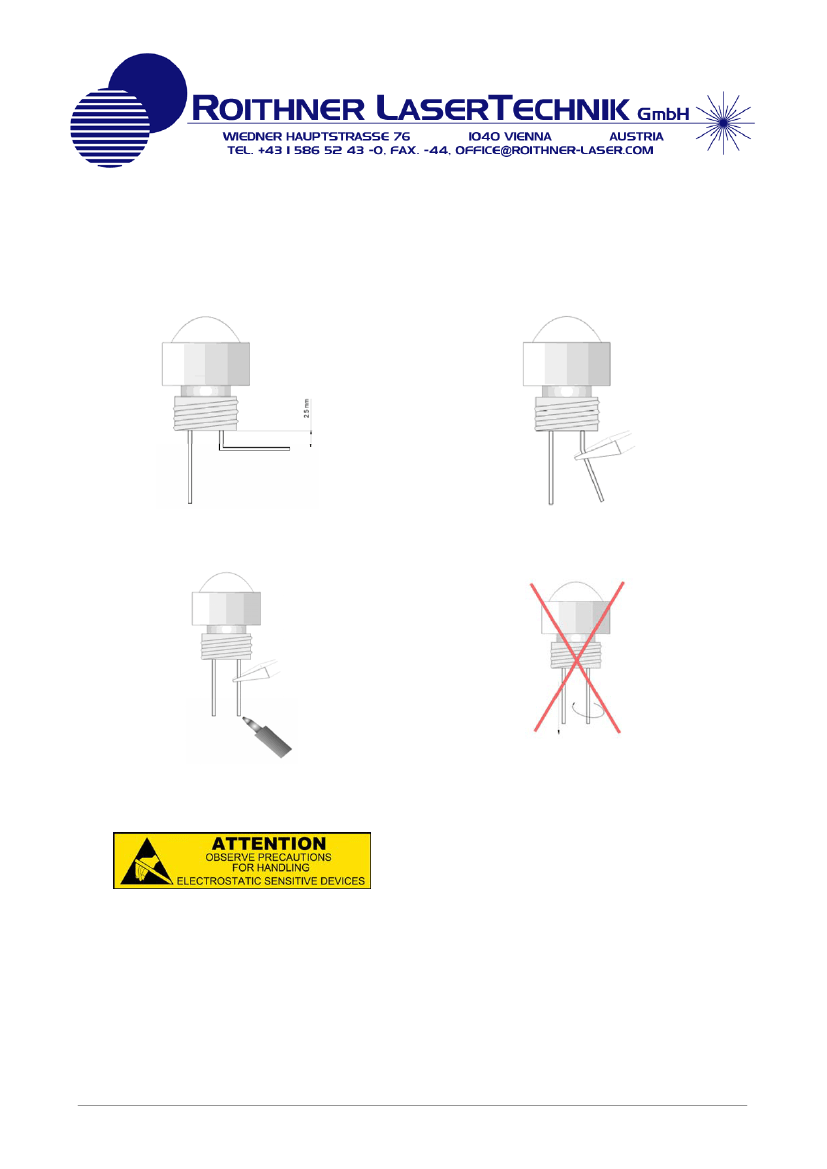

Handling precautions
To prevent damage to the LED during soldering and assembly, following precautions have to be
taken into account.
a) The bending point of the lead frame should b) While bending, the base of the lead frame has
be located at least 2.5 mm away from the to be fixed with radio pliers or similar.
body.
c) To ensure an adequate strain relief, the d) Avoid any torsion or tensile loading of the lead
lead frames have to be firmly fixed during frames, especially when they have been heated
soldering.
after being soldered.
e) LEDs are static sensitive devices, so
adequate handling precautions have to be
taken, e.g. wearing grounding wrist straps.
07.04.2011
ELJ-870-629
4 of 4
