TESDT5V0A
Taiwan Semiconductor
Small Signal Product
Bi-directional ESD Protection Array

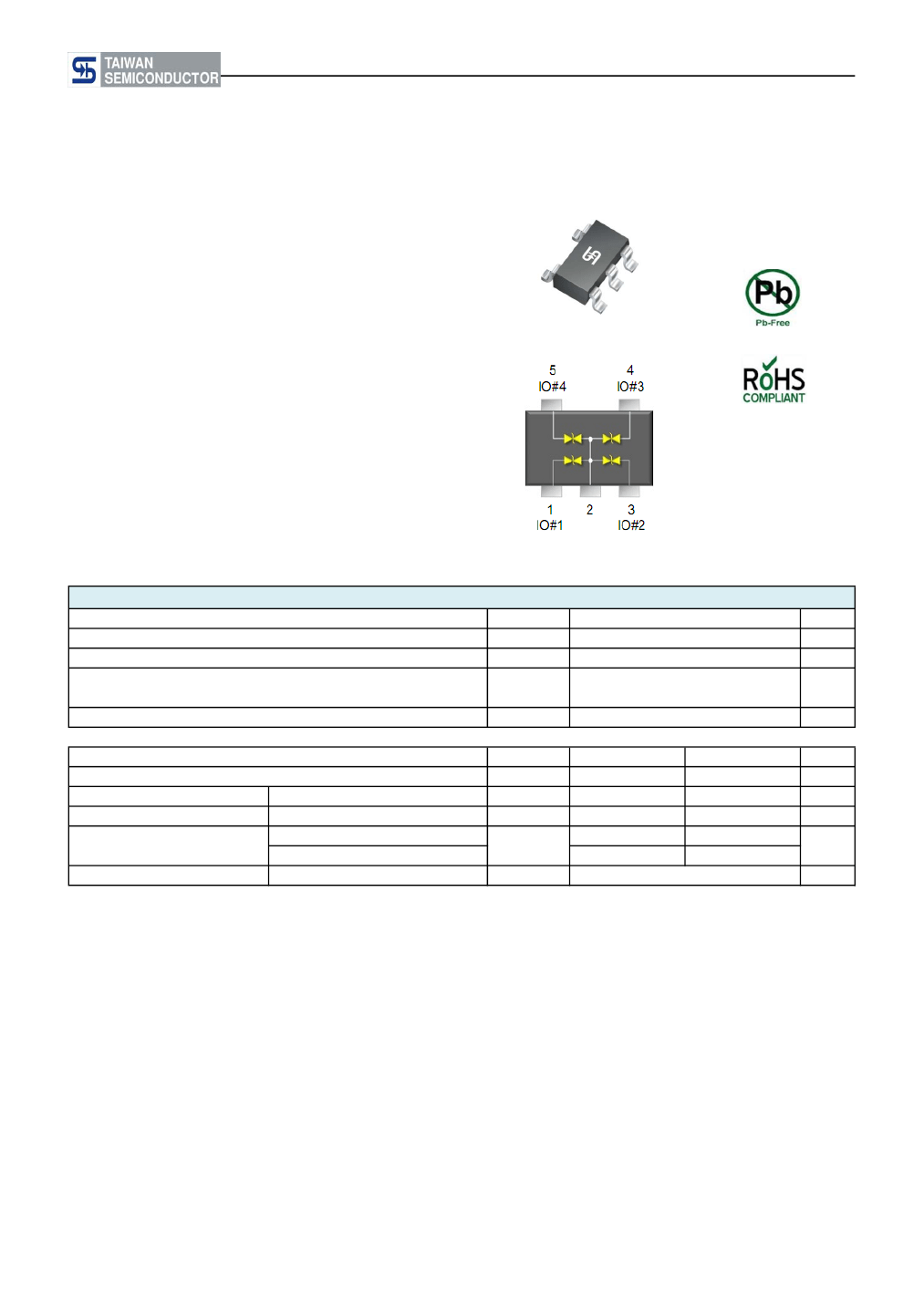

FEATURES
- Meet IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
- Meet IEC61000-4-4 (EFT) rating. 40A (5/50ns)
- Meet IEC61000-4-5 (Lightning) rating. 5A (8/20μs)
- Protects two directional I/O lines
- Working voltage: 5V
- Pb free version and RoHS compliant
- Packing code with suffix "G" means
green compound (halogen-free)
SOT-23-5
MECHANICAL DATA
- Case: SOT-23-5 small outline plastic package
- Terminal: Matte tin plated, lead free., solderable
per MIL-STD-202, Method 208 guaranteed
- Moisture sensitivity: level 1, per J-STD-020
- High temperature soldering guaranteed : 260°C/10s
- Weight: 14 ± 0.5 mg
- Marking code: S5V
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Peak Pulse Power (tp=8/20μs waveform)
Peak Pulse Current (tp=8/20μs)
ESD per IEC 61000-4-2 (Air)
ESD per IEC 61000-4-2 (Contact)
Junction and Storage Temperature Range
PARAMETER
Reverse Stand-Off Voltage
Reverse Breakdown Voltage
Reverse Leakage Current
Clamping Voltage
Junction Capacitance
I
R
= 1 mA
V
R
= 5 V
I
PP
= 1 A
I
PP
= 2.5 A
V
R
= 0 V , f = 1.0 MHz
SYMBOL
P
PP
I
PP
V
ESD
T
J
, T
STG
SYMBOL
V
RWM
V
(BR)
I
R
V
C
C
J
MIN
-
6.5
-
-
-
20
VALUE
100
2.5
± 15
±8
-55 to +150
MAX
5
-
1
9.8
15
UNIT
W
A
KV
o
C
UNIT
V
V
μA
V
pF
Document Number: DS_S1501026
Version: C15
TESDT5V0A
Taiwan Semiconductor
Small Signal Product

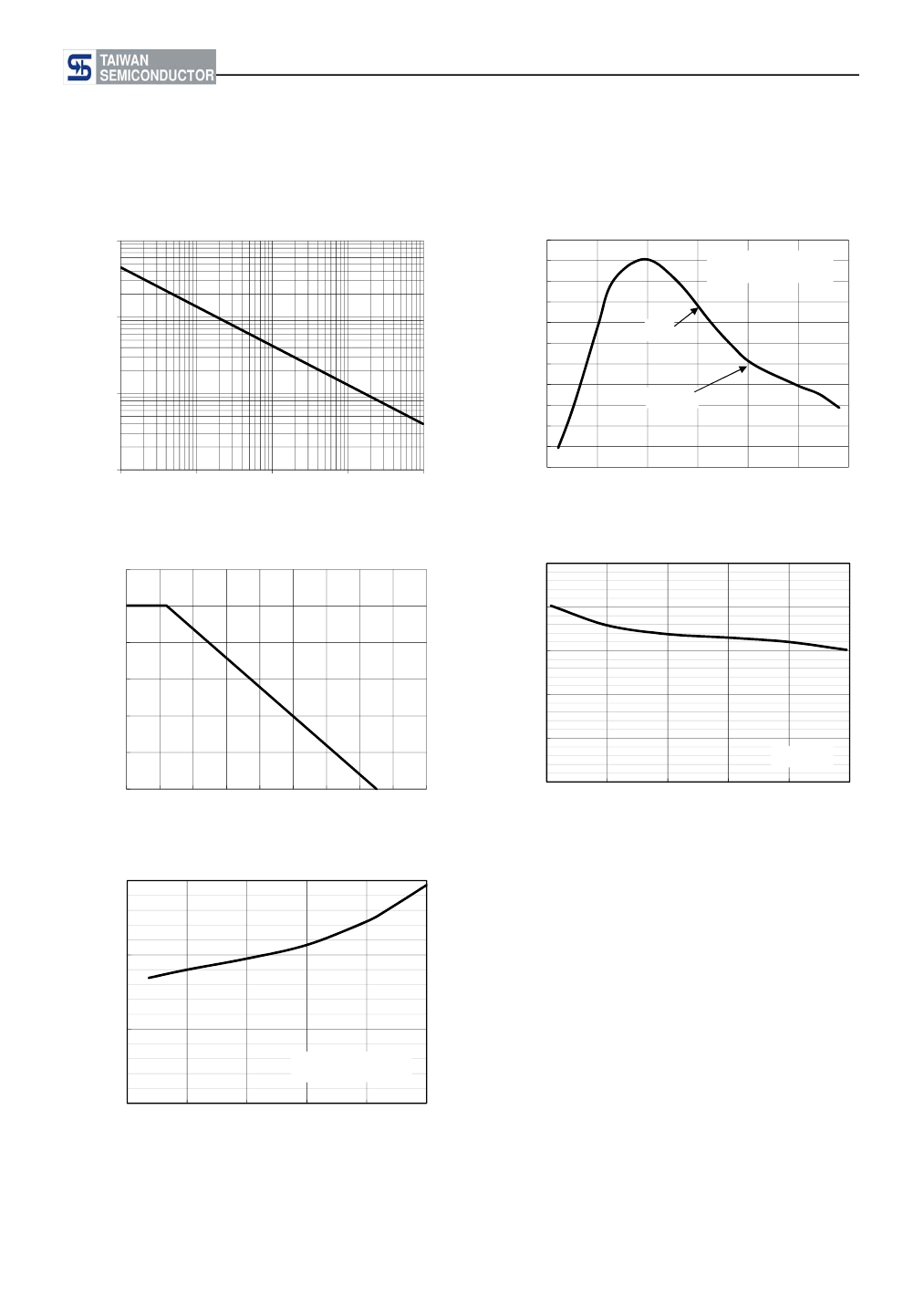

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
Fig. 1 Non-Repetitive Peak Pulse Power VS. Pulse Time
10
110
100
Peak Pulse Power Ppp (KW)
90
80
Percent of I
PP
1
70
60
50
40
30
20
10
0.01
0.1
1.0
10.0
Pulse Duration (us)
100.0
1000.0
0
0
5
10
15
Time (us)
20
25
30
td=Ipp/2
e
-1
Waveform Parameters:
tr = 8μs, td = 20μs
Fig. 2 Pulse Waveform
0.1
Fig.3 Admissible Power Dissipation Curve
120
100
80
60
40
20
0
0
20
40
60
80
100
120
140
160
180
0
0
Normalized Capacitance
Power Rating (%)
25
Fig. 4 Typical Junction Capacitance
20
15
10
5
f=1.0 MHz
1
2
3
4
5
Ambient Tempeatature (
o
C)
Reverse Voltage (V)
Fig. 5 Clamping Voltage VS. Peak Pulse Current
15
Clamping Voltage (V)
10
5
Waveform Parameters:
tr = 8μs, td = 20μs
0
0.0
0.5
1.0
1.5
2.0
2.5
Peak Pulse Current (A)
Document Number: DS_S1501026
Version: C15
TESDT5V0A
Taiwan Semiconductor
Small Signal Product
ORDER INFORMATION (EXAMPLE)
TESDT5V0A RFG
Green compound code
Packing code
Part no.

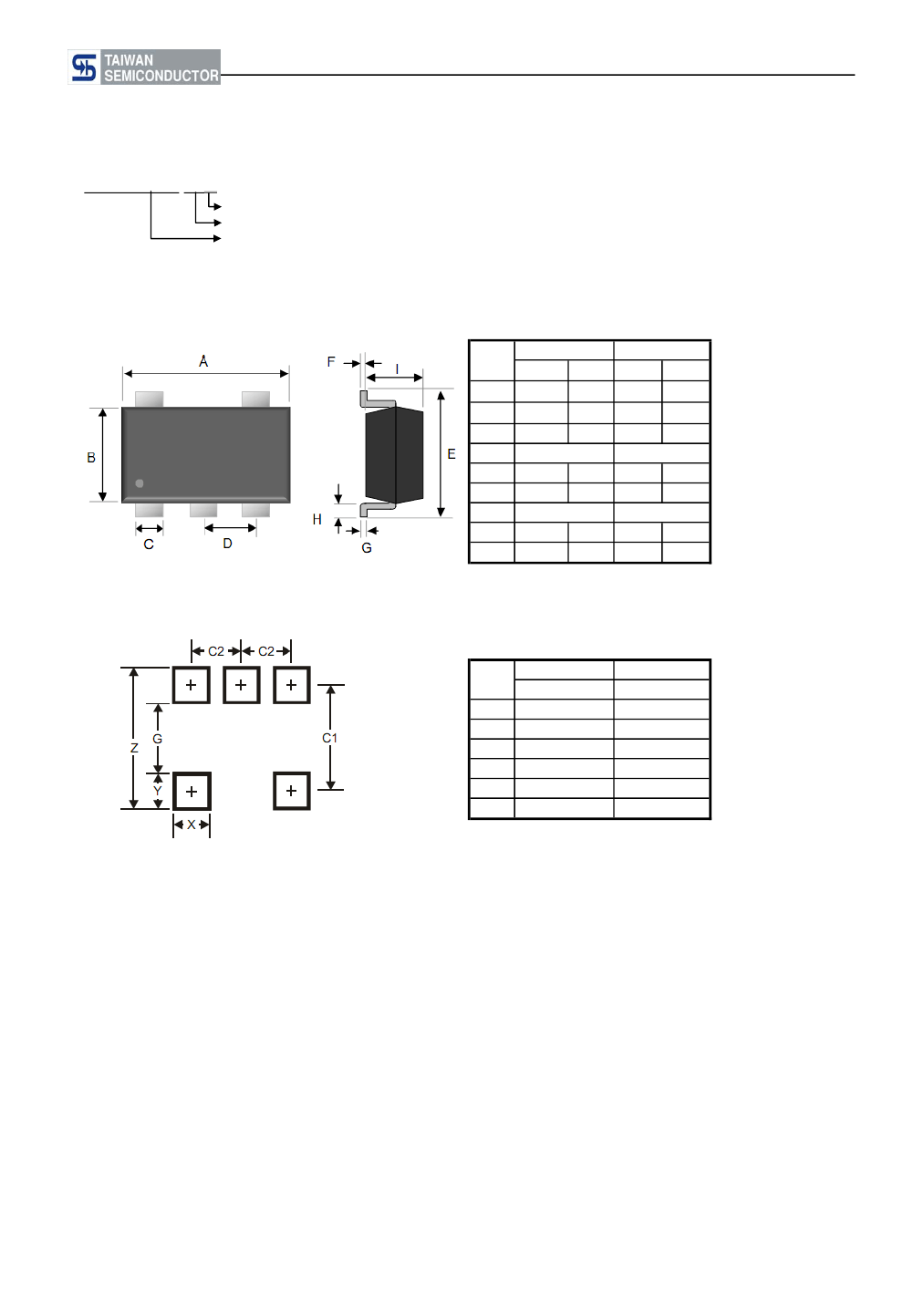

PACKAGE OUTLINE DIMENSIONS
SOT-23-5
DIM.
A
B
C
D
E
F
G
H
I
Unit(mm)
Min
2.70
1.50
0.35
2.60
-
0.37
1.00
Max
3.10
1.80
0.50
3.00
0.10
-
1.3
Unit(inch)
Min
0.106
0.059
0.014
0.102
-
0.015
0.039
Max
0.122
0.071
0.020
0.118
0.004
-
0.051
0.95 REF
0.037 REF
0.10 REF
0.004 REF
SUGGEST PAD LAYOUT
DIM.
Z
G
X
Y
C1
C2
Unit (mm)
Typ.
3.20
1.60
0.55
0.80
2.40
0.95
Unit (inch)
Typ.
0.126
0.063
0.022
0.031
0.094
0.037
Note: 1. The suggested land pattern dimensions have been provided for reference only, as actual pad layouts
may vary depending on application.
Document Number: DS_S1501026
Version: C15
TESDT5V0A
Taiwan Semiconductor
Small Signal Product

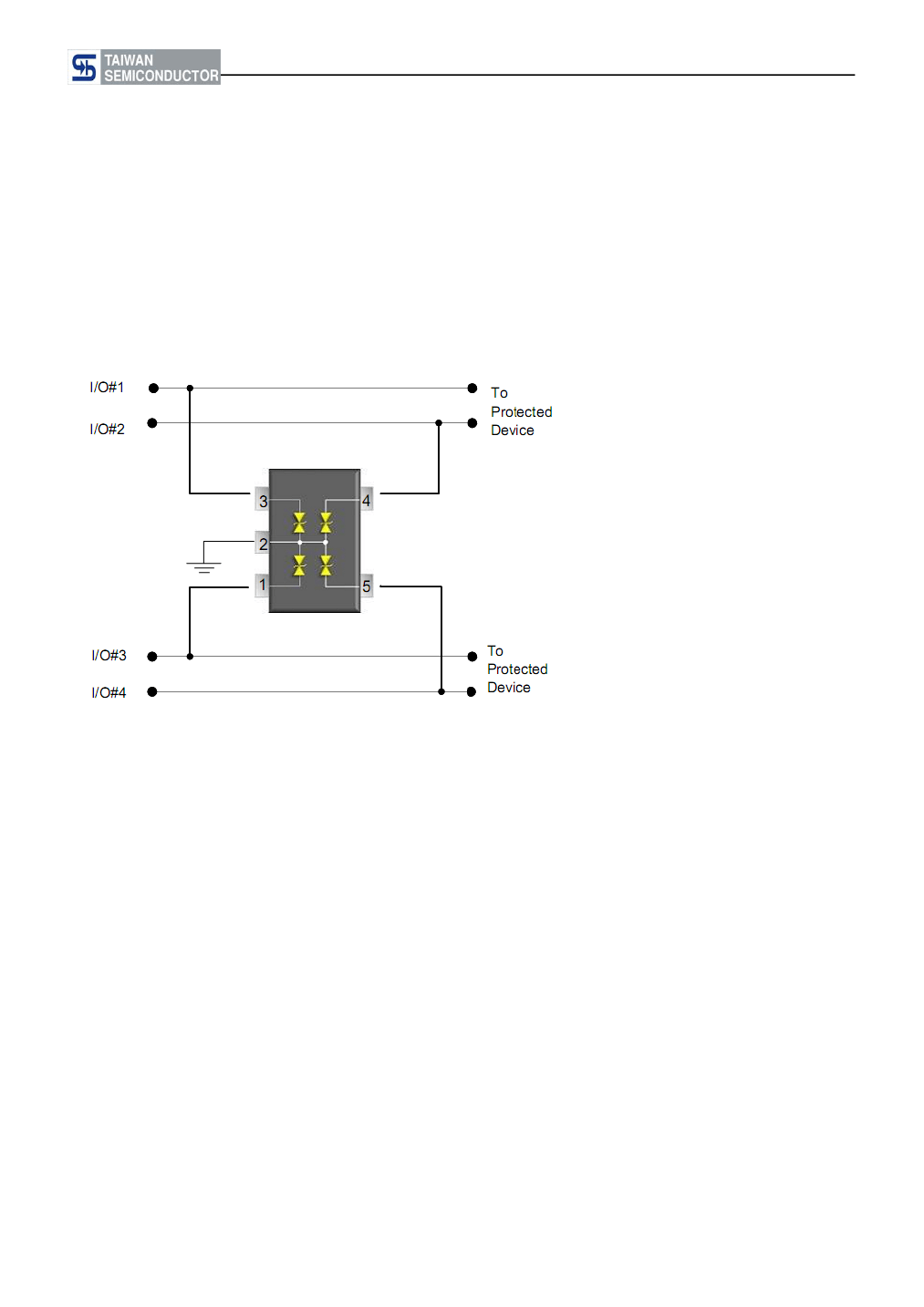

APPLICATIONS INFORMATION
◇
Designed to protect data line interfaces
◇
Designed to protect four data lines from transient over-voltages by clamping them to a fixed reference
◇
Designed to protect sensitive components which are connected to data and transmission lines from overvoltage caused by
electrostatic discharge (ESD), electrical fast transients (EFT), and Surge
◇
The internal TVS diode prevents over-voltage on the power line, protecting any downstream components
CIRCUIT BOARD LAYOUT RECOMMENDATIONS
Document Number: DS_S1501026
Version: C15
TESDT5V0A
Taiwan Semiconductor
Small Signal Product
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_S1501026
Version: C15
