54FCT138PB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54FCT138PB

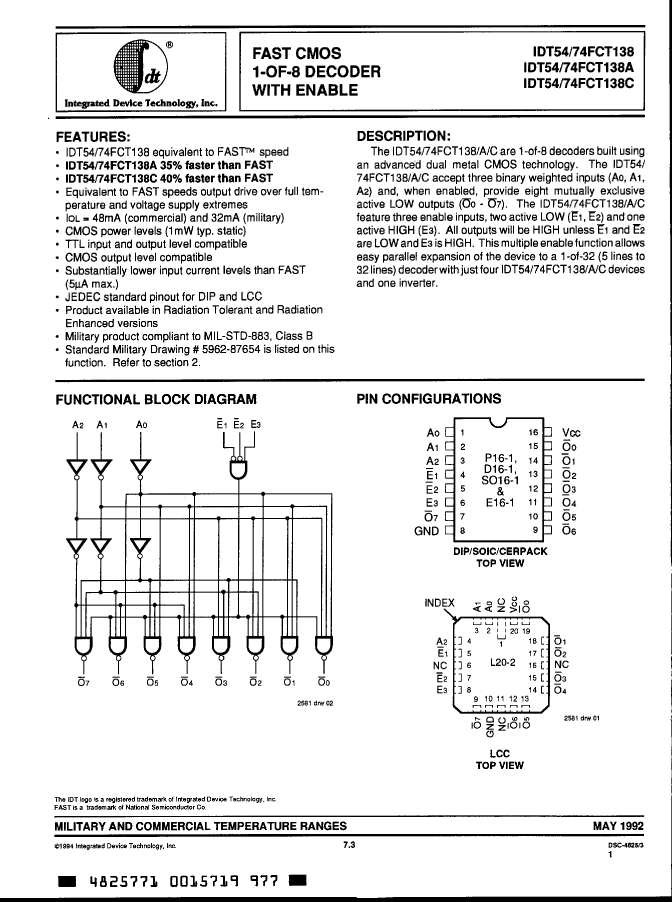

54FCT138PB: DescriptionDecoder/Driver; Categorylogic logic; File Size279KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

54FCT138PB Overview

Decoder/Driver

54FCT138PB Parametric

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	compliant
ECCN code	EAR99
series	FCT
Input adjustment	STANDARD
JESD-30 code	R-PDIP-T16
Logic integrated circuit type	OTHER DECODER/DRIVER
Number of functions	1
Number of terminals	16

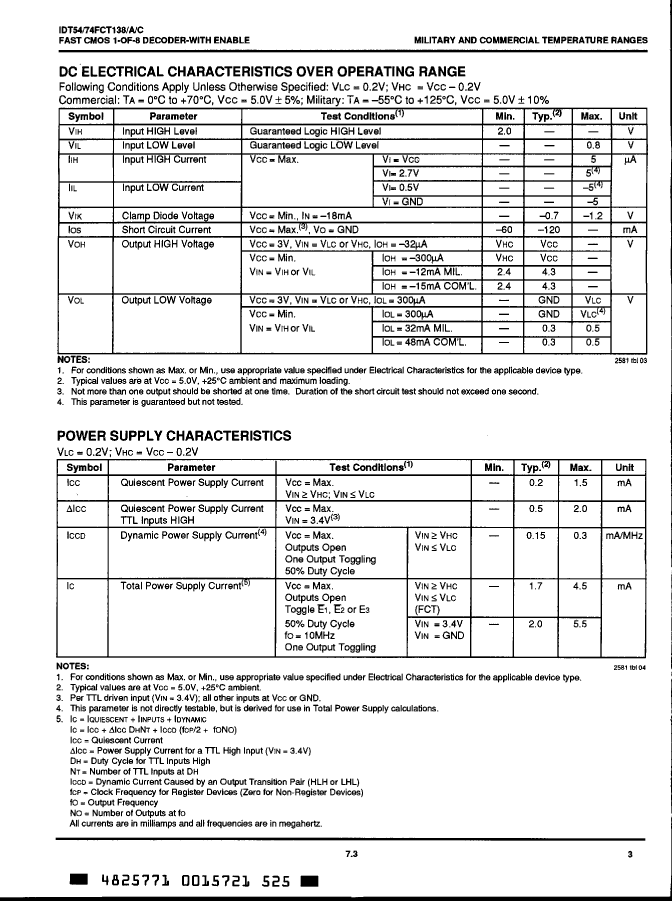

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

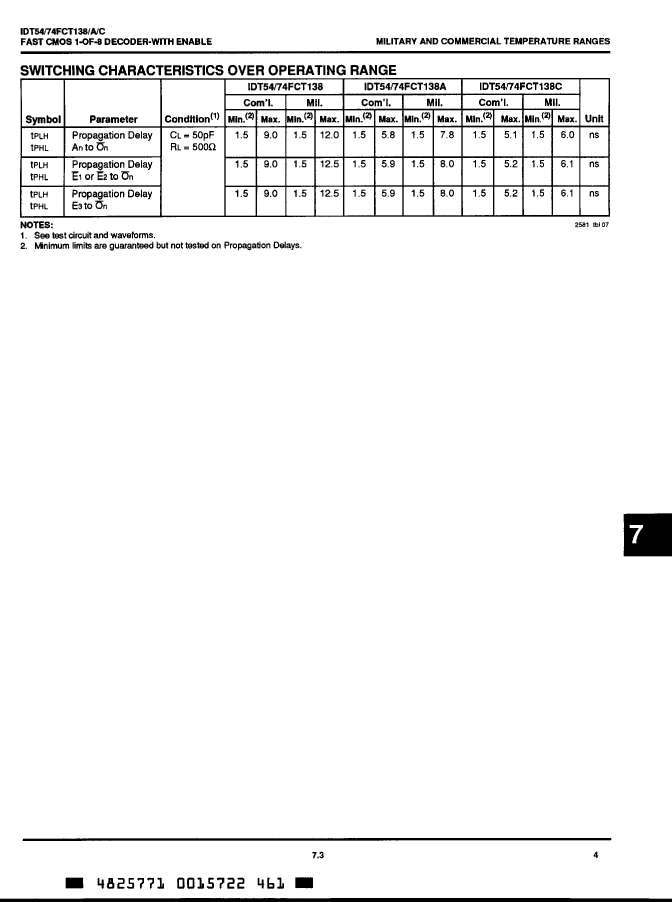

propagation delay (tpd)	12 ns
Filter level	MIL-STD-883 Class B
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

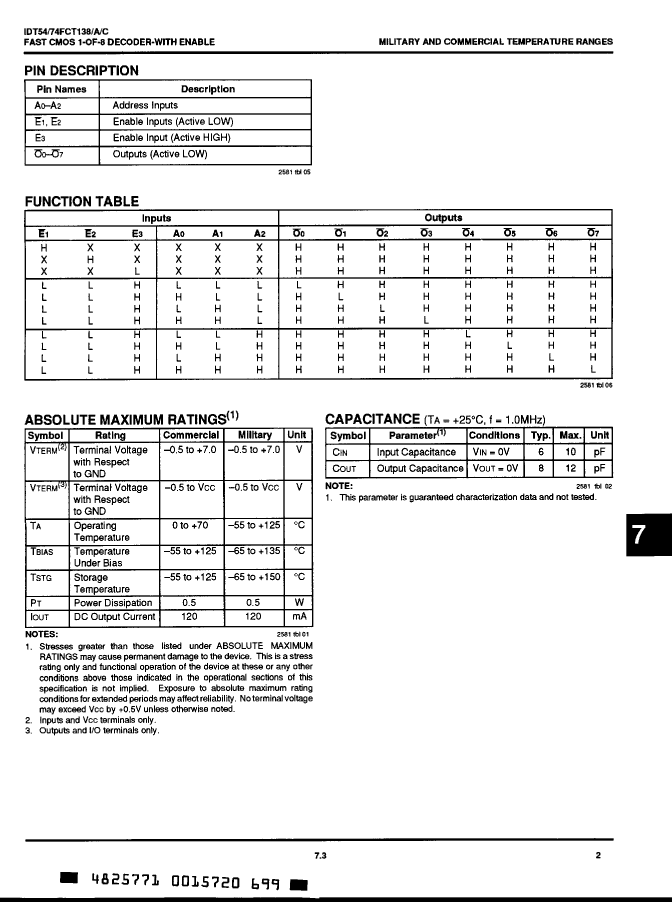

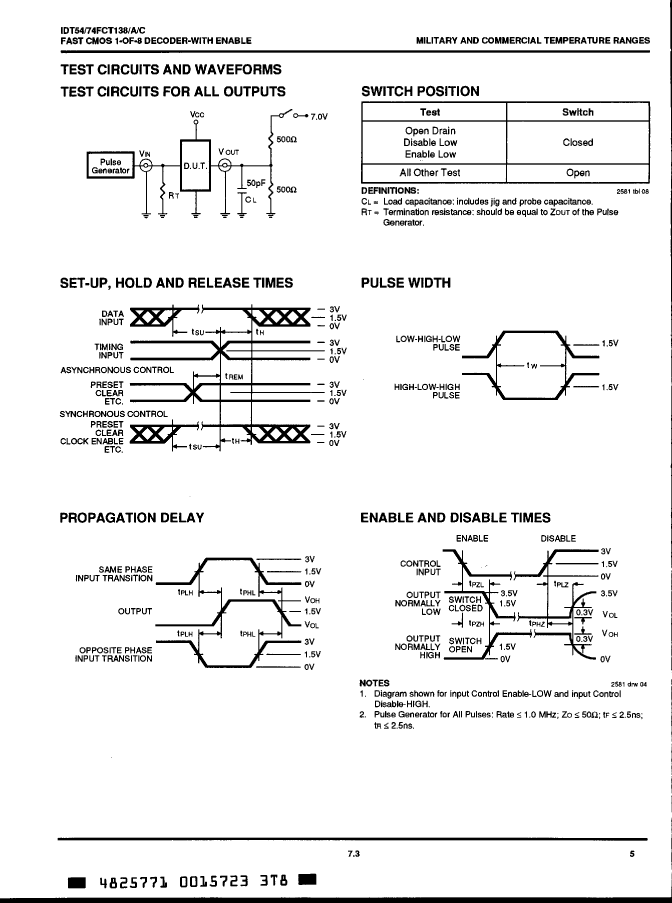

Preview

Download Datasheet

View All

54FCT138PB Related Products

	54FCT138PB	54FCT138LB	54FCT138CSO	54FCT138AP	54FCT138ASO	54FCT138P	54FCT138CP	74FCT138ASO	54FCT138ADB
Description	Decoder/Driver	LCC-20, Tube	Decoder/Driver	Decoder/Driver	Decoder/Driver	Decoder/Driver	Decoder/Driver	SOIC-16, Tube	CDIP-16, Tube
package instruction	DIP,	LCC-20	SOP,	DIP,	SOP,	DIP,	DIP,	SOP, SOP16,.4	DIP, DIP16,.3
Reach Compliance Code	compliant	not_compliant	compliant	compliant	compliant	compliant	compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
Input adjustment	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
JESD-30 code	R-PDIP-T16	S-XQCC-N20	R-PDSO-G16	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-CDIP-T16
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	16	20	16	16	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	70 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-55 °C
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN	SOP	DIP	SOP	DIP	DIP	SOP	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE
propagation delay (tpd)	12 ns	12 ns	6 ns	7.8 ns	7.8 ns	12 ns	6 ns	5.8 ns	7.8 ns
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.25 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.75 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	NO	NO	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	-
