LFXTAL016453BULK datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> LFXTAL016453BULK

LFXTAL016453BULK: DescriptionParallel - Fundamental Quartz Crystal, 8.192MHz Nom; CategoryPassive components Crystal/resonator; File Size660KB，1 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

LFXTAL016453BULK Overview

Parallel - Fundamental Quartz Crystal, 8.192MHz Nom

LFXTAL016453BULK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	HC49/4HSMX, SMD, 2 PIN
Reach Compliance Code	compliant
Other features	BULK
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.01%
frequency tolerance	50 ppm
load capacitance	30 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	8.192 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11.4XB4.9XH4.3 (mm)/L0.449XB0.193XH0.169 (inch)
Series resistance	40 Ω
surface mount	YES

Preview

Download Datasheet

View All

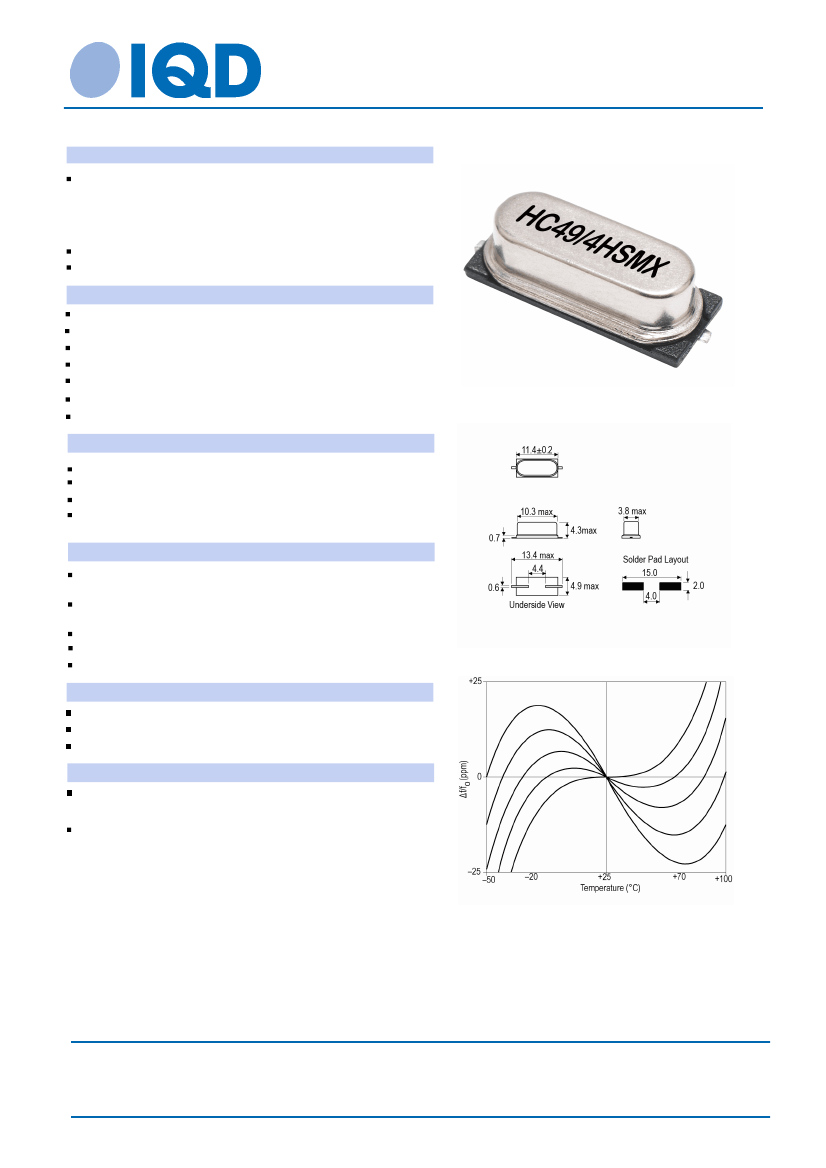

Quartz Crystal Specification

Part No. + Packaging:

LFXTAL016453Bulk

Customer Part:

Description

Industry standard SMD crystal

Resistance welded, hermetically sealed in an inert atmosphere,

glass to metal seals on leads

Lead wires are mounted onto a plastic former to create a gull

wing mount

Model

HC49/4HSMX

Model Issue number

Frequency Parameters

Frequency

Frequency Tolerance

Tolerance Condition

Frequency Stability

Operating Temperature Range

Overtone Order

Ageing

Electrical Parameters

8.1920MHz

±50.00ppm

@ 25°C ±2°C

±100.00ppm

-10.00 to 60.00°C

Fundamental

±5ppm typ per year @ 25°C

Outline (mm)

Load Capacitance (CL)

Shunt Capacitance (C0)

Drive Level

ESR

Environmental Parameters

30.00pF

7pF max

500µW max

40.00Ω max

Shock: 981m/s², 6ms, 3 times in each of 3 mutually

perpendicular planes

Vibration: 10Hz-60Hz, 0.75mm amplitude, 60Hz-500Hz,

98.1m/s², 30mins in 3 mutually perpendicular planes

Storage Temperature Range: -55 to 125°C

RoHS Terminations

RoHS Reflow Temp

260°C max for 10s max

Compliance

Typical Frequency vs Temperature Curves

RoHS Status (2015/863/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Bulk

Pack Size: 100

Loose in bulk pack

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 1

Printed on 1 Sep 21 14:16 using Part Data Sheet V1.0018
