ES3A/AB - ES3D/DB
3.0A SURFACE MOUNT SUPER-FAST RECTIFIER
Features
•
•
•
•
•
•
Glass Passivated Die Construction
Super-Fast Recovery Time For High Efficiency
Surge Overload Rating to 100A Peak
Ideally Suited for Automated Assembly
Lead Free Finish/RoHS Compliant (Note 1)
Green Molding Compound (No Halogen and Antimony)
(Note 2)
Mechanical Data
•
•
•
•
•
•
•
Case: SMB/SMC
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
Polarity: Cathode Band or Cathode Notch
SMB Weight: 0.093 grams (approximate)
SMC Weight: 0.21 grams (approximate)
Top View
Bottom View
Ordering Information
(Note 3)
Part Number
ES3x-13-F
ES3xB-13-F
Notes:
Case
SMC
SMB
Packaging
3000/Tape & Reel
3000/Tape & Reel
* x = Device type, e.g. ES3A-13-F (SMC package); ES3AB-13-F (SMB package).
1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.
2. Product manufactured with Data Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.
3. For packaging details, go to our website at http://www.diodes.com.
Marking Information
YWW
ES3x(B)
ES3x = Product type marking code, ex: ES3A (SMC package)
ES3xB = Product type marking code, ex: ES3AB (SMB package)
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 2 for 2002)
WW = Week code (01 to 53)
ES3A/AB - ES3D/DB
Document number: DS14003 Rev. 15 - 2
1 of 4
www.diodes.com
November 2010
© Diodes Incorporated
ES3A/AB - ES3D/DB
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage (Note 4)
RMS Reverse Voltage
Average Rectified Output Current
@ T
T
= 100°C
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
O
I
FSM
ES3A/AB
50
35
ES3B/BB
100
70
3.0
100
ES3C/CB
150
105
ES3D/DB
200
140
Unit
V
V
A
A
Thermal Characteristics
Characteristic
Typical Thermal Resistance, Junction to Terminal
Typical Thermal Resistance, Junction to Ambient (Note 5)
Operating and Storage Temperature Range
Symbol
R
θ
JT
R
θ
JA
T
J,
T
STG
Value
10
50
-55 to +150
Unit
°C/W
°C
°C
Electrical Characteristics
Characteristic
Maximum Forward Voltage
Peak Reverse Current
at Rated DC Blocking Voltage (Note 4)
@T
A
= 25°C unless otherwise specified
Symbol
@ I
F
= 3.0A
@ T
A
= 25°C
@ T
A
= 125°C
V
FM
I
RM
t
rr
C
T
Value
0.9
10
500
25
45
Unit
V
μA
ns
pF
Maximum Reverse Recovery Time (Note 6)
Typical Total Capacitance (Note 7)
Notes:
4. Short duration pulse test used to minimize self-heating effect.
5. Unit mounted on PC board with 5.0 mm
2
(0.013 mm thick) copper pads as heat sink.
6. Measured with I
F
= 0.5A, I
R
= 1.0A, I
rr
= 0.25A. See Figure 5.
7. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
I
O
, AVERAGE RECTIFIED CURRENT (A)
Note 3
3
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
4
10
1.0
2
0.1
1
0
25
100
50
75
125
150
T
T
, TERMINAL TEMPERATURE (
°
C)

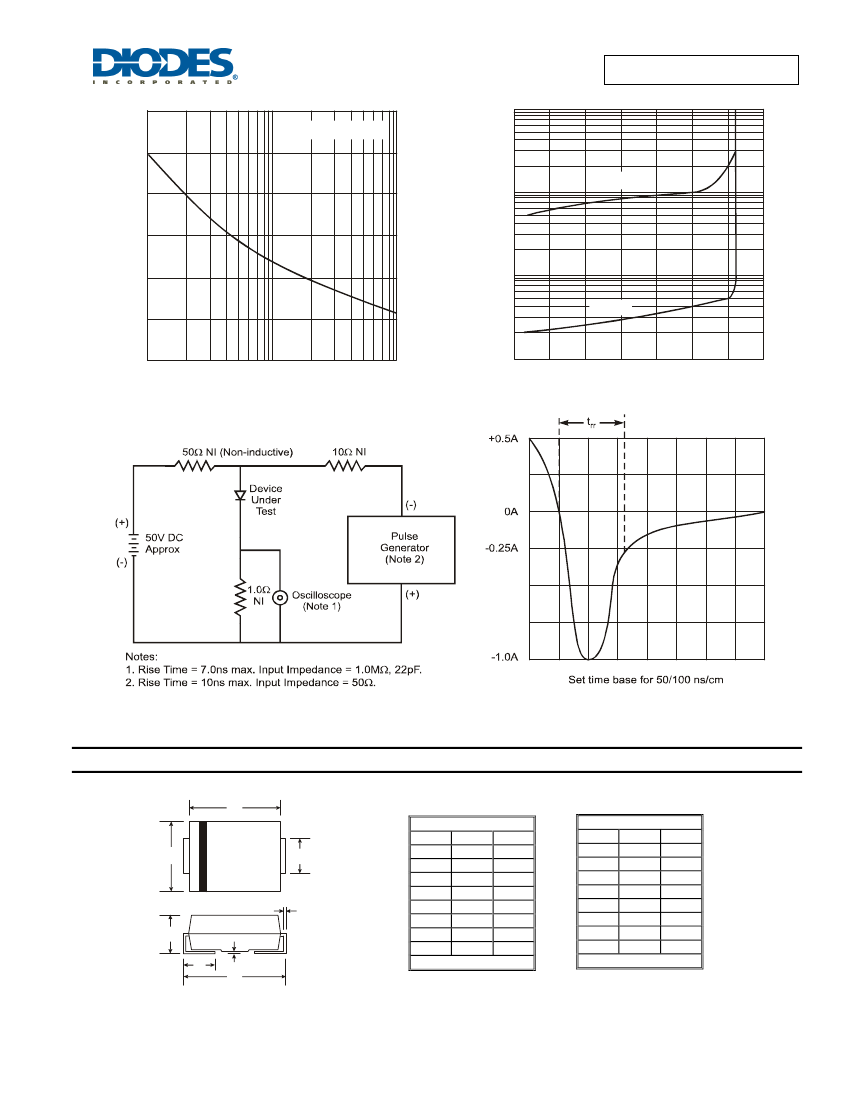

Fig. 1 Forward Current Derating Curve
175
0.01
0
0.4
0.8
1.2
1.6
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
ES3A/AB - ES3D/DB
Document number: DS14003 Rev. 15 - 2
2 of 4
www.diodes.com
November 2010
© Diodes Incorporated
ES3A/AB - ES3D/DB
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
I
FSM
, PEAK FORWARD SURGE CURRENT (A)
120
Single Half-Sine-Wave
1,000
100
T
J
= 125
°
C
80
100
60
40
10
T
J
= 25
°
C
20
0
1
1.0
0
40
80
120
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
Fig. 4 Typical Reverse Characteristics
10
NUMBER OF CYCLES AT 60Hz
Fig. 3 Surge Current Derating Curve
100
Fig. 5 Reverse Recovery Time Characteristic and Test Circuit
Package Outline Dimensions
B
SMB
Dim
Min
Max
A
3.30
3.94
B
4.06
4.57
C
1.96
2.21
D
0.15
0.31
E
5.00
5.59
G
0.05
0.20
H
0.76
1.52
J
2.00
2.50
All Dimensions in mm
SMC
Dim
Min
Max
A
5.59
6.22
B
6.60
7.11
C
2.75
3.18
D
0.15
0.31
E
7.75
8.13
G
0.10
0.20
H
0.76
1.52
J
2.00
2.50
All Dimensions in mm
A
C
D
J
H
G
E
ES3A/AB - ES3D/DB
Document number: DS14003 Rev. 15 - 2
3 of 4
www.diodes.com
November 2010
© Diodes Incorporated
ES3A/AB - ES3D/DB
Suggested Pad Layout
SMB
Value (in mm)
Dimensions
Z
6.7
G
1.8
X
2.3
Y
2.5
C
4.3
SMC
Value (in mm)
Dimensions
Z
9.3
G
4.4
X
3.3
Y
2.5
C
