Halogen and Antimony Free. “Green” Device (Note 3)
Also Available in Green Molding Compound
Application
Switching Power Supplies
DC-DC Converters
Freewheeling Diodes
Mechanical Data

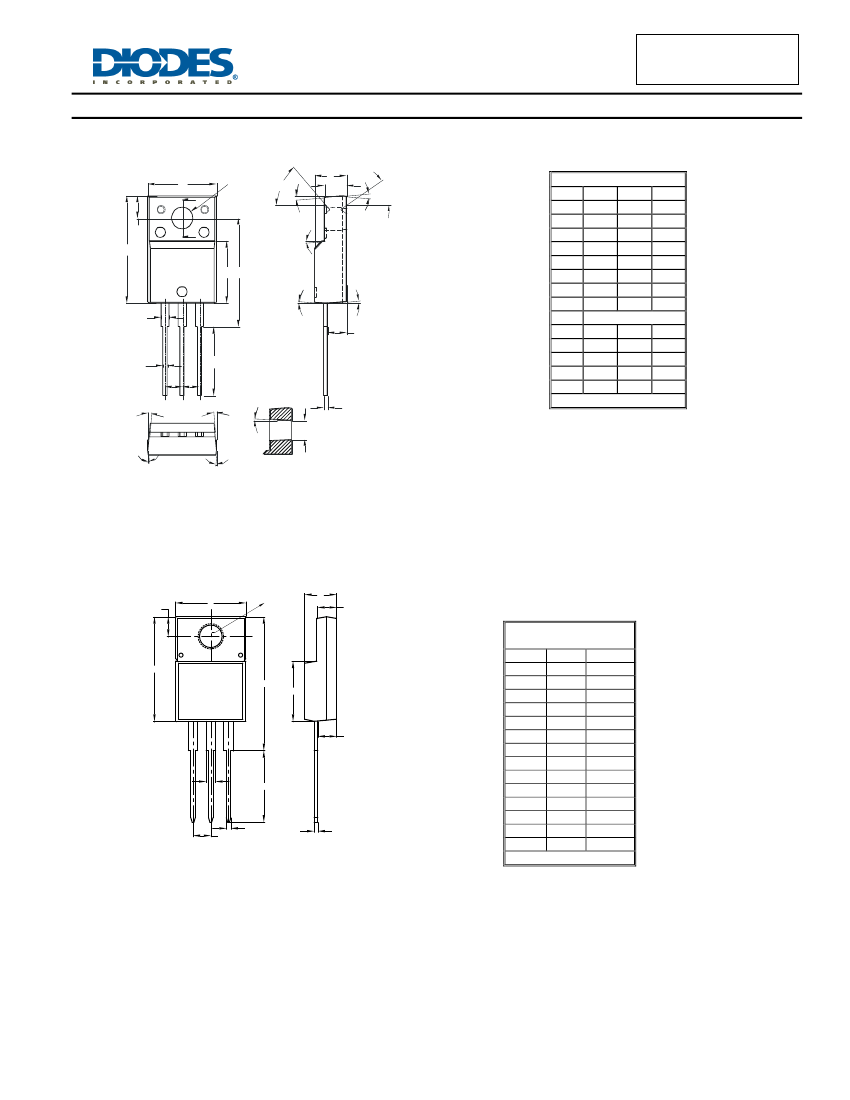

Case: TO-220AB, ITO-220AB, ITO-220AB (Type E)
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Terminals: Matte Tin Finish Annealed over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: TO-220AB – 1.85 grams (Approximate)
ITO-220AB – 1.65 grams (Approximate)

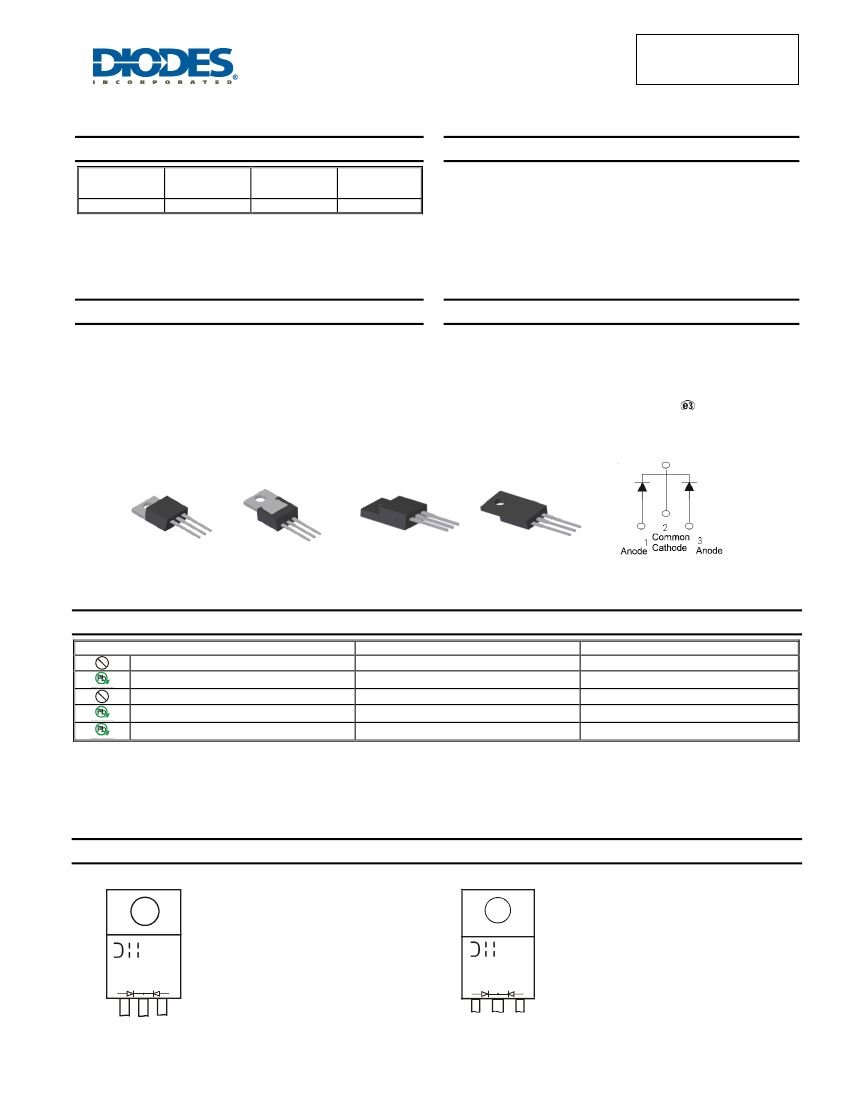

TO-220AB
Top View
TO-220AB
Bottom View
Ordering Information
(Notes 4 & 5)
Pb
Green
ITO-220AB
Top
ViePackage
Pin Out
Configur
ation
w
ITO-220AB
Bottom View
Package Pin Out
Configuration
Part Number
SBR20A150CT
SBR20A150CT-G
SBR20A150CTFP
SBR20A150CTFP-G
SBR20A150CTFP-JT-G
Case
TO-220AB
TO-220AB
ITO-220AB
ITO-220AB
ITO-220AB (Alternate)
Packaging
50 pieces/tube
50 pieces/tube
50 pieces/tube
50 pieces/tube
50 pieces/tube
Pb
Green
Green
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For Green Molding Compound version part numbers, add "-G" suffix to part number above. Examples: SBR20A150CT-G.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SBR
20A150CT
YYW W
AB
SBR20A150CT = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two Digits of Year (ex: 14 = 2014)
WW = Week (01 – 53)
SBR
20A150CTFP
YYW W
AB
SBR20A150CTFP = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two Digits of Year (ex: 14 = 2014)
WW = Week (01 – 53)
SBR is a registered trademark of Diodes Incorporated.
