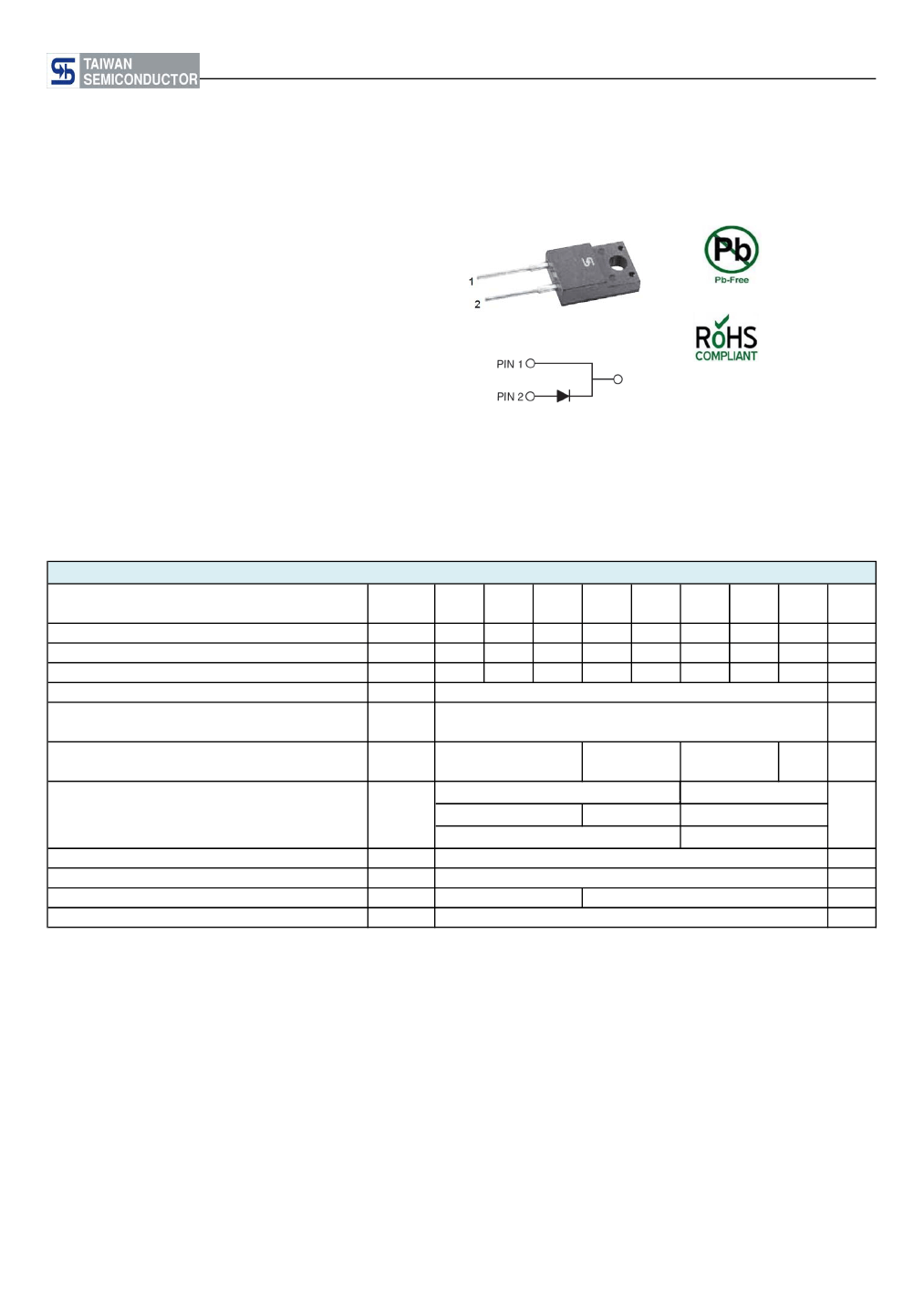

SRAF1020 thru SRAF10150
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Isolated Schottky Barrier Rectifiers
MECHANICAL DATA
Case:
ITO-220AC
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test,
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
5 in-lbs maximum
Weight:
1.7 g (approximately)
ITO-220AC
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 10 A
Maximum reverse current @ Rated V
R
T
J
=25
℃
T
J
=100℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
0.55
0.5
I
R
dV/dt
R
θJC
T
J
T
STG
- 55 to +125
- 55 to +150
15
-
10000
4
- 55 to +150
10
SRAF SRAF SRAF SRAF SRAF SRAF SRAF SRAF
1020
20
14
20
1030
30
21
30
1040
40
28
40
1050
50
35
50
10
200
0.70
0.85
0.1
-
5
V/μs
O
1060
60
42
60
1090 10100 10150
90
63
90
100
70
100
150
105
150
UNIT
V
V
V
A
A
0.95
V
mA
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
C/W
O
O
C
C
Document Number: DS_D1309009
Version: G13
SRAF1020 thru SRAF10150
Taiwan Semiconductor
CREAT BY ART
ORDERING INFORMATION
PART NO.
SRAF10xx
(Note 1)
AEC-Q101
QUALIFIED
Prefix "H"
PACKING CODE
C0
GREEN COMPOUND
CODE
Suffix "G"
PACKAGE
ITO-220AC
PACKING
50 / Tube
Note 1: "xx" defines voltage from 20V (SRAF1020) to 150V (SRAF10150)
EXAMPLE
PREFERRED P/N PART NO.
SRAF1060 C0
SRAF1060 C0G
SRAF1060HC0
SRAF1060
SRAF1060
SRAF1060
H
AEC-Q101
QUALIFIED
PACKING CODE
C0
C0
C0
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

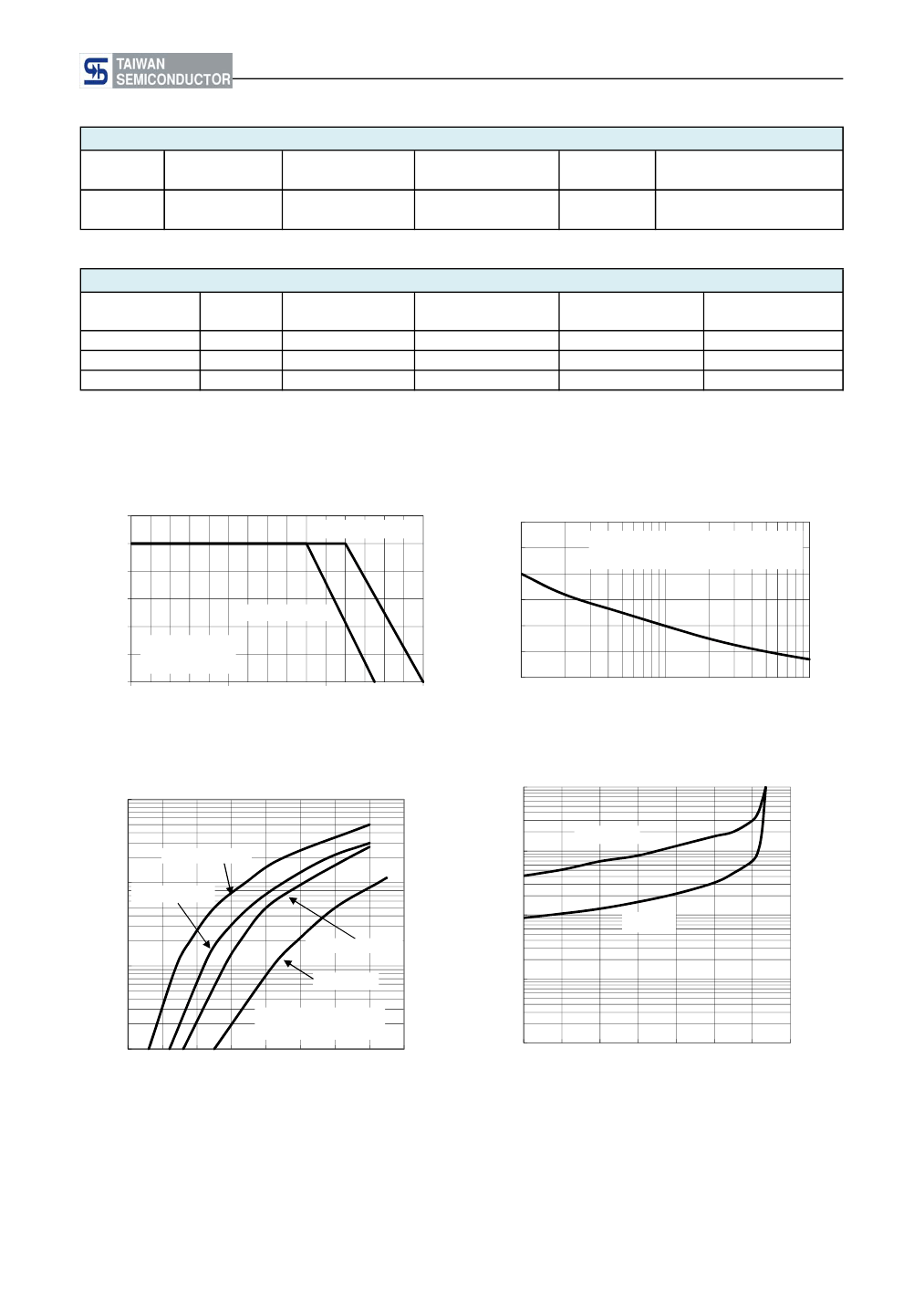

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1- FORWARD CURRENT DERATING CURVE
12
AVERAGE FORWARD CURRENT (A)
SRAF1050-10150
10
8
6
SRAF1020-1040
4
2
0
0
50
100
150
CASE TEMPERATURE (
o
C)
RESISTIVE OR
INDUCTIVELOAD
WITH HEATSINK
PEAK FORWARD SURGE CURRENT.
(A)
FIG. 2- MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
300
250
200
150
100
50
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms SINGLE HALF SINE WAVE PER LEG
(JEDEC METHOD)
FIG. 4- TYPICAL REVERSE CHARACTERISTICS
FIG. 3- TYPICAL FORWARD CHARACTERISTICS
100
INSTANTANEOUS REVERSE CURRENT (mA)
INSTANTANEOUS FORWARD CURRENT (A)
10
TJ=100℃
1
SRAF1020-1040
10
SRAF1050-1060
0.1
TJ=25℃
SRAF1090-10100
1
SRAF10150
PULSE WIDTH-300μs
1% DUTY CYCLE
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
0.01
0.1
INSTANTANEOUS FORWARD VOLTAGE. (V)
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)
Document Number: DS_D1309009
Version: G13
SRAF1020 thru SRAF10150
Taiwan Semiconductor
CREAT BY ART
FIG. 5- TYPICAL JUNCTION CAPACITANCE
10000
JUNCTION CAPACITANCE (pF)
f=1.0MHz
Vsig=50mVp-p
TRANSIENT THERMAL
IMPEDANCE (℃/W)
100
FIG. 6- TYPICAL TRANSIENT THERMAL
IMPEDANCE
10
1000
SRAF1020-40
1
SRAF1050-60
100
0.1
SRAF1090-150
1
10
100
0.1
0.01
0.1
1
10
100
T, PILSE DURATION. (sec)
REVERSE VOLTAGE (V)

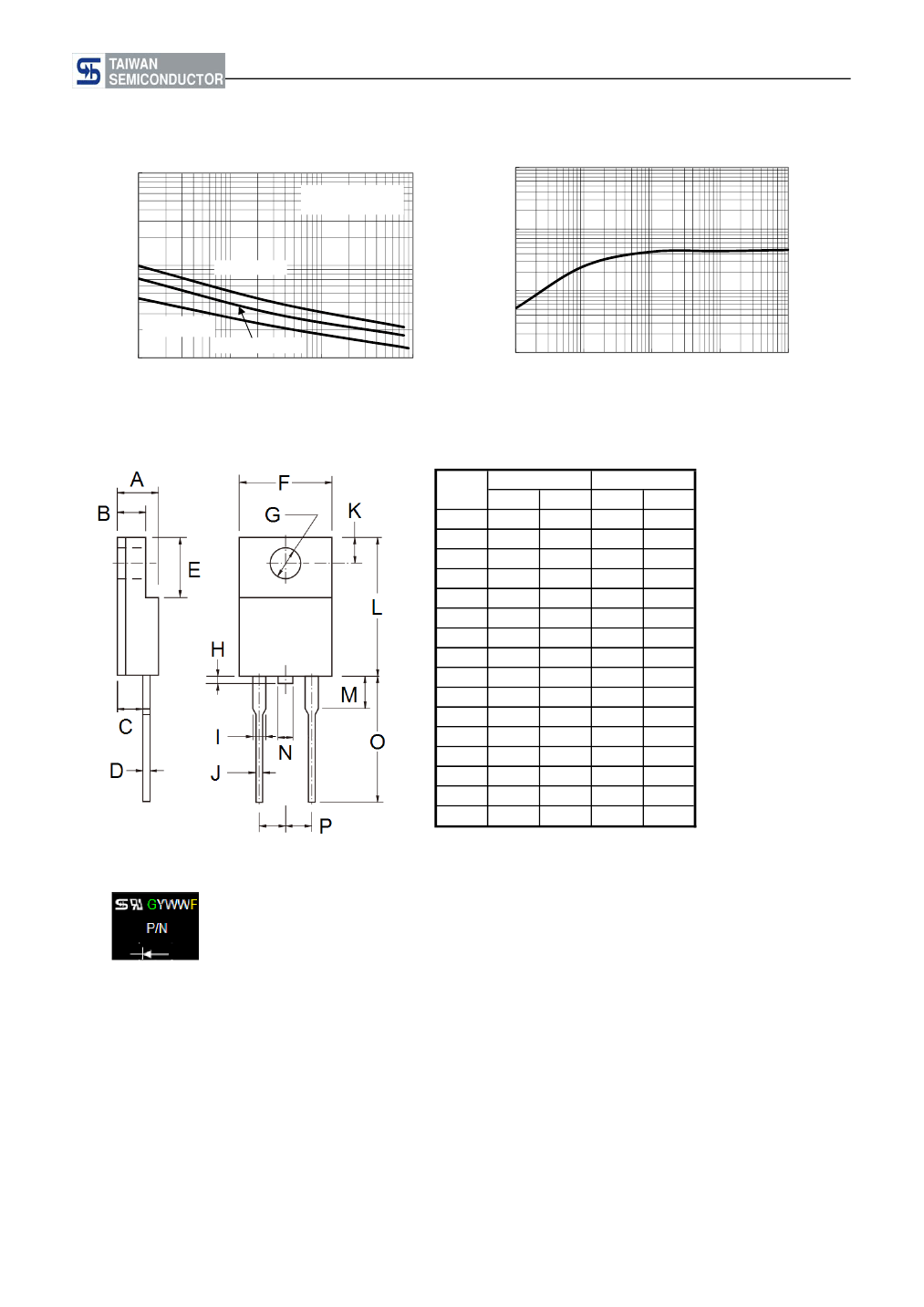

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
4.30
2.50
2.30
0.46
6.30
9.60
3.00
0.00
0.95
0.50
2.40
14.80
-
-
12.60
4.95
Max
4.70
3.10
2.90
0.76
6.90
10.30
3.40
1.60
1.45
0.90
3.20
15.50
4.10
1.80
13.80
5.20
Unit (inch)
Min
0.169
0.098
0.091
0.018
0.248
0.378
0.118
0.000
0.037
0.020
0.094
0.583
-
-
0.496
0.195
Max
0.185
0.122
0.114
0.030
0.272
0.406
0.134
0.063
0.057
0.035
0.126
0.610
0.161
0.071
0.543
0.205
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1309009
Version: G13
SRAF1020 thru SRAF10150
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1309009
Version: G13
