BCW66H
45V NPN SMALL SIGNAL TRANSISTOR IN SOT23
Features
BV
CEO
> 45V
I
C
= 800mA High Continuous Collector Current
Low Saturation Voltage V
CE(sat)
< 300mV @ 100mA
Complementary PNP Type: BCW68H
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)
Mechanical Data
Case: SOT23
Case Material: molded plastic, “Green” molding compound
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight 0.008 grams (approximate)

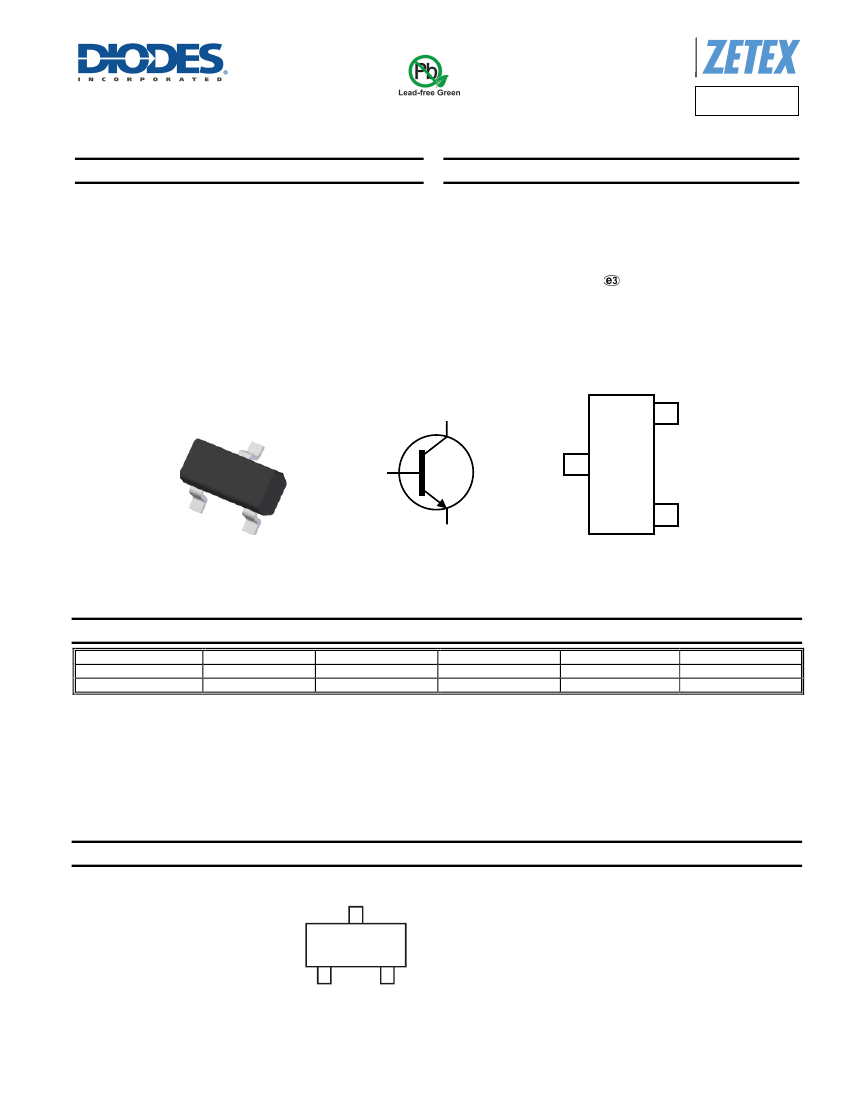

SOT23
C
E
C
B
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Notes 4 & 5)
Part Number
BCW66HTA
BCW66HQTA
Notes:
Compliance
AEC-Q101
Automotive
Marking
EH
EH
Reel size (inches)
7
7
Tape width (mm)
8
8
Quantity per reel
3,000
3,000
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
EH
EH = Product Type Marking Code
BCW66H
Document number: DS33003 Rev. 5 - 2
1 of 5
www.diodes.com
April 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
BCW66H
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Continuous Collector Current
Peak Pulse Current
Base Current
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
B
Value
75
45
7
800
1000
100
Unit
V
V
V
mA
mA
mA
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Leads
Operating and Storage Temperature Range
Notes:
Symbol
(Note 6)
(Note 7)
(Note 6)
(Note 7)
(Note 8)
P
D
R
θJA
R
θJL
T
J,
T
STG
Value
310
350
403
357
350
-55 to +150
Unit
mW
C/W
C/W
C
6. For a device mounted on minimum recommended pad layout 1oz weight copper that is on a single-sided FR4 PCB; device is measured under still air
conditions whilst operating in a steady-state.
7. Same as Note 6, except the device is mounted on 15mm X 15mm 1oz copper.
8. Thermal resistance from junction to solder-point (at the end of the leads).

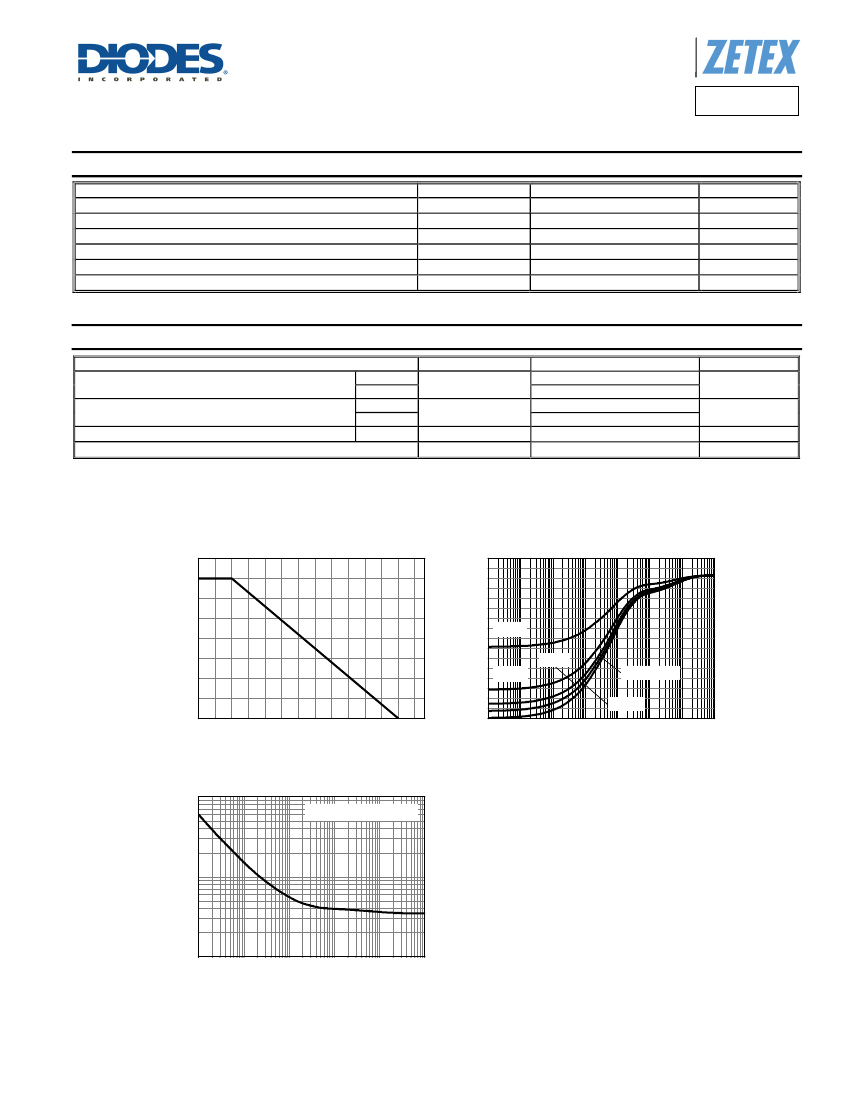

0.4
400
Max Power Dissipation (W)
0.3
Thermal Resistance (°C/W)
350
300
250
200
150
100
50
0
100µ
1m
10m 100m
D=0.2
D=0.5
D=0.1
Single Pulse
D=0.05
0.2
0.1
0.0
0
25
50
75
100
125
150
1
10
100
1k
Temperature (°C)
Pulse Width (s)
Derating Curve
10
Transient Thermal Impedance
Max Power Dissipation (W)
Single Pulse. T
amb
=25°C
1
0.1
10m
100m
1
10
100
1k
Pulse Width (s)
Pulse Power Dissipation
BCW66H
Document number: DS33003 Rev. 5 - 2
2 of 5
www.diodes.com
April 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
BCW66H
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
OFF CHARACTERISTICS
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage
(base open) (Note 9)
Emitter-Base Breakdown Voltage
Collector-Emitter Cut-Off Current
Emitter-Base Cut-Off Current
ON CHARACTERISTICS (Note 9)
Static Forward Current Transfer Ratio
Symbol
BV
CES
BV
CEO
BV
EBO
I
CES
I
EBO
Min
75
45
7
—
—
—
80
180
250
100
—
—
—
100
—
—
—
—
—
Typ
—
—
—
<1
—
<1
—
—
350
—
—
—
—
—
8
—
2
—
—
Max
—
—
—
20
20
20
—
—
630
—
0.3
0.7
2
—
12
80
10
100
400
Unit
V
V
V
nA
µA
nA
Test Condition
I
C
= 10µA
I
CEO
= 10mA
I
EBO
= 10µA
V
CES
= 45V
V
CES
= 45V, T
A
= +150°C
V
EBO
= 5.6V
I
C
= 100µA, V
CE
= 10V
I
C
= 10mA, V
CE
= 1V
I
C
= 100mA, V
CE
= 1V
I
C
= 500mA, V
CE
= 2V
I
C
= 100mA, I
B
= 10mA
I
C
= 500mA, I
B
= 50mA
I
C
= 500mA, I
B
= 50mA
I
C
= 20mA, V
CE
= 10V,
f = 100MHz
V
CB
= 10V, f = 1MHz
V
CB
= -0.5V, f = 1MHz
I
C
= 0.2mA. V
CE
= 5V,
R
G
= 1K
I
C
= 150mA.
I
B1
= -I
B2
= 15mA
R
L
= 150
h
FE
—
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
SMALL SIGNAL CHARACTERISTICS (Note 9)
Transition Frequency
Output Capacitance
Input Capacitance
Noise Figure
Turn-On Time
Turn-Off Time
Notes:
V
CE(sat)
V
BE(sat)
f
T
C
obo
C
ibo
N
t
on
t
off
mV
V
MHz
pF
pF
dB
ns
ns
9. Measured under pulsed conditions. Pulse width
≤
300µs. Duty cycle
≤
2%
BCW66H
Document number: DS33003 Rev. 5 - 2
3 of 5
www.diodes.com
April 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
BCW66H

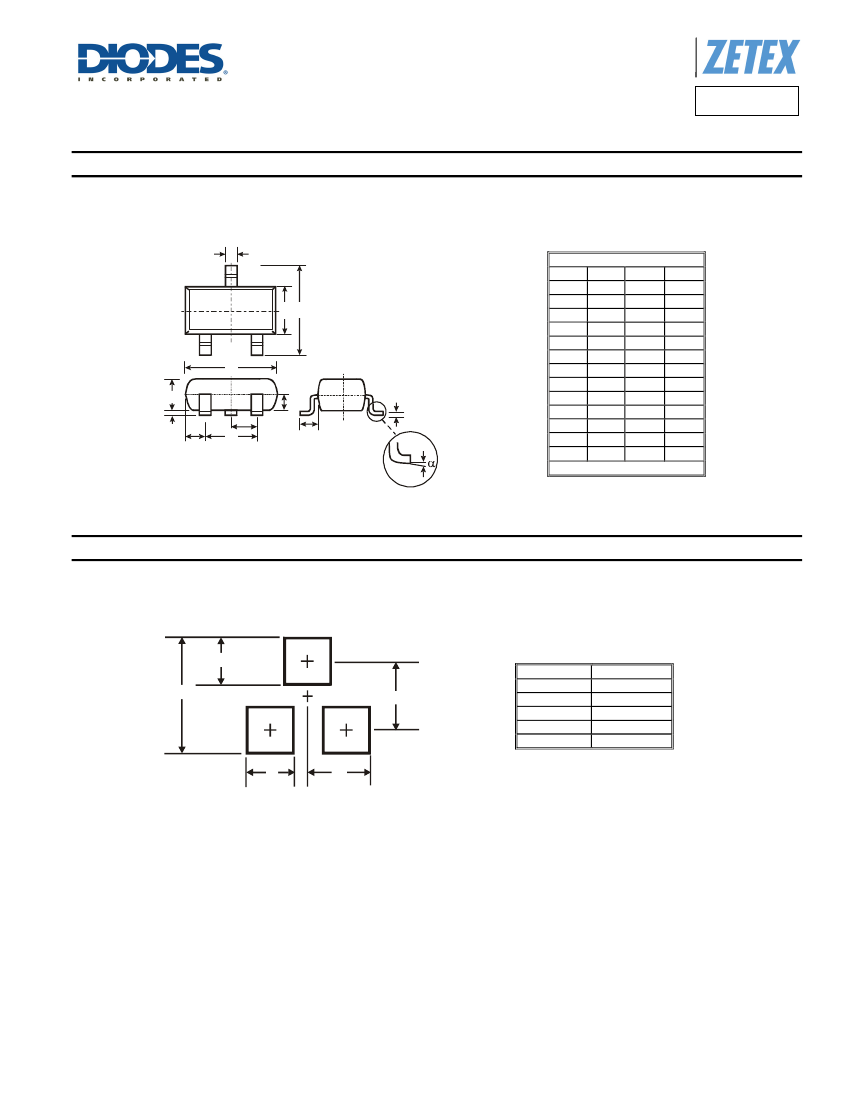

Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
A
B C
H
K
J
F
D
G
L
K1
M
SOT23
Dim
Min
Max
Typ
A
0.37
0.51
0.40
B
1.20
1.40
1.30
C
2.30
2.50
2.40
D
0.89
1.03 0.915
F
0.45
0.60 0.535
G
1.78
2.05
1.83
H
2.80
3.00
2.90
J
0.013 0.10
0.05
K
0.903 1.10
1.00
K1
-
-
0.400
L
0.45
0.61
0.55
M
0.085 0.18
0.11
0°
8°
-
All Dimensions in mm
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
Y
Z
C
Dimensions Value (in mm)
Z
2.9
X
0.8
Y
0.9
2.0
C
1.35
E
X
E
BCW66H
Document number: DS33003 Rev. 5 - 2
4 of 5
www.diodes.com
April 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
BCW66H
