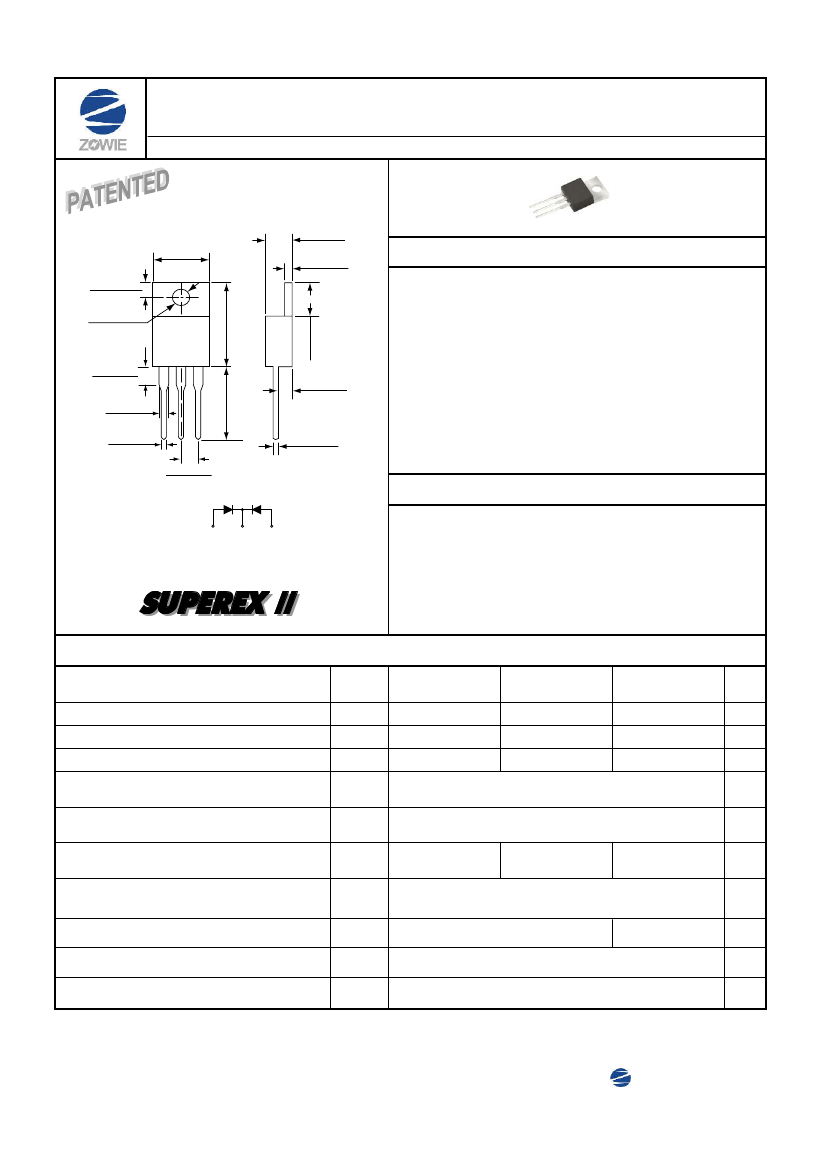

EGZ16DCT THRU EGZ16JCT
GLASS PASSIVATED JUNCTION HIGH EFFICIENT RECTIFIERS
Reverse Voltage - 200 to 600 Volts
Forward Current - 16 Amperes
ENTED
PAT
0.138(3.50)
0.098(2.50)
0.139(3.55)
MIN.
1
2
TO-220AB
0.201(5.10)
0.138(3.50)
0.059(1.50)
0.043(1.10)
0.626(15.90)
0.547(13.90)
0.420(10.68)
0.373(9.48)
FEATURES
* GPRC (Glass Passivated Rectifier Chip) inside
* Glass passivated cavity-free junction
* Lead free product, compliance to RoHS
* Low forward voltage, high current capability
* Low leakage current
* High surge current capability
* Plastic Material-UL Recognition Flammability
Classification 94V-0
0.058(1.47)
0.042(1.07)
0.043(1.10)
0.019(0.50)
0.109(2.79)
0.090(2.29)
0.583(14.80)
0.480(12.20)
0.177(4.50)
MAX.
3
0.026(0.65)
0.010(0.25)
0.274(6.95)
0.226(5.75)
0.138(3.50)
MAX.
MECHANICAL DATA
Case :
JEDEC TO-220AB molded plastic body
1
2
3
Terminals :
Plated Leads, solderable per
MIL-STD-750, Method 2026
Polarity :
Molded on body
TM
*Dimensions in inches and (millimeters)
Mounting Position :
Any
Weight :
2.24 grams(Approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature
unless otherwise specified.
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current See Fig. 1
Peak forward surge current 8.3ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage at I
F
= 8 A
Maximum DC reverse current
at rated DC blocking voltage
Maximum reverse recovery time (NOTE 1)
Typical junction capacitance (Note 2)
o
SYMBOLS
V
RRM
V
RMS
V
DC
I
(AV)
EGZ16DCT
200
140
200
EGZ16GCT
400
280
400
EGZ16JCT
600
420
600
UNITS
Volts
Volts
Volts
Amps
16
I
FSM
125
Amps
V
F
1.00
1.25
1.70
Volts
@T
A
=25℃
I
R
trr
C
J
T
J
,T
STG
5
uA
nS
pF
℃
50
90
75
Operating junction and storage temperature range
-65 to +175
Note : 1.
Reverse recovery test condition : IF 0.5A, IR=1.0A, Irr=0.25A
2. Measured at 1.0MHz and applied reverse voltage of 4.0V.
3. Preliminary draft.
Zowie Technology Corporation
REV. 2
RATINGS AND CHARACTERISTIC CURVES EGZ16DCT THRU EGZ16JCT
FIG.1 - FORWARD CURRENT DERATING CURVE
20
PEAK FORWARD SURGE CURRENT,
AMPERES
150
FIG.2 - MAXIMUM NON-REPETITIVE
PEAK FORWARD SURGE CURRENT
8.3ms SINGLE HALF SINE-WAVE
AVERAGE FORWARD RECTIFIED
CURRENT, AMPERES
16
125
100
12
75
8
50
4
25
0
0
25
50
75
100
125
150
175
CASE TEMPERATURE,
℃
0
1
10
NUMBER OF CYCLES AT 60Hz
100
FIG.3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
50
IINSTANTANEOUS FORWARD CURRENT,
AMPERES
1000
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
10
IR, REVERSE CURRENT(uA)
100
EGZ16DCT
EGZ16GCT
EGZ16JCT
10
T
J
= 125℃
1.0
T
J
= 100℃
1.0
0.1
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
0.1
0
20
40
T
J
= 25℃
60
80
100
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
PERCENT OF RATED PEAK REVERSE VOLTAGE, %
FIG.5 - TYPICAL JUNCTION CAPACITANCE
1000
JUNCTION CAPACITANCE, pF
T
J
= 25℃
100
10
.1
.2
.4
1.0
2
4
10
20
40
100
REVERSE VOLTAGE, VOLTS
REV. 2
Zowie Technology Corporation
