LED DOT MATRIX
BL-ML23X882UED
Features:
60.96mm (2.3”) LED dot matrix display.5mm Oval Type LED Lamps in dot matrix.
Low current operation.
Excellent character appearance.
Easy mounting on P.C. Boards or sockets.
I.C. Compatible.
ROHS Compliance.
Electrical-optical characteristics: (Ta=25°C)
Chip
Part No
Row Cathode
Column Anode
BL-ML23A882URC
BL-ML23A882UEC
BL-ML23A882UYC
BL-ML23A882UGC
BL-ML23A882PGC
(Test Condition: IF=20mA)
λ
P
(n
m)
660
630
590
574
525
470
/
Row Anode
Column Cathode
BL-ML23B882URC
BL-ML23B882UEC
BL-ML23B882UYC
BL-ML23B882UGC
BL-ML23B882PGC
Emit
color
Ultra
Red
Ultra
Red
Ultra
Yellow
Ultra
Green
Ultra
Pure
Green
Ultra
Blue
Ultra
White
Materi
al
AlGaAs,
DDH
AlGaInP
AlGaInP
AlGaInP
InGaN
InGaN
InGaN
Forward
Voltage(VF)
Unit:V
Typ
1.95
2.10
2.10
2.20
3.80
2.70
2.70
Max
2.20
2.50
2.50
2.50
4.50
4.20
4.20
Luminous
Intensity
(Iv)
Unit:mcd
Min. Typ.
500
250
250
100
600
600
1000
750
800
800
250
1800
1500
2300
BL-ML23A882UBC
BL-ML23A882UWC
BL-ML23B882UBC
BL-ML23B882UWC
Absolute maximum ratings (Ta=25°C)
Parameter
Forward Current I
F
Power Dissipation P
d
Reverse Voltage V
R
Peak Forward Current
I
PF
(Duty 1/10 @1KHZ)
Operation Temperature
T
OPR
Storage
Temperature
T
STG
Lead Soldering
Temperature
T
SOL
UR
25
60
5
150
UE
30
65
5
150
UY
30
65
5
150
UG
30
75
5
150
-40 to +80
-40 to +85
PG
30
110
5
150
UB
30
120
5
100
W
30
120
5
100
Unit
mA
mW
V
mA
°C
°C
Max.260±5°C for 3 sec Max.
(1.6mm from the base of the epoxy bulb)
°C
APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS
REV NO: V.2
Page 1 of 4
WWW.BETLUX.COM
EMAIL:
SALES@BETLUX.COM
,
BETLUX@BETLUX.COM
LED DOT MATRIX
BL-ML23X882UED

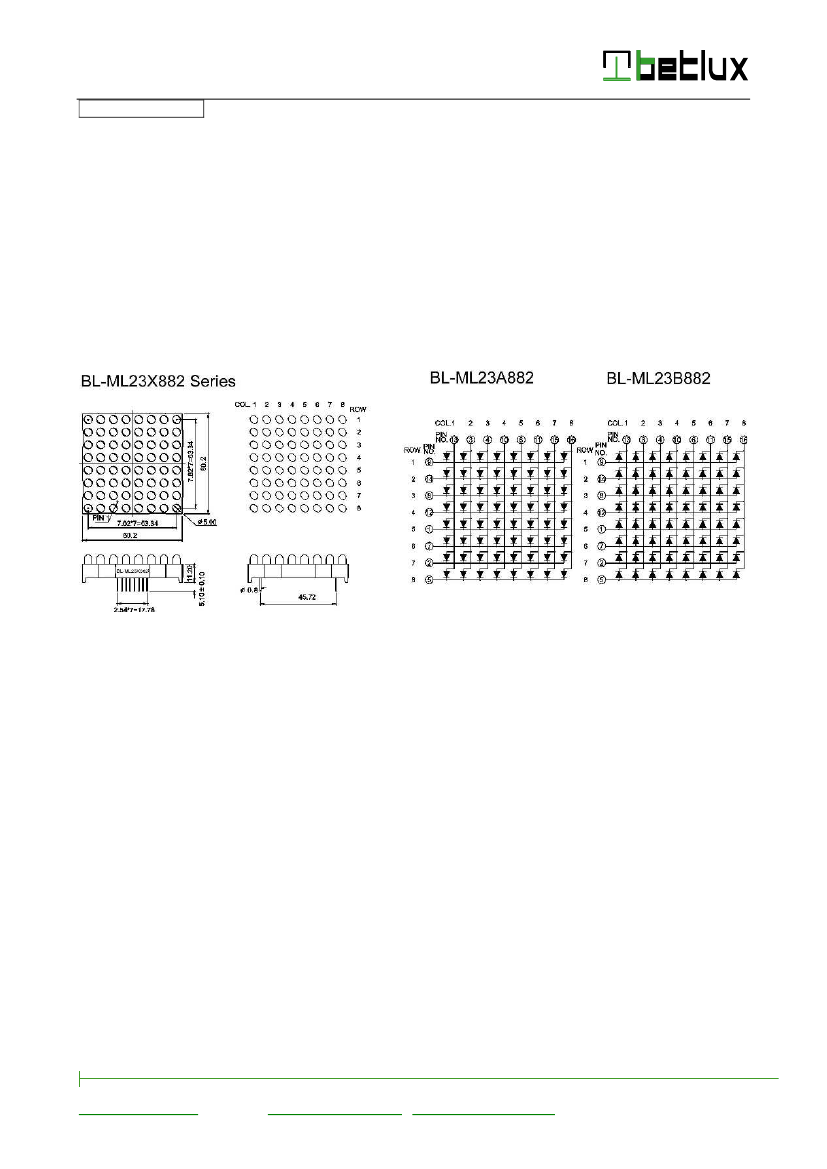

Package configuration & Internal circuit diagram
