LESHAN RADIO COMPANY, LTD.
EGP10A thru EGP10M
FEATURES
* Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
* High temperature metallurgically
bonded construction
* Cavity-free glass passivated junction
* Capable of meeting environmental standards
of MIL-S-19500
* 1.0 A operation at TA=55°C with no thermal runaway
* For use in high frequency rectifier circuits
* Fast switching for high efficiency
* Typical IR less than 0.1µA
* High temperature soldering guaranteed:
350°C/10 seconds
* 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension
Glass Passivated Junction
Fast Switching Rectifiers
Reverse Voltage 50 to 1000V
Forward Current 1.0A
Mechanical Data
Case:
JEDEC DO-41, molded plastic over glass body
Terminals:
Plated axial leads, solderable per
MIL-STD-750, Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.012 oz., 0.3 g
Handling precautin:None
We declare that the material of product
compliance with RoHS requirements.
Maximum Ratings & Thermal Characteristics Ratings
at 25°C ambient temperature unless otherwise specified.
Parameter Symbol
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375" (9.5mm) lead length at T
A
= 55°C
Peak forward surge current 8.3ms single half
sine-wave superimposed on rated load (JEDEC
Method)
Maximum full load reverse current, full cycle
average,0.375"(9.5mm) lead lengths at T
A
= 55°
C
Typical thermal resistance (Note 2)
symbol
V
RRM
V
RMS
V
DC
IF(AV)
I
FSM
EGP
10A
50
35
50
EGP
10B
100
70
100
EGP
10D
200
140
200
EGP
10G
400
280
400
1.0
30
EGP
10J
600
420
600
EGP
10K
800
560
800
EGP
10M
1000
700
1000
Unit
V
V
V
A
A
IR(AV)
RθJA
100
55
–50 to +150
µA
°C/W
°C
Operating junction and storage temperature range TJ, TSTG
Electrical Characteristics Ratings
at 25°C ambient temperature unless otherwise specified.
Parameter Symbol
Maximum instantaneous forward voltage at 1.0A
Maximum DC reverse current TA = 25°C
at rated DC blocking voltage TA = 125°C
Typical reverse recovery time (Note 1)
Typical junction capacitance at 4.0V, 1MHz
symbol
V
F
IR
trr
CJ
50
15
EGP
10A
EGP
10B
1
EGP
10D
EGP
10G
1.25
5.0
100
75
EGP
10J
EGP
10K
1.7
EGP
10M
Unit
V
µA
ns
PF
NOTES:
1. IF = 0.5A, IR = 1.0A, IRR = 0.25A
2. Thermal resistance from junction to ambient at 0.375” (9.5mm) lead length, P.C.B. mounted
1/3
LESHAN RADIO COMPANY, LTD.

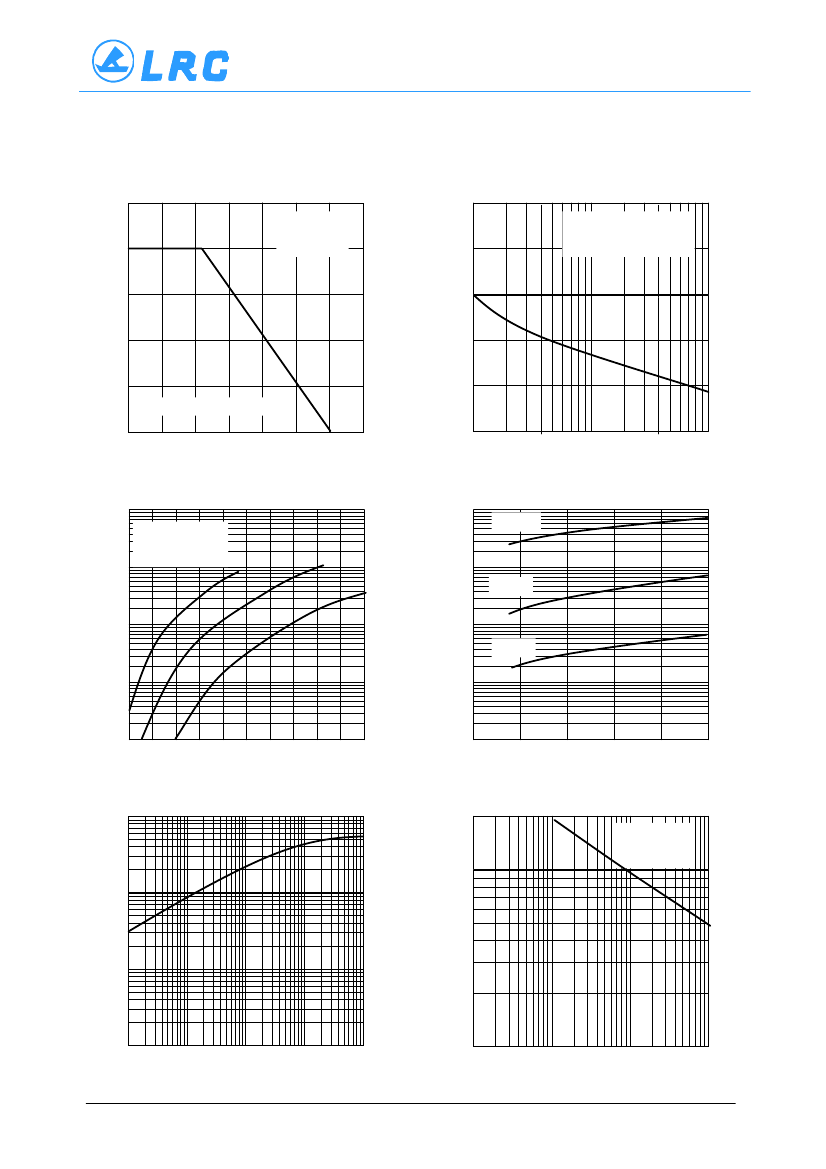

4. Characteristic Curves
( TA = 25°C unless otherwise noted )
Fig. 1
–
Forward Current Derating Curve
Average Forward Rectified Current (A)
60 Hz
Resistive or
Inductive Load
Average Forward Rectified Current (A)
50
40
30
20
10
0
Fig. 2
–
Maximum Non-repetitive Peak
Forward Surge Current
TJ = TJ max
8.3ms Single Half Sine-wave
(JEDEC Method)
1.0
0.5
0.375" (9.5mm) Lead Length
0
0
25
50 75 100 125 150 175
Ambient Temperature, °C
1
10
Number of Cycles at 60Hz
100
Instantaneous Forward Current (A)
Instantaneous Reverse Current (µA)
100
Fig 3.
–
Typical Instantaneous Forward
Characteristics
TJ = 25°C
Pulse width = 300µs
1% Duty Cycle
Fig 4.
–
Typical Reverse Characteristics
10
Tj=125℃
10
1.0
Tj=75℃
1.0
0.1
Tj=25℃
0.1
0.01
0.01
0.8
1.0
1.2
1.4
1.6
1.8
Instantaneous Forward Voltage (V)
Fig 5.
–typical
transient thermal
impedance
Junction Capacitance (pF)
0.001
0
20
40
60
80
100
Percent of Rated Peak Reverse Voltage (%)
Fig 6.
–
Typical Junction Capacitance
20
10
TJ = 25°C
f = 1.0 MHz
Vsig = 50mVp-p
Transient thermal impedance(°C/W)
100
10
1.0
0.1
0.01
0.1
1.0
10
t,Pulse duration,sec
100
1.0
0.1
1
10
Reverse Voltage (V)
100
2/3
