SB120, SB130, SB140, SB150, SB160
www.vishay.com
Vishay General Semiconductor
Schottky Barrier Plastic Rectifier
FEATURES
•
•
•
•
•
•
•
•
Guardring for overvoltage protection
Very small conduction losses
Extremely fast switching
Low forward voltage drop
High forward surge capability
High frequency operation
Solder dip 275 °C max. 10 s, per JESD 22-B106
Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
DO-204AL (DO-41)
TYPICAL APPLICATIONS
PRIMARY CHARACTERISTICS
I
F(AV)
V
RRM
I
FSM
V
F
T
J
max.
Package
Diode variations
1.0 A
20 V, 30 V, 40 V, 50 V, 60 V
50 A
0.48 V, 0.65 V
125 °C, 150 °C
DO-204AL
Single
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
MECHANICAL DATA
Case:
DO-204AL (DO-41)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals:
Matte tin plated leads, solderable
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity:
Color band denotes the cathode end
per
MAXIMUM RATINGS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
at 0.375" (9.5 mm) lead length (fig. 1)
Peak forward surge current 8.3 ms single half
sine-wave superimposed on rated load
Voltage rate of change (rated V
R
)
Operating junction temperature range
Storage temperature range
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
dV/dt
T
J
T
STG
- 65 to + 125
- 65 to + 150
SB120
20
14
20
SB130
30
21
30
SB140
40
28
40
1.0
50
10 000
- 65 to + 150
SB150
50
35
50
SB160
60
42
60
UNIT
V
V
V
A
A
V/μs
°C
°C
ELECTRICAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Maximum instantaneous
forward voltage
Maximum instantaneous reverse
current at rated DC blocking voltage
Note
(1)
Pulse test: 300 μs pulse width, 1 % duty cycle
TEST CONDITIONS
1.0 A
T
A
= 25 °C
T
A
= 100 °C
SYMBOL
V
F (1)
I
R (1)
SB120
SB130
0.48
0.50
10
5.0
SB140
SB150
0.65
SB160
UNIT
V
mA
Revision: 13-Aug-13
Document Number: 88715
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SB120, SB130, SB140, SB150, SB160
www.vishay.com
Vishay General Semiconductor
THERMAL CHARACTERISTICS
(T
A
= 25 °C unless otherwise noted)
PARAMETER
Typical thermal resistance
SYMBOL
R
JA
(1)
R
JL
(1)
SB120
SB130
SB140
50
15
SB150
SB160
UNIT
°C/W
Note
(1)
Thermal resistance junction to lead PCB mounted 0.375" (9.5 mm) lead length
ORDERING INFORMATION
(Example)
PREFERRED P/N
SB140-E3/54
SB140-E3/73
UNIT WEIGHT (g)
0.35
0.35
PREFERRED PACKAGE CODE
54
73
BASE QUANTITY
5500
3000
DELIVERY MODE
13" diameter paper tape and reel
Ammo pack packaging

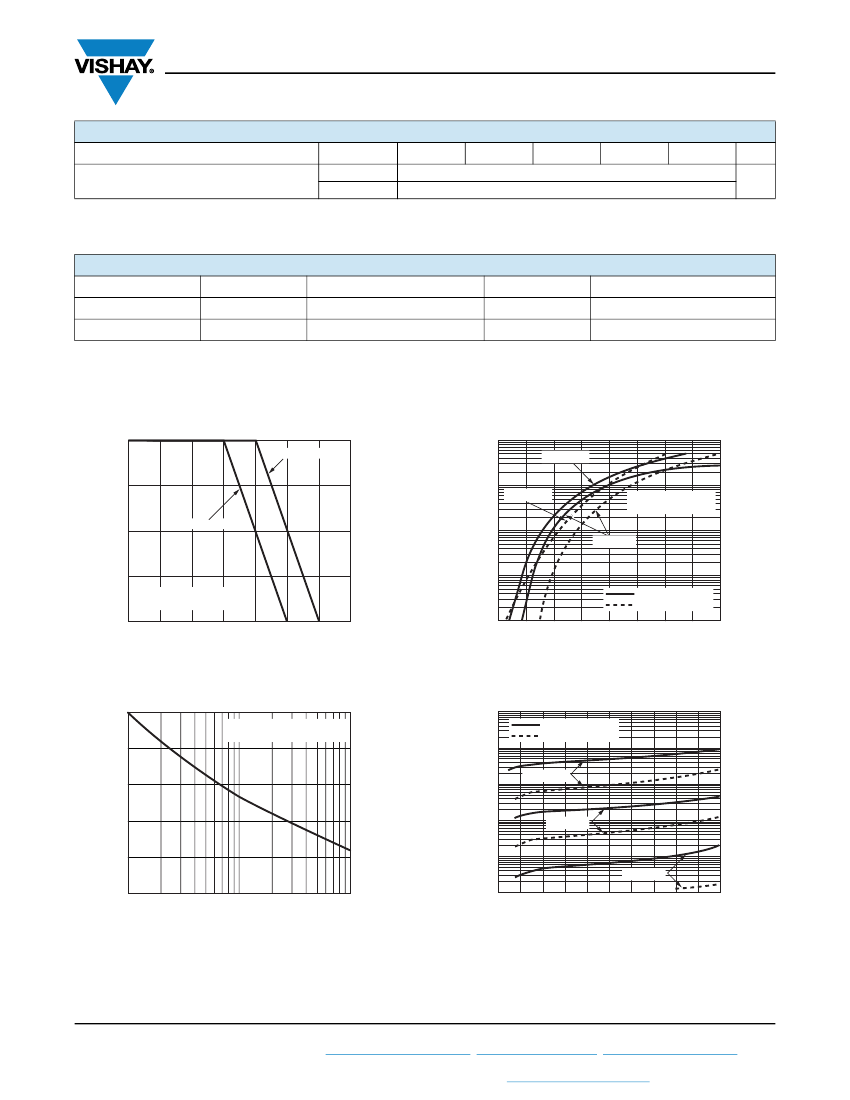

RATINGS AND CHARACTERISTICS CURVES
(T
A
= 25 °C unless otherwise noted)
1.0
100
Instantaneous Forward Current (A)
SB150
and
SB160
T
J
= 125 °C
10
T
J
= 150 °C
Pulse Width = 300 μs
1 % Duty Cycle
Average Forward Current (A)
0.75
0.5
SB120
to
SB140
1
T
J
= 25 °C
0.25
Resistive or Inductive Load
0.375" (9.5 mm) Lead Length
0
0
25
50
75
100
125
150
175
0.1
SB120
to
SB140
SB150
to
SB160
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
Lead Temperature (°C)
Instantaneous Forward Voltage (V)
Fig. 1 - Forward Current Derating Curve
Fig. 3 - Typical Instantaneous Forward Characteristics
50
100
Instantaneous Reverse Current (mA)
Peak Forward
Surge
Current (A)
T
J
= T
J
Max.
8.3 ms
Single
Half
Sine-Wave
40
SB120
to
SB140
SB150
to
SB160
10
T
J
= 125 °C
1
30
20
0.1
T
J
= 75 °C
10
0.01
T
J
= 25 °C
0.001
0
20
40
60
80
100
0
1
10
100
Number of Cycles at 60 Hz
Percent of Rated Peak Reverse Voltage (%)
Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current
Fig. 4 - Typical Reverse Characteristics
Revision: 13-Aug-13
Document Number: 88715
2
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SB120, SB130, SB140, SB150, SB160
