Spec Sheet
Soft Termination MLCC for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications
EMJ212CB7475MGHT
Features
Item Summary
4.7uF±20%, 16V,
X7R, 0805/2012 (EIA/JIS)
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping Embossed 2000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
4.7 uF ± 20 %
0805/2012
16 V
10 %
X7R
-55 to +125 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
2.0 +0.25/-0.00 mm
1.25 +0.25/-0.00 mm
1.25 +0.25/-0.00 mm
0.50 +0.35/-0.25 mm
2018.11.02
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

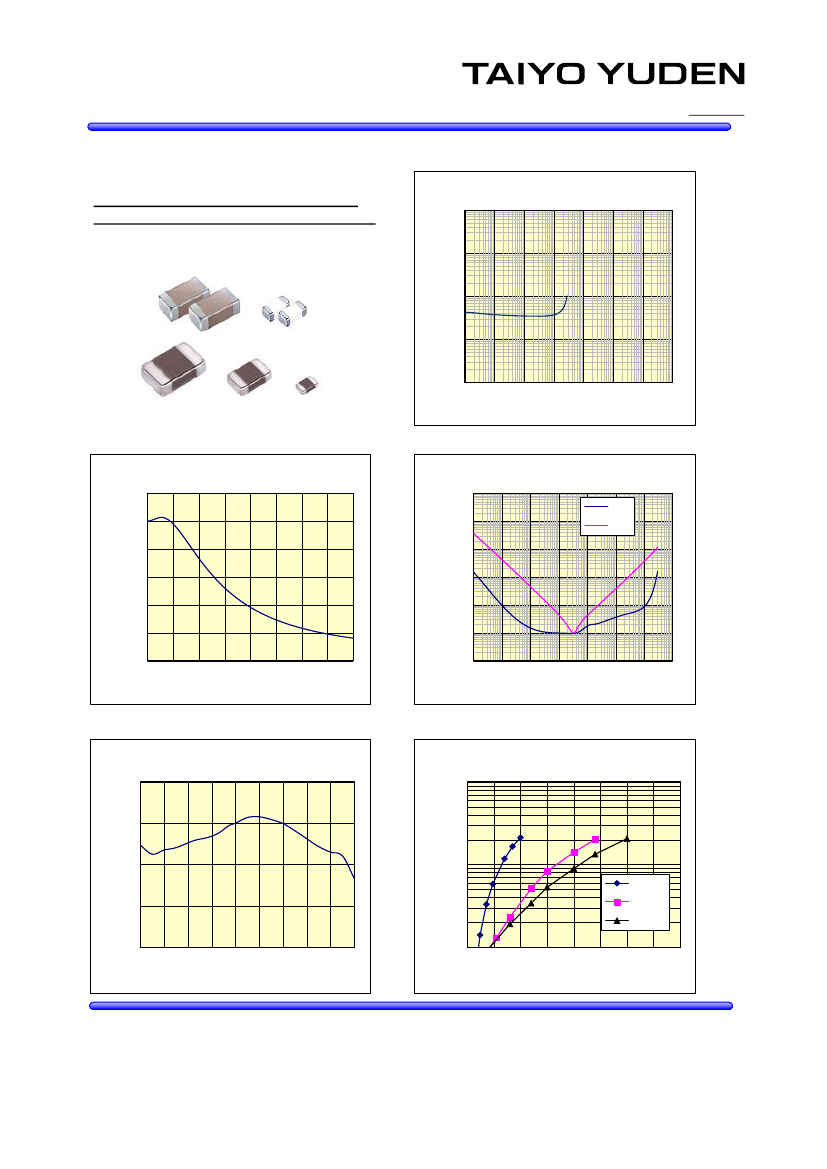

Multi Layer Ceramic Capacitor
○EMJ212CB7475MGHT
16V 2012 X7R 4.7uF +/- 20% t=1.5mmMAX
16V 0805 X7R 4.7uF +/- 20% t=0.059inchMAX
1000
-Electrical Characteristics Data-
17R2A07
RoHS compliance product
EMJ212CB7475MGHT
Capacitance Freq.
Capacitance[uF]
100
10
1
0.1
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
EMJ212CB7475MGHT
DC Bias Char.
20
0
1000
100
EMJ212CB7475MGHT
Impedance,ESR Freq.
ESR
Z
-40
-60
-80
-100
Z,ESR[OHM]
0
2
4
6
8 10 12
DC Bias Voltage[V]
14
16
EMJ212CB7475MGHT
Capacitance Temp.
-20
10
1
0.1
0.01
0.001
0.001 0.01 0.1
1
10 100 1000 10000
Frequency[MHz]
dC/C[%]
EMJ212CB7475MGHT
Ripple Current
100
10
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
1
0
0.5
1
1.5 2 2.5 3
Ripple Current[Arms]
3.5
4
