DIM800ECM33-F000_15: DescriptionIGBT Chopper Module; File Size325KB，8 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet View All

DIM800ECM33-F000_15 Overview

IGBT Chopper Module

Preview

Download Datasheet

View All

DIM800ECM33-F000

IGBT Chopper Module

Replaces DS5815-1.2

DS5815-3 September 2012 (LN29759)

FEATURES



10µs Short Circuit Withstand

High Thermal Cycling Capability

Soft Punch Through Silicon

Isolated AlSiC Base with AlN Substrates

Lead Free Construction

KEY PARAMETERS

CES

CE(sat)

* (typ)

(max)

C(PK)

(max)

3300V

2.8V

800A

1600A

* Measured at the auxiliary terminals

APPLICATIONS



9(C)

3(C)

2(G)

7(C)

5(A)

Motor Controllers

Power Supplies

Choppers

The Powerline range of high power modules includes

half bridge, chopper, dual, single and bi-directional

switch configurations covering voltages from 1200V to

6500V and currents up to 2400A.

The DIM800ECM33-F000 is a 3300V, soft punch

through n-channel enhancement mode, insulated gate

bipolar transistor (IGBT) chopper module. The IGBT

has a wide reverse bias safe operating area (RBSOA)

plus 10μs short circuit withstand. This device is

optimised for traction drives and other applications

requiring high thermal cycling capability.

The module incorporates an electrically isolated base

plate and low inductance construction enabling circuit

designers to optimise circuit layouts and utilise

grounded heat sinks for safety

1(E)

8(E)

6(E)

4(K)

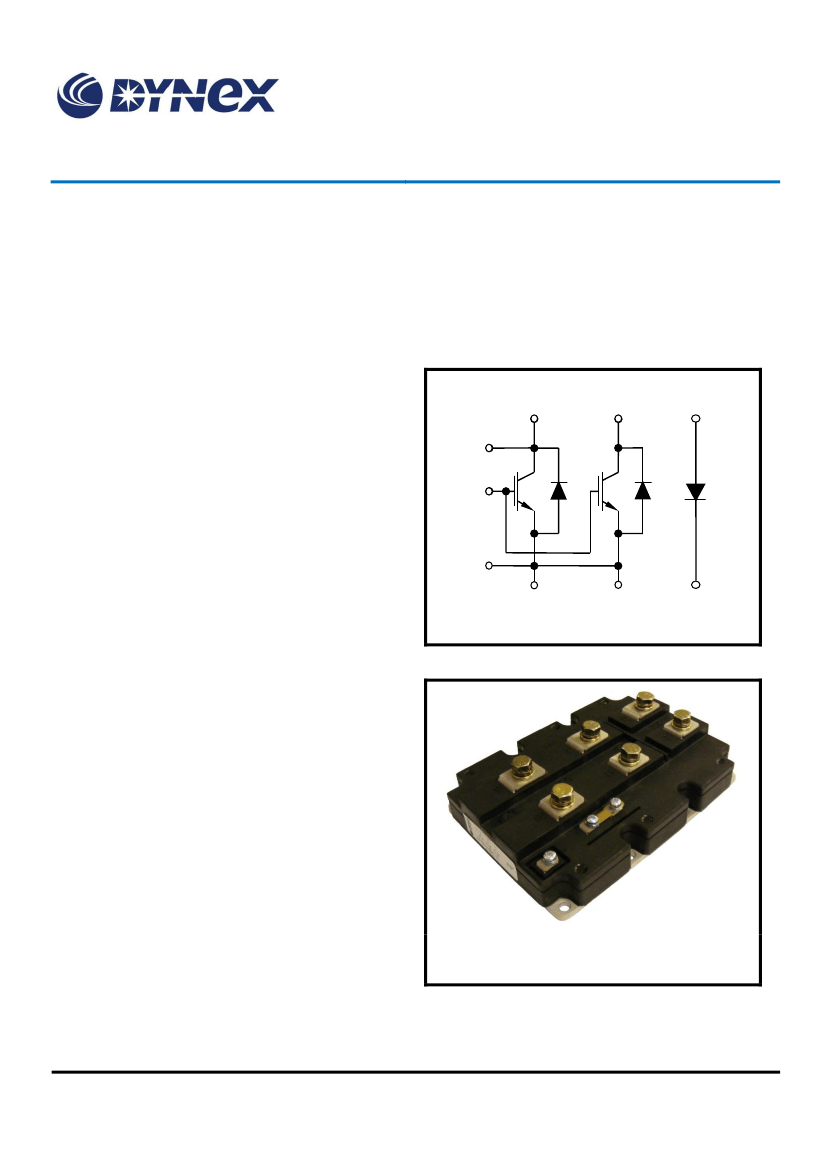

Fig. 1 Circuit configuration

ORDERING INFORMATION

Order As:

DIM800ECM33-F000

Note: When ordering, please use the complete part

number

Outline type code: E

(See Fig. 11 for further information)

Fig. 2 Package

Caution:

This device is sensitive to electrostatic discharge. Users should follow ESD handling procedures

www.dynexsemi.com
