A-BRIGHT
TOP View LEDs
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT CHIP LED LAMPS
Part Number: 67-21UWC
Package outlines & Re-flow Profile
Reflow Temp/Time
Soldering iron
Basic spec is 5sec when 260℃. If temperature is higher,
time should be shorter (+10℃ -1sec ).Power dissipation
of iron should be smaller than 15W, and temperatures
should be controllable .Surface temperature of the device
should be under 230℃ .
ITEM
Resin (mold)
Lens color
Printed circuit board
For reflow soldering (Propose)
Material
Emitted color
MATERIALS
Epoxy
Yellow Diffused
BT
InGaN
White
NOTES:
1. All dimensions are in millimeters (inches);
2. Tolerances are
±0.1mm
(0.004inch) unless otherwise
noted.
3. Polarity referring onto the cathode mark is reversed on the
red.
2009/2/20
A-BRIGHT
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT CHIP LED LAMPS
Part Number: 67-21UWC
ELECTRO-OPTICAL CHARACTERISTICS (SDR)
Parameter
Viewing angle at 50% I
V
Forward voltage
Luminous intensity
Chromaticity
(T
A
=25℃)
Value
MIN. TYP.
MAX.
Test
Condition Symbol
I
F
=10mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
2θ1/2
V
F
I
V
X
Y
Unit
Deg
V
mcd
−
120
−
−
−
−
3.2 3.5
290
−
0.31
−
0.32
−
100
Peak pulsing current (1/10 duty f=1kHz)
I
FP
mA
Absolute maximum ratings (SDR)
Parameter
Forward current
Reverse voltage
Reverse current
Electrostatic Discharge
Power Dissipation
Operating temperature range
Storage temperature range
(T
A
=25℃)
Symbol
I
F
V
R
I
R
ESD
P
D
Top
Tstg
Value
25
5
50
150
110
-40 ~+85
-40 ~+100
Unit
mA
V
μA
V
mW
℃
℃
2009/2/20
A-BRIGHT
Part Number: 67-21UWC
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT CHIP LED LAMPS
Test items and results of reliability
NO
1
Item
Solder Heat
Test Conditions
TEMP：260±5℃
H：+100
℃
30min
∫
5min
L：-40
℃
30min
H：+100
℃
5min
∫
10set
L：-10
℃
5min
TEMP：100℃
Test
Sample Size Ac/Re
Hours/Cycle
6 min.
22 PCS
0/1
2
Temperature Cycle
300 CYCLES
22 PCS
0/1
3
Thermal Shock
300 CYCLES
22 PCS
0/1
4
High Temperature
Storage
1000 HRS
22 PCS
0/1
5
Low Temperature Storage
TEMP：-40℃
1000 HRS
22 PCS
0/1
6
DC Operating Life
I
F
=20mA
1000 HRS
22 PCS
0/1
7
High Temperature /
High Humidity
85
℃
/ 85%RH
1000 HRS
22 PCS
0/1
＊
Refer to reliability test standard specification for in this line.
2009/2/20
A-BRIGHT
Part Number: 67-21UWC

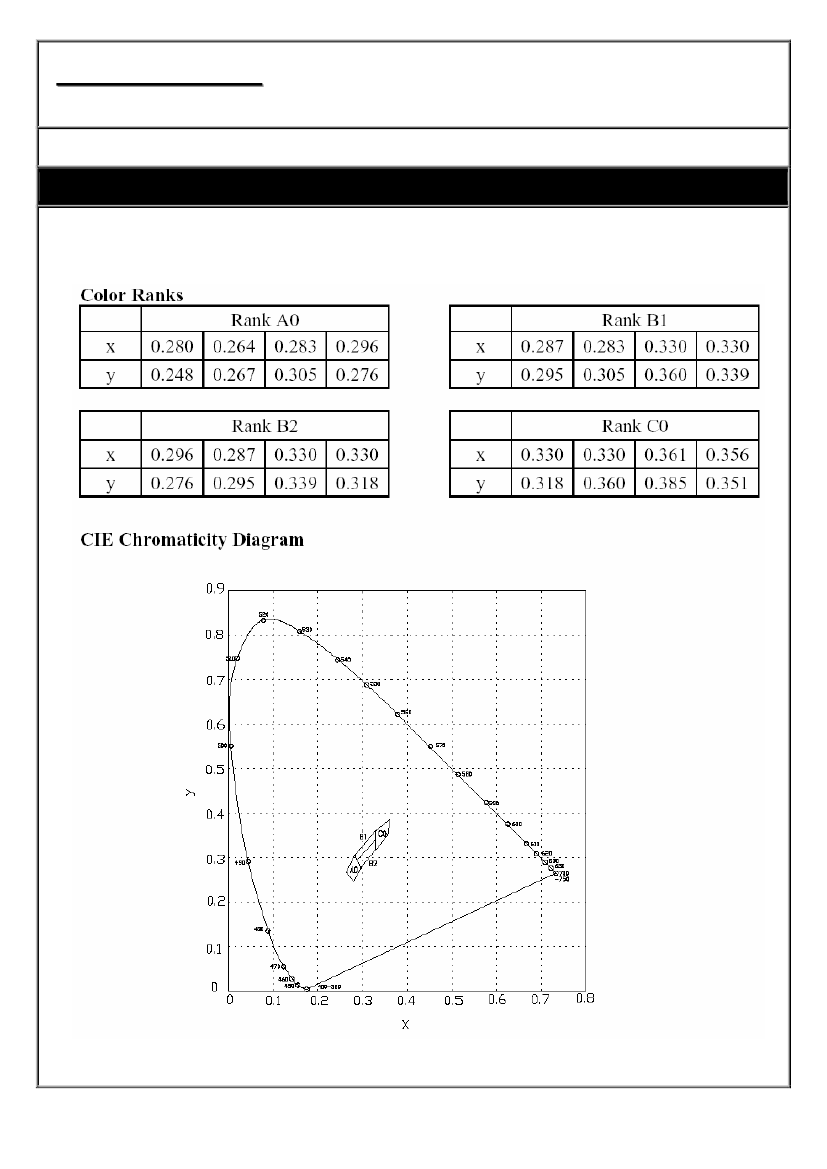

Color Ranks
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT CHIP LED LAMPS
2009/2/20
A-BRIGHT
Part Number: 67-21UWC
A-BRIGHT INDUSTRIAL CO., LTD.
SURFACE MOUNT CHIP LED LAMPS

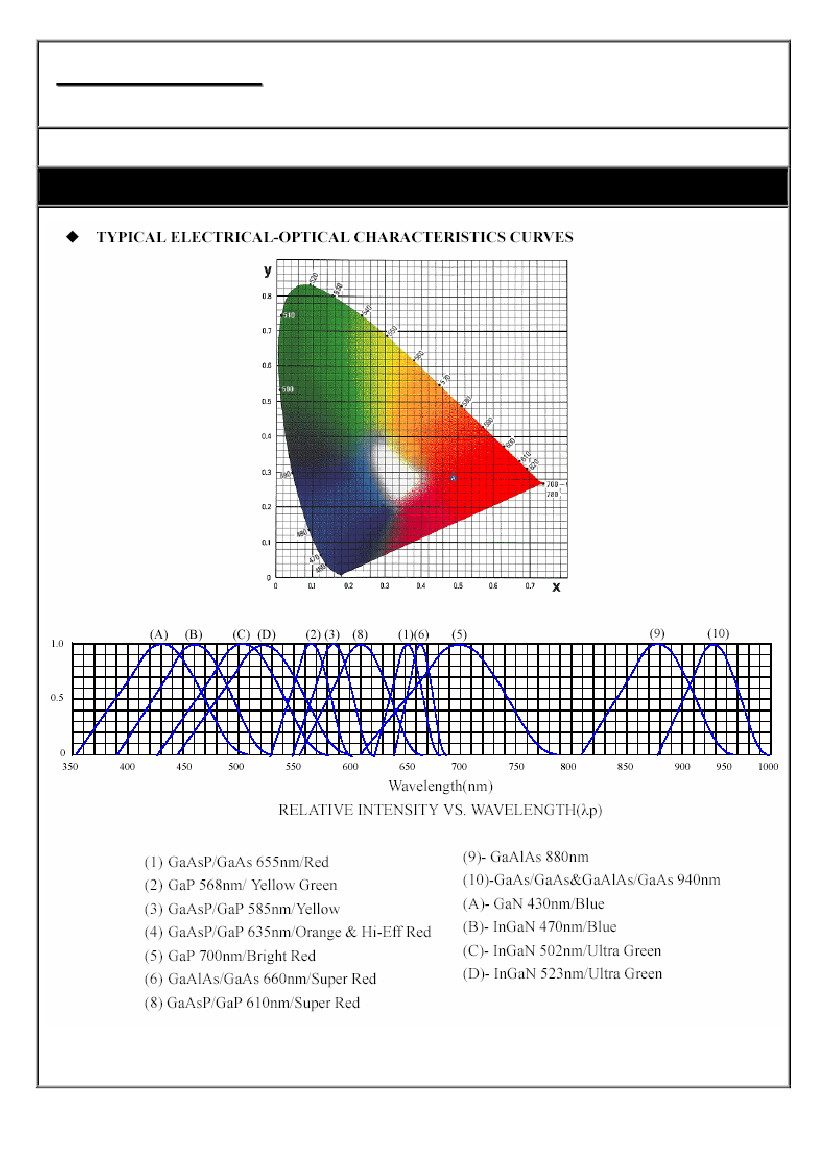

Typical Electro-Optical Characteristics
2009/2/20
