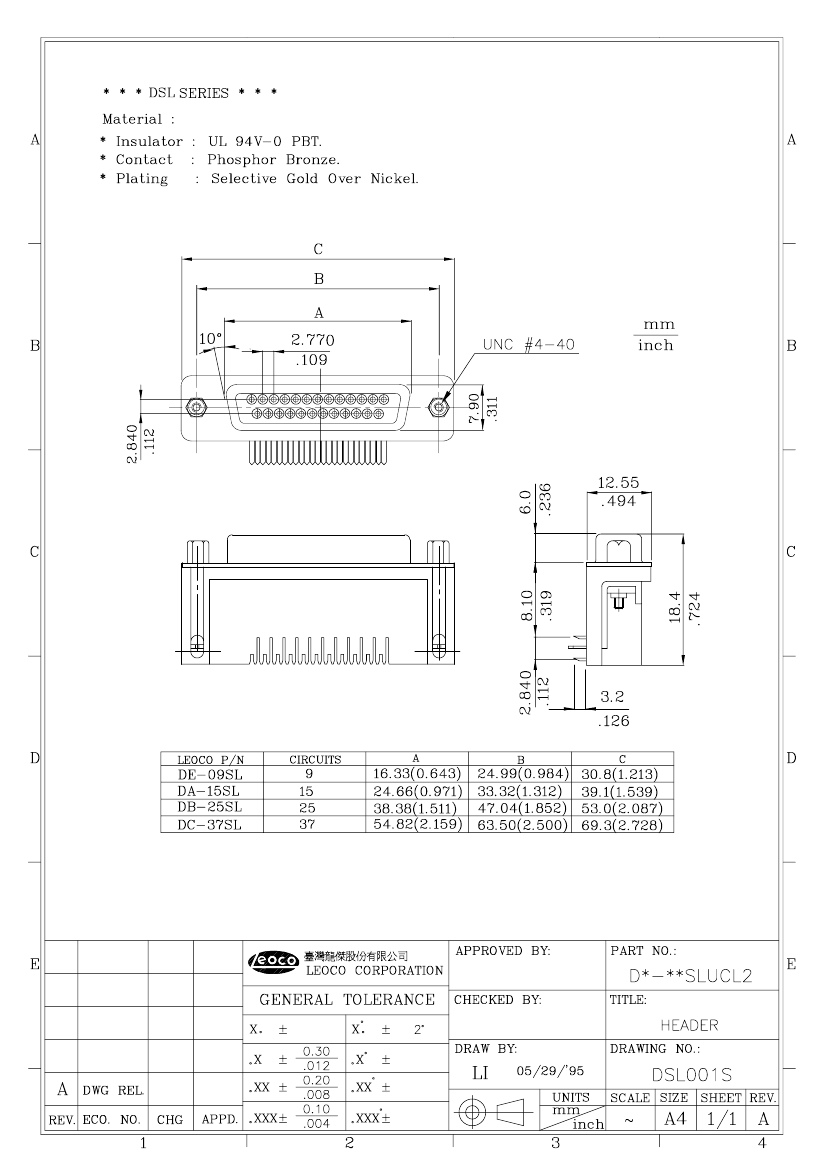

D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| body width | 0.494 inch |
| subject depth | 0.488 inch |
| body length | 2.087 inch |
| Body/casing type | PLUG |
| Contact to complete cooperation | AU ON NI |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | STAGGERED |
| Contact resistance | 20 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V |
| Insulation resistance | 5000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | DSL |
| Plug contact pitch | 0.109 inch |
| Match contact row spacing | 0.112 inch |
| Installation option 1 | #4-40 |
| Installation option 2 | SCREWLOCKS |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -25 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Plating thickness | FLASH inch |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Shell surface | TIN |
| Shell material | STEEL |
| Terminal length | 0.126 inch |
| Terminal pitch | 2.7686 mm |
| Termination type | SOLDER |
| Total number of contacts | 25 |
| DB-25SLUCL2 | DA-15SLUCL2 | |
|---|---|---|
| Description | D Type Connector, 25 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug | D Type Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug |
| Reach Compliance Code | unknown | unknown |
| body width | 0.494 inch | 0.494 inch |
| subject depth | 0.488 inch | 0.488 inch |
| body length | 2.087 inch | 1.539 inch |
| Body/casing type | PLUG | PLUG |
| Contact to complete cooperation | AU ON NI | AU ON NI |
| Contact point gender | FEMALE | FEMALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | STAGGERED | STAGGERED |
| Contact resistance | 20 mΩ | 20 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | 1000VAC V | 1000VAC V |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω |
| Insulator color | BLACK | BLACK |
| insulator material | POLYBUTYLENE TEREPHTHALATE | POLYBUTYLENE TEREPHTHALATE |
| Manufacturer's serial number | DSL | DSL |
| Plug contact pitch | 0.109 inch | 0.109 inch |
| Match contact row spacing | 0.112 inch | 0.112 inch |
| Installation option 1 | #4-40 | #4-40 |
| Installation option 2 | SCREWLOCKS | SCREWLOCKS |
| Installation method | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD |
| PCB row number | 2 | 2 |
| Number of rows loaded | 2 | 2 |
| Maximum operating temperature | 105 °C | 105 °C |
| Minimum operating temperature | -25 °C | -25 °C |
| PCB contact pattern | STAGGERED | STAGGERED |
| PCB contact row spacing | 2.8448 mm | 2.8448 mm |
| Plating thickness | FLASH inch | FLASH inch |
| Rated current (signal) | 3 A | 3 A |
| Guideline | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL |
| Shell surface | TIN | TIN |
| Shell material | STEEL | STEEL |
| Terminal length | 0.126 inch | 0.126 inch |
| Terminal pitch | 2.7686 mm | 2.7686 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 25 | 15 |
