WRIMD-184-A3A-2BLP datasheet, PDF

WRIMD-184-A3A-2BLP: DescriptionCard Edge Connector, 184 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle; CategoryThe connector The connector; File Size531KB，3 Pages; ManufacturerWin Win Precision Industrial Co., Ltd.

Download Datasheet Parametric View All

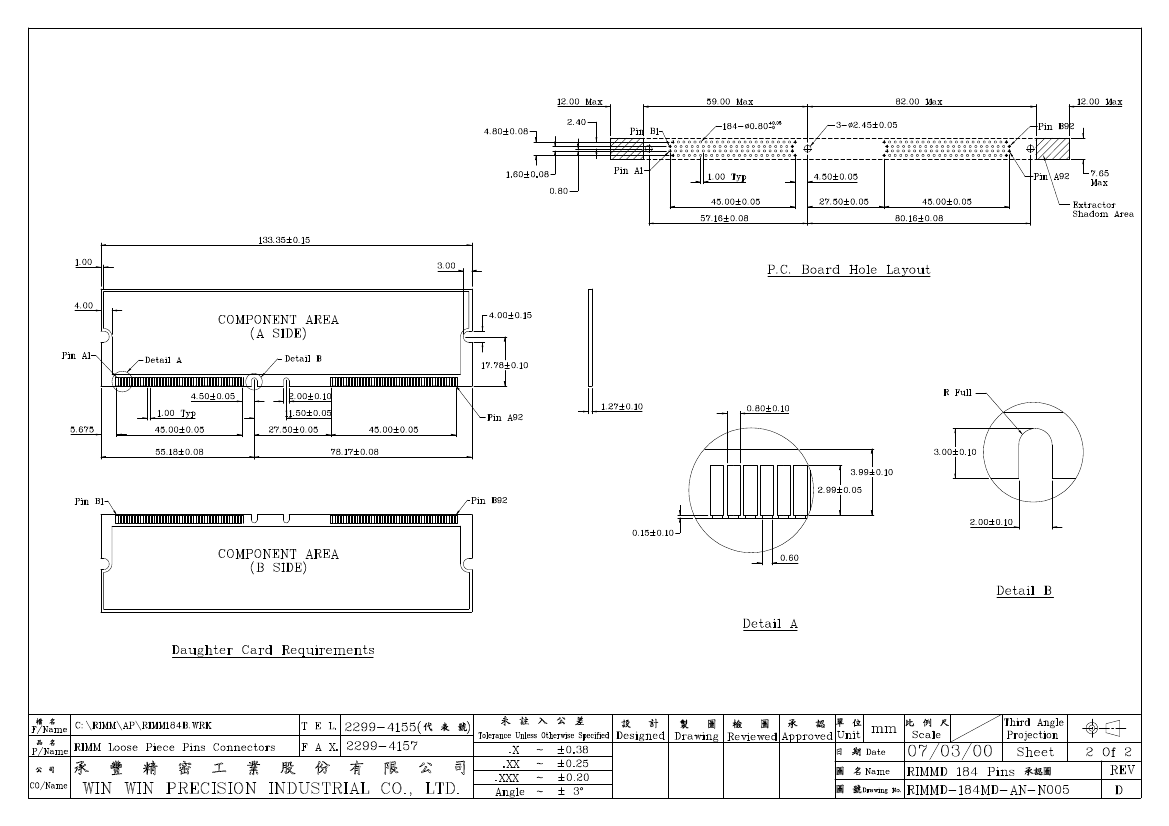

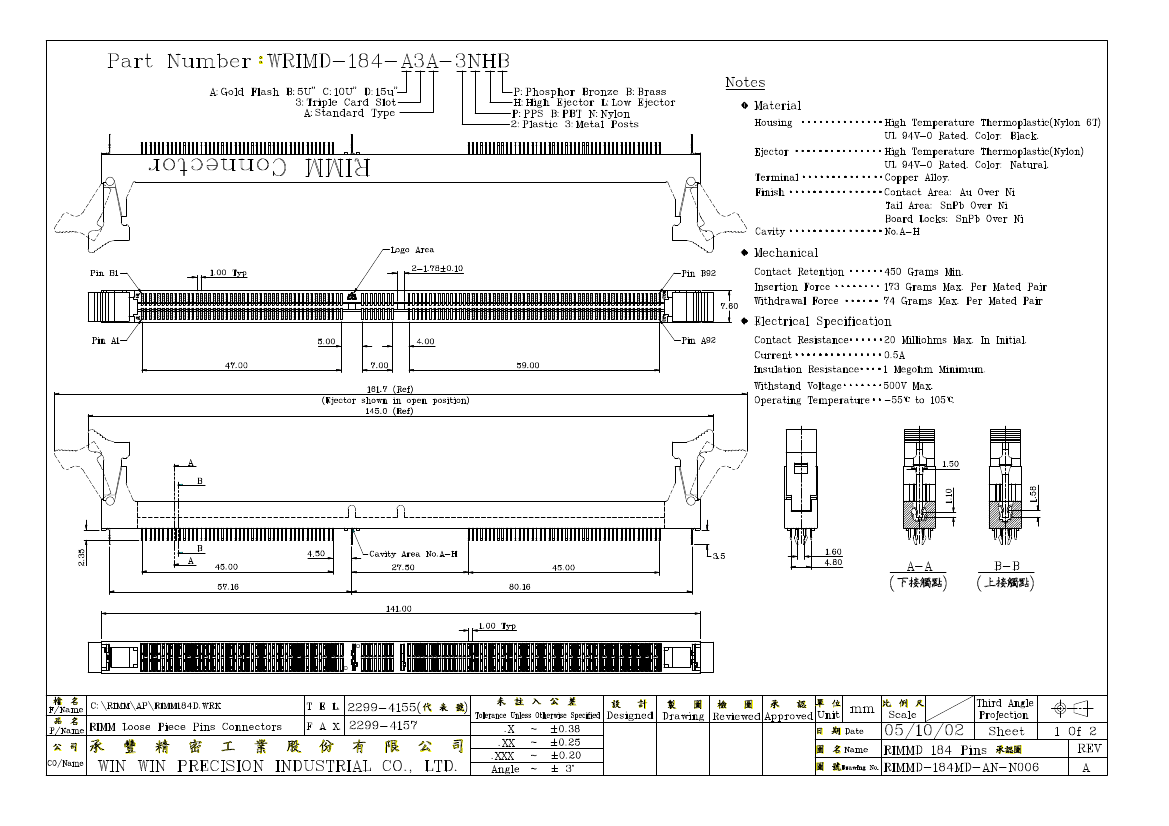

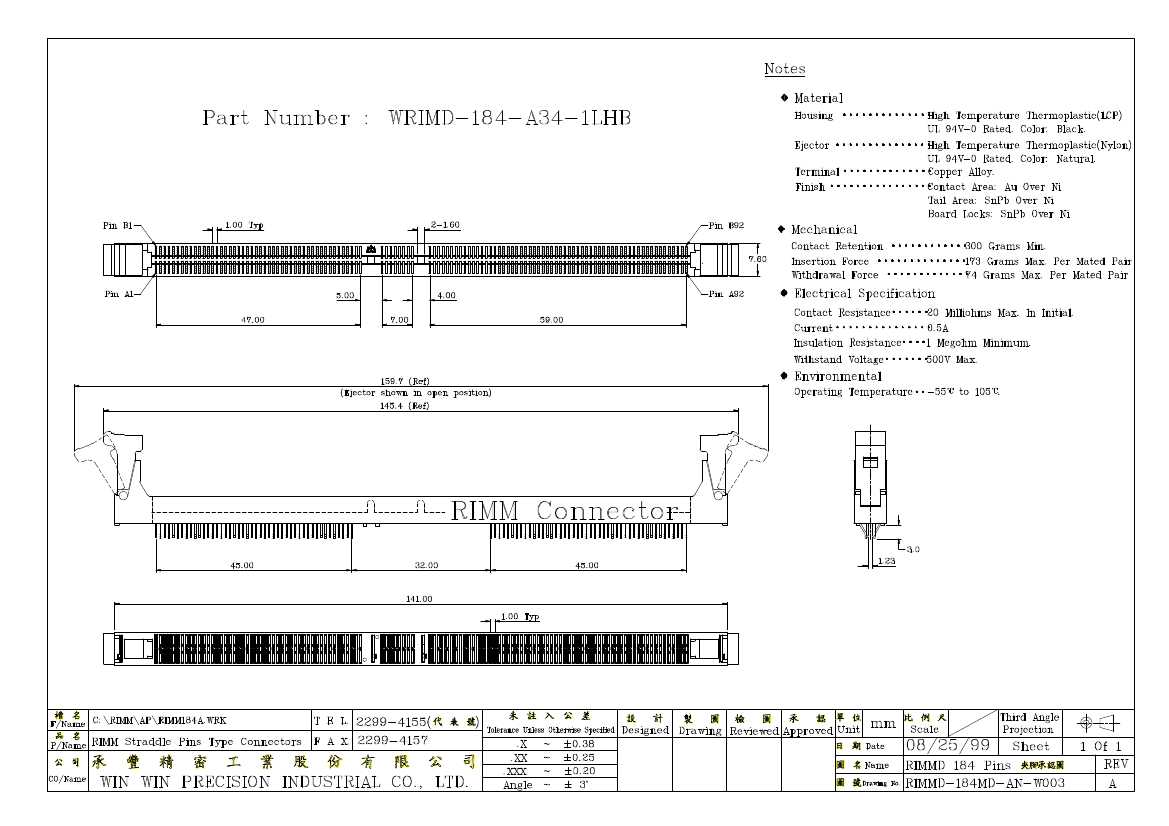

WRIMD-184-A3A-2BLP Overview

Card Edge Connector, 184 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Black Insulator, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOW EJECTOR
Board mount options	SPLIT BOARD LOCK
body width	0.299 inch
body length	5.551 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
maximum insertion force	.8618 N
Insulation resistance	1000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	WRIMD
Plug contact pitch	0.039 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	MIXED
PCB contact row spacing	0.063 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.093 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	184
Evacuation force-minimum value	.3614 N
