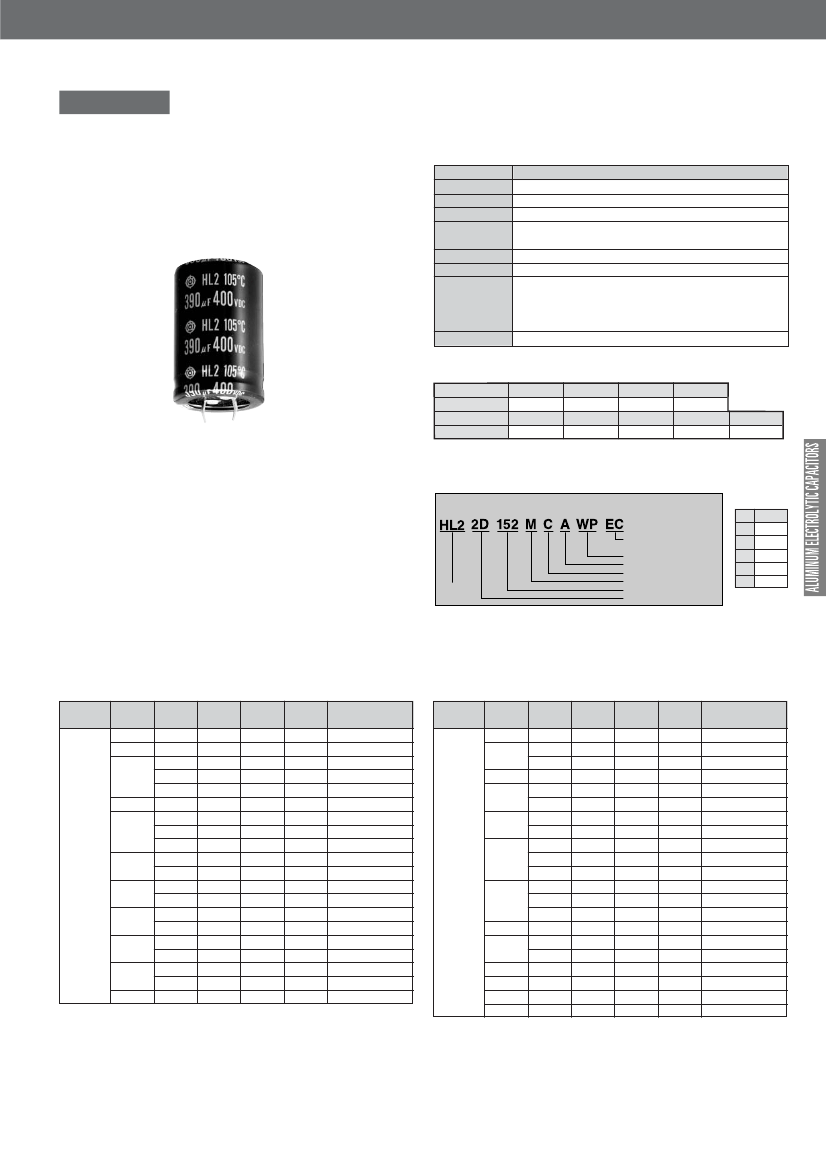

SNAP MOUNT TYPE ALUMINUM ELECTROLYTIC CAPACITORS
HL2 Series
• Conform RoHS
Useful of 8,000 hours at 105°C (Warranty of 5,000 hours at 105°C)
Features
• The size is reduced by around 10%, and higher ripple current is
gained by around 10%, of conventional HL1 series through
development of electrolyte liquid and etched foil technology.
Product Specifications
Items
Specifications
Temperature range –40°C ~ +105°C
Rated voltage 200 ~ 450V.DC
Capacitance tolerance ±20% (20°C,120Hz)
0.02CV (µA) or 3mA, whichever is smaller or less
Leakage current
[C = nominal capacitance (µF), V = rated voltage (V)]
Dissipation factor Less than the value specified in the standard products table. (20˚C,120Hz)
Permissible ripple current As specified in the standard products table. (105˚C,120Hz)
High temp.
Load life test
Others
After 105°C, 5000h, rated voltage with specified ripple current application
Capacitance variation : Initial value ±15%
Dissipation factor : 175% of less of specified initial value
Leakage current : Not greater than the specified initial value
JIS C 5101-4.
Ripple current correction coefficient
Temperature (°C)
Correction coefficient
Frequency (Hz)
Correction coefficient
60
2.2
50/60
0.7
70
2.0
120
1.0
85
1.8
300
1.1
105
1.0
1k
1.3
≧10K
1.4
A continuous load should be avoided over 10 A at the
terminal in accordance with the permissible current.
HL2 2D 152 M C A WP EC
Type of
series
Product code : (Example) HL2 Series 200V 1500µF
±20%
Lead-Free and
PVC-Free(standard)
Without plate(standard)
Case dia code
Terminal code
Capacitance tolerance code
Capacitance code
Rated voltage code
Case dia code
øD Code
20
W
22
X
25
Y
30
Z
35
A
Refer to page (85) for other terminal shape available on request
Standard Products Table
Rated Voltage
Code
(Surge Voltage)
(V. DC)
200
2D
(250)
Ripple current ESR(typ.)
Capacitance Case size
tanδ
(Arms) 20°C,100Hz
(µF) øDXL(mm) 20°C,120Hz
105°C,120Hz (mΩ)
413
220
20×25
0.15
0.88
336
270
20×30
0.15
1.05
275
20×35
0.15
1.23
275
330
22×30
0.15
1.19
275
25×25
0.15
1.14
233
390
25×30
0.15
1.32
194
22×40
0.15
1.58
194
470
25×30
0.15
1.45
194
30×25
0.15
1.42
162
22×45
0.15
1.81
560
162
25×35
0.15
1.67
134
25×40
0.15
1.93
680
134
30×30
0.15
1.81
111
25×45
0.15
2.22
820
111
30×35
0.15
2.10
91
30×40
0.15
2.43
1000
91
35×30
0.15
2.05
76
30×45
0.15
2.78
1200
76
35×35
0.15
2.36
61
1500
35×40
0.15
2.76
Product name
HL22D221MCWWPEC
HL22D271MCWWPEC
HL22D331MCWWPEC
HL22D331MCXWPEC
HL22D331MCYWPEC
HL22D391MCYWPEC
HL22D471MCXWPEC
HL22D471MCYWPEC
HL22D471MCZWPEC
HL22D561MCXWPEC
HL22D561MCYWPEC
HL22D681MCYWPEC
HL22D681MCZWPEC
HL22D821MCYWPEC
HL22D821MCZWPEC
HL22D102MCZWPEC
HL22D102MCAWPEC
HL22D122MCZWPEC
HL22D122MCAWPEC
HL22D152MCAWPEC
Rated Voltage
Code
(Surge Voltage)
(V. DC)
250
2E
(300)
Ripple current ESR(typ.)
Capacitance Case size
tanδ
(Arms) 20°C,100Hz
(µF) øDXL(mm) 20°C,120Hz
105°C,120Hz (mΩ)
605
150
20×25
0.15
0.73
504
20×30
0.15
0.85
180
504
22×25
0.15
0.82
413
220
20×30
0.15
0.94
336
20×35
0.15
1.11
270
336
25×25
0.15
1.03
275
22×35
0.15
1.26
330
275
25×30
0.15
1.21
233
22×40
0.15
1.44
233
390
25×35
0.15
1.39
233
30×25
0.15
1.30
194
22×50
0.15
1.73
194
470
25×40
0.15
1.61
194
30×30
0.15
1.51
162
560
25×45
0.15
1.84
134
25×50
0.15
2.11
680
134
30×35
0.15
1.91
111
820
30×40
0.15
2.20
91
1000
30×50
0.15
2.64
76
1200
35×45
0.15
2.57
61
1500
35×50
0.15
2.99
Product name
HL22E151MCWWPEC
HL22E181MCWWPEC
HL22E181MCXWPEC
HL22E221MCWWPEC
HL22E271MCWWPEC
HL22E271MCYWPEC
HL22E331MCXWPEC
HL22E331MCYWPEC
HL22E391MCXWPEC
HL22E391MCYWPEC
HL22E391MCZWPEC
HL22E471MCXWPEC
HL22E471MCYWPEC
HL22E471MCZWPEC
HL22E561MCYWPEC
HL22E681MCYWPEC
HL22E681MCZWPEC
HL22E821MCZWPEC
HL22E102MCZWPEC
HL22E122MCAWPEC
HL22E152MCAWPEC
101
Hitachi AIC Inc.
SNAP MOUNT TYPE ALUMINUM ELECTROLYTIC CAPACITORS
Rated Voltage
Code
(Surge Voltage)
(V. DC)
400
2G
(450)
Ripple current ESR(typ.)
Capacitance Case size
tanδ
(Arms) 20°C,100Hz
(µF) øDXL(mm) 20°C,120Hz
105°C,120Hz (mΩ)
1300
68
20×25
0.15
0.51
1126
20×30
0.15
0.60
82
1126
22×25
0.15
0.58
924
20×35
0.15
0.70
924
100
22×30
0.15
0.68
924
25×25
0.15
0.65
770
20×35
0.15
0.77
770
120
22×35
0.15
0.79
770
25×30
0.15
0.76
615
22×40
0.15
0.93
615
150
25×30
0.15
0.85
615
30×25
0.15
0.80
513
22×45
0.15
1.07
513
180
25×35
0.15
0.99
513
30×30
0.15
0.93
450
22×50
0.15
1.23
450
220
25×40
0.15
1.15
450
30×30
0.15
1.03
366
25×45
0.15
1.33
366
270
30×35
0.15
1.21
366
35×30
0.15
1.21
299
30×40
0.15
1.40
330
299
35×35
0.15
1.40
253
30×45
0.15
1.59
390
253
35×35
0.15
1.52
210
470
35×40
0.15
1.75
176
560
35×45
0.15
1.99
Product name
HL22G680MCWWPEC
HL22G820MCWWPEC
HL22G820MCXWPEC
HL22G101MCWWPEC
HL22G101MCXWPEC
HL22G101MCYWPEC
HL22G121MCWWPEC
HL22G121MCXWPEC
HL22G121MCYWPEC
HL22G151MCXWPEC
HL22G151MCYWPEC
HL22G151MCZWPEC
HL22G181MCXWPEC
HL22G181MCYWPEC
HL22G181MCZWPEC
HL22G221MCXWPEC
HL22G221MCYWPEC
HL22G221MCZWPEC
HL22G271MCYWPEC
HL22G271MCZWPEC
HL22G271MCAWPEC
HL22G331MCZWPEC
HL22G331MCAWPEC
HL22G391MCZWPEC
HL22G391MCAWPEC
HL22G471MCAWPEC
HL22G561MCAWPEC
Rated Voltage
Code
(Surge Voltage)
(V. DC)
450
2W
(500)
Ripple current ESR(typ.)
Capacitance Case size
tanδ
(Arms) 20°C,100Hz
(µF) øDXL(mm) 20°C,120Hz
105°C,120Hz (mΩ)
1880
47
20×25
0.15
0.42
1577
20×30
0.15
0.50
56
1577
22×25
0.15
0.48
1499
20×30
0.15
0.55
1499
68
22×30
0.15
0.56
1499
25×25
0.15
0.54
1242
82
20×35
0.15
0.64
1019
22×35
0.15
0.72
100
1019
25×30
0.15
0.69
850
22×40
0.15
0.83
850
120
25×35
0.15
0.80
850
30×25
0.15
0.72
679
22×50
0.15
1.02
679
150
25×40
0.15
0.95
679
30×30
0.15
0.85
566
25×45
0.15
1.08
180
566
30×35
0.15
0.98
463
30×40
0.15
1.14
220
463
35×30
0.15
1.09
377
30×45
0.15
1.32
270
377
35×35
0.15
1.27
309
30×50
0.15
1.52
330
309
35×40
0.15
1.47
261
390
35×45
0.15
1.66
Product name
HL22W470MCWWPEC
HL22W560MCWWPEC
HL22W560MCXWPEC
HL22W680MCWWPEC
HL22W680MCXWPEC
HL22W680MCYWPEC
HL22W820MCWWPEC
HL22W101MCXWPEC
HL22W101MCYWPEC
HL22W121MCXWPEC
HL22W121MCYWPEC
HL22W121MCZWPEC
HL22W151MCXWPEC
HL22W151MCYWPEC
HL22W151MCZWPEC
HL22W181MCYWPEC
HL22W181MCZWPEC
HL22W221MCZWPEC
HL22W221MCAWPEC
HL22W271MCZWPEC
HL22W271MCAWPEC
HL22W331MCZWPEC
HL22W331MCAWPEC
HL22W391MCAWPEC
Life time graph
Useful life depending on ambient temperature Ta and ripple current operating conditions Ir versus rated ripple current at 105℃,120Hz
1,000,000
Series
HL2
100,000
Useful life (h)
Ta=60℃
Ta=70℃
Ta=70
Ta=85℃
10,000
Ta=105℃
Ta=105
1,000
0
0.5
1
1.5
2
2.5
Ripple Current of Diminishing Ratio(I/Ir,105
Ratio(I/Ir,105℃)
3
Hitachi AIC Inc.
102
