Product Bulletin OPB380
August 1996

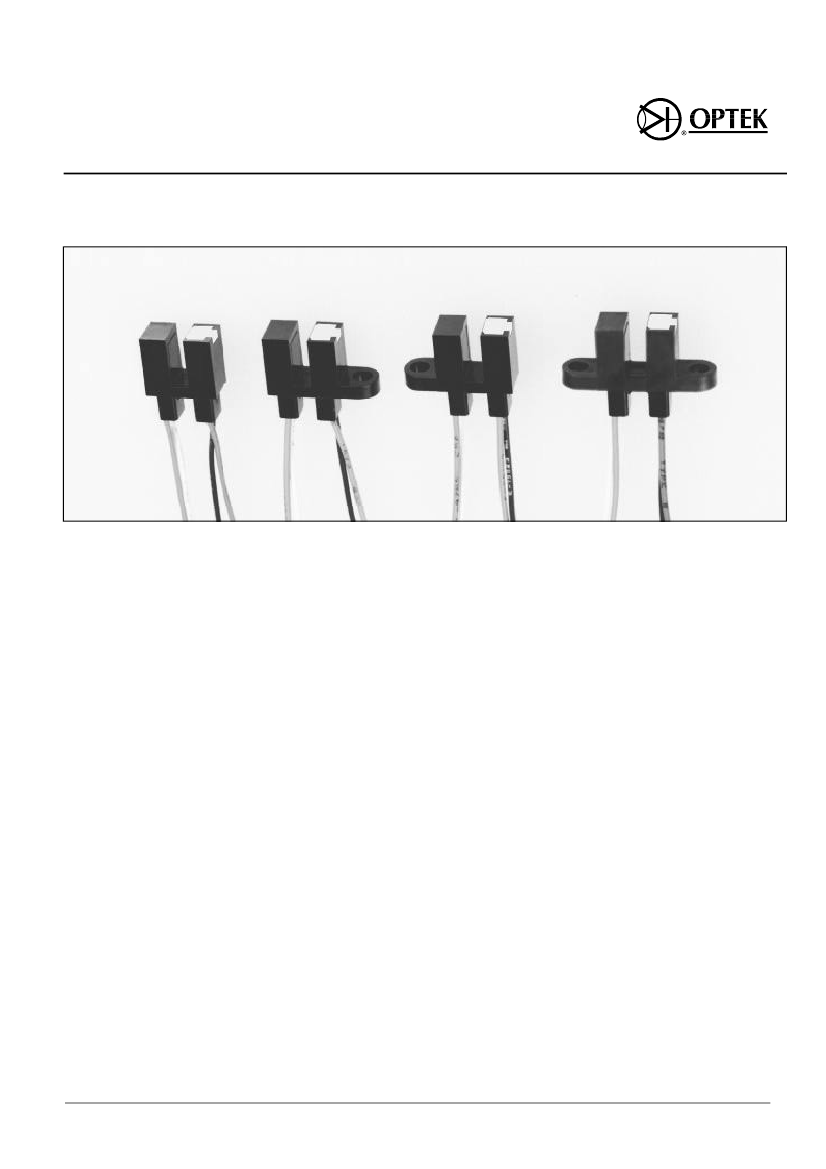

Slotted Optical Switches
Types OPB380, OPB390 Series
Features
•
0.125" (3.18 mm) wide gap
•
24" minimum, 26 AWG wire leads
•
Choice of aperture
•
Choice of opaque or IR transmissive
shell material
•
Choice of mounting configuration
•
Choice of lead spacing
Absolute Maximum Ratings
(T
A
= 25
o
C unless otherwise noted)
Storage and Operating Temperature Range . . . . . . . . . . . . . . . . . -40
o
C to +80
o
C
(1)
Input Diode
Forward DC Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Peak Forward Current (1
µs
pulse width, 300 pps) . . . . . . . . . . . . . . . . . . . . . . . 3.0 A
Reverse DC Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0 V
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mW
(1)
Output Phototransistor
Collector-Emitter Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 V
Emitter-Collector Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0 V
Collector DC Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 mW
(1)
Notes:
Description
The OPB380/390 series of slotted
switches provides the design engineer
with the flexibility of a custom device
from a standard product line. Building
from a standard housing with a 0.125"
(3.18 mm) wide slot, the user can specify
(1) electrical output parameters, (2)
mounting tab configuration, (3) discrete
shell material, and (4) aperture width.
All housings are an opaque grade of
injection-molded plastic to minimize the
assembly's sensitivity to ambient
radiation, both visible and near-infrared.
Discrete shells (exposed only on the
parallel faces inside the device throat)
are either IR transmissive plastic for
applications where aperture
contamination may occur or opaque
plastic with aperture openings for
maximum protection against ambient
light.
(1) Derate linearly 1.82 mW/
o
C above 25
o
C (Maximum storage and operating temperature is
limited by the temperature rating of the lead wires)
(2) All parameters tested using pulse technique.
(3) The OPB380/OPB390 wire terminations are 24" of 7 strand, 26 AWG, UL 1429 insulated wire
on each terminal. The devices incorporate a wire strain relief at the housing surface. The
insulation colors and functions are:
RED - IRED Anode
BLACK - IRED Cathode
WHITE - Phototransistor Collector
GREEN - Phototransistor Emitter
Other wire lengths and/or colors are available. Contact your local representative or call the
factory.
Replaces/Upgrades
OPB880/OPB890 Series
Optek Technology, Inc.
1215 W. Crosby Road
Carrollton, Texas 75006
12-12
(972) 323-2200
Fax (972) 323-2396
Types OPB380, OPB390 Series

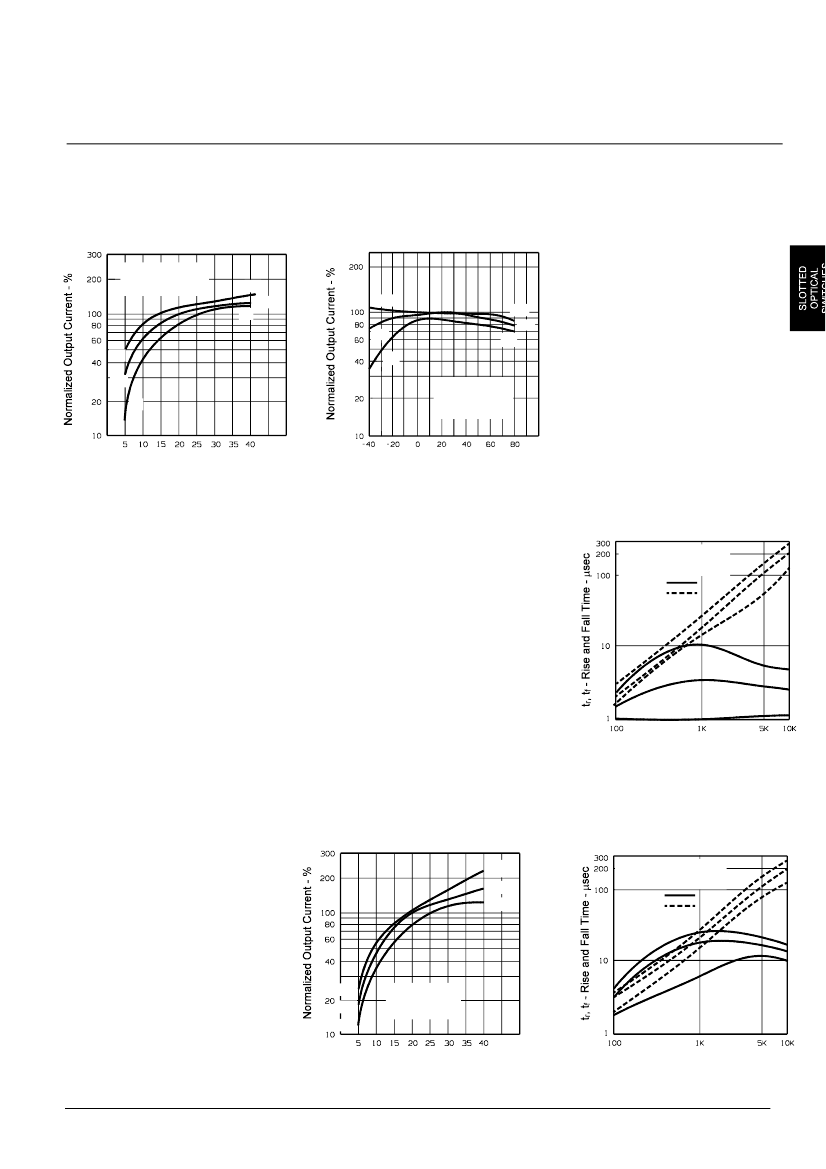

Electrical Characteristics
(T
A
= 25
o
C unless otherwise noted)
SYMBOL
Input Diode
V
F
I
R
V
(BR)CEO
V
(BR)ECO
I
CEO
PARAMETER
MIN MAX UNITS
1.7
100
30
5.0
100
V
µA
V
V
nA
I
F
= 20 mA
V
R
= 2 V
I
C
= 1 mA
I
E
= 100
µA
TEST CONDITIONS
Forward Voltage
Reverse Current
Collector-Emitter Breakdown Voltage
Emitter-Collector Breakdown Voltage
Collector-Emitter Dark Curreent
On-State Collector Current
OPB380T, N, L, P55
OPB390T, N, L, P55
Output Phototransistor
V
CE
= 10 V, I
F
= 0, E
e
= 0
Coupled
3.5
14.0
mA
V
CE
= 0.4 V, I
F
= 20 mA
I
C(ON)
OPB380T, N, L, P51
OPB390T, N, L, P51
OPB380T, N, L, P11
OPB390T, N, L, P11
2.5
1.0
10.0
5.0
mA
mA
V
CE
= 0.4 V, I
F
= 20 mA
V
CE
= 0.4 V, I
F
= 20 mA
PART NUMBER GUIDE
OPB 3 X X X X X
Optek Assembly
Aperture Width In Front
of Sensor
5 = 0.050" 1 = 0.010"
Aperture Width In Front
of Emitter
5 = 0.050" 1= 0.010"

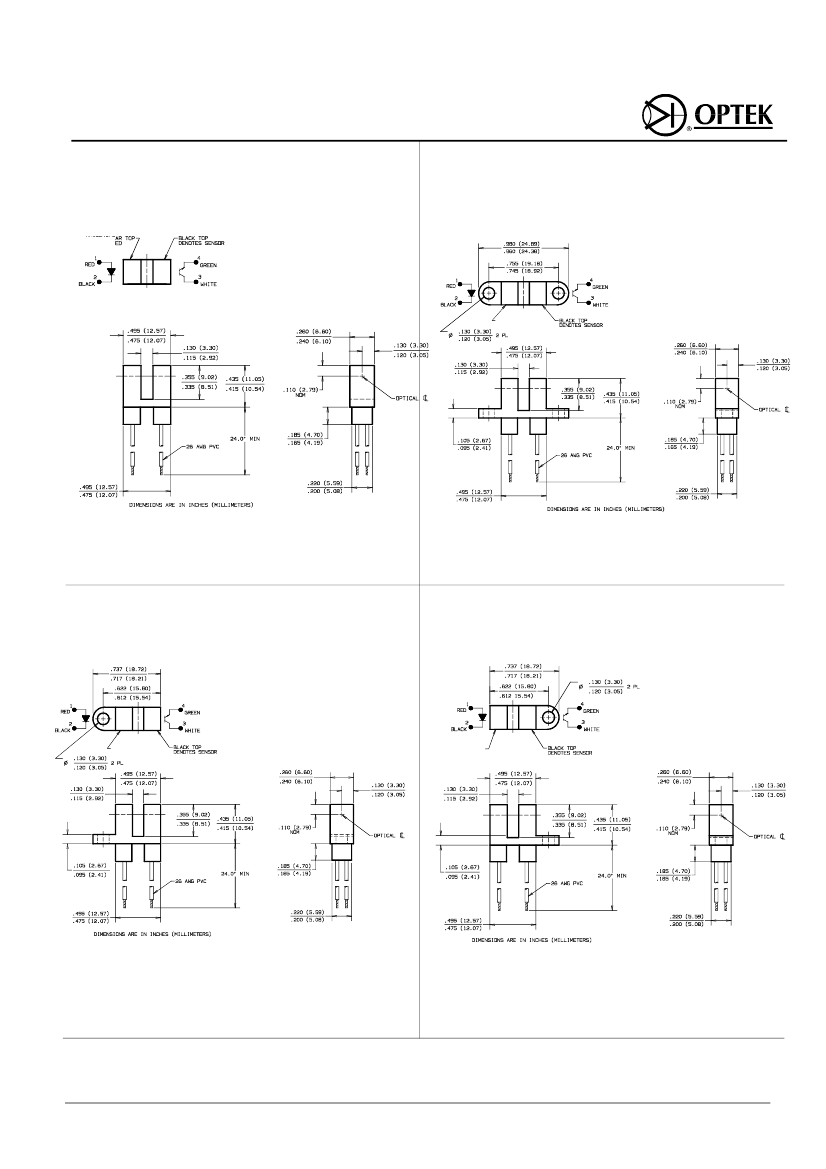

Mounting Configurations
T -Both Mounting Tabs
N - No Mounting Tabs
L - Single Mounting Tab
Emitter Side
P - Single Mounting Tab
Phototransistor Side
Phototransistor Output
Family
Discrete Shell Material
Designation
8 - Base Mount IR Transmissive
Plastic Discrete Shell
With Wire Termination
9 - Base Mount Opaque
Plastic Discrete Shell
With Wire Termination
Optek reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Optek Technology, Inc.
1215 W. Crosby Road
Carrollton, Texas 75006
(972) 323-2200
Fax (972) 323-2396
12-13
