part number:
description:
50-00165
Connector, 5P mini DIN female, molding
style, brass, nickel plating
date:
April 23, 2012
rev:
A1
page:
1 of 2
Materials:
shell
insulator
pin
rating
insulation resistance
dielectric strength
operating temperature
Notes:
RoHS compliant
brass, nickel-plated, 3 μm min.
PBT
brass, silver-plated
100 Vac, 1 A max., or 12 Vdc, 2 A max,
50 mOhms min @ 250 Vdc
250 Vac/1 minute
-55°C to + 85°C

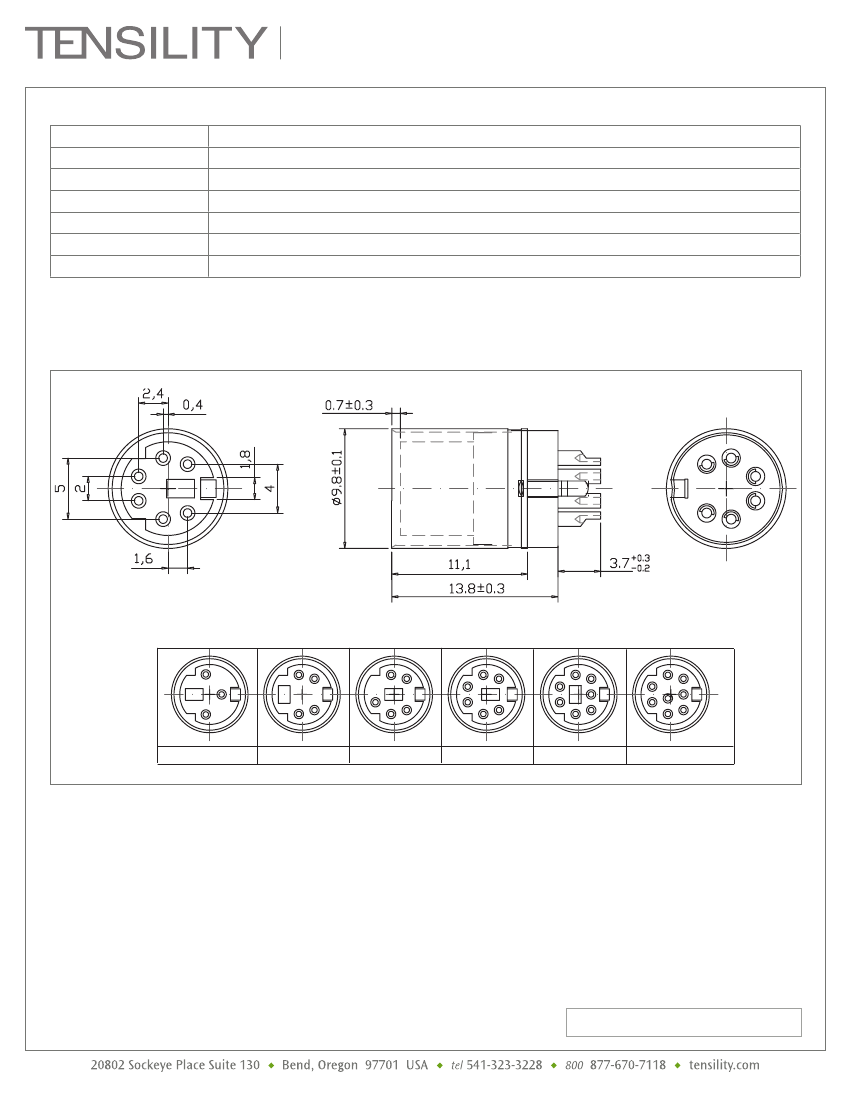

Mechanical drawing:
50-00163
50-00164
50-00165
50-00166
50-00167
50-00168
MD 3 PIN
Units: mm
MD 4 PIN
MD 5 PIN
MD 6 PIN
MD 7 PIN
MD 8 PIN
tolerance
X: ±0.5 mm
.X: ±0.3 mm
.XX: ±0.05 mm
applicable unless otherwise indicated in specification or on drawings
Initial
Date
part number:
description:
50-00165
Connector, 5P mini DIN female, molding
style, brass, nickel plating
date:
April 23, 2012
rev:
A1
page:
2 of 2
Revision notes:
Rev
Date
Description
A
A1
November 29, 2011
April 23, 2012
initial release
updated to 50-00165 only
Specification Approval
