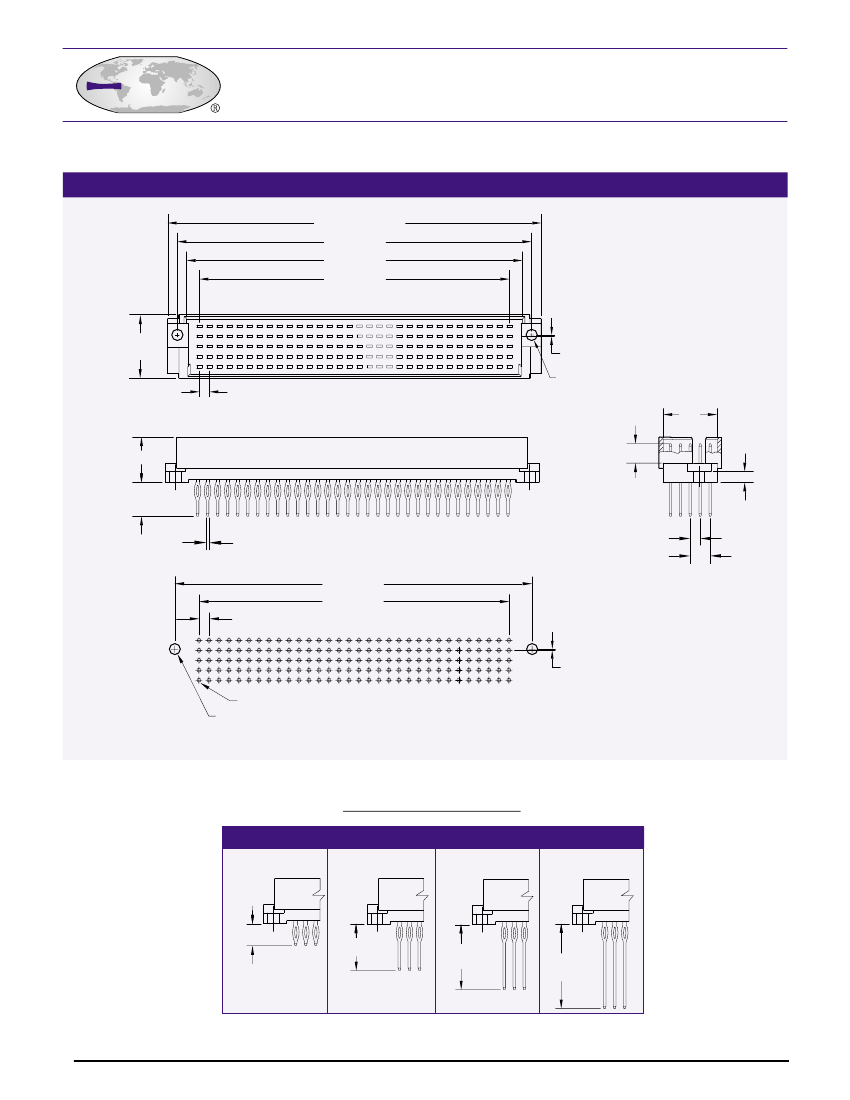

Type TE, 160 Positions
Type TE, TE/2 Male Connectors
DIN 41612
95.00 [3.740] max.
90.00 [3.543]
85.20 [3.354]
78.74 [3.100]
1a
16.20
[.638 ]
1b
1c
1d
1e
0.30 [.012]
Ø 2.80 [.110]
2.54 [.100] Typical
13.80
[.543]
4.80
[.189]
2.90
[.114]
11.50 [.453]
TAIL LENGTH
2.54
[.100]
.64
[.025]
Typical
5.08
[.200]
90.00 [3.542]
78.74 [3.100]
2.54 [.100] Typical
1a
1b
1c
1d
1e
0.30 [.012]
Ø 1.02 [.040]
Ø 2.80 [.110]
Recommended P. C. Board Layout
Dimensions are in mm [inches]
TAIL LENGTH OPTIONS
Press Fit
1
2
3
4
4.67 [.184]
13.00
[.512]
17.0
[.669]
20.90
[.823]
WWW.ECSCONN.COM

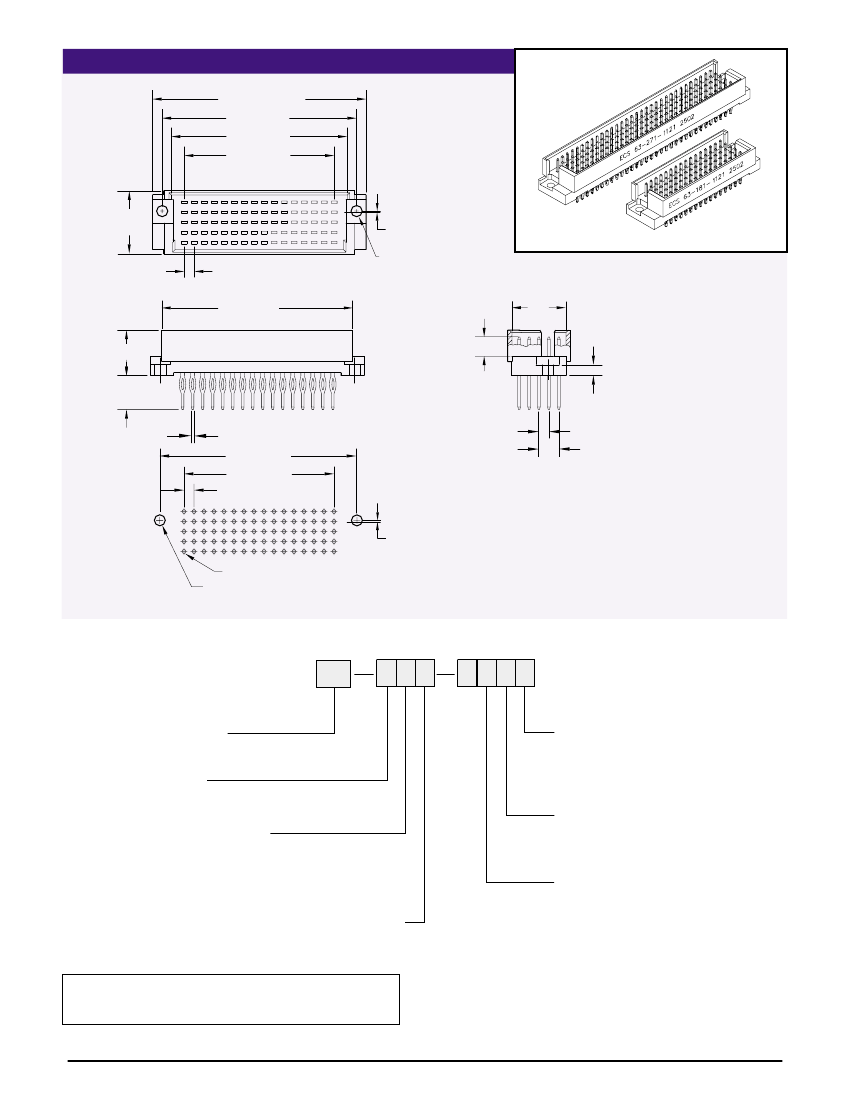

Type TE/2, 80 Positions
55.00 [2.165] max.
50.00 [1.969]
44.60 [1.756]
38.10 [1.500]
1a
16.20
[.638]
1b
1c
1d
1e
0.30 [.012]
Ø 2.80 [.110]
2.54 [.100] Typical
46.74 [1.840]
13.80
[.543]
4.80 [.189]
2.90 [.114]
TAIL LENGTH
11.50 [.453]
.64 [.025] Typical
2.54 [.100]
50.00 [1.969]
38.10 [1.500]
2.54 [.100] Typical
1a
1b
1c
1d
1e
5.08 [.200]
0.30 [.012]
Ø 1.02 [.040]
Ø 2.80 [.110]
Recommended P. C. Board Layout
Dimensions are in mm [inches]
PART NUMBERING
63
XXX
1 X XX
SERIES CODE
Type TE, TE/2 DIN
BODY STYLE
1
= TE/2 (80 positions)
2
= TE (160 positions)
1
= Tin Lead
2
= Gold flash (.200" from pin tip)
3
= Gold plate 30µ” (.200" from pin tip)
4
= Gold plate 15µ” (.200" from pin tip)
TAIL PLATING
NUMBER OF CONTACTS
1
= 16
2
= 32
3
= 48
4
= 64
5
= 96
6
= 128
7
= 160
8
= 80
MATING AREA PLATING
1
= Class 1
2
= Class 2
3
= Class 3
TAIL LENGTH
CONTACT ARRANGEMENT
1
= Row A, B, C, D and E fully populated
Consult Factory for other Loading Options
1
= 4.67 [.184]
2
= 13.00 [.512]
3
= 17.00 [.669]
4
= 20.90 [.823]
Press-Fit
Press-Fit
Press-Fit
Press-Fit
Note: Press Fit Connectors required a press in tool.
See page C-48 for Press In Tool information.
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR DESIGN
WWW.ECSCONN.COM
